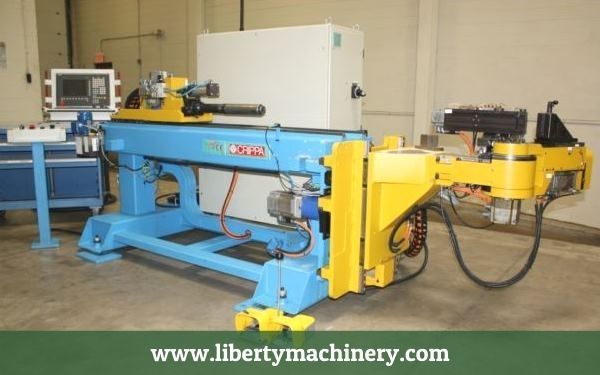

Crippa Tube Bender CA725E
Serial No.CA725E-9655
New – 2007
CATALOGUE SPECIFICATIONS:
Flexural Strength (Rs = 250 N/mm^2)…………0.77cm3
Tube Diameter – Maximum…………0.98″/25mm
Curvature Radius – Maximum…………5.90″/150mm
Bending Radius – Maximum…………1.77″/45mm
Passage Diameter Inside Carriage – Maximum…………1.46″/37mm
Mandrel Stroke When Equipped – Currently Does Not Have Mandrel…………7.87″/200mm
Working Height…………42.91″/1,090mm
Approximate Dimensions…………158″L x 64″W x 66″H
Approximate Weight…………4,050 Lbs.
Machine Axis
Y-Axis: Linear
Speed – Maximum…………71 m/min.
Resolution…………0.00039″/0.01mm
Repetitiveness…………+/- 0.002″/0.05mm
Stroke…………59.05″/1,500mm
Stroke Limit – Minimum…………0″/0mm
Stroke Limit – Maximum…………59.05″/1,500mm
B-Axis on the Crippa tube bender: Rotation
Speed – Maximum…………150 turns/min.
Resolution…………0.01 degree
Repetitiveness…………+/- 0.05 degree
C-Axis: Bending
Speed – Maximum…………50 turns/min.
Resolution…………0.01 degree
Repetitiveness…………+/- 0.05 degrees
Stroke…………188 degrees
Stroke Limit – Minimum…………0 degrees
Stroke Limit – Maximum…………188 degrees
X-Axis: Head Horizontal Movement
Speed – Maximum…………50 m/min.
Resolution…………0.00039″/0.01mm
Repetitiveness…………0.002″/0.05mm
Stroke…………5.90″/150mm
Stroke Limit – Minimum…………0″/0mm
Stroke Limit – Maximum…………5.90″/150mm
U Axis: Clamp
Speed – Maximum…………9.9 m/min.
Resolution…………0.00039″/0.01mm
Repetitiveness…………0.002″/0.05mm
Stroke…………120
Stroke Limit – Minimum…………-5
Stroke Limit – Maximum…………115
U1 Axis: Pressare-Die
Speed – Maximum…………9.9 m/min
Resolution…………0.00039″/0.01mm
Repetitiveness…………0.002″/0.05mm
Stroke…………100
Stroke Limit – Minimum…………-8
Stroke Limit – Maximum…………92
V1 Axis: Slide
Speed – Maximum…………9.4 m/min.
Resolution…………0.00039″/0.01mm
Repetitiveness…………0.002″/0.05mm
Stroke…………120
Stroke Limit – Minimum…………0
Stroke Limit – Maximum…………120
Crippa Tube Bender CA725E EQUIPPED WITH:
Siemens Sinumerik Model 840 DI CNC Controller (G-Code Programming)
Foot Pedal and Dual Palm Anti-Tie Down Actuators
Safety Gate and Light Curtain
*Preliminary Specifications Subject to Verification.
Tube benders are essential tools used in a variety of industries, including plumbing, automotive, HVAC, and manufacturing. A Crippa tube bender will provide the capability to bend metal tubes and pipes with precision, enabling the creation of complex and customized shapes for various applications.
One of the primary advantages of tube benders is their ability to ensure accurate and consistent bends. These tools come in different types, including manual, hydraulic, and electric, each offering unique features and capabilities. Manual tube benders are often handheld and rely on human effort to bend the tubes, making them suitable for small-scale projects and on-site installations. Hydraulic and electric tube benders like the Crippa tube bender, on the other hand, provide automated bending processes, allowing for higher precision, repeatability, and efficiency. They are commonly used in industrial settings where large volumes of tubing require bending.
