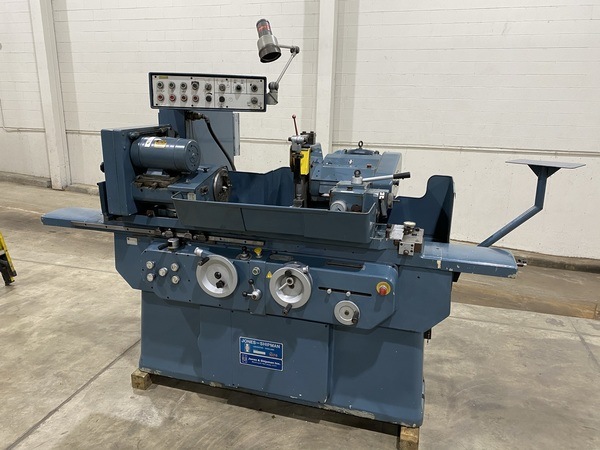

10" x 27" Jones & Shipman 1076 Cylindrical Grinder - #50259

Liberty Machine # 50259 Category Make

Serial No. BO 13892
New - 1989

SPECIFICATIONS:
Ground with New Wheel Diameter - Maximum.......10"
Grinding Length Between Centers............27"
Height from Table Top to Centre............5"
Table Swivel, Including Angle (Clockwise)........16 Degrees
Table Swivel, Including Angle (Anti-Clockwise)............18 Degrees
Workhead Speeds............40, 60, 90, 140, 210, 320 RPM
TableTraverse Speeds, per Minute 3" - 180"
Table Reversal Accuracy at all Speeds............0.002"
Table Shortest Traverse Speed - Maximum............0.040"
Table Hand Traverse Handwheel per Revolution............0.500"
Table Fine Hand Traverse Knob Graduation............0.0002"
Table Fine Hand Traverse Knob per Revolution............0.01"
Wheelhead Traverse on Screw............7"
Wheelhead Retraction............1-1/4"
Wheelhead Reset (Reduction in Diameter) - Maximum............0.040"
Wheelhead Crossfeed Handwheel Graduations (Reduction in Diameter)............0.0002"
Wheelhead Fine Feed Knob Graduations (Reduction in Diameter)............0.00005"
Wheelhead Intermittent Feed Infinitely Variable (Reduction in Diameter)............0.000002" - 0.002"
Grind Wheel Standard Size............16" x 1-1/2" x 5" (H)
Grinding Wheel Speeds - Two............1,660 & 1,950 RPM
Wheelhead............5.5 hp
Workhead............0.75 hp
Hydraulic Pump............1.0 hp
Coolant Pump............0.16 hp
Table Height from Floor............38"
Dimensions (Floor Space Standard Machine) - Approximate............127" x 67" x 64" (H)
Weight - Approximate............4,600 Lbs.

Equipped With:
Hydraulic Traverse Grinding, Plunge, Taryy L-R, Spark-Out

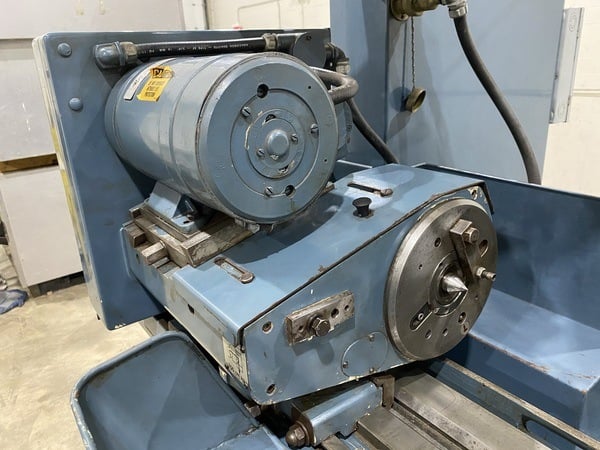

Combination Live / Dead Workhead
Micrometer Adjust Tailstock

Preliminary Specifications Subject to Verification
