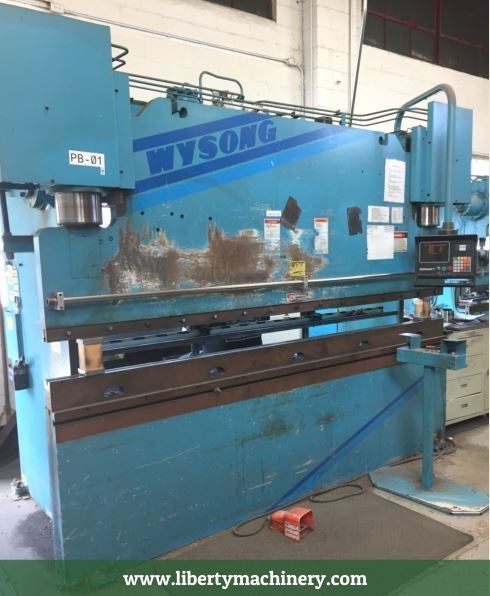

Wysong Press Brake MTH175-120
Serial No. MT14-144
New – 1995
SPECIFICATIONS:
Capacity…………175 Tons
Table – Length…………120″
Ram – Length…………120″
Stroke…………8″
Height – Open…………17″
Height – Closed…………9″
Throat Depth…………8″
Adjustment…………9″
Table Work Height…………34″
Ram – Approach Speed…………300 IPM
Ram – Speed Forming…………22 IPM
Ram – Return Speed…………250 IPM
Distance Between Uprights…………102″
Three Phase Hydraulic Pump…………15 HP, 230/460 Volt
Machine Dimensions…………129″Lx 67″Wx 114″H
Skid with Tooling Dimensions…………48″L x 48″W x 36″H
Machine Weight…………23,000 Lbs.
Skid Weight…………1,000 Lbs.
Wysong Press Brake MTH175-120 EQUIPPED WITH:
24″ Hurco Autobend S7, Two-Axis Programmable Back Gauge
Vertical (manual) adjustment of backgauge 10″
One Shot Lube System
Pedestal Two Hand Safety Cycle Control Station, Foot Pedal
Front Electric Eye Safety Curtain
Large Quantity of Press Brake Tooling
*Preliminary Specifications Subject to Verification
Press brakes are essential machines in metal fabrication and sheet metal bending operations. They are used to bend and shape metal sheets or plates with high precision and control. Press brakes like the Wysong press brake consist of a sturdy frame, a hydraulic or mechanical system, and a bending tool known as the punch and die set.
The metal sheet is positioned between the punch and die set, and the press brake exerts force to bend the sheet to the desired angle. The force applied by the press brake is carefully controlled, allowing for accurate and repeatable bending operations.
Press brakes like the Wysong press brake offer various advantages, including versatility, efficiency, and flexibility. They can handle a wide range of materials and thicknesses, making them suitable for diverse applications. Press brakes can be programmed to perform complex bends and multiple bends in a single setup, reducing production time and increasing productivity.
With modern advancements, many press brakes like the Wysong press brake are equipped with CNC controls, allowing for precise control over bending parameters and automatic operation. This enhances accuracy and repeatability while reducing the risk of human error.
