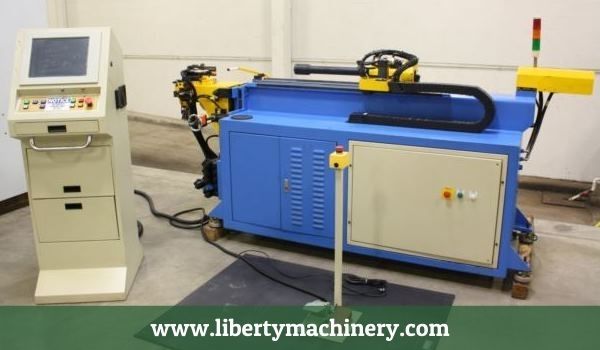

Horn Tube Bender CNC18TDRE
New – 2006
Serial No. 060715 (Bender 340)
SPECIFICATIONS:
Pipe OD – Maximum…………0.7″ x 0.063″ (18 x 1.6 mm)
Pipe OD for Repeat Feeding – Maximum…………0.79″ (20 mm)
Round Tube – Non-Ferrous…………0.79″ x 0.079″ (20 x 2 mm)
Round Tube – Stainless…………0.7″ x 0.032″ (18 x 0.8 mm)
Square Tube – Mild Steel…………0.59″ x 0.047″ (15 x 1.2 mm)
Round Bar – Mild Steel…………0.315″ (8 mm)
Feeding Speed…………79 IPS (2000 mm/sec.)
Rotation Speed of the Horn tube bender…………320 Deg./sec.
Accuracy Repeatability…………+/-0.01 Deg.
Bending Radius – Maximum…………0.39″ – 3.15″ (10 – 80 mm)
Bending Angle – Maximum…………190 Deg.
Difference between Two Radii – Maximum…………1.18″ (30 mm)
Length over Mandrel – Maximum…………47″ (1200 mm)
Working Height…………43″ (1100 mm)
Tooling Center Line Height…………0.87″ (22 mm)
DOB Speed…………226 Deg./sec.
Machine Dimensions – Actual…………112″(L-R) x 32″(F-B) x 59″(H)
Control Dimensions – Actual…………21″(L-R) x 24″(F-B) x 60″(H)
Weight – Catalog…………1,980 Lbs.
Horn Tube Bender CNC18TDRE EQUIPPED WITH:
Programmable Touch Screen Control on Pedestal w/E-stop
Dual Stack Tooling Mount
2-Axis Tool Shift (Head Shift)
Servo Driven Bend-arm (C-Axis), Carriage (Y-Axis), & Collet (B-Axis)
Hydraulic Clamp Die, Pressure Die, & Collet Grip
Automatic Mandrel Lubrication
Anticipated Mandrel Retraction Unit
Ethernet & USB Ports
Operators Manual and Technical Documentation
*Catalog Specification Subject to Verification
Horn tube bender machines are essential tools used in a variety of industries, including plumbing, automotive, HVAC, and manufacturing. They provide the capability to bend metal tubes and pipes with precision, enabling the creation of complex and customized shapes for various applications.
One of the primary advantages is their ability to ensure accurate and consistent bends. These tools come in different types, including manual, hydraulic, and electric, each offering unique features and capabilities. Manual tube benders are often handheld and rely on human effort to bend the tubes, making them suitable for small-scale projects and on-site installations. Hydraulic and electric Horn tube bender machines, on the other hand, provide automated bending processes, allowing for higher precision, repeatability, and efficiency. They are commonly used in industrial settings where large volumes of tubing require bending.
