Tacchi HD1000-S Long Bed CNC Lathe
Serial No. 6696
Year Built – 1991
Retrofit – 2005 (Siemens 840DI control)
Swing Over Bedways…………48”
Swing Over Cross Slide…………33”
Distance Between Centers…………516”
Spindle Bore Diameter…………4.7”
Main Spindle Drive Motor…………75 HP/DC Drive
Spindle Speeds, Variable…………3 – 1,000 RPM
Geared Headstock (w/ Spindle Positioning for Milling)…………2.5 degree increment
Cross Slide Stroke…………23.6″
Rapid Traverse, longitudinal & cross…………236.2 ipm
Feeds, longitudinal & cross…………236.2 ipm
Milling Unit on Cross Slide (Saddle) Two Position (Radial & Axial)…………0 degrees & 90 degrees
Milling/Drilling Unit Spindle Nose: ISO 40…………15 HP/DC
Milling/Drilling Unit Spindle Speeds (Inf. Variable)…………20-2000 RPM
Tailstock Quill Diameter…………6.9”
Tailstock Quill Stroke…………11.8”
Tailstock Internal Taper…………#6 MT
Maximum Weight Between Centers………..24,200 Lbs.
Electrics…………460V/3PH/60Hz
Dimensions – Approximate………….57′-0″ x 62″ x 79″ (H)
Weight – Approximate…………56,000 Lbs
EQUIPPED WITH:
Siemens 840DI CNC Control (Retrofit in 2005)
Heidenhain Scales (Closed Loop Feedback)
Milling/Drilling Capabilities and Spindle Positioning
1000 Psi Hi-Pressure Pump for Deep Hole Drilling
(2) Steady Rests/Whip Guides for Deep Hole Drilling
4 Position Electric Turret on Saddle/Cross Slide (Spare Turret in crate)
25″ 3-Jaw Buck Chuck (Spindle Nose DIN55021 – GR11″)
(1) 16″ Capacity Open Steady Rest
(2) 4″-19.7″ Capacity Closed Steady Rests
Hydraulic Tailstock Clamping
Full Length Chip Conveyor
Coolant/Filtration System
Automatic Lubrication

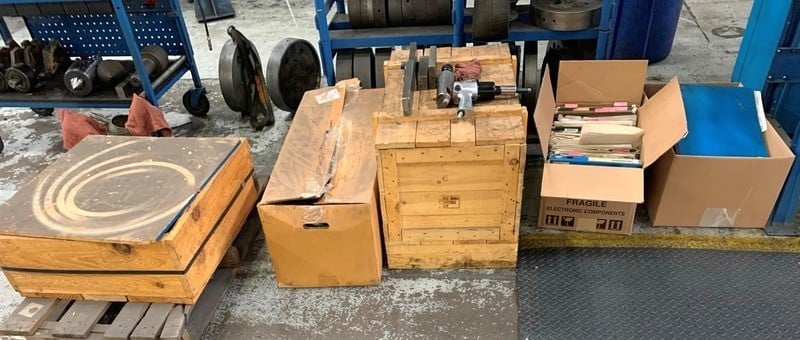

Misc. Spare Parts and Tooling
Books, Manuals, Drawings & Retrofit Documentation
*Preliminary Specifications Subject to Verification
