1/4″ x 10′ Accurshear 825010 LP | 25-70 SPM, Backgauge, 1986 – #50695

Liberty Machine # 50695 Category Make

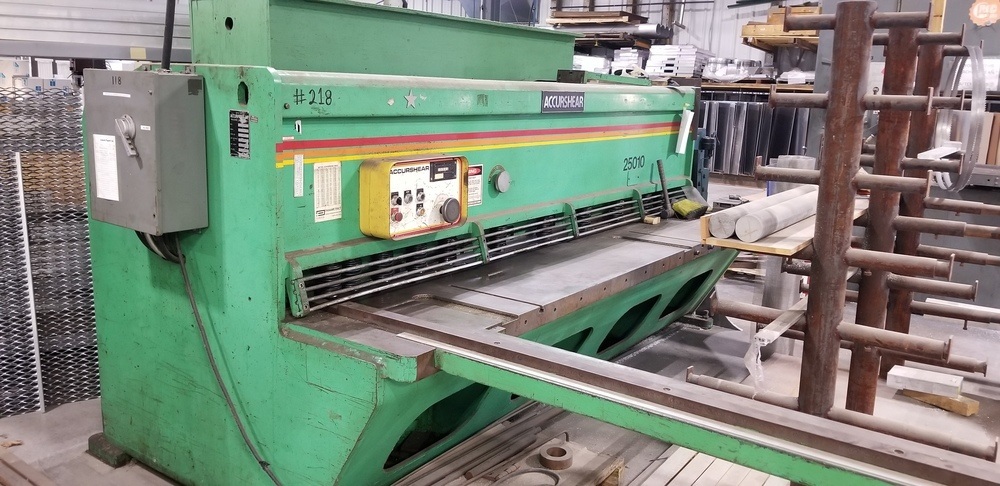

Accurshear 825010 Hydramechanical Shear

New – 1986

SPECIFICATIONS:
Capacity – mild steel (most grades)…………1/4″ x 10′
Knife length…………124″
Knife size…………1″ x 3″
Rake angle…………1/4″ per foot (1 degree)
Strokes per minute – full…………25
Strokes per minute – short…………70
Number of hold downs…………11
Hold down tonnage…………13
Table height from floor…………32″
Minimum clearance…………0.002
Oil pressure…………3500
Motor…………20 HP / 1760 RPM
Voltage…………230 / 460
Phase…………3
Cycles………..60
Amps…………50 / 25
Dimensions – approximate…………12’6″(L-R) x 7’8″(F-B) x 6’5″(H)
Weight – approximate…………15,000 lbs.

EQUIPPED WITH:
Accurshear front operated power backgauge
Squaring arm

*Preliminary specifications, subject to verification.

Question: What is a Hydra-mechanical shear?
Answer: A mechanical shear is driven by an eccentric, which is engaged by a flywheel clutch combination. This drive system is generally rigid and fast, but offers less operator control and overload protection.
The hydraulic drive system involves a motor, coupled to a pump, which is linked to a manifold with hydraulic valves and one or more hydraulic cylinders. Oil is pumped into the cylinder(s), which in turn activates the ram.
A hydra-mechanical drive system is a combination of the above, whereby the ram is powered hydraulically, but develops a mechanical advantage through a rocker arm assembly.
