Agie Charmilles RoboForm40 Sinker EDM (Electrical Discharge Machine) | 20″ x 16″ x 18″ Cap. – #47485

Serial No. 4501
New – 1994

SPECIFICATIONS:

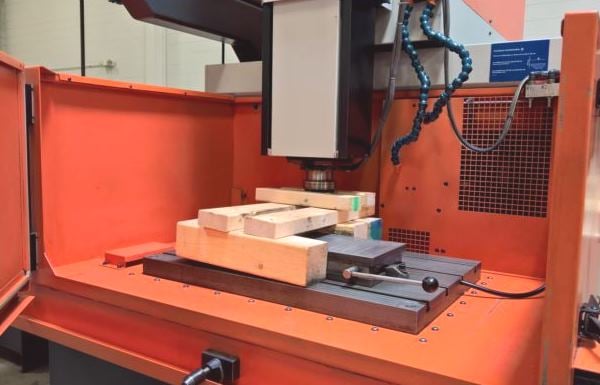

Work Table………………………………….29.5″x 19.68″ (749 x 500mm)
Work-Piece Weight – Maximum…………………………2,204 Lbs. (1000 Kg)
Work-Piece Dimensions – Maximum…..39.3″L x27.6″W x14.6H” (1000x 700x 370mm)
Weight of Electrodes – Maximum…………………………220 Lbs. (100 Kg)
Travels – XYZ-Axis…………………………….X-19.7″/ Y-15.7″/ Z-17.7″
Travels – C-Axis…………………………………………..360 Degrees
Measurement Resolution………………………….0.000019685039″ (0.5 um)
Positioning Increment…………………………….0.000039700787″ (1 um)
Speed Manual Mode – Maximum………………………….0.6 IPS (15mm/sec.)
C-Axis Rotation……………………………………..120 RPM(120 tr/mn)
C-Axis Inertia……………………………………1,422 PSI(100 kg.cm2)
Tool Changer Capacity……………………………….48Position Carousel
Dielectric Work Tank – Capacity……………………….79 Gallons (300 l)
Dielectric Work Tank Dimensions…….47″L X 34″W X 16.5″H (1193X 864X 420mm)
Work Tank Front Door Opening……………………………..42.5″ (1080mm)
Work Tank Side Door Opening……………………………….28.3″ (718mm)
Work Tank Both Doors Open………………………………….51″ (1295mm)
Work Tank – Min/Max Level…………………………6.7″/15.7″ (170/400mm)
Dielectric Storage Tank – Capacity……………………132 Gallons (500 l)
Dielectric Storage Tank Dimensions….54″L X 36″W X 25.6″H (1375X 910X 650mm)
Filtering System…………………………………..2×3 Paper Cartridges
Filler Pump Flow Rate – Maximum………………66 GPM (250 l/min.) – Gusher
Flusher Pump Flow Rate – Maximum………………21 GPM (80 1/min.) – Gusher
Electrics………………………………………..380V / 3 Phase / 60Hz

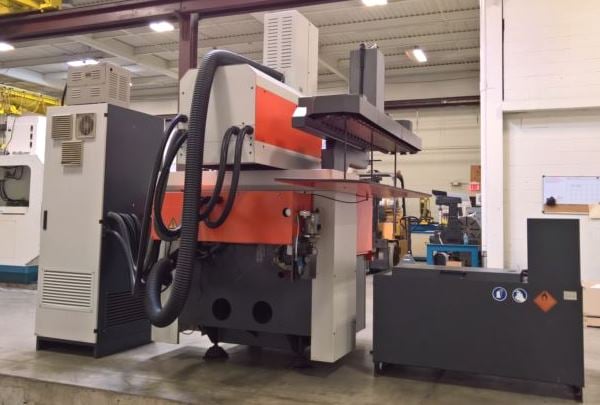

Approximate Dimensions…………………………….108″L X 100″W X 114″H
Approximate Weight………………………………………….8,800 Lbs.

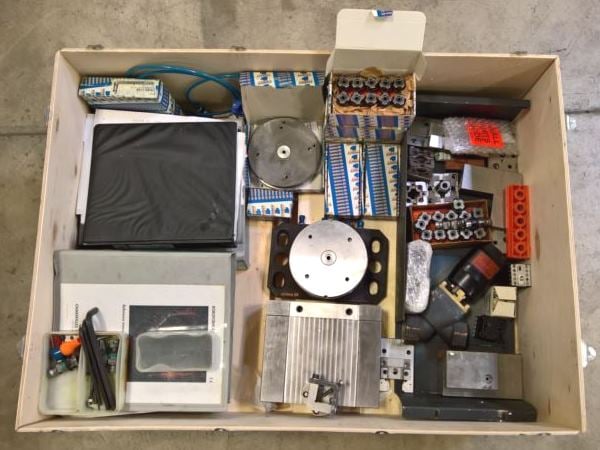

EQUIPPED WITH:

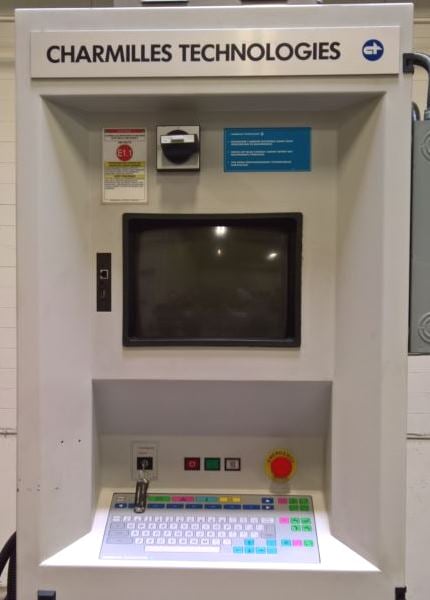

Charmilles Multi Task Control w/ Program Expert System
Auto Adaptive Control
Full C-Axis
System 3R Chuck Model 3R-600.83
System 3R Electrode Holder 3R-653

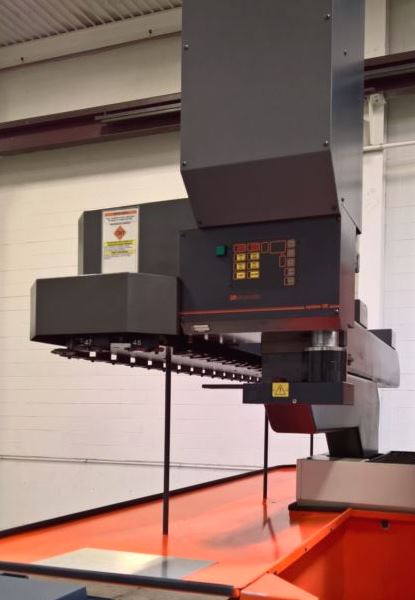

System 3R Tool Changer 3Robomatic Model: 3R-U-50116, 48 Positions
128 Amp Generator
Charmilles Dielectric Tank and Filtration System
Table Mounted Magnetic Chuck 12″ X 6″

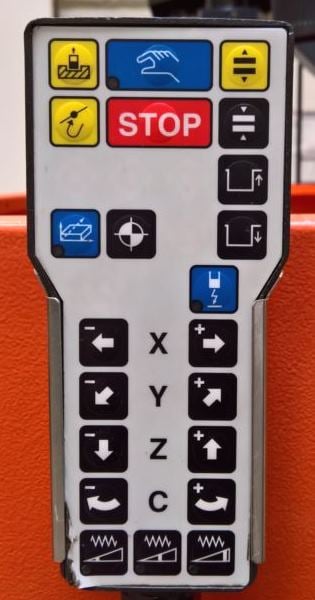

Pendant Controller
Serial Data Exchange RS232 / RS422 / RS423
3.5″ Floppy Drive
Built-In Dielectric Tank & Filter
Glass Scale System
Automatic Lube System

*Preliminary Specifications Subject to Verification.
