Automatic Blast Cabinets Guyson RXS-400 | 2-Indexing Spdls, 4-Recip. Guns – #50689

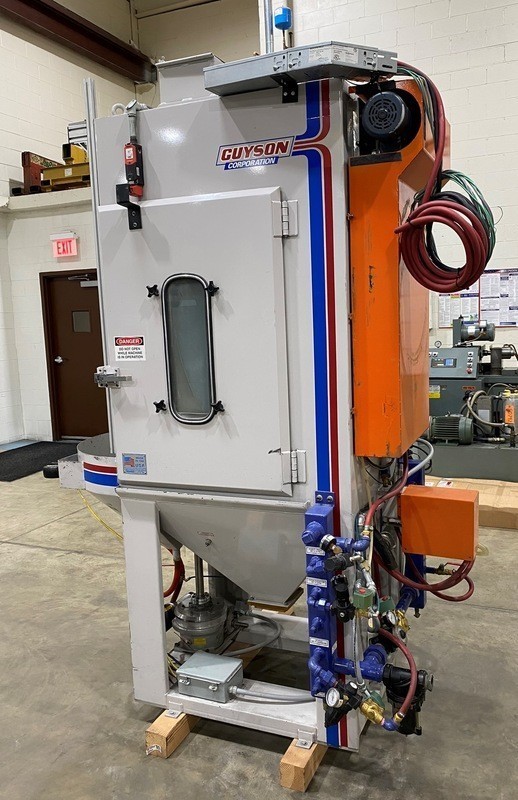

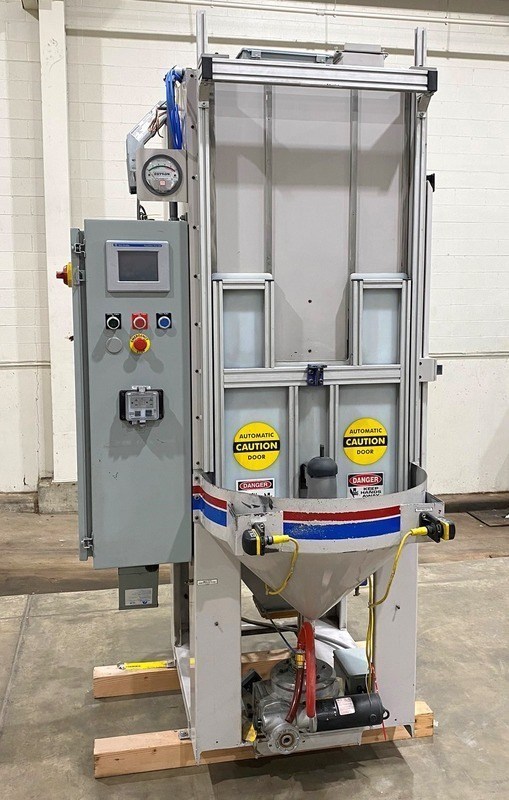

Automatic Blast Cabinets like the Guyson RXS-400 indexing spindle blast system is a work-cell-sized bead blast finish system with two work holding spindles for maximum efficiency. One part is in the load/unload cycle while the other is in the blast cycle. The work-piece is rotated during the blast cycle and the 4-gun configuration reciprocates vertically giving maximum part exposure with minimal time.

New – 2015
Serial No. M69481B
SPECIFICATIONS:
Part height thru door – maximum…………20″
Cabinet:
– Table Positions…………2
– Gun Assemblies…………4
– Nozzles…………4

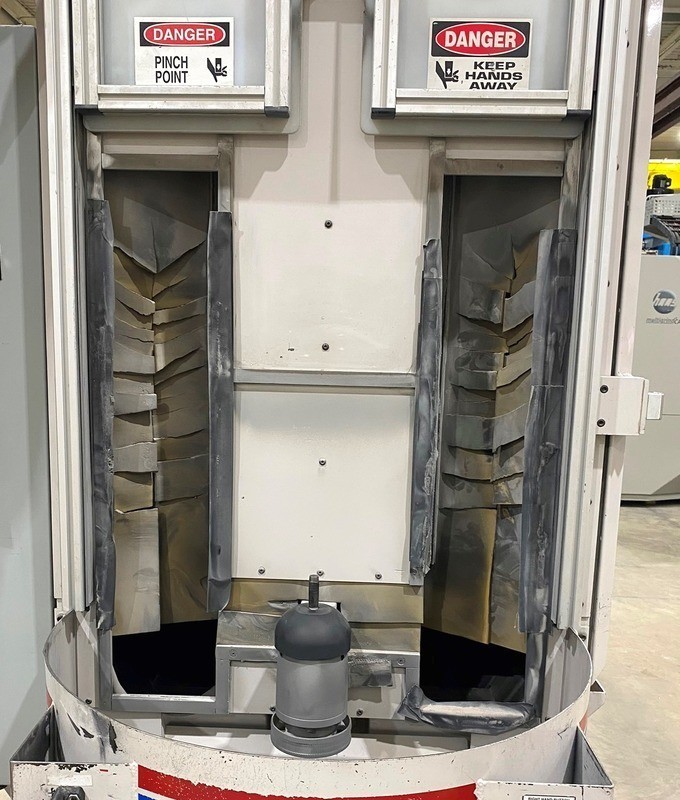

– Neoprine Lining…………1/4″
– Footprint…………34″(L-R) x 36″(F-B)
Dust Collector:
– Extraction @ 5.8″ WC Static Pressure…………1,000 CFM
– Motor…………3 HP
– Filters…………2
– Filter Area – Total…………452 Sq. Ft.
– Dust Drum…………22 Gallon

Automatic Blast Cabinets – Guyson RXS-400 EQUIPPED WITH:

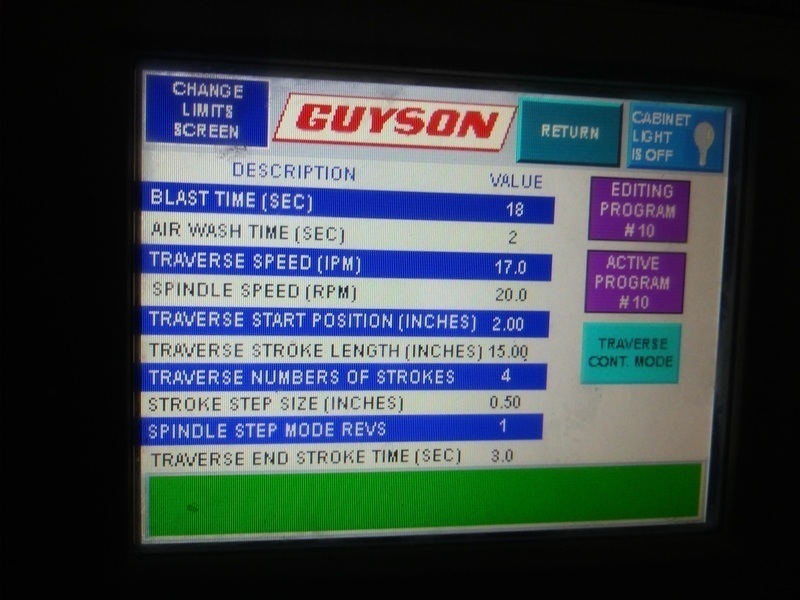

Allen-Bradley PanelView Plus 600

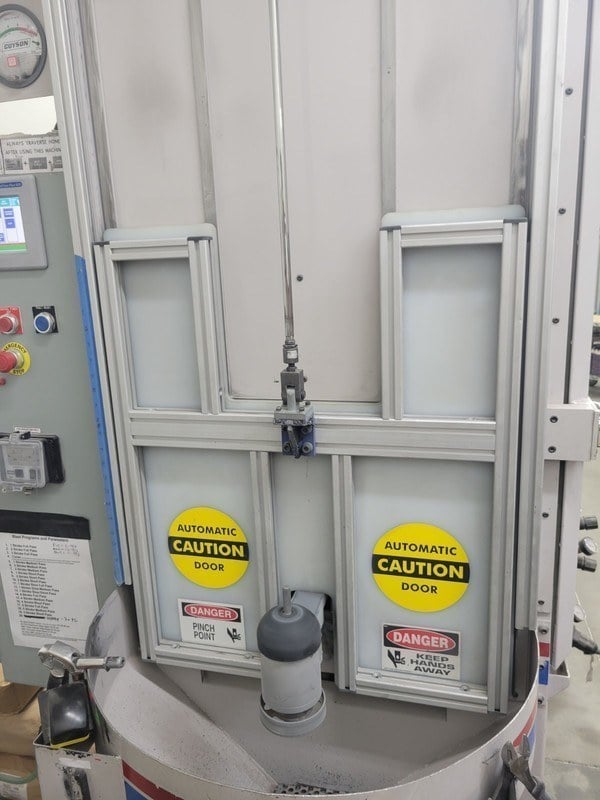

2-Position indexing table w/work piece rotation
Model 900 Gun Assemblies
Boron Carbide Nozzles
Programmable linear actuator for vertical gun reciprocation

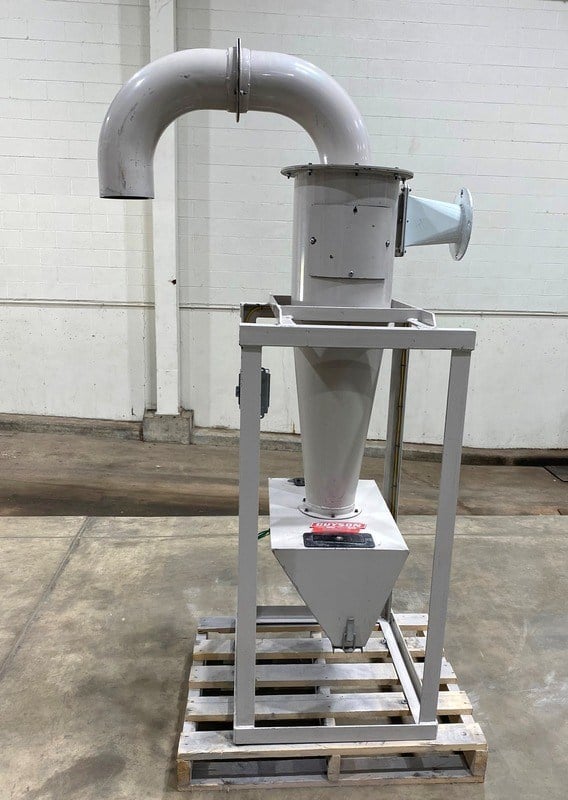

Model 75/12 Cyclone Reclaimer

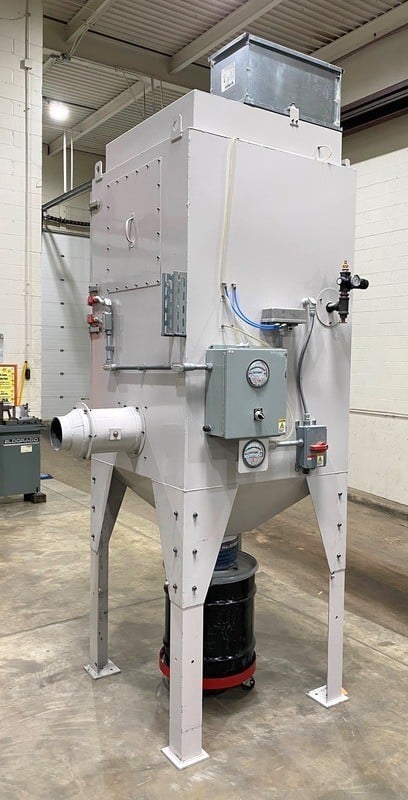

Model D-1000 Dust Collector

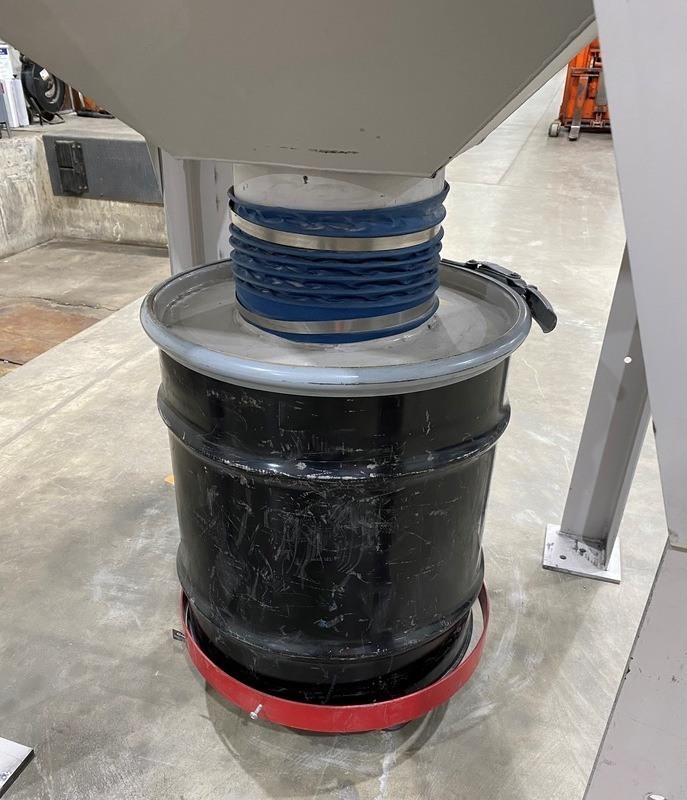

22-Gallon Roll Away Drum
Auto Blast & Blow-off cycles

*Catalog specification, subject to verification

Automatic blast cabinets, also known as automated blast cabinets, are specialized equipment used for automated abrasive blasting processes. These cabinets are designed to streamline and automate the blasting operation, increasing efficiency and productivity while reducing manual labor.

Automatic blast cabinets typically feature a conveyor system or a turntable that transports the workpieces through the blasting chamber. The blasting media is propelled onto the surfaces of the workpieces by a nozzle or blast gun, removing contaminants, rust, or coatings. The cabinets are equipped with an enclosed environment and a dust collection system to ensure a clean and safe working environment.

These cabinets offer several advantages over manual blasting. They provide consistent and uniform blasting results, eliminating the variability associated with manual operation. Automatic blast cabinets can handle high-volume production with minimal human intervention, reducing labor costs and increasing throughput.

Automatic blast cabinets are widely used in industries such as automotive, aerospace, foundries, and manufacturing facilities. They are employed for applications such as cleaning, deburring, descaling, and surface preparation.

In summary, automatic blast cabinets offer efficient and automated abrasive blasting solutions. They enhance productivity, ensure consistent results, and provide a safer working environment, making them valuable assets in various industrial sectors.
