Serial No. 12/BR 237411
Year Built – 1996
SPECIFICATIONS:
Travels:
– X-Axis – Table…………30″
– Y-Axis – Saddle…………12″

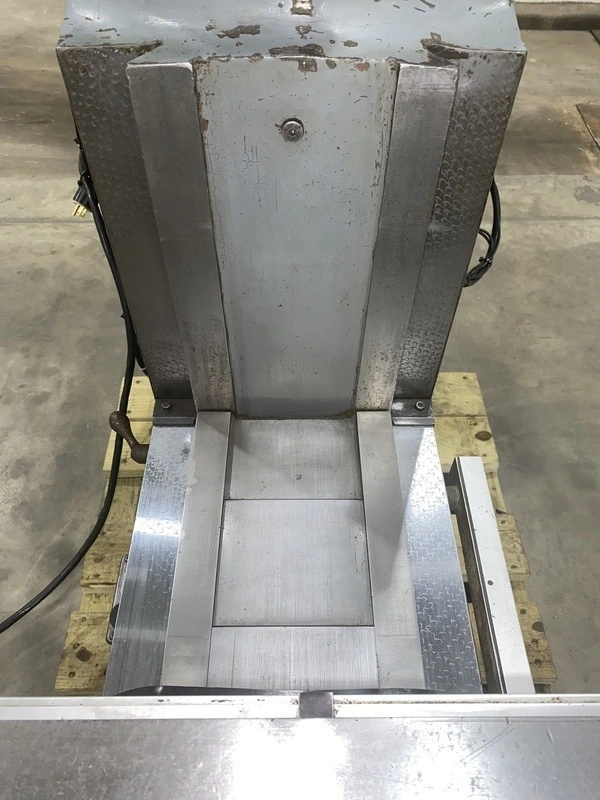

– Z-Axis – Knee…………16″
– Quill…………5″
– Ram…………12″
Throat Distance…………6.75″ – 18.75″
Table:
– Spindle Nose to Gauge Line…………2.5″ – 18.25″
– Table…………48″ x 9″
– T-slot Centers…………3 @ 2.5″
– T-slot Size…………0.625″
– Weight of Workpiece – Maximum…………750 Lbs.
Spindle:

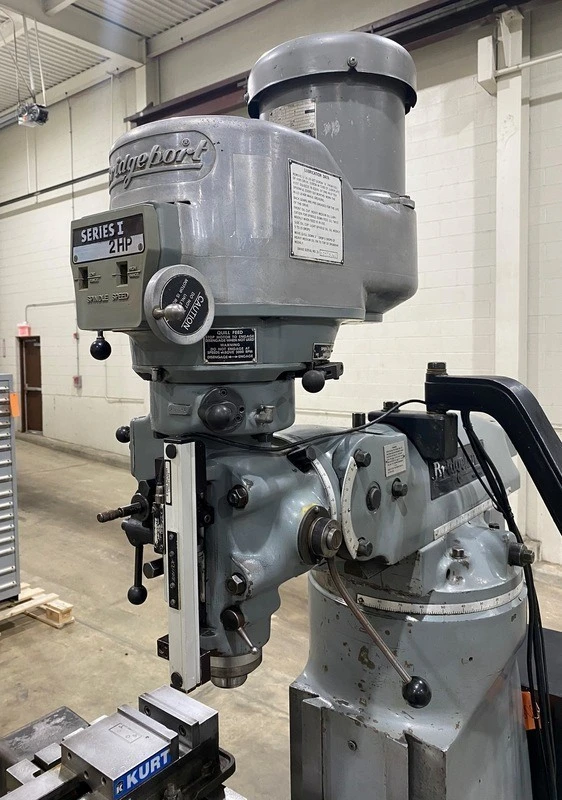

– Power…………2 HP
– Taper…………R-8
– High Speed Range – Infinitely Variable…………500 – 4,200 RPM
– Low Speed Range…………60 – 500 RPM
Capacity:
– Milling Capacity – Mild Steel…………2 CI/Min.
– Boring Range – Mild Steel…………6″ Dia.
Electrics…………208V-230V-460V/3Ph/60Hz
Floorspace – Catalog…………100″ x 95″
Height – Catalog…………87″
Weight – Catalog…………1,930 Lbs.
EQUIPPED WITH:

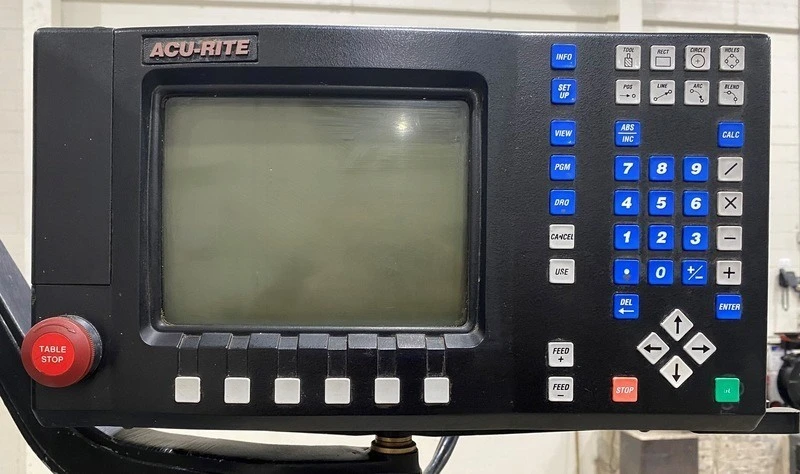

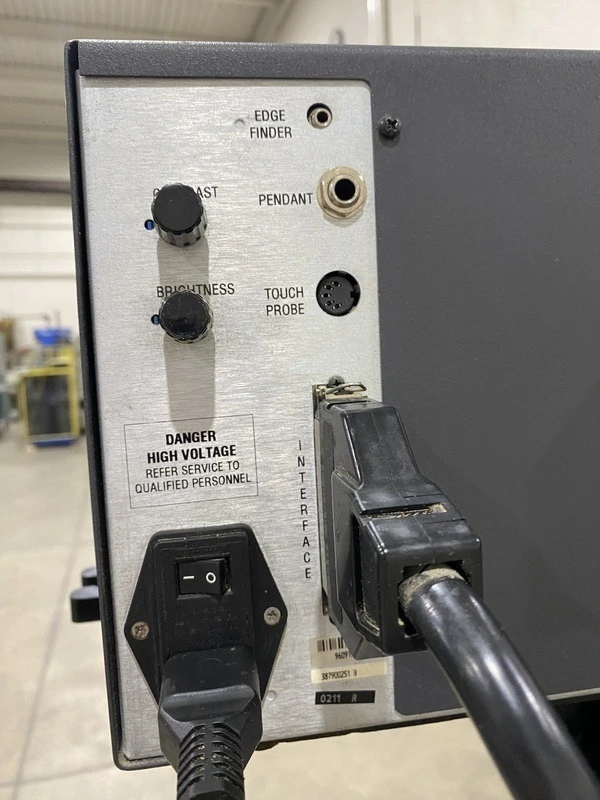

Acu-Rite MillPwr CNC two-axis Controller

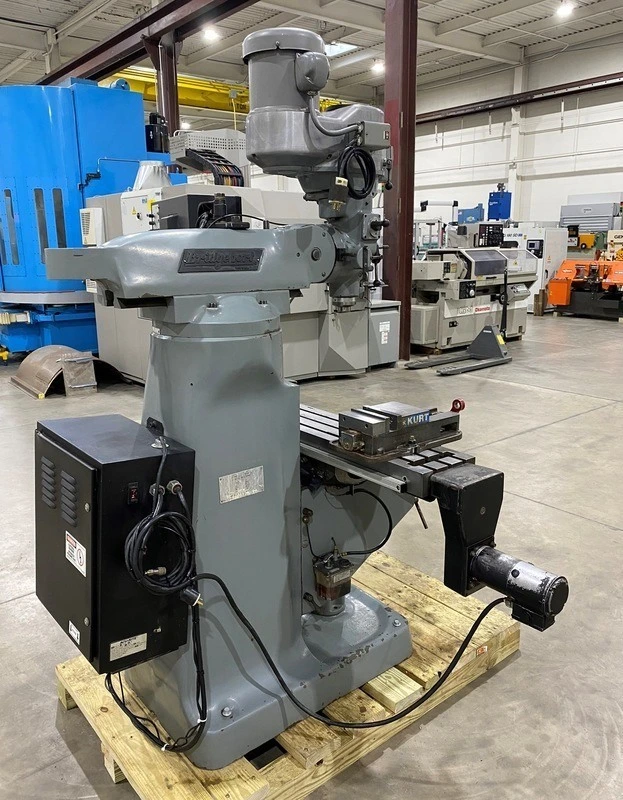

Acu-Rite Servo Feed Units for X & Y Axes

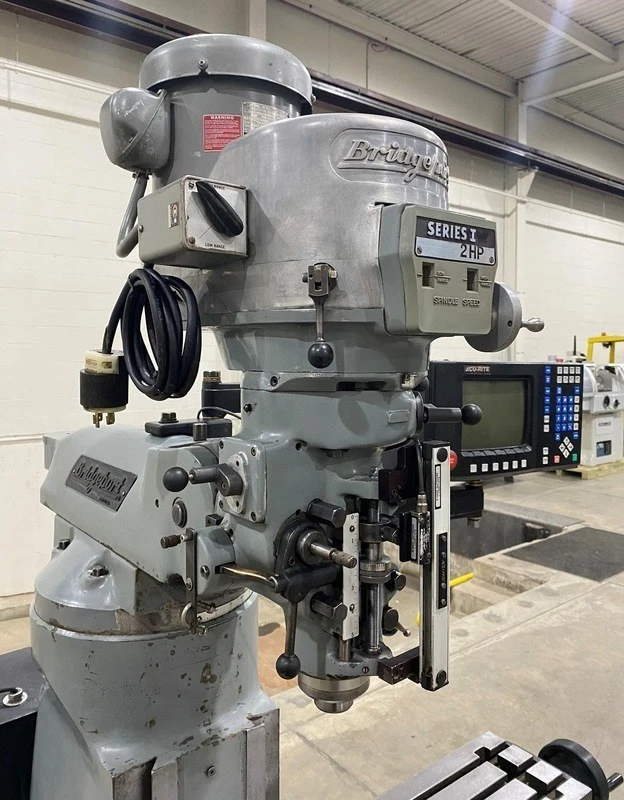

Acu-Rite Glass Scale on Z-Axis (Quill Feed)

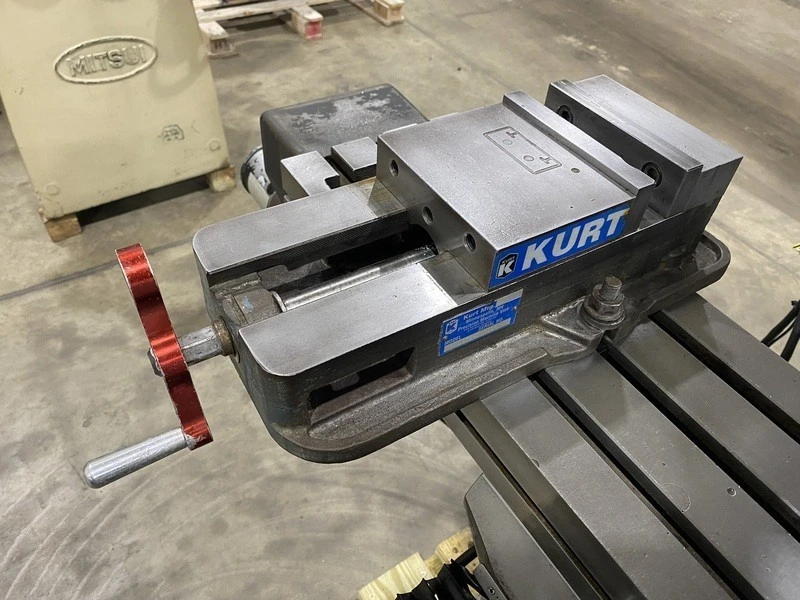

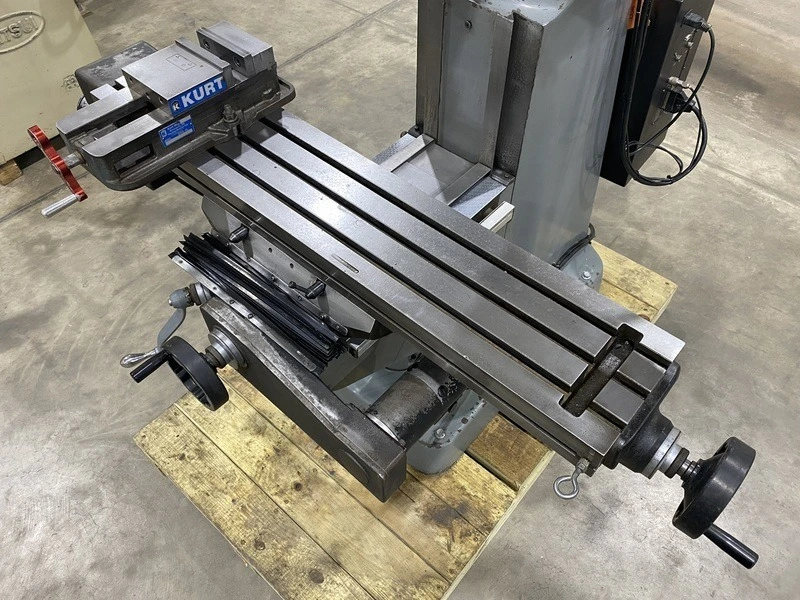

6″ Kurt Vise
*Preliminary specifications, pending confirmation.
