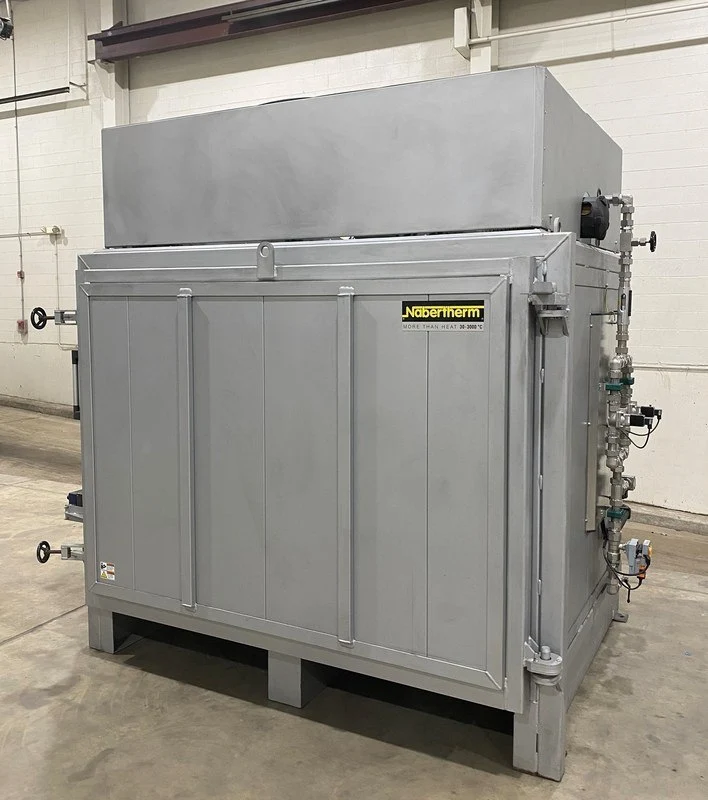

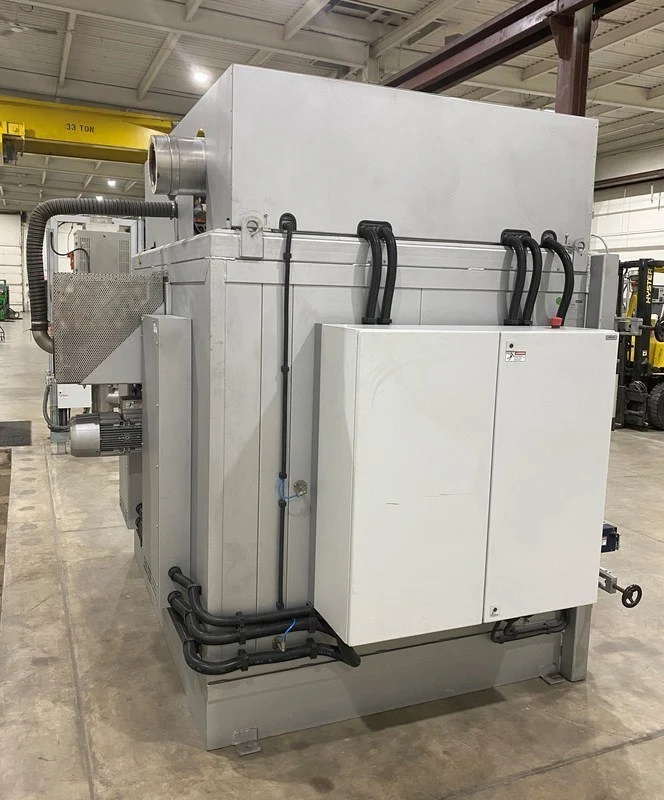

New Never Commissioned – 2018
Serial No. – 345806
SPECIFICATIONS:

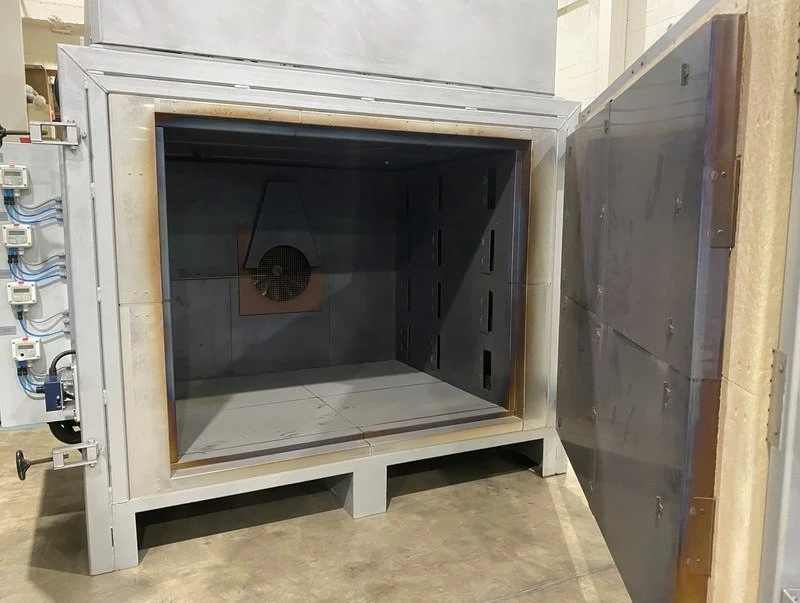

Oven Chamber…………59″W x 43.3″D x 47.2″H

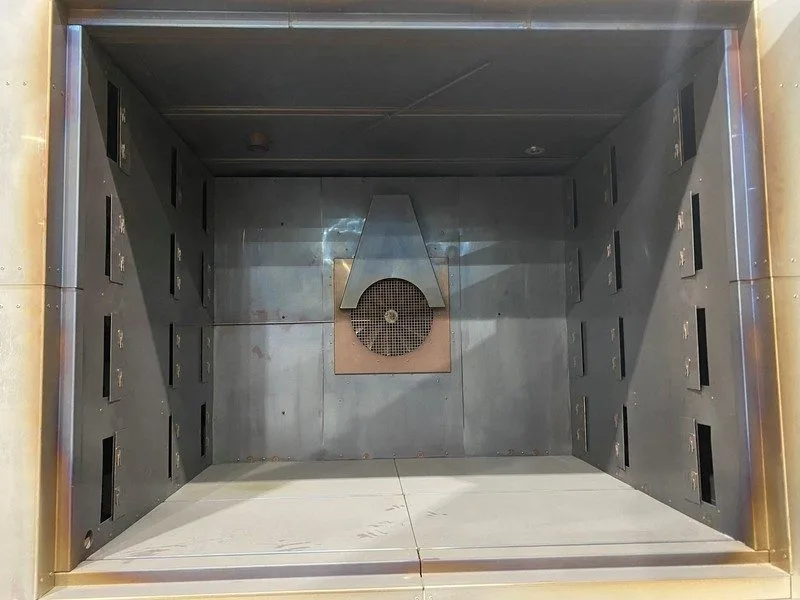

Work Space…………51.2″W x 35.4″D x 39.4″H
Oven Chamber Volume…………70.6 cu. ft.
Charging Height…………13.4″
Operating Temperature – Maximum…………1112°F
Working Temperature Range…………302°F – 1112°F
Outer Dimensions…………93.7″W x 78.7″D x 82.7″H
Temperature Uniformity…………± 5 K up according to DIN 17052-1 in the in the empty work space with air inlet and outlet closed. During debinding the temperature uniformity will be different
Allowable Charge Weight – Maximum…………3747 Lbs. unifromly distributed load
Number of Air Circulation Fans…………1
Air Circulation…………Approx. 20,997 cu. ft./h
Debinding Temperature – Maximum…………1112°F
Evaporation Rate – Maximum…………1.24 oz/min.
Amount of Organics – Maximum…………48.5 Lbs. per load
Power Rating:
– Total – Approximate…………60.0 kW
– Furnace Heating…………42.0 kW

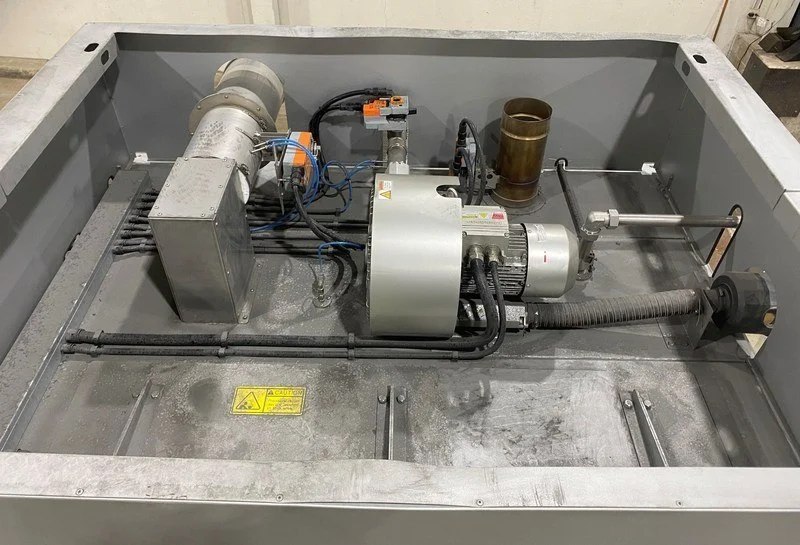

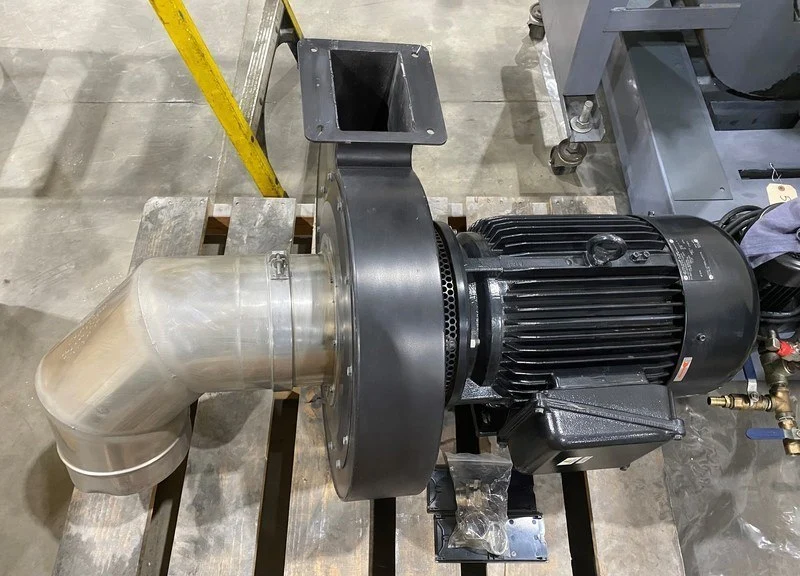

– Fresh Air Fan…………2.4 kW
– Fresh Air Pre-Heating…………15.0 kW
– Exhaust Air Fan…………1.1 kW
– Control Current…………1.0 kW
Supply Voltage…………480V/3Ph/60Hz

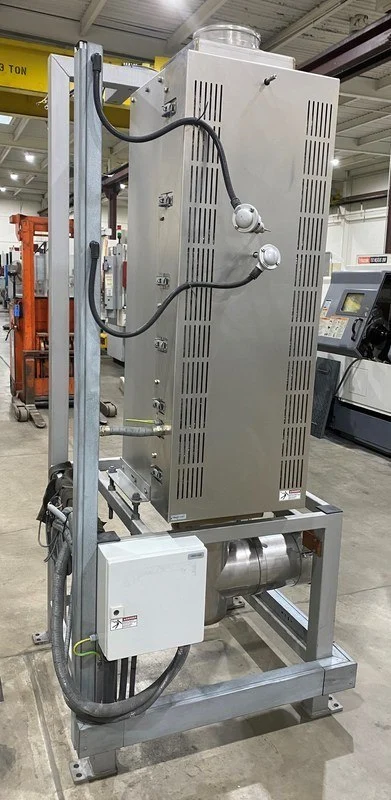

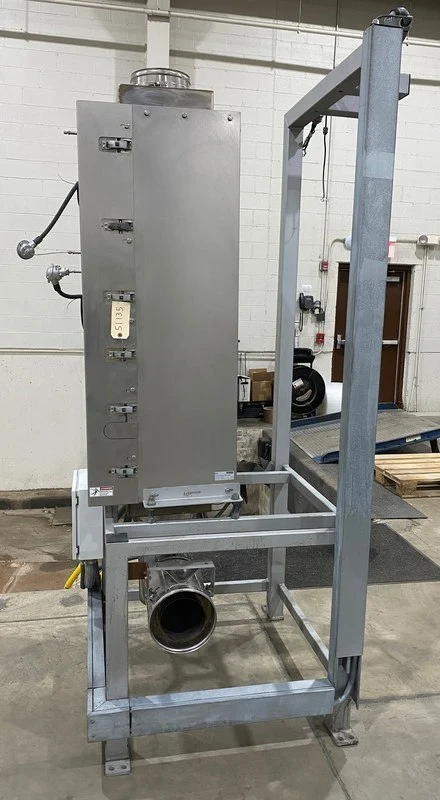

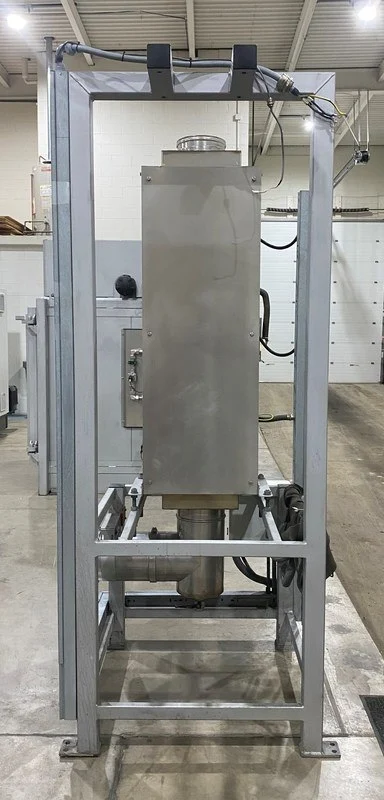

Nabertherm Catalytic Afterburner model KVN 320 Specifications:
Organic Flow Rate – Maximum…………2.469 oz/min.
Power Rating…………30.3 kW
Power Supply…………480V/3Ph/60Hz
Housing…………Insulated Stainless Steel
EQUIPPED WITH:
DB200-4 Passive Debinding Package
Nabertherm Catalytic Afterburner model KNV 320 (removes organics)

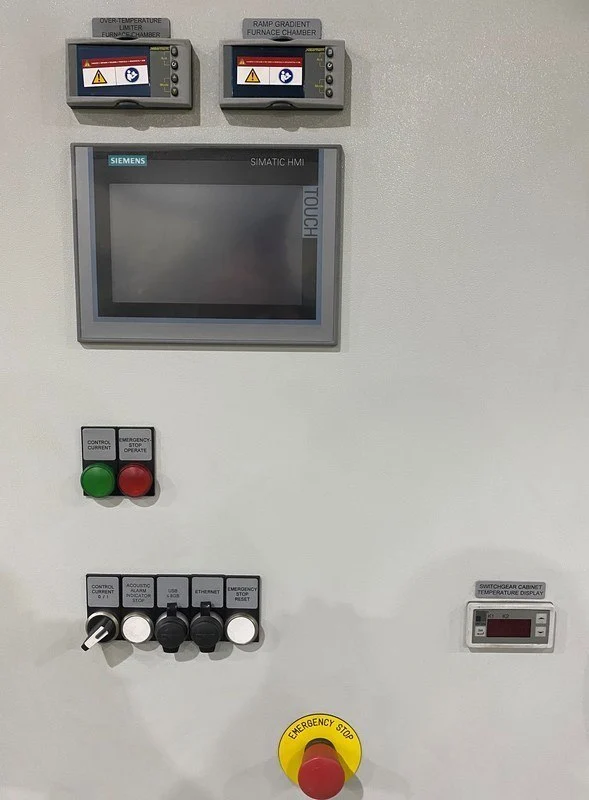

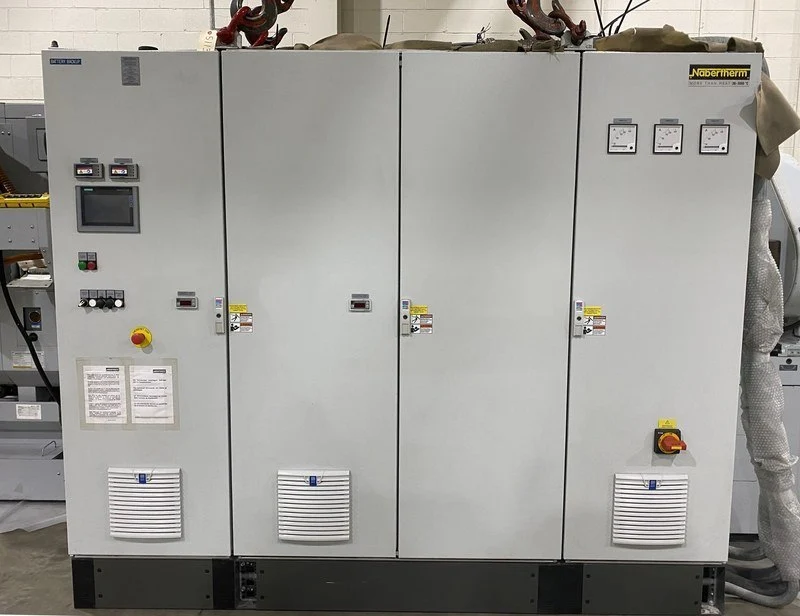

Siemens PLC Control w/H1700 Process Control

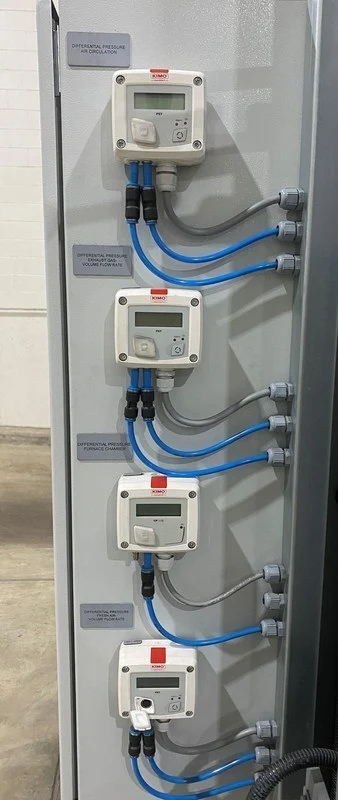

Debinding Safety System

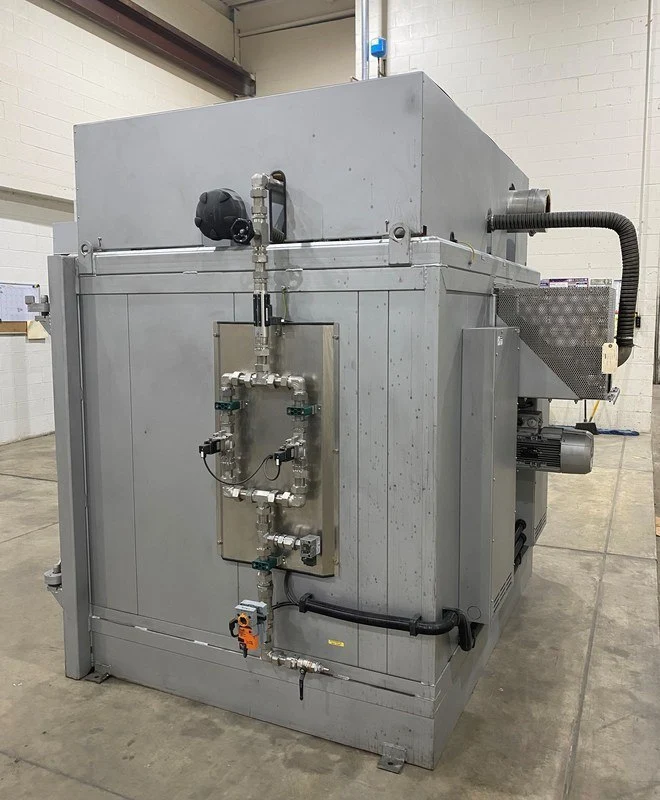

Class A Oven Explosion Protocol (Nitrogen Purge System)
*Preliminary specifications, pending confirmation.
