Chmer Wire EDM A422S | 5-Axis CNC, Fanuc, 15.7″X, 9.8″Y, 8.6″Z – #48877

Liberty Machine # 48877 Category Make

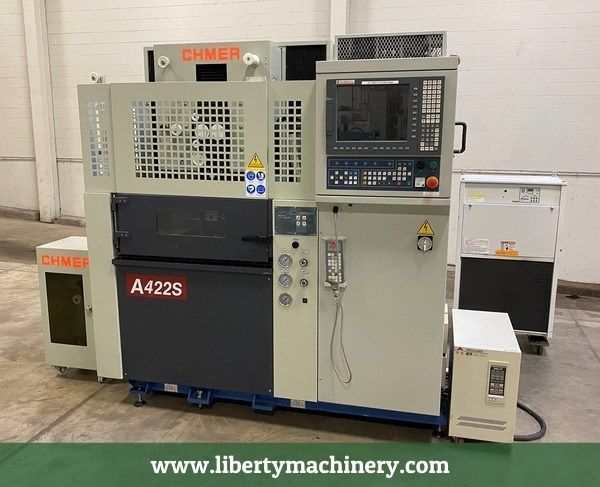

Chmer Wire EDM A422S

New – 2010
Serial No. M07120934

SPECIFICATIONS:
Axis Travel…………15.7″X x 9.8″Y x 8.6″Z
Auxiliary Table Travel…………2.4″U x 2.4″V
Size of Workpiece – Maximum…………31.5″ x 22.0″ x 8.50″
Weight of Workpiece – Maximum…………550 Lbs.
XY Feed Rate – Maximum…………31.5″/Min.
Axis Drive System…………AC Servo Motor
Wire Diameter Range…………0.006″ – 0.012″
Wire Feed Rate – Maximum…………11.8″/Sec.
Wire Tension…………300-2,500 gf
Taper Angle…………+/-14.5Degrees/80mm (Wide Angle Tapper Nozzle, DA+DB=15mm
Tank Capacity…………480 L
Filter Element…………Paper
Ion Exchange Resins…………14 L
Conductivity Control…………Auto
Fluid Temperature Control…………Auto
Circuit System…………Power MOS Transistor
Output Current – Maximum…………25A
IP Select…………10
Off Time Select…………50
Data Input…………Keyboard, RS-232C, USB, LAN
Display…………15-Inch Color
Control System…………32 Bit, 1-CPU, Semi Closed Loop
Control Axis…………X,Y,Z,U,V (5 Axis)
Setting Unit…………0.001mm
Command Value – Maximum…………+/-9999.999mm
Interpolation…………Linear/Circular
Command System…………ABS/INC
Machining Feed Control…………Servo/Constant Feed
Scaling…………0.001 – 9999.999
Machining EDM Condition Memory…………1,000 – 9,999
Total Ac Power Input…………3 PH 220+/-10%/13KVA
Dimensions – Catalog…………89″(L-R) x 85″(F-B) x 85″(H)
Weight – Approximate…………6,000 Lbs.

Chmer Wire EDM A422S EQUIPPED WITH:

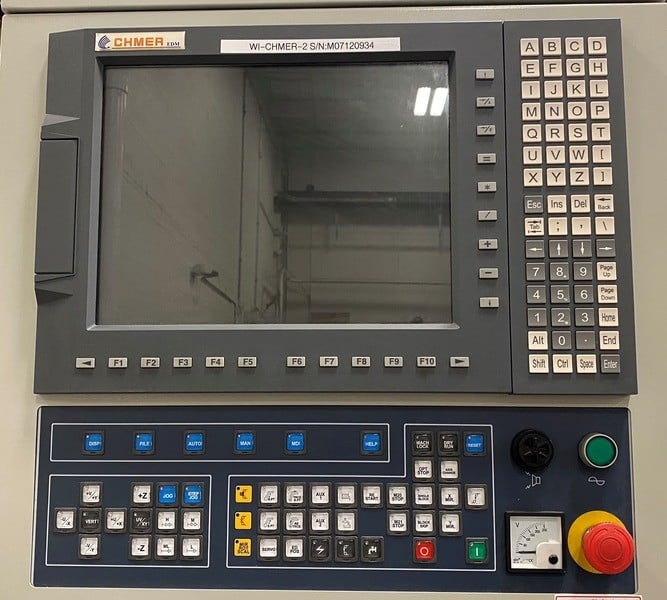

Chmer 5-Axis CNC Controller with Remote Setup Pendant

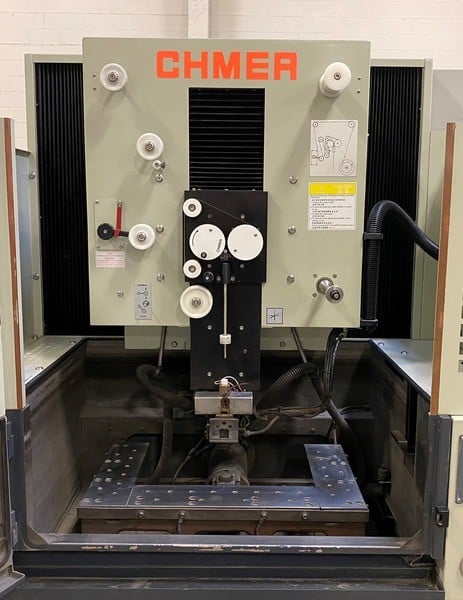

Automatic Wire Threading (AWT)

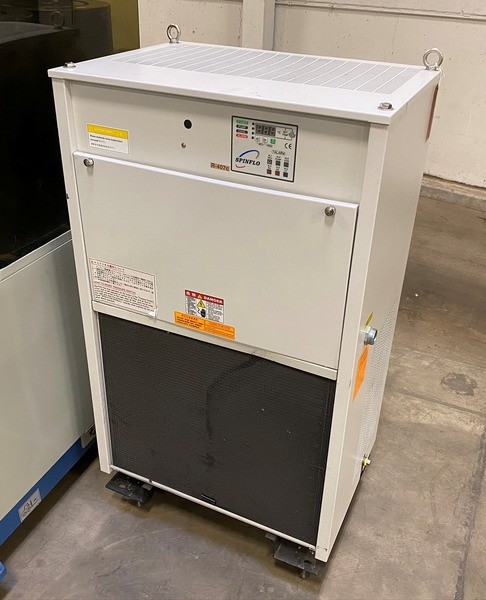

SpinFlo Temperature Controller
Dielectric Filtration System
Electric Central Lubrication System

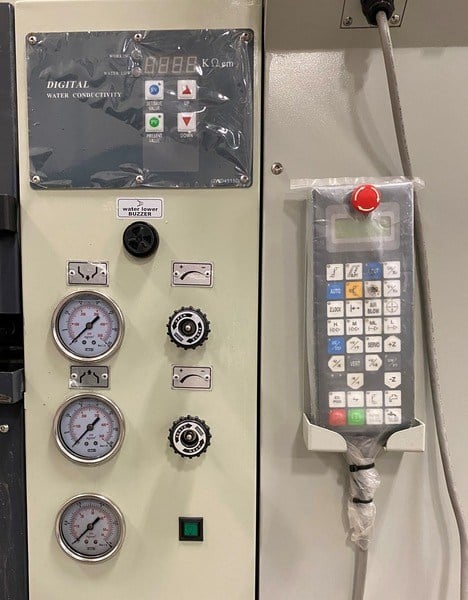

Digital Water Conductivity Controller

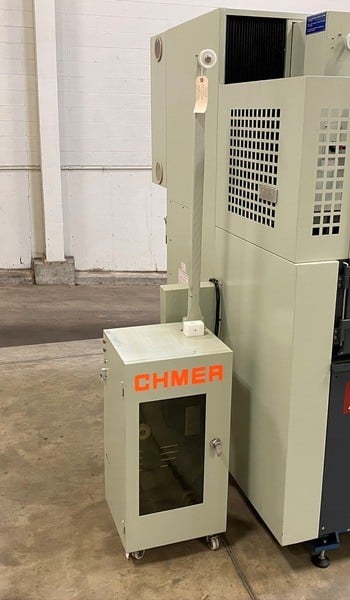

Scrap Wire Chopper and Hopper

*Preliminary Specifications Subject to Verification

CNC wire EDM (Electrical Discharge Machining) machines like the Chmer wire EDM are advanced tools used in the manufacturing industry for precision cutting and shaping of metal parts. These machines utilize a controlled electrical discharge between a thin wire electrode and the workpiece to remove material and create intricate shapes with high accuracy.

One of the key advantages of CNC wire EDM machines like the Chmer wire EDM is their ability to produce complex and intricate parts with tight tolerances. The controlled electrical discharge enables them to cut through hard materials, including steel, titanium, and exotic alloys, without creating any physical contact. This makes the Chmer wire EDM ideal for applications that require intricate and precise features, such as aerospace components, medical implants, and mold and die making.

To find out more about wire EDM’s click HERE and HERE.
