Click HERE if you have a Cincinnati Press Brake to sell.

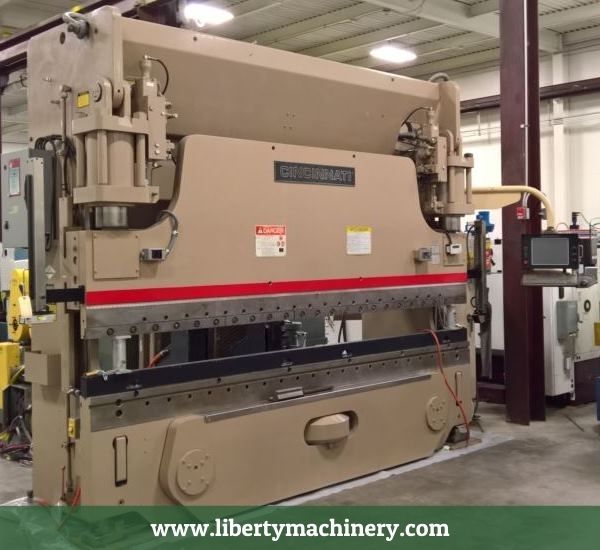

Serial No. 46201
Year Built – 1991*
*Retrofitted by Cincinnati, Inc. in 2012. Control package PC-HMI controller
w/graphics, USB port, expanded program storage, network enabled.
SPECIFICATIONS:
Rated Tonnage at Bottom of Stroke…………175 Tons
Overall Length of Bed & Ram…………12′-0″
Distance between Housings…………10′-6″
Length of Stroke, Adjustable up to…………10″
Open Height…………17″
Closed Height…………7″
Throat Depth…………8″
Bed Width…………3.75″
High Speed-Approach…………260 IPM
Variable Speed-Form…………1 to 65 IPM
Variable Speed-Return…………1 to 290 IPM
Dimensions – Approximate…………146″(L-R) x 68″(F-B) 124″(H)
Weight – Approximate…………26,200 Lbs.
Cincinnati Press Brake EQUIPPED WITH:
Cincinnati Inc. Upgraded Autoform 6-Axis Control (PC-HMI) Retrofit 2012
24″ Autoform 6-Axis gauge (X1,X2,Z1,Z2,R1,R2) 8″ Vertical R-Axis Travel
Automatic Bed crowning Deflection Compensation
Programmable Forming Speeds, Ram Opening, Reversal, and Tonnage
Precision Ram Leveling with Dual Linear Glass Scale Encoder
12′ Lower Die Rail and Upper Rail with Die Clamps
Adjustable Laser Beam Light Curtains
Dual Palm Buttons on Separate Treadle
Programmable Electric foot Treadle
Books, Manuals, & Drawings
Preliminary specifications, subject to verification.
Press brakes like the Cincinnati press brake are essential machines in metal fabrication and sheet metal bending operations. They are used to bend and shape metal sheets or plates with high precision and control. Press brakes consist of a sturdy frame, a hydraulic or mechanical system, and a bending tool known as the punch and die set.
The metal sheet is positioned between the punch and die set, and the press brake exerts force to bend the sheet to the desired angle. The force applied by the press brake is carefully controlled, allowing for accurate and repeatable bending operations.
Press brakes like the Cincinnati 175 ton press brake offer various advantages, including versatility, efficiency, and flexibility. They can handle a wide range of materials and thicknesses, making them suitable for diverse applications. Press brakes can be programmed to perform complex bends and multiple bends in a single setup, reducing production time and increasing productivity.
