Citizen M32 CNC Swiss Screw Machine w/ CAV20L-IS Barfeed - #47623

Liberty Machine # 47623 Category Make

New - 2002
Serial No. P13037

SPECIFICATIONS:
Axes.....................................................X1, Y1, Z1B, X3, Z3
Machining Diameter - Maximum..........................................1-1/4"
Machining Length per Chucking - Maximum..................................21"
Main Spindle Speeds..........................................200 - 8,000 RPM
Rotary Tool Speeds...........................................250 - 5,000 RPM
Backworking:
- Chucking Diameter - Maximum.........................................1-1/4"
- Backwork Length - Maximum..............................................14"
- Drilling/Tapping - Maximum..............................................M8
- Back Spindle Speeds........................................180 - 7,000 RPM
Number of Installable Tools:
- Gang-tool - Live.........................................................5
- Gang-tool - Stick........................................................4
- Back Working Tool Post - Stick...........................................7
Tool Sizes:
- Gang...................................................16mm x 16mm x 130mm
- Sleeve.............................................................1" Dia.
Motors:
- Main Spindle Drive..............................................3.7/5.5 kW
- Gang Plate Rotary Tool Spindle Drive...............................0.75 kW
- Back Spindle Drive..............................................1.5/2.2 kW
Dimensions (Actual) & Weights (Approximate):
- Machine.........................122"(L-R) x 52"(F-B) x 72"(H) @ 6,500 Lbs.
- Barfeed.........................203"(L-R) x 25"(F-B) x 54"(H) @ 3,000 Lbs.
- Chip Conveyor.............................113" x 49" x 54"(H) @ 2,000 Lbs.
- Coolant Filtration System....................49" x 18" x 42"(H) @ 750 Lbs.

EQUIPPED WITH:

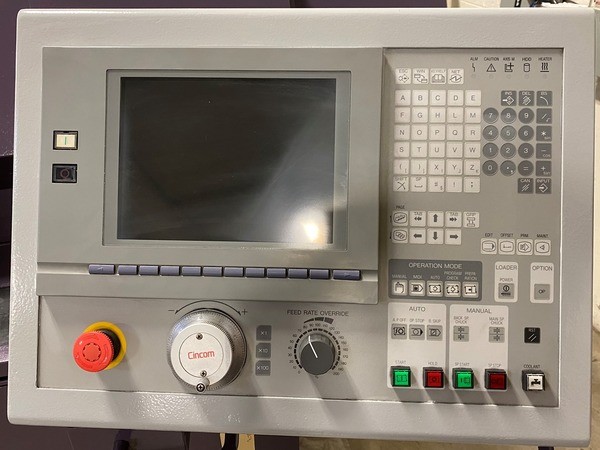

Cincom M6B (Mitsubishi) Control
CAV20L-IS Barfeed
Chip Conveyor

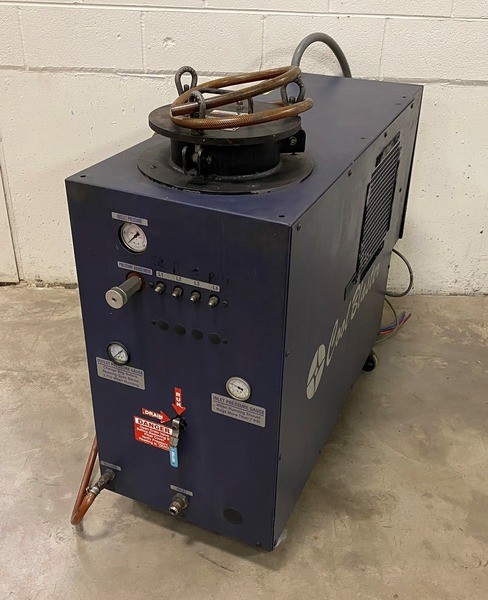

ChipBLASTER High Pressure Coolant System

*Catalog Specifications Subject to Verification
