Serial No. 27539
SPECIFICATIONS:
Turntable Diameter…………30″
Quantity of Rotating Fixture Bases…………6
Entrance & Exit Opening Dimensions…………12″ W x 16″ H
Nozzles:
– Quantity…………10
– Type…………Clemco No. 5
– Orifice Size…………5/16″
– Pressure…………50 psi at 870 CFM
Minimum Air Requirment…………870 CFM (77 per nozzle & 100 for blow-off)
Part Size – Maximum…………12″ W x 13-1/2″ H
Part Weight Including Fixture – Maximum…………25 Lbs. (150 Lbs. Total)
Table Speed…………0 – 150 RPM
Fixture Speed…………0 – 30 RPM
Electrics…………460V/3PH/60Hz
Approximate Dimensions…………78″ L x 60″ W x 90″ H

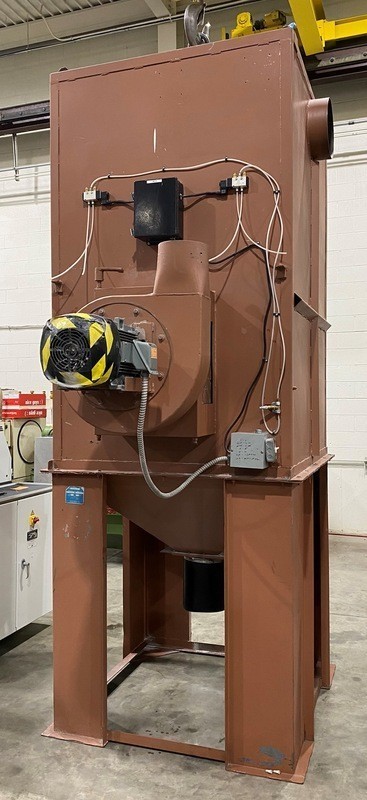

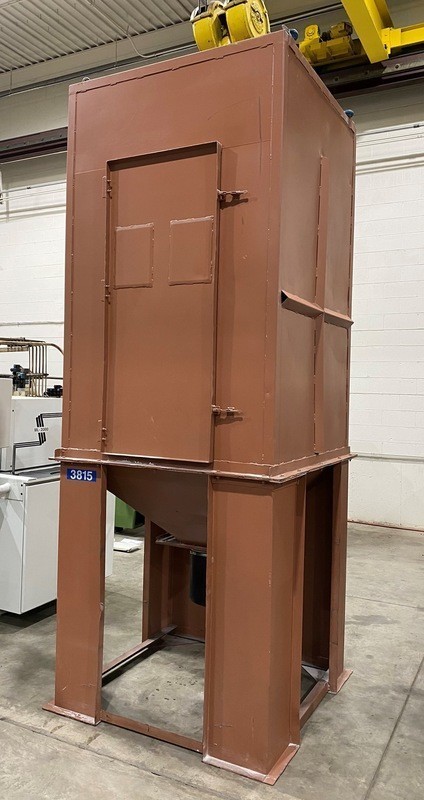

DUST COLLECTOR SPECIFICATIONS:
Model…………1800 DUST COLL (RPH-4)
Air Flow…………1800 CFM
Motor Size…………7.5 HP
Approximate Dimensions…………86″ L x 36″ W x 135″ H
PULL-THROUGH (Suction Type) RECLAIMER SPECIFICATIONS:
Air Flow…………1200 CFM
Media Manifold………….10 Position
Approximate Dimensions…………50″ L x 50″ W x 88″H
Clemco Zero Blast Cabinets BNPA200-3 EQUIPPED WITH:

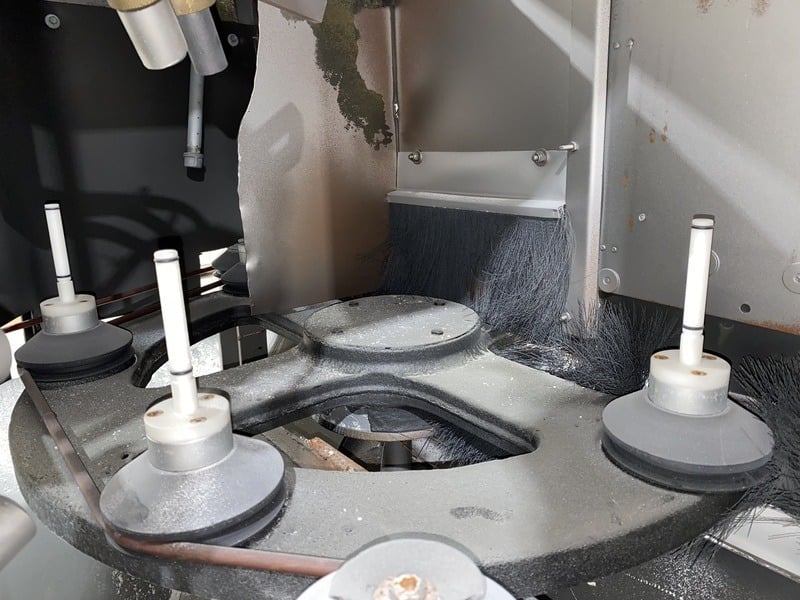

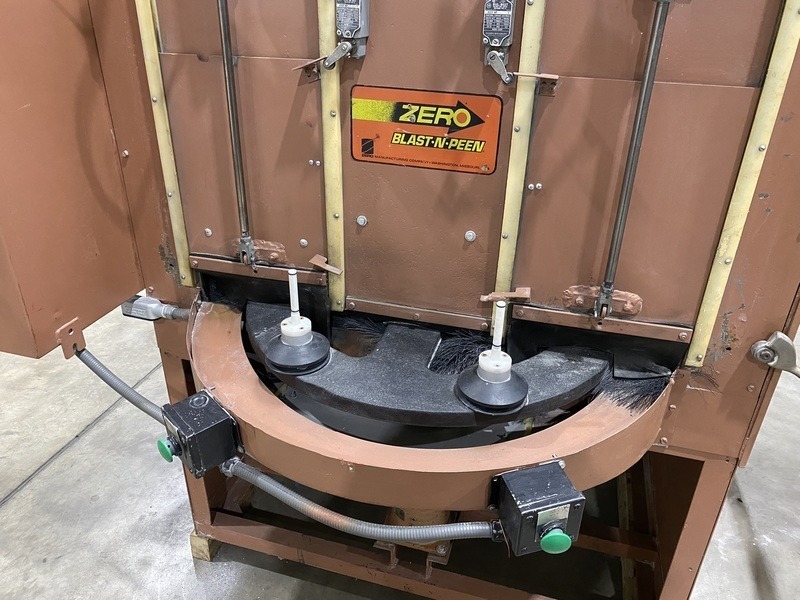

(6) Rotating Fixture Bases
Adjustable Turntable Speed
Adjustable Part Rotation Speed

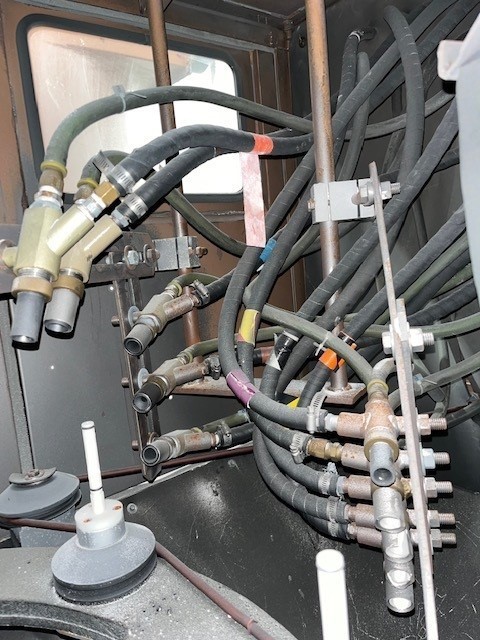

(10) Adjustable Spray Nozzles
Rotating Air Blow-Off
Clemco Cartridge Type Dust Collector, Reverse Pulse Filter Cleaning (Uses a 30 Gallon Drum for Waste)
Suction Type, Media Reclaim System
Cabinet Light
Guillotine Type Air Operated Doors
Door Safety Interlock
Manuals
*Preliminary Specifications Subject to Verification.
Shot blasting with Clemco Zero Blast cabinets is a surface preparation technique used to clean, polish, or modify the surface of a material by propelling abrasive particles at high velocity. In this process, a machine called a shot blaster or blasting machine propels small metal or mineral abrasives, known as shot, onto the surface to be treated. The impact of the shot removes contaminants, scales, rust, or old coatings from the surface, leaving it clean and prepared for subsequent processes like painting, coating, or bonding. Shot blasting with Clemco Zero Blast cabinets is commonly used in industries such as automotive, aerospace, construction, and metalworking to improve surface quality, enhance adhesion, and increase the lifespan of materials.
