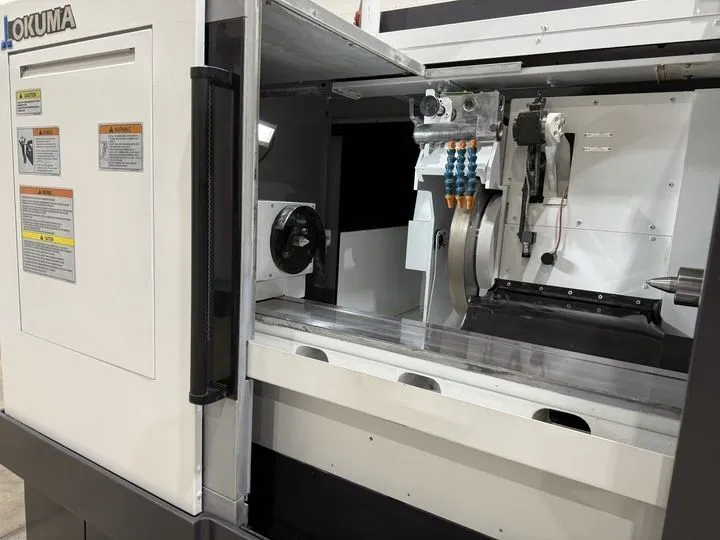

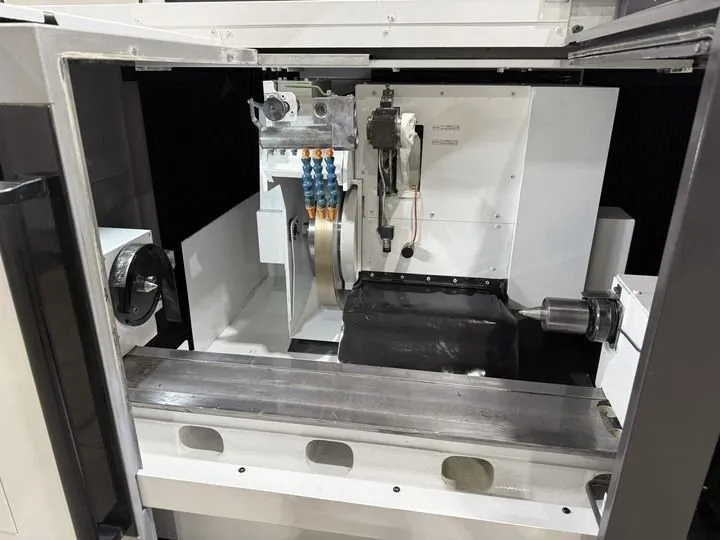

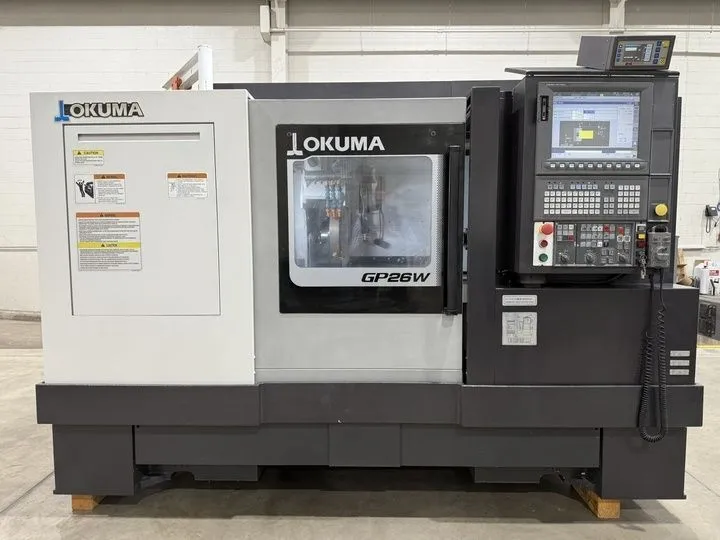

13″Sw x 25″Cc Okuma GP26W | 7.9″ Grind Ø, 5.9″W x 24″Ø Whl, 20HP, Rot. Dress, ’17 – #51570

New – 2017

CATALOG SPECIFICATIONS:
Distance between centers…………25.59″
Swing over table…………12.99″
Grinding diameter – maximum…………7.87″
Workpiece Weight – Maximum:
– Center supported…………110 Lbs.
– Chuck supported…………88 Lbs. x 7.87″
Wheel:
– Outside Diameter…………24.02″
– Inside Diameter…………10.00″
– Maximum Width…………5.91″
– Number of speed steps…………Infinitely variable
– Speed – maximum…………8,858.70 FPM
– Spindle motor…………20 HP
– Spindle lube tank capacity…………5.28 Gals.
– Spindle lube pump motor…………0.1 HP
Wheelhead (X-Axis):
– Travel…………16.54″
– Cutting speed – automatic…………Ø0.0000472 – Ø236.20 IPM
– Rapid traverse…………65.60 FPM
– Command increment – minimum…………0.000004″
– Feed motor…………3 HP
Saddle (Z-Axis):
– Travel…………32.09″
– Cutting speed – automatic…………Ø0.0000236 – Ø236.20 IPM
– Rapid traverse…………65.60 FPM
– Command increment – minimum…………0.000004″
– Feed motor…………3 HP
Workhead:
– Type…………Dead/Live Switchable
– Tapered bore…………MT No. 4
– Speed…………650 RPM
– Number of speed steps…………Infinitely variable
– Motor…………3 HP
Tailstock:
– Tapered bore…………MT No. 4
– Travel – auto…………1.97″
– Manual taper offset…………+/-0.003″
Coolant:
– Tank capacity…………79.26 Gals.
– Pump motor…………1.5 HP
Hydraulic Oil Lube:
– Tank capacity…………5.28 Gals.
– Pump motor…………2 HP
Slideway Lubricant:
– Tank capacity…………1.10 Gals.
– Pump motor…………0.02 HP

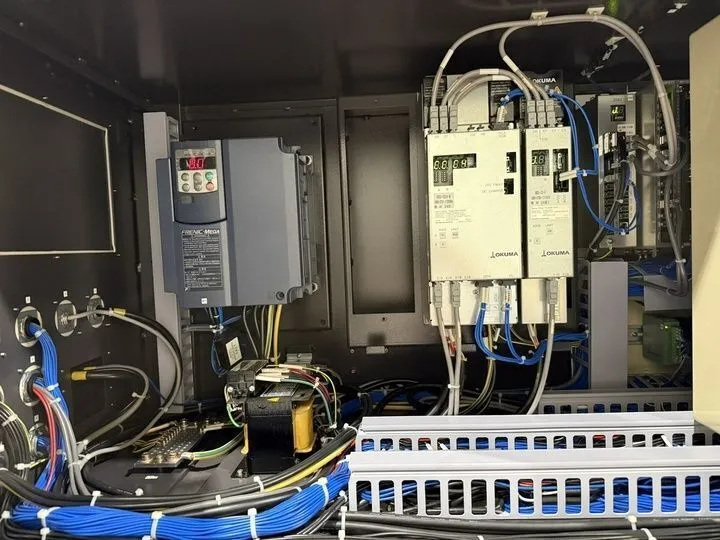

Electrics:
– Voltage…………220/480
– Frequency…………60 Hz
– Phase…………3
– Full Load Amps…………80.1/36.7
Machine weight – catalog…………13,860
Dimensions – Actual:
– Machine…………99″(L-R) x 95″(F-B) x 92″(H)
– Coolant system…………72″ x 57″ x 28″(H)
– Coolant system sludge box cart…………40″ x 18″ x 25″(H)
– Transformer…………17″ x 18″ x 21″(H)

EQUIPPED WITH:

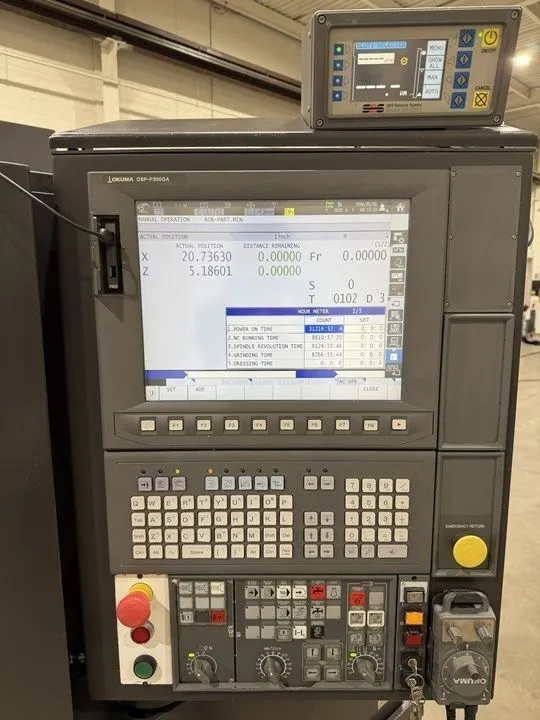

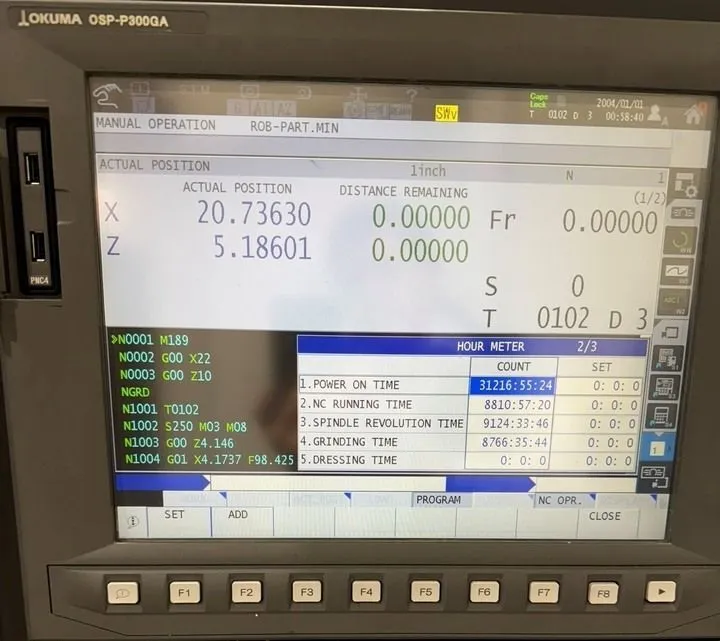

Okuma OSP-P300GA CNC Control
SBS Model SB-5500 Automatic Balancer System
CT-kit Dead/live switchable headstock for center and chuck work

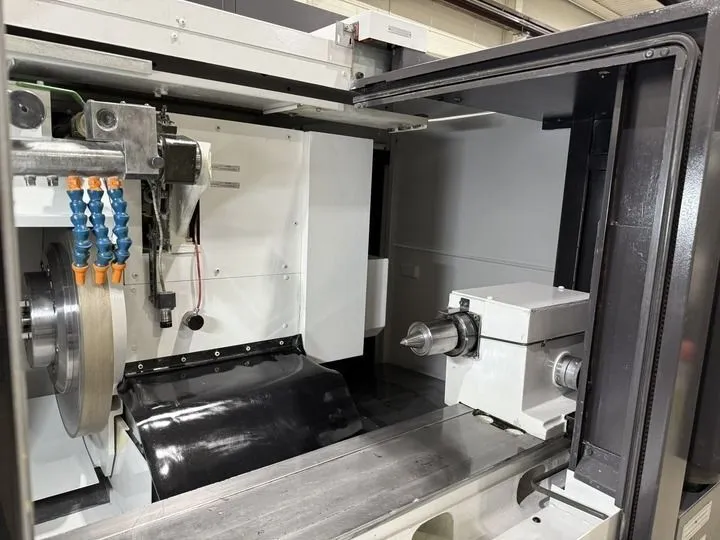

Programmable Tailstock
Rotary Wheel Dresser

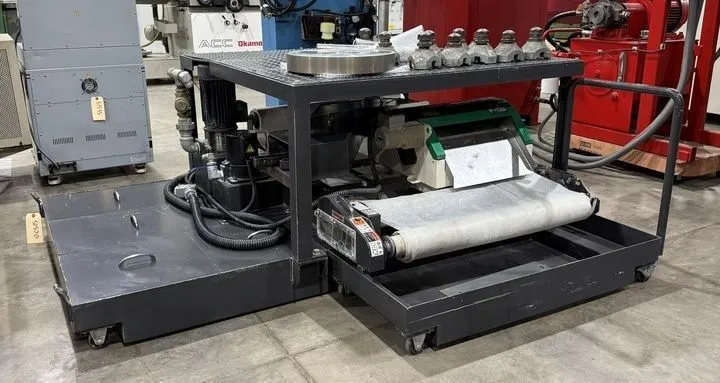

FP-12B-1 Sumitomo ferrite magnet/paper filter combined coolant filtration system
Coolant for table wash
Full enclosure w/shielding

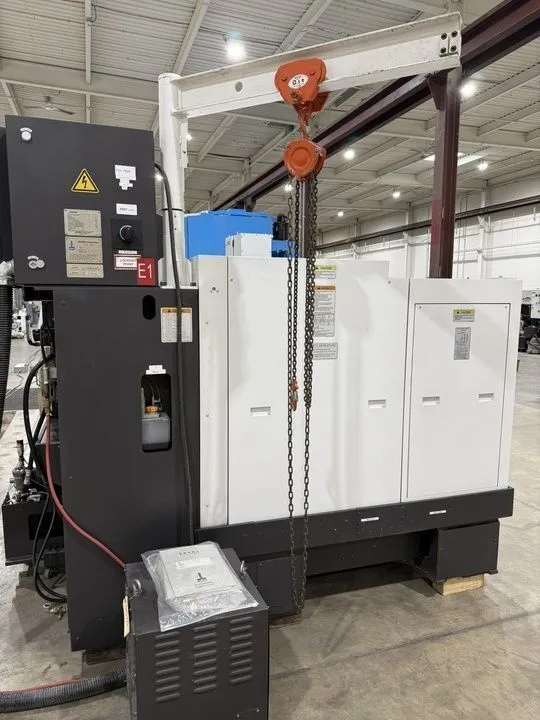

Jib crane
Waterproof LED light
Transformer

*Catalog specifications, pending confirmation.

13″Sw x 25.6″Cc Okuma GP26W, 7.9″ Grind Ø, 5.9″W x 24″Ø Whl, 20HP, Rot. Dress, 2017
