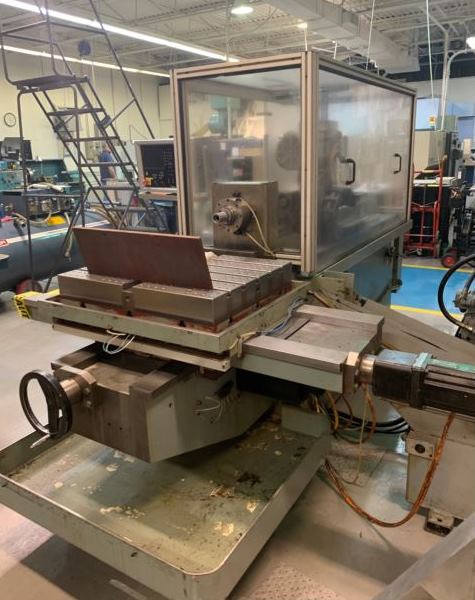

Dadson DS1342-KM CNC Knee Type Gun Drill - #47739

Liberty Machine # 47739 Category Make

New - 2000
Serial No. 080403

SPECIFICATIONS:
Number of gun drilling spindles...........................................1
Drilling capacity........................................1/8" - 1-3/8" Dia.

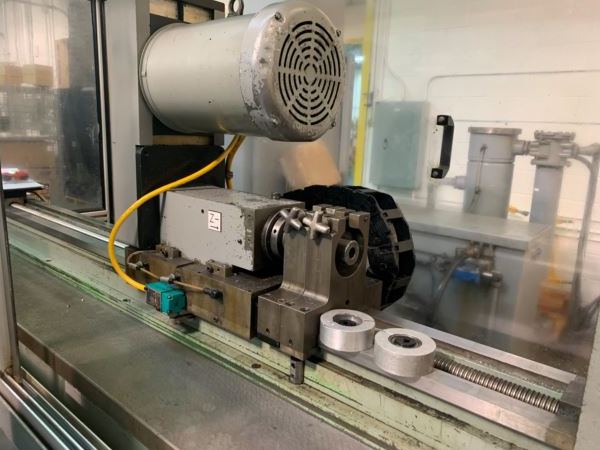

Drill stroke (ball screw/servo drive)...................................42"
Table:
- X-Axis travel - powered...............................................24"
- Y-Axis travel - powered saddle........................................12"
- Z-Axis travel - manual vertical.......................................10"
- Fixture table area (t-slotted)..................................30" x 36"
Spindle motor........................................................7.5 HP
Electrical................................................208/460V/3Ph/60Hz
Dimensions - approximate.....................122"(L-R) x 86"(F-B) x 105"(H)
Height - approximate....................................................80"
Weight - approximate............................................14,000 Lbs.

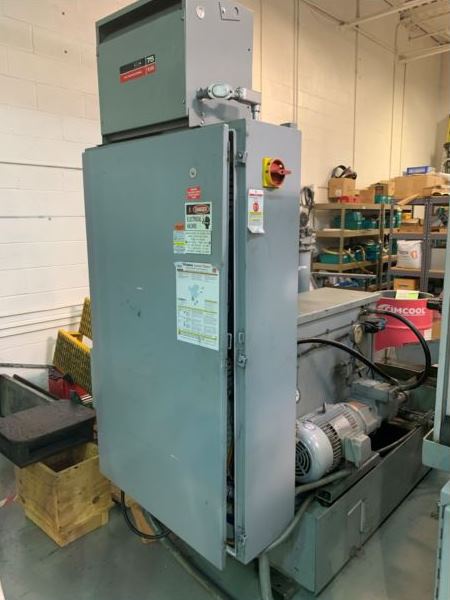

Dadson Model DS1080 Hi-Pressure Coolant System:
Pressure - maximum................................................1,500 PSI
Coolant motor.........................................................10 HP
Dimensions - actual......................................70" x 55" x 94"(H)
Weight - approximate.............................................1,200 Lbs.

EQUIPPED WITH:
Indramat "Eco-Drive" digital a/c servo drive motors and drive modules

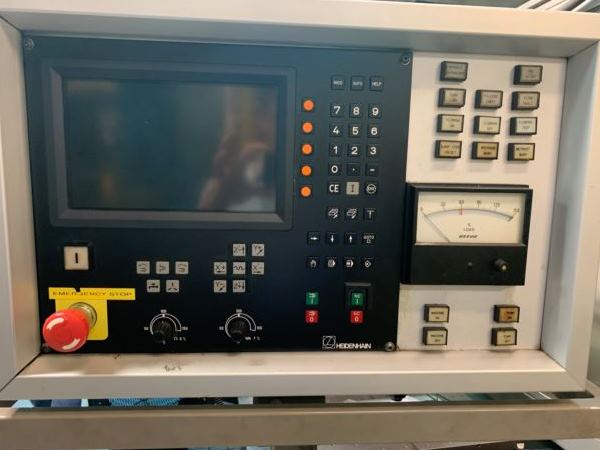

Heidenhain TNC124 conversational programming
Hi-Pressure coolant system w/"Flow Minder"
AC Tech variable frequency spindle drive

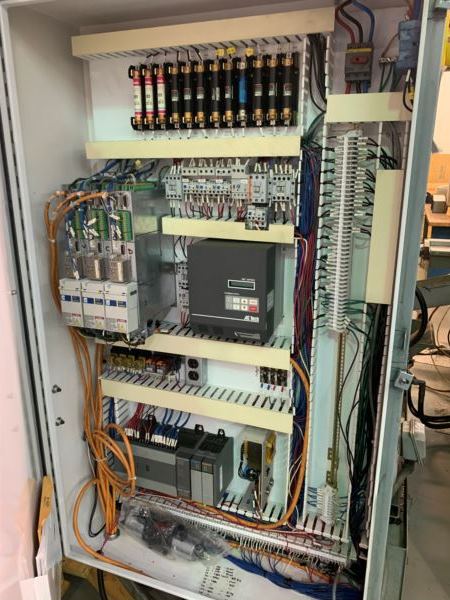

Allen Bradley SLC501 programmable logic controller
Dial type variable feed and spindle rate w/LCD readout
Jog switches for all axes
Bijur electric lubrication system
Plexiglass work area enclosure
Air bushing w/1" stroke
Whip guides and bushings
American Industrial coolant heat exchanger

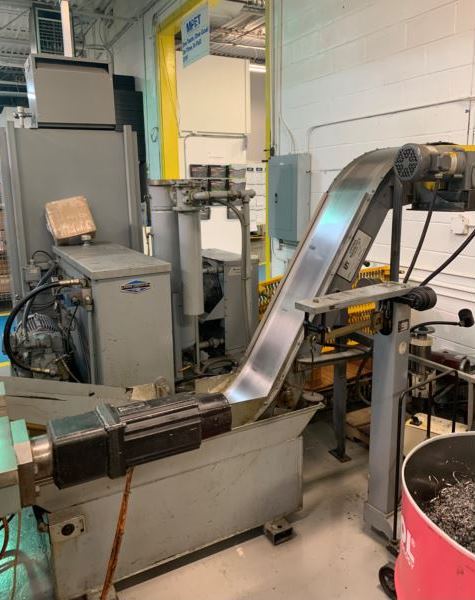

Cannister filtration on coolant filtration reservoir w/pump

*Preliminary Specifications Subject to Verification.
