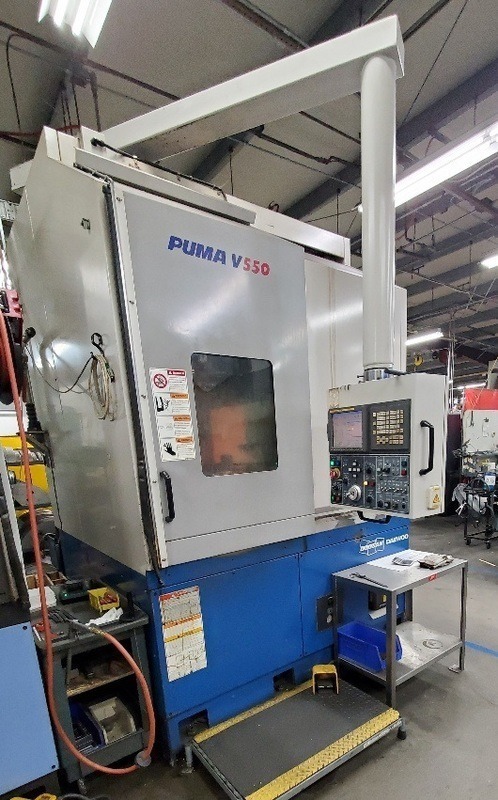

Doosan Puma V550
New – 2006

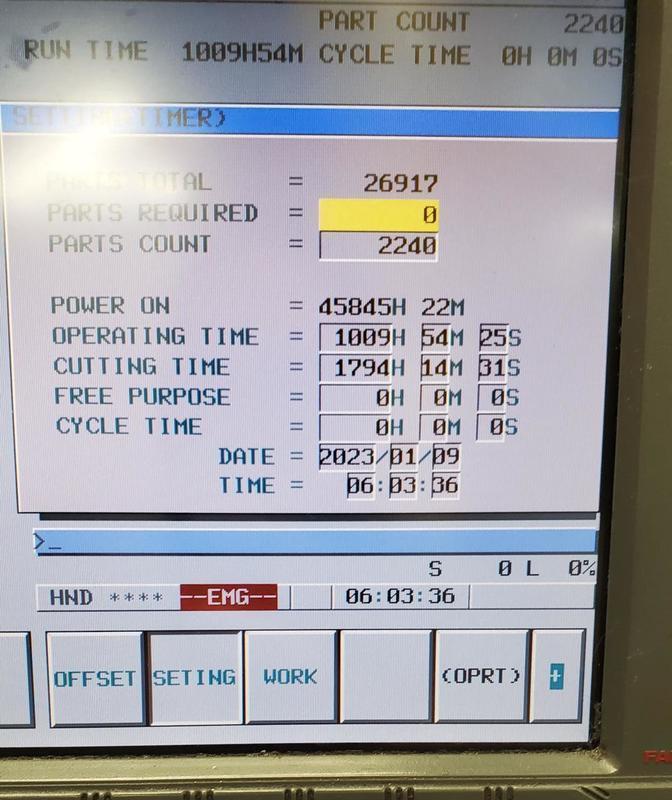

Hours:
– Power On: 45,845
– Operating: 1,009
– Cutting: 1,794
SPECIFICATIONS:
Swing – Maximum…………31.5″
Turning Diameter – Maximum…………28.7″
Cutting Height – Maximum…………30.7″
Travels:
– X-Axis…………15.4″
– Z Axis…………31″
Spindle:
– Nose…………A2-11″
– Bearing Diameter…………6.3″
– Speed…………20 – 2,000 RPM
– Motor…………50 HP
– Torque…………2,053 Ft./Lbs.

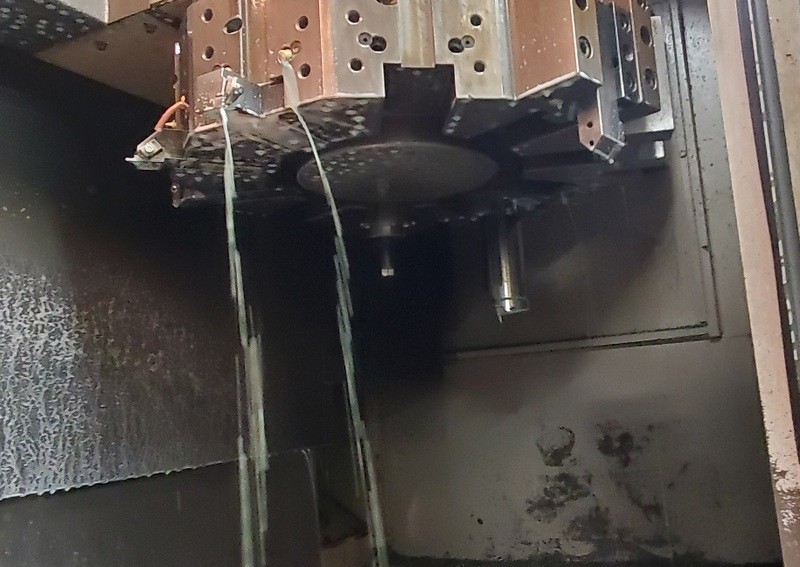

Tool:
– Turret Positions…………10
– Selection…………Bi-directional
– Turning Size…………1.25″
– Boring Size…………2″
Rapid Traverse:
– X-Axis…………472 IPM
– Z-Axis…………630 IPM
Dimensions – Catalog…………75″W x 107.2″L x 121”H
Weight – Catalog…………19, 850 lbs.
EQUIPPED WITH:

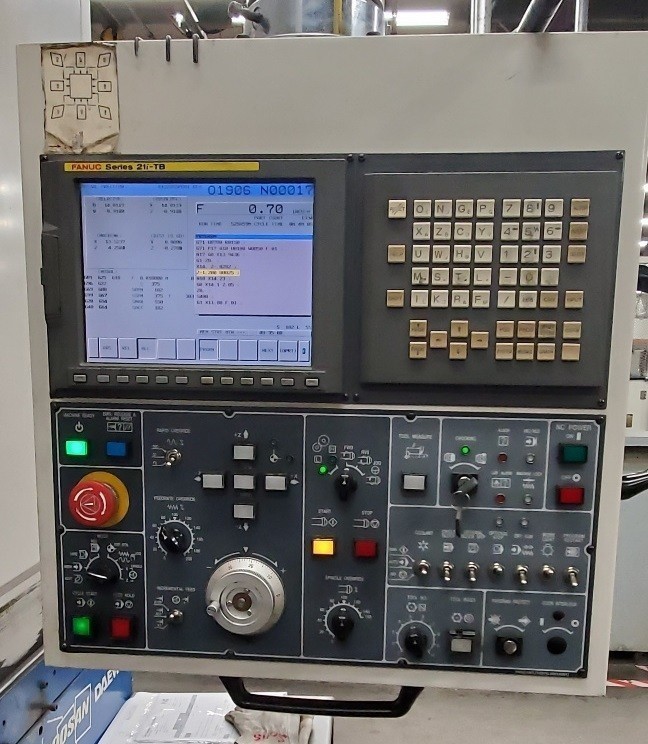

Fanuc 21i-TB Control
*Preliminary specifications on Doosan Puma V550 subject to verification.
CNC vertical turning lathes (VTLs) like the Doosan Puma V550 are powerful machines used for the turning and machining of large, heavy workpieces. These lathes are designed with a vertical spindle orientation, allowing for the efficient processing of components with significant diameter and height dimensions.

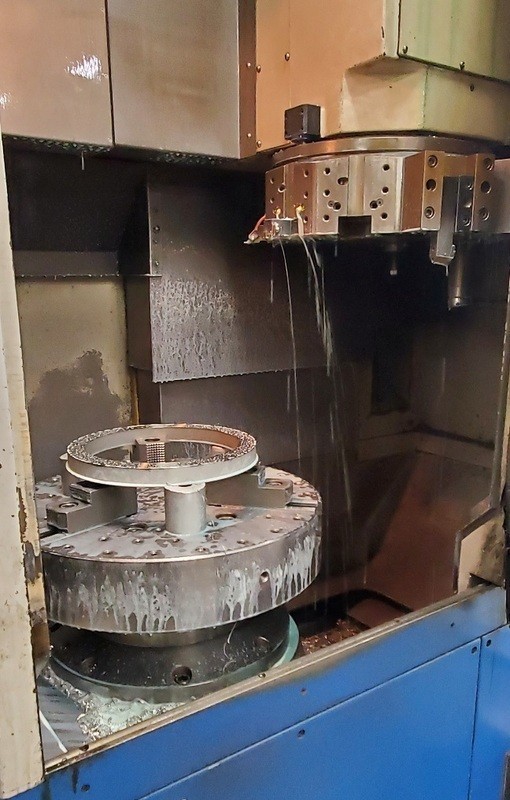

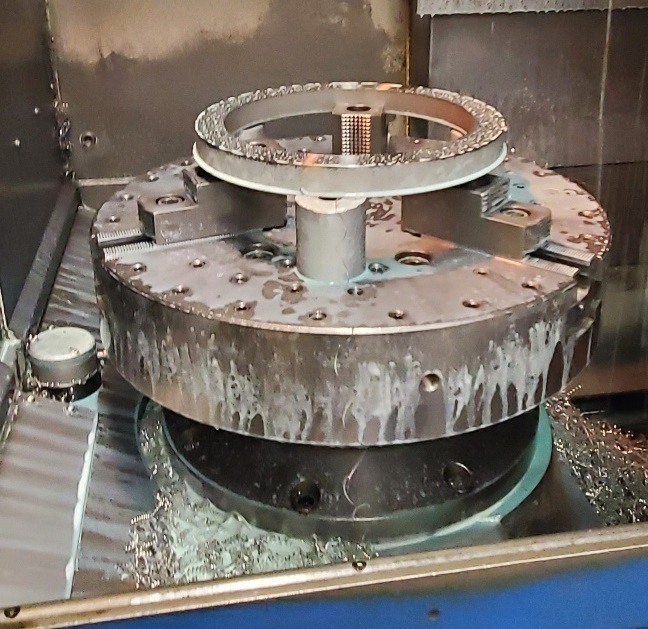

The operation of a CNC vertical turning lathe involves clamping the workpiece onto a rotating table or chuck. The cutting tool, controlled by the CNC system, is then moved vertically to perform various operations such as turning, facing, boring, drilling, and threading. The vertical orientation of the lathe enables gravity to assist in holding the workpiece securely in place, ensuring stability and accuracy during machining.
CNC vertical turning lathes like the Doosan Puma V550 offer numerous advantages. Firstly, they are well-suited for the machining of large and heavy components, such as turbine rotors, bearing housings, and large gears. The vertical spindle configuration provides excellent stability, enabling precise and efficient machining of such workpieces.
Secondly, CNC VTLs provide versatility in machining operations. With the ability to move the cutting tool vertically, they can perform a wide range of turning and milling tasks in a single setup. This reduces setup time, increases productivity, and enhances overall machining efficiency.
Moreover, the CNC control system of Doosan Puma V550 VTLs allows for precise and repeatable machining. The program can be pre-programmed to control tool movements, speeds, and depths, ensuring consistent results and reducing errors caused by manual operation.
