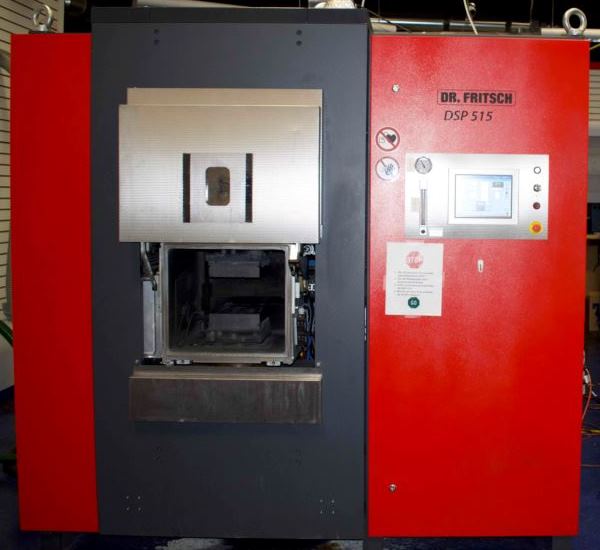

Dr. Fritsch DSP 515 FAST-SPS-DHP Spark Plasma Sintering Machine - #45175

Liberty Machine # 45175 Category Make

We're sorry, but this machine has been sold. Please click here and we'll let you know when we have another available or click here to view other used sintering furnaces we have in stock.

If you have a used sintering furnace for sale, please click here and fill out a quick for sale form and we'll contact you with a free quote.

This Sintering Furnace uses the following cutting edge technologies:
- SPS - Spark Plasma Sintering
- FAST - Field Assisted Sintering Technique
- DHP - Direct Hot-Presssing

New - 2016
Hours - Approximately 100

SPECIFICATIONS:
Total Electric Power - Approximate..................................180 kVA
Heating Power - Maximum.............................................170 kVA
Graphite Electrodes..............................200 mm x 200 mm x 60 mm(H)
Open Height - Standard...........................................0 - 145 mm
Pressing Force...........................................50,3 kN - 603,2 kN
Temperature Range..........................................0 - 1,100 Deg. C
Positional Sensor Accuracy...........................................0.1 mm
Positional Sensor Resolution.......................................0.005 mm
Machine Footprint - Catalog.....................2.24 m (L-R) x 1.62 m (F-B)
Machine Height - Catalog..............................................2.3 m
Machine Weight - Catalog...........................................3,800 kg

EQUIPPED WITH:
IPA-NT Monitor & Organizer Software
De-waxing w/Vapor Extraction & Air Flushing
Sintering w/Intert Gas Flow (Ar, N2, N2/H2)
Automatic Piston Adjustment
Cooling w/Inert Gas Flow
Water Cooling
Delta Cooling Tower Chiller
Pre-Transformer 200-240V

*Catalog Specifications Subject to Verification
