Eitel Straightening Press RP-40 | 44 Tons, Hydraulic, WR-2/80 Shaft Attach. – #50282

Liberty Machine # 50282 Category Make

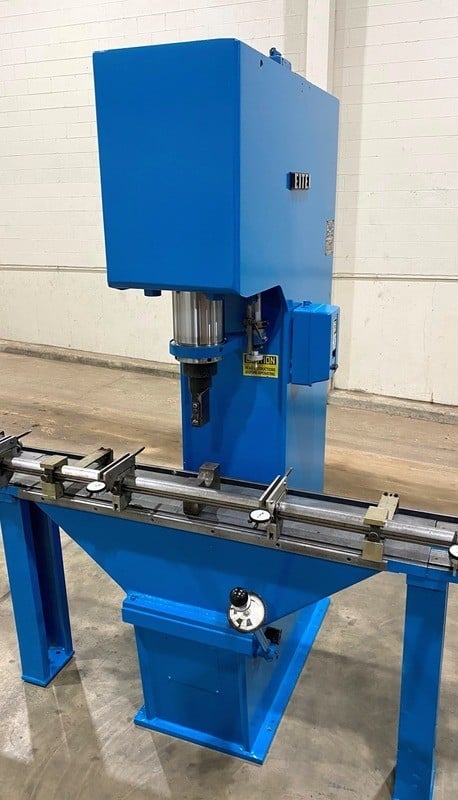

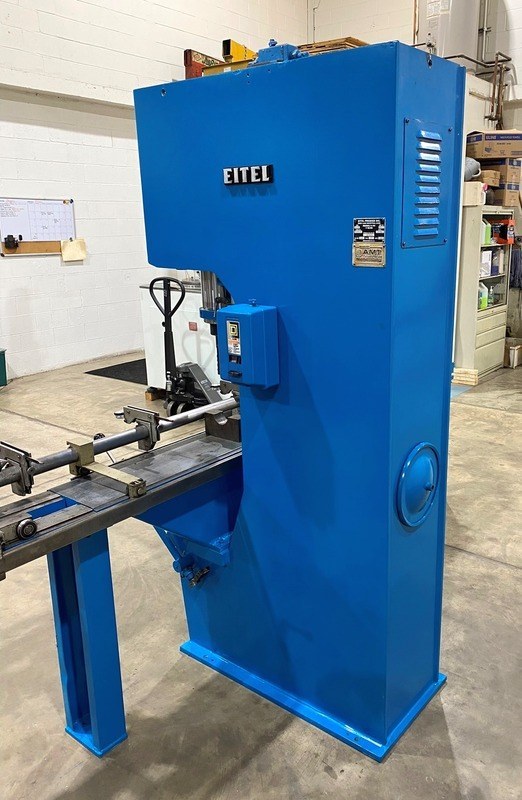

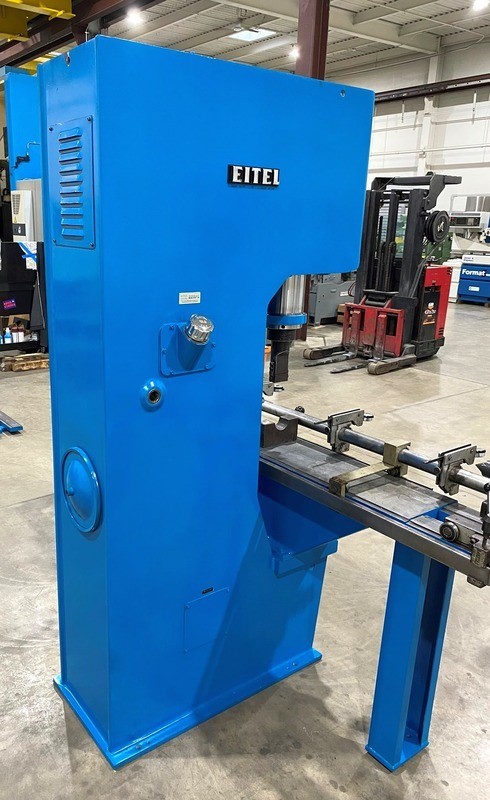

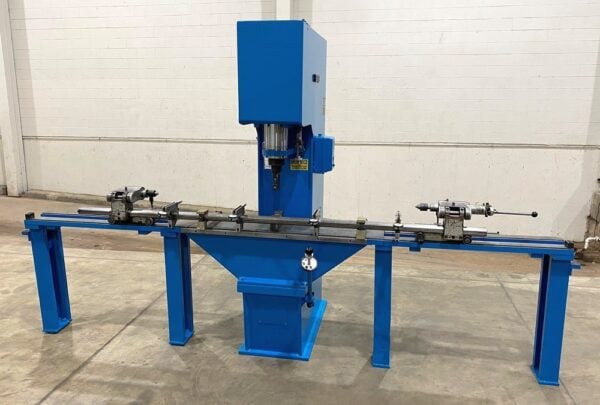

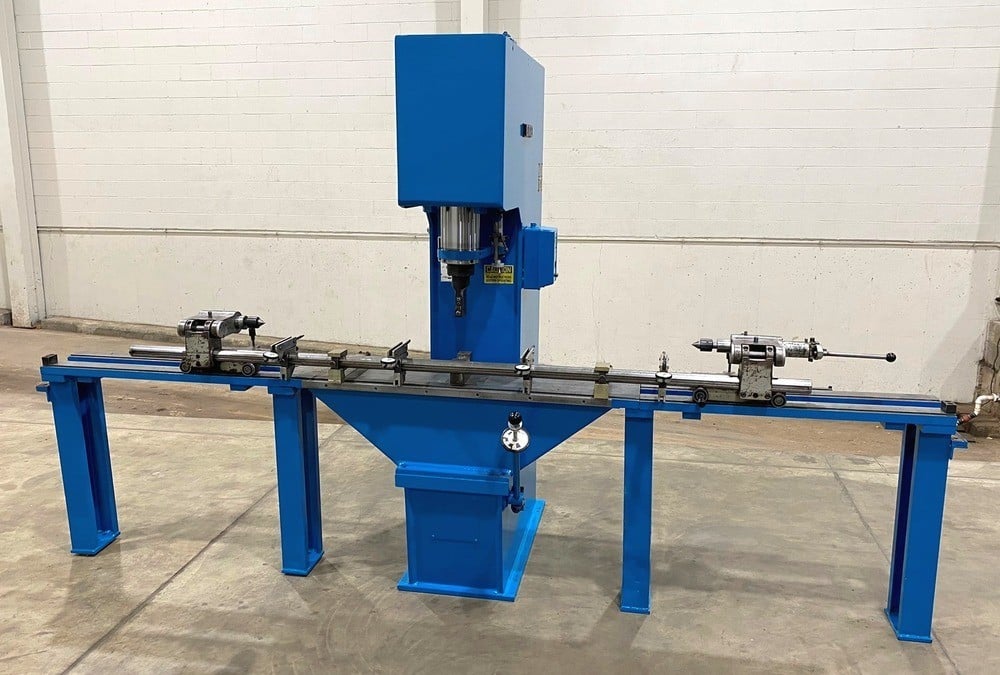

Eitel Straightening Press RP40

Serial No. 25824
Year Built – 1996
SPECIFICATIONS:
Capacity…………44 Tons
Stroke…………6″
Carriage Length Overall…………106″
Distance Between Centers …………85″
Straightening Stroke (Controllable & Adjustable)…………7/8″
Daylight…………34″
Throat Depth…………10″
Straightening Table Area…………55″(L-R) x 16-1/2″(F-B)
Ram Speed:
Downstroke…………70 IPM
Pressing…………70 IPM
Upstroke…………170 IPM
Motor…………7.5 HP
Dimensions – Approximate…………55″ x 48″ x 96″(H)
Weight – Approximate…………4,000 Lbs

Eitel Straightening Press RP40 EQUIPPED WITH:

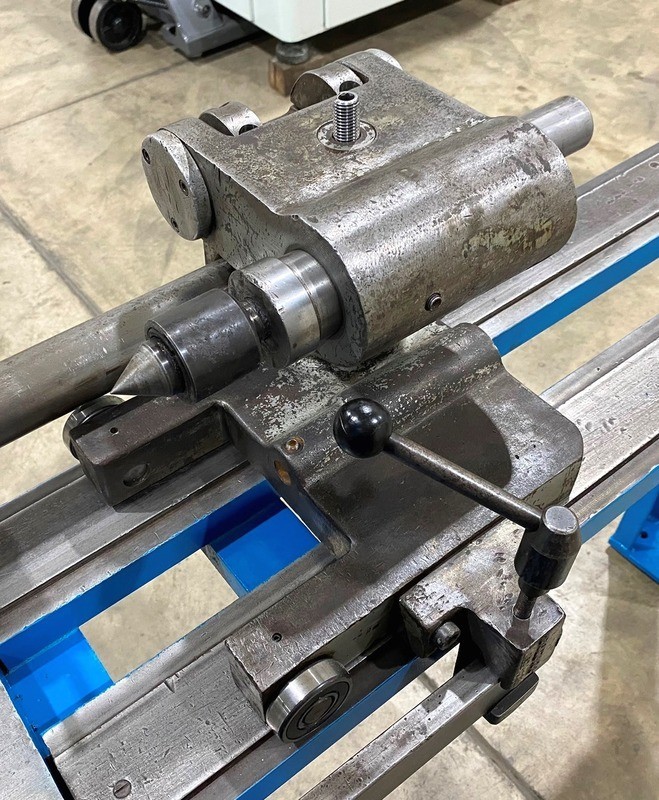

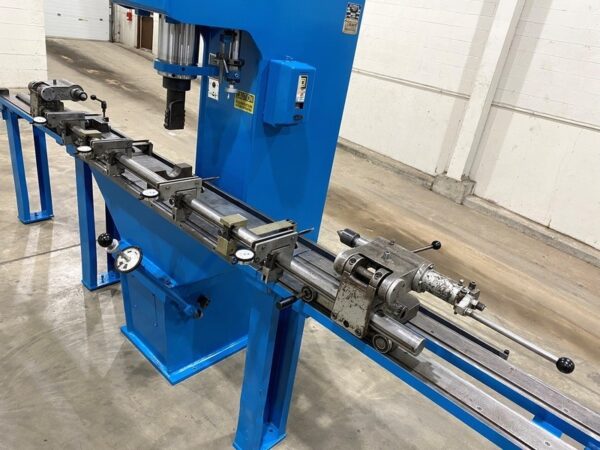

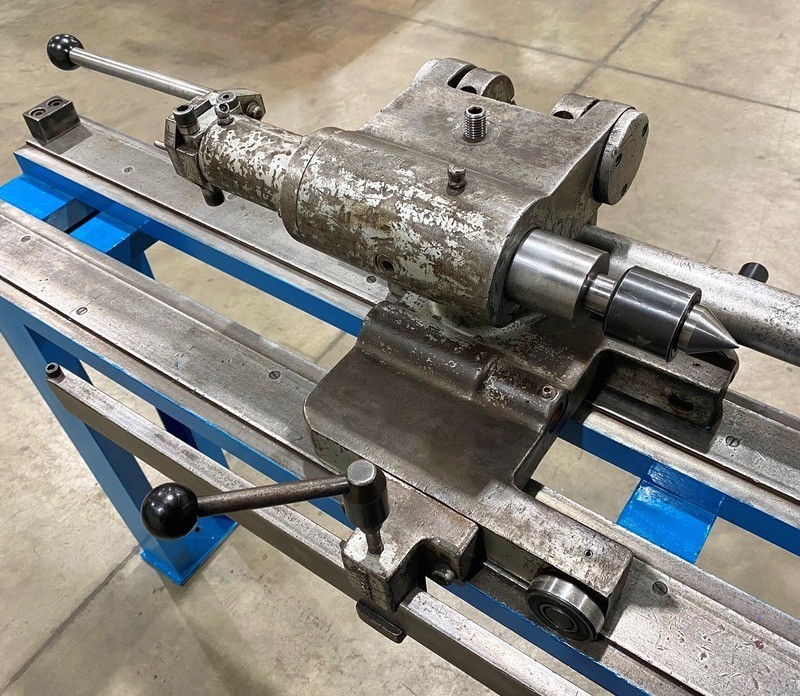

WR-2/80 Shaft Straightening Attachment

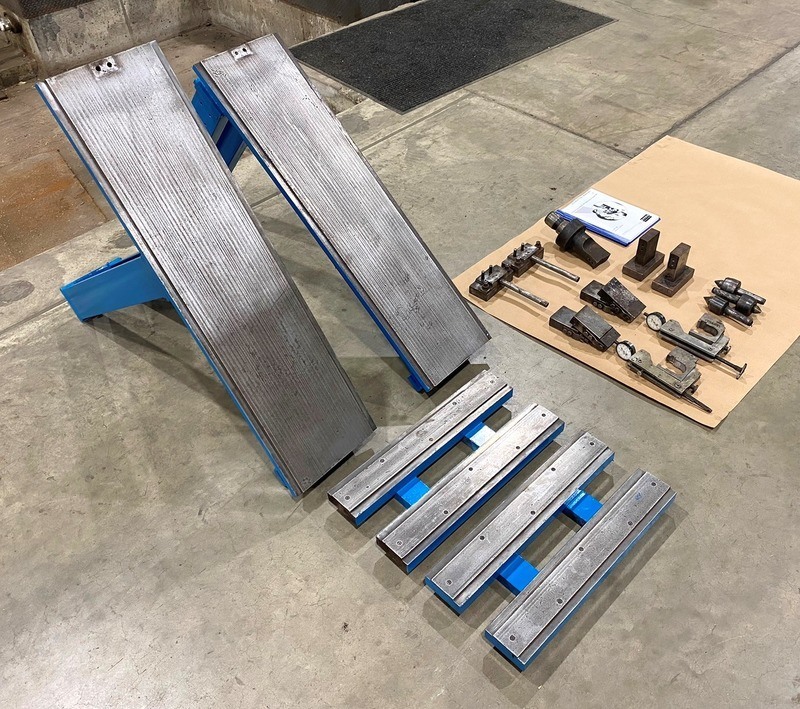

(4) Sections of Table Extension (40.0″, 41.0″, 61.5″, 60.0″) 185″ Total
Stroke Control – Adjustment of Straightening
Stroke Limitation – Limitation of Stroke

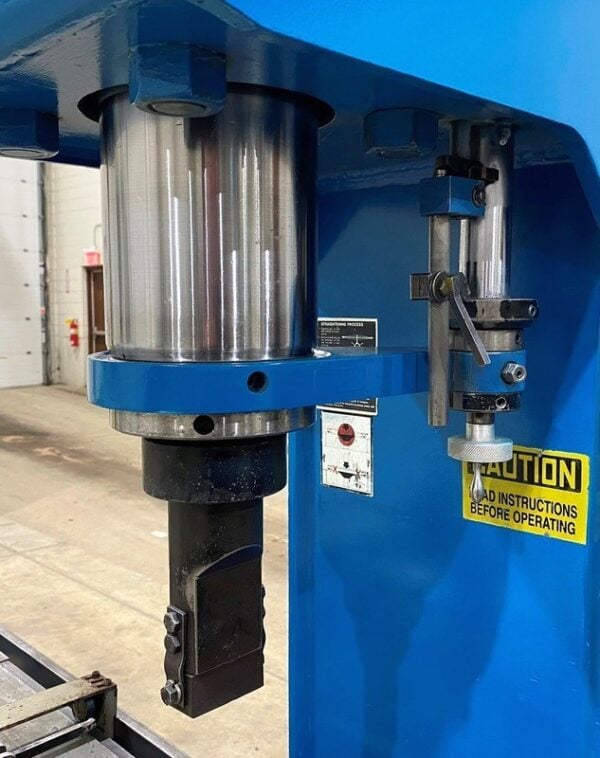

Turret Stop For Straightening Stroke
Sight Type Oil Level Gauge

*Catalog specifications, subject to verification.

The Eitel straightening press is a renowned machine used for the precision straightening of various materials in the manufacturing industry. Developed by Eitel Presses, a German company with a long-standing reputation for producing high-quality equipment, these presses combines robust construction with advanced technological features.

These presses are designed to correct distortions, bends, and twists in materials such as metal bars, tubes, profiles, and plates. They employ a hydraulic or mechanical system that exerts significant force on the material, gradually bending it back into the desired straight form. The Eitel straightening press offers precise control over the straightening process, allowing operators to adjust parameters such as force, speed, and stroke length to achieve optimal results.

With their solid frames and heavy-duty components, Eitel straightening presses are built for durability and long-term reliability. They are equipped with user-friendly interfaces and intuitive controls, enabling operators to efficiently operate the machine and monitor the straightening process. The presses can be customized to accommodate a range of material sizes and types, ensuring versatility and adaptability to various production requirements.

Eitel straightening presses have found applications in industries such as automotive, aerospace, construction, and steel manufacturing. They play a crucial role in ensuring the dimensional accuracy and quality of materials, ultimately contributing to the overall efficiency and performance of manufacturing processes.

To find out more about presses click HERE and HERE.
