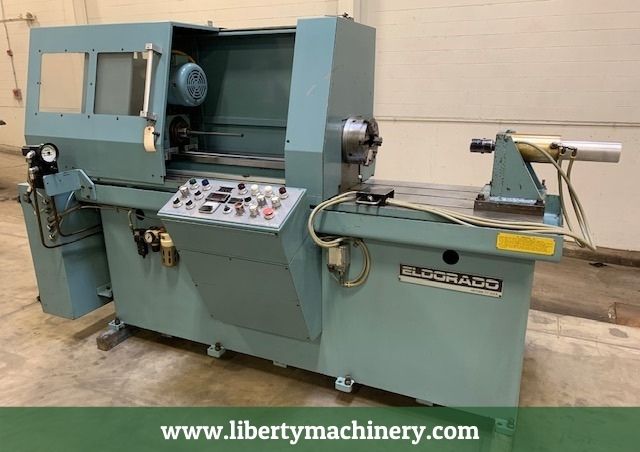

Eldorado M60 Gun Drill | 1.25" x 30" Stroke - #49034

Liberty Machine # 49034 Category Make

New - 1993
Serial No. 2034

MACHINE SPECIFICATIONS:
Gundrilling Diameter Capacity - Mild Steel....................0.125" - 1.25"
Ball Screw Stroke Length.................................................30"
Fixture Table Area.................................................22" x 32"
Center Line of Spindle to Table...........................................8"
Spindle Speeds (18).......................................1,445 - 11,740 RPM
Ball Screw Feed Rate (DC Torque Motor w/Integral Tachometer)..0.1 - 99.9 IPM
Jog Reverse & Forward Feed Rate......................................200 IPM
Motor.................................................................5.0 HP
Electrics - Currently Configured................................230/460/3/60
Dimensions - Approximate..................................86"L x 34"W x 57"H
Weight - Approximate..............................................4,000 Lbs.

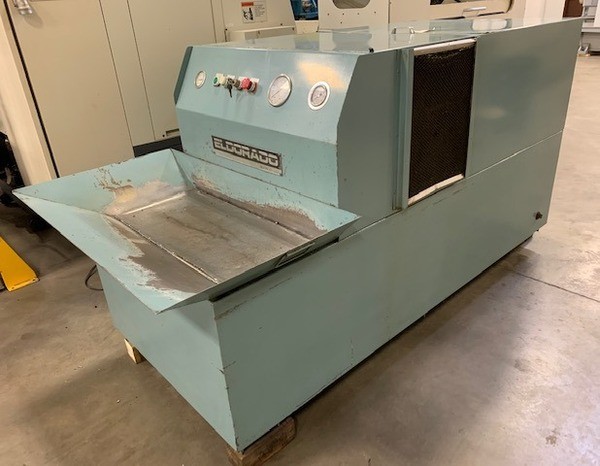

ELDORADO F-15 HIGH PRESSURE COOLANT SPECIFICATIONS:
Coolant Pressure - Variable...................................200 - 2000 PSI
Coolant Volume - Variable.........................................0 - 18 GPM
Coolant Reservoir Capacity........................................90 Gallons
Dimensions - Approximate..................................48"L x 32"W x 35"H
Dry Weight - Approximate..........................................1,000 Lbs.

FEATURES AND ACCESSORIES:
Direct Logic PLC 205 Processor
Eldorado Model F-15 Hi-Pressure Coolant System
Enclosure
Mega Flo-Minder - Flow Rate Monitor
Spindle Load-Minder, Feed Thrust Meter
Mega-Quikloc - Key Adjustable 8" Scroll Type 6-jaw Chuck Coupled
Air Actuated Precision Swing Away End Clamp
Automatic Lubrication System

*Preliminary Specifications Subject to Verification.
