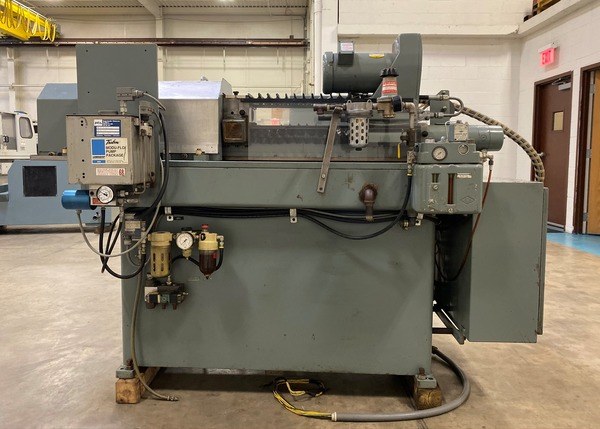

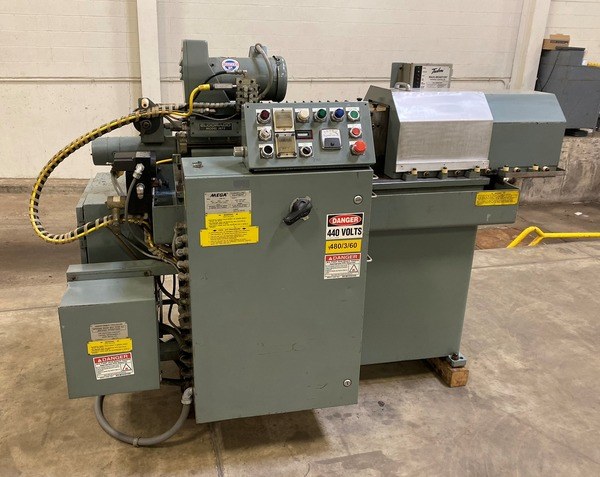

Eldorado M75-1001 Single Spindle Gun Drill W/ Mega F-18 Hi-Pressure Coolant Filtration System | 3/4" x 15" Stroke - #48428

Liberty Machine # 48428 Category Make

Serial No. 1531
New - 1990

SPECIFICATIONS:
Number of Gun Drilling Spindles.............................................1
Capacity with 15" Stroke........................................3/4" Diameter
Gun Drilling Diameter Capacity - Mild Steel....................0.055" to .75"
Ball Screw Stroke Length..................................................15"
Spindle Speeds.............................................1,445 - 11,740 RPM
Ball Screw Feed Rate...........................................0.1 - 99.9 IPM
Jog Reverse & Forward Feed Rate.......................................200 IPM
Spindle Motor................................................3.0 HP, 3450 RPM
Electrics.......................................................480V/3PH/60Hz
Actual Dimensions..........................................75"L x 42"W x 58"H
Approximate Weight.................................................2,500 Lbs.

ELDORADO F18-1101 HIGH PRESSURE COOLANT SPECIFICATIONS:

Coolant Pressure - Variable....................................200 - 2000 PSI
Coolant Volume - Variable..........................................0 - 18 GPM
Coolant Reservoir Capacity.........................................90 Gallons
Coolant Actual Dimensions..................................78"W x 34"L x 34"H
Coolant Dry Weight.................................................1,000 Lbs.

EQUIPPED WITH:
Eldorado Model #F-18 High Pressure Coolant System
Mega Flo-Minder Flow Rate Monitor

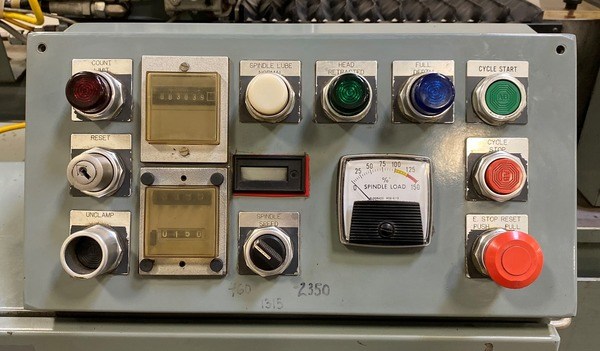

Spindle Load-Minder

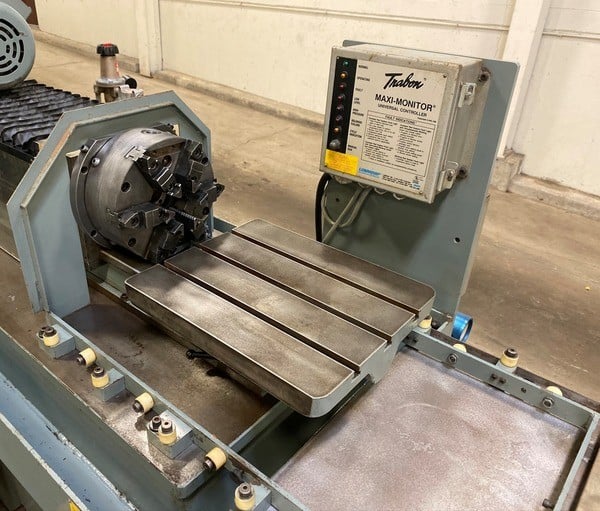

Fixturing Tables (T-Slotted, Way Mounted & Removable)

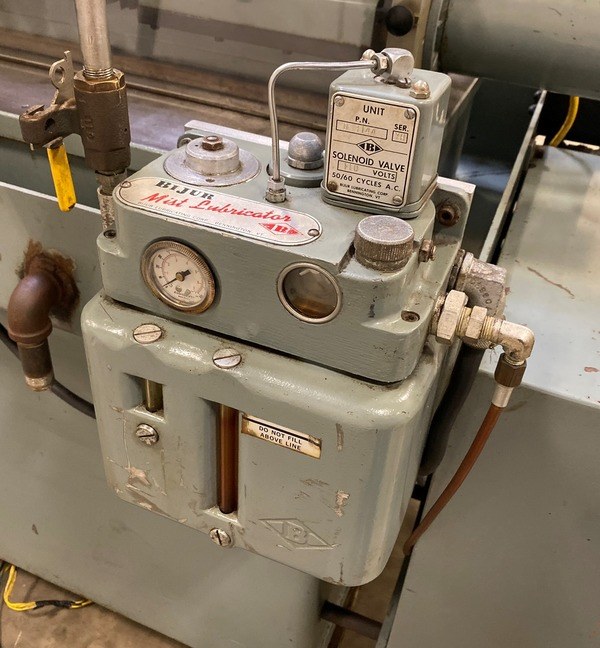

Automatic Lubrication System

*Preliminary Specifications Subject to Verification
