New – 2001
Serial No. 1928
SPECIFICATIONS:
Gundrilling Diameter Capacity – Mild Steel…………0.055″ – 0.75″
Ball Screw Stroke Length…………30″
Fixture Table Area…………26″ x 22.25″
Center Line of Spindle to Table…………8″
Spindle Speeds…………1,445 – 11,740 RPM
Ball Screw Feed Rate (DC Torque Motor w/Integral Tachometer)…………0.1 – 99.9 IPM
Jog Reverse & Forward Feed Rate…………200 IPM
Motor…………3.0 HP (3450 RPM)
Electrics – Currently Configured…………230V/3Ph/60Hz

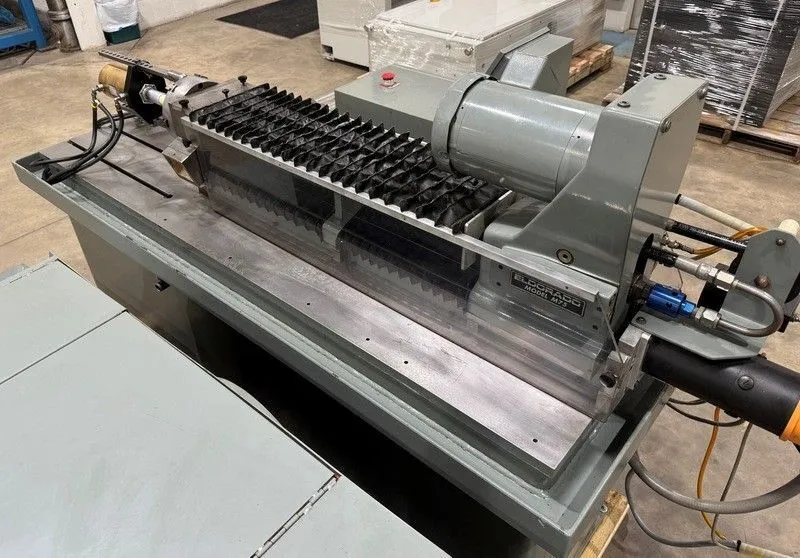

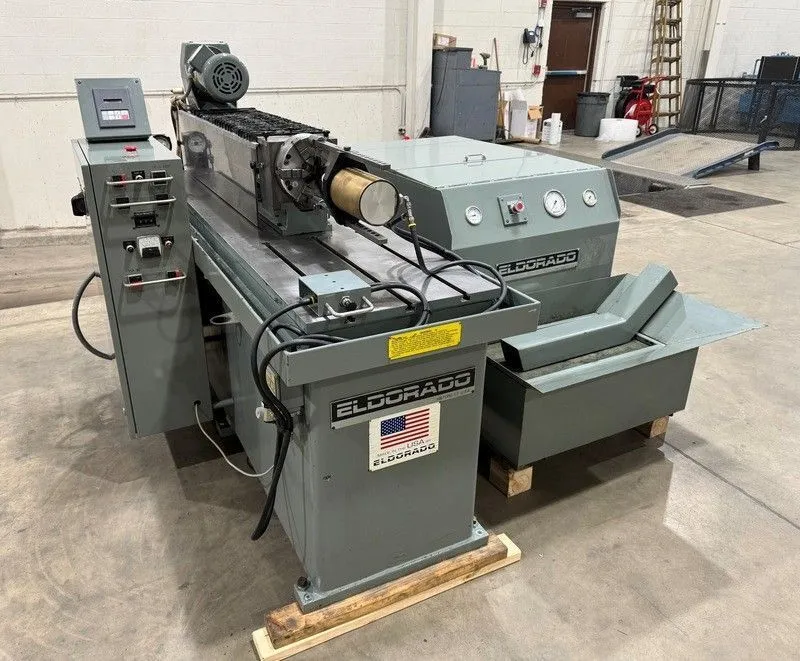

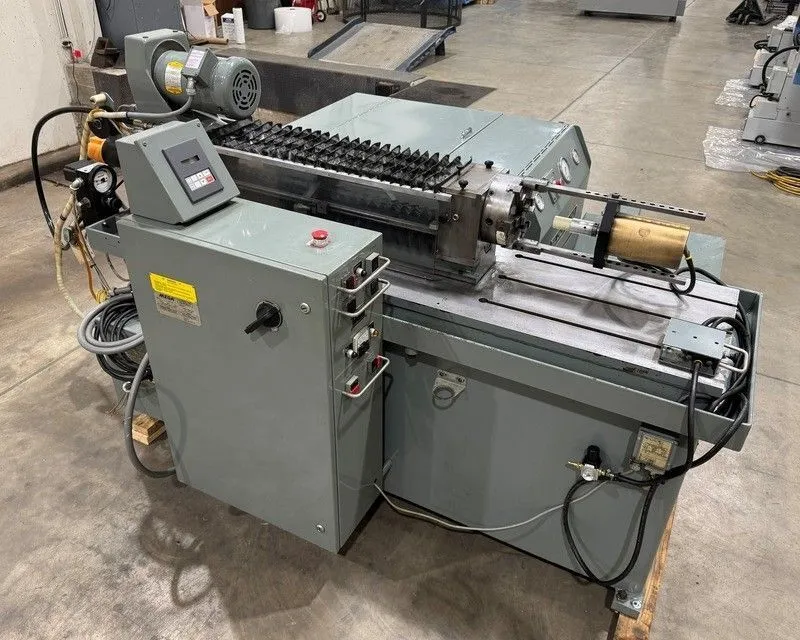

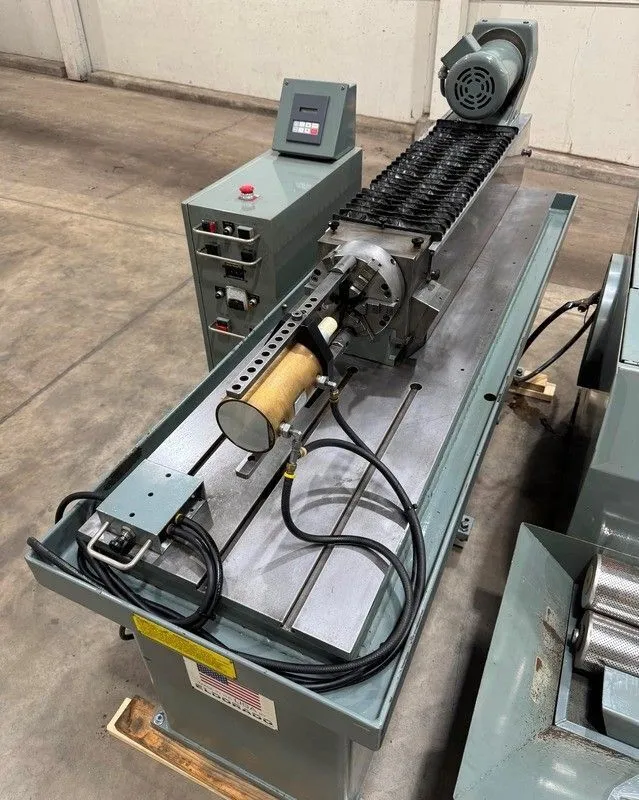

Gun Drill Machine:
– Dimensions – Actual…………91″ x 44″ x 60″ (H)
– Weight – Approximate…………4,000 Lbs.

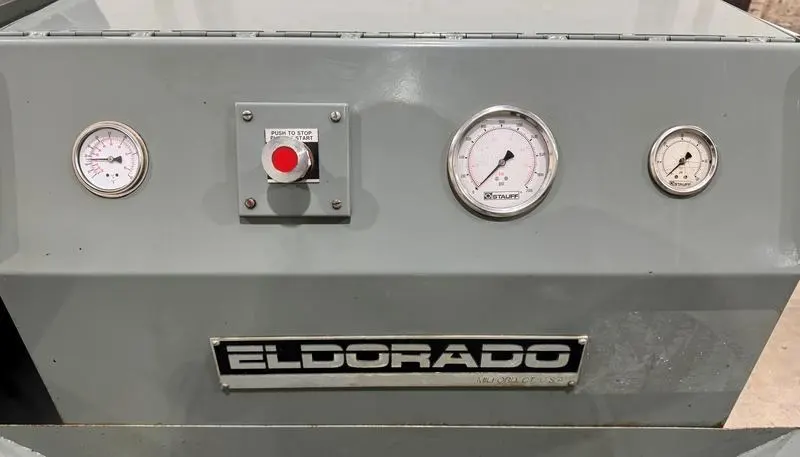

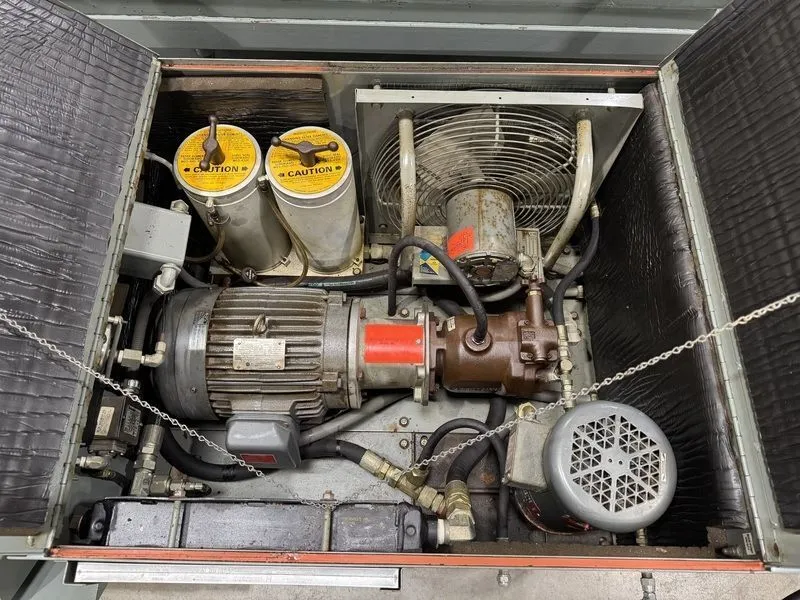

ELDORADO MEGA F18-1101 HIGH-PRESSURE COOLANT SPECIFICATIONS:
Coolant Pressure, Variable…………200 – 2,000 PSI
Coolant Volume, Variable…………0 – 18 GPM
Coolant Reservoir Capacity…………90 Gallons
Dimensions – Actual…………75″ x 39.5″ x 35″ (H)
Approximate Dry Weight…………1,000 Lbs.
FEATURES AND ACCESSORIES:

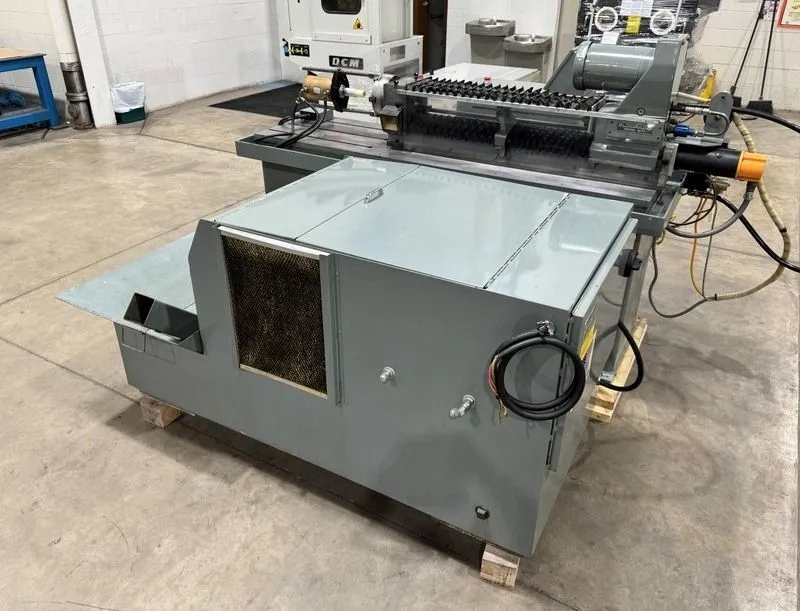

Eldorado Model #F18-1101 High-Pressure Coolant System

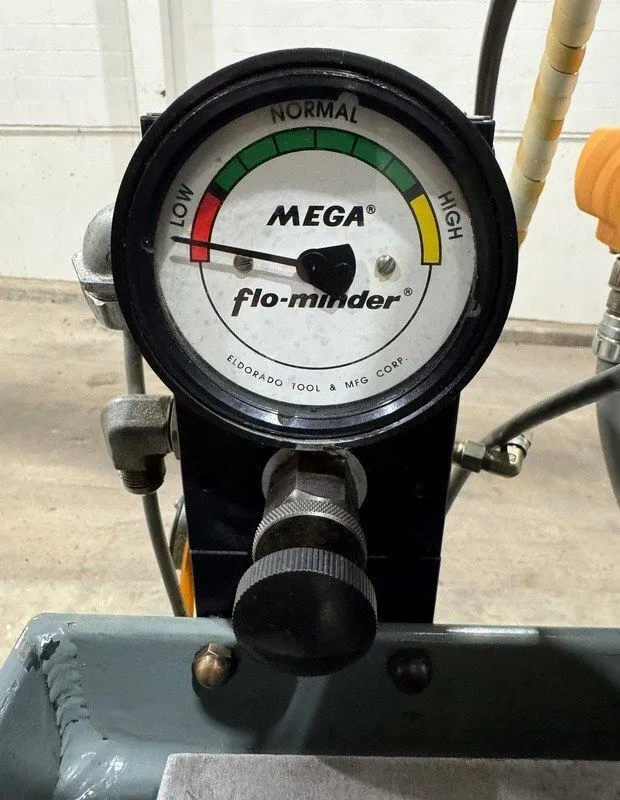

Mega Flo-Minder flow rate monitor
Koyo DirectLogic 205 Micro PLC
Lenze Micro Inverter Variable Speed Drive

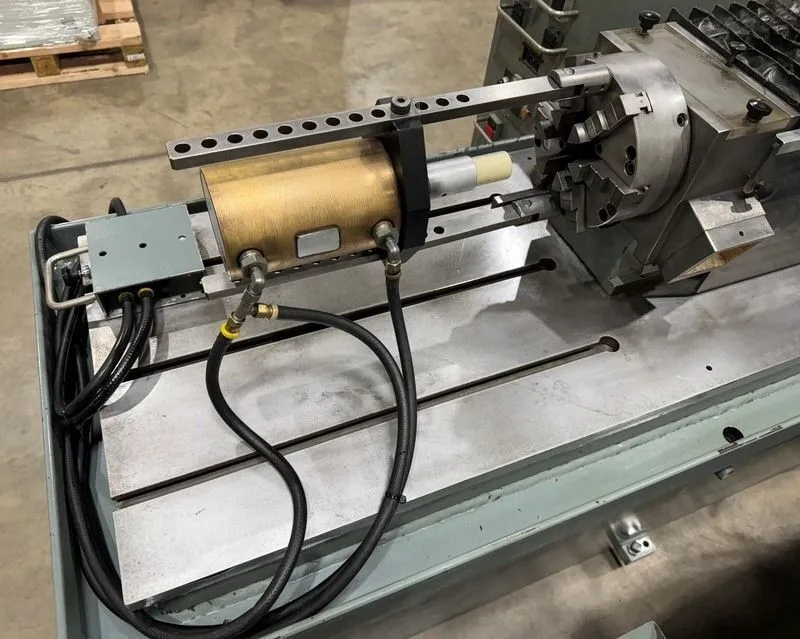

Mega-Quikloc Key Adjustable 10″ 6-Jaw Scroll Type Chuck (Buck Forkard)
Air Actuated Precision Swing Away End Clamp
Whip Guide
Spindle Load-Minder
Feed Thrust Meter
Automatic Lubrication System

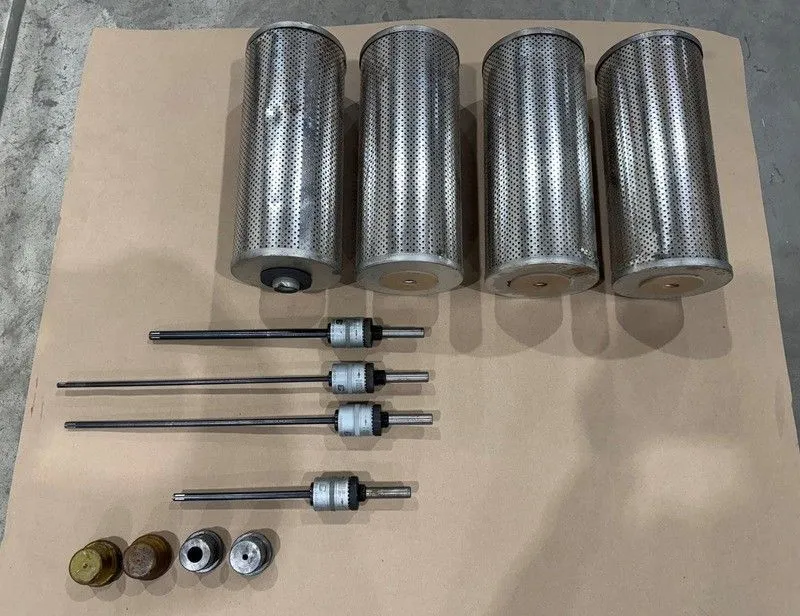

(4) Cogsdill Tool Roll-A-Finish burnishing tools
Books, Manuals, and Drawings
*Preliminary specifications, pending confirmation.
