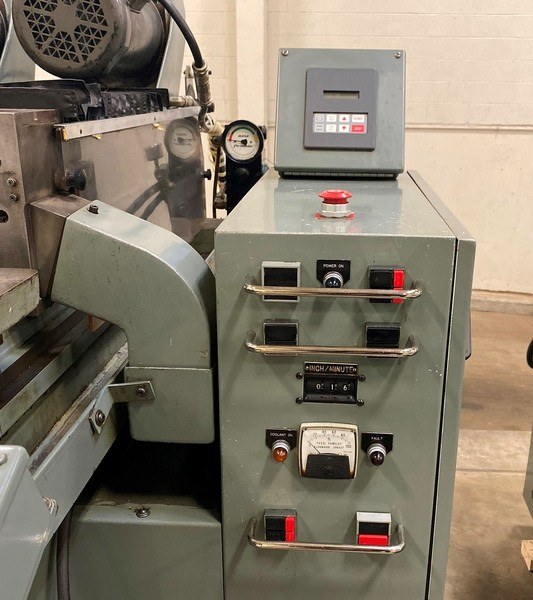

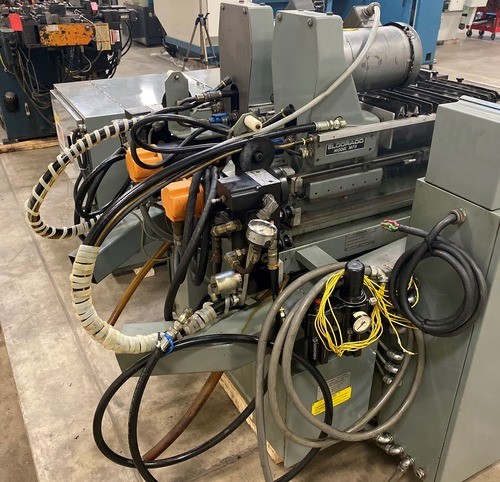

Eldorado M75-1061 Twin Spindle Gun Drill W/ Mega F-18 Hi-Pressure Coolant Filtration System | 3/4″ X 15″ – #48230

Liberty Machine # 48230 Category Make

Click here to view other gun drills we have in stock.

If you have a used gun drill for sale, please click here and fill out a quick for sale form and we’ll contact you with a free quote!

Serial No. 1850/1851
New – 1999

SPECIFICATIONS:
Number of Gun Drilling Spindles………………………………………2
Capacity with 15″ Stroke………………………………….3/4″ Diameter
Gun Drilling Diameter Capacity – Mild Steel………………..0.055″ to .75″
Ball Screw Stroke Length…………………………………………..15″
Spindle Speeds (Infinitely Variable)…………………..1,445 – 11,740 RPM
Ball Screw Feed Rate…………………………………….0.1 – 99.9 IPM
Jog Reverse & Forward Feed Rate…………………………………200 IPM
Right Hand Spindle Motor……………………………….3.0 HP, 3450 RPM
Left Hand Spindle Motor………………………………..1.5 HP, 1140 RPM
Electrics………………………………………..208-230/460V/3Ph/60Hz
Actual Dimensions……………………………………75″L x 64″W x 58″H
Approximate Weight………………………………………….4,000 Lbs.

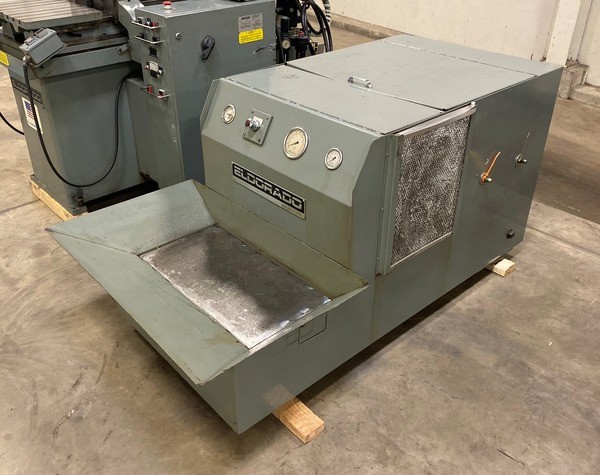

ELDORADO F18-1101 HIGH PRESSURE COOLANT SPECIFICATIONS:

Coolant Pressure – Variable………………………………200 – 2000 PSI
Coolant Volume – Variable……………………………………0 – 18 GPM
Coolant Reservoir Capacity…………………………………..90 Gallons
Coolant Actual Dimensions…………………………….78″W x 34″L x 34″H
Coolant Dry Weight………………………………………….1,000 Lbs.

EQUIPPED WITH:
Eldorado Model #F-18 High Pressure Coolant System
Mega Flo-Minder Flow Rate Monitor
Spindle Load-Minder
(2) Aerotech Servo Controllers for Variable Frequency Drive Spindles
(2) Servo Feed Motors with Integral Tachometer, (Infinitely Variable Feed)
(2) Fixturing Tables (T-Slotted, Way Mounted & Removable)
Automatic Lubrication System

*Preliminary Specifications Subject to Verification.
