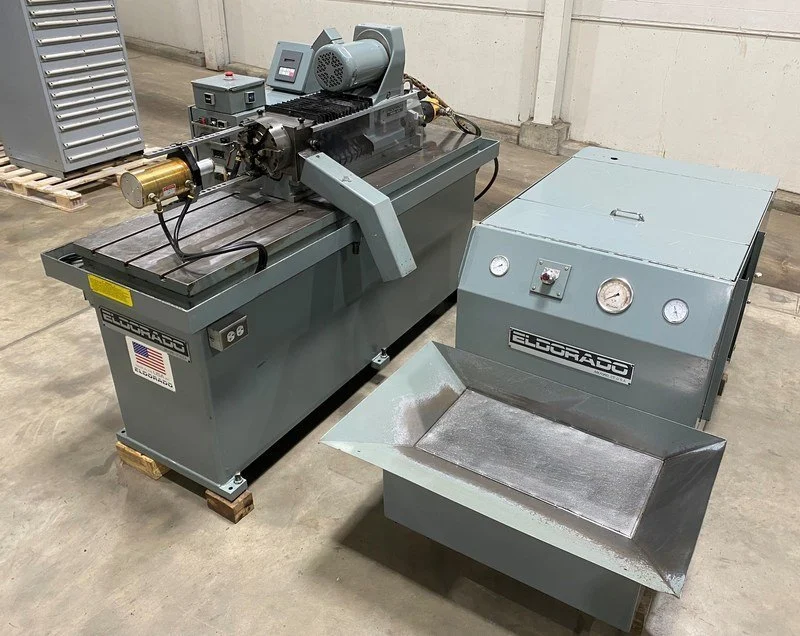

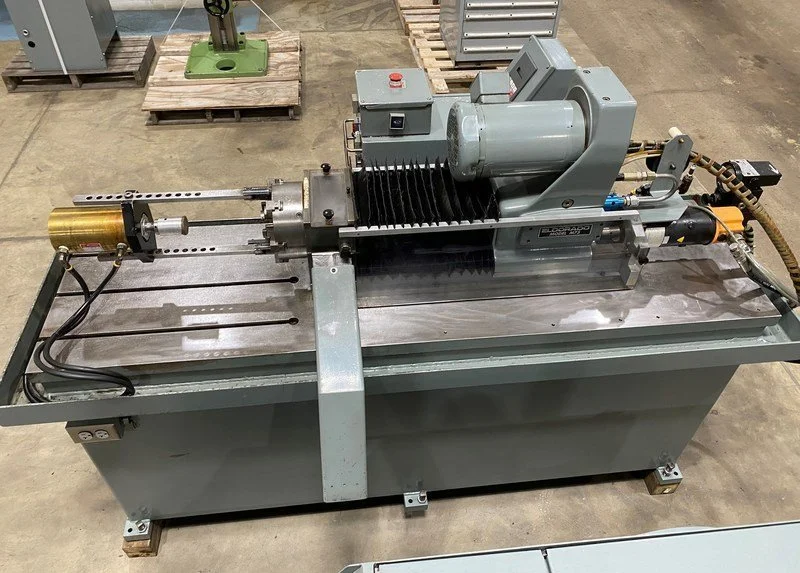

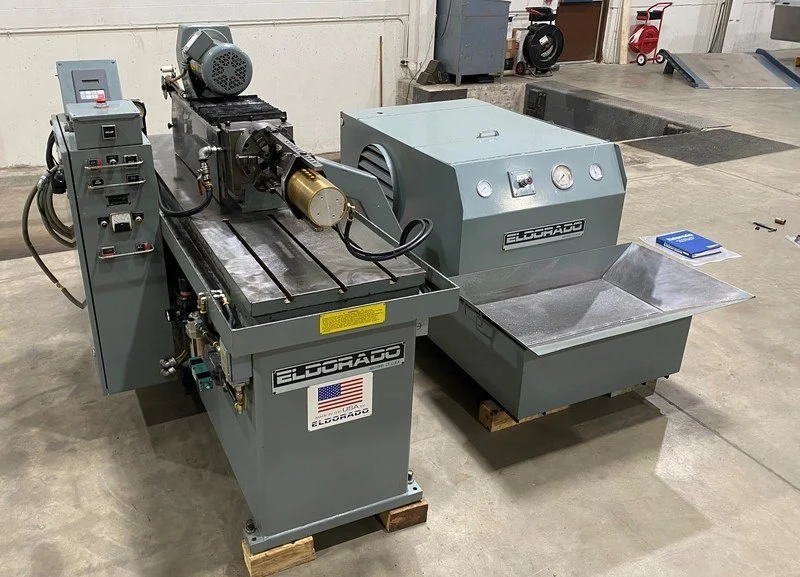

3/4″ x 15″, Eldorado M75-1032 | 3HP, 1,445-11,740 RPM,26″Lx20″W Fixture Area, 03′ – #50983

Liberty Machine # 50983 Category Make

New – 2003
Serial No. 2009

SPECIFICATIONS:
Capacity…………3/4″ Diameter x 15″ Stroke
Gundrilling Diameter Capacity…………0.053″ – 0.750″ Diameter
Ball Screw Stroke Length – Maximum…………15″
Spindle Speeds (18)…………1,445 – 11,740 RPM
Spindle Motor…………3 HP
Ball Screw Feed Rate…………0.1 – 99.9 IPM
Jog Rate…………200 IPM
Coolant Reservoir Capacity…………90 Gallons
Coolant Pressure – Variable…………200 – 2000 PSI
Coolant Volume…………0 – 18 GPM
Coolant Pump…………7.5 HP
Electrics…………460V/3Ph/60Hz
Machine Dimensions – Approximate…………82″ x 60″ x 57″(H)
Coolant System Dimensions – Approximate…………74″ x 40″ x 35″(H)
Weight – Approximate…………3500 Lbs.

EQUIPPED WITH:

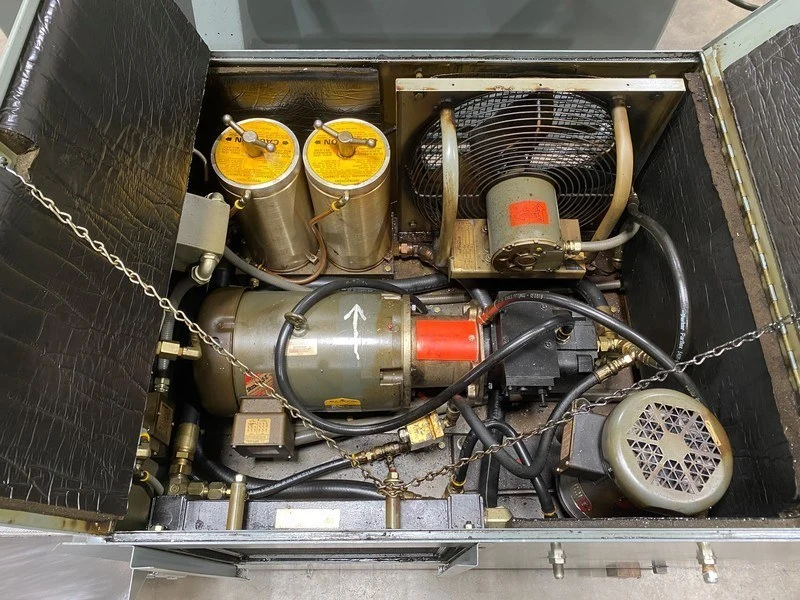

Eldorado Model F18-1101 High Pressure Coolant System
Mega Flo-Minder Flow Rate Monitor

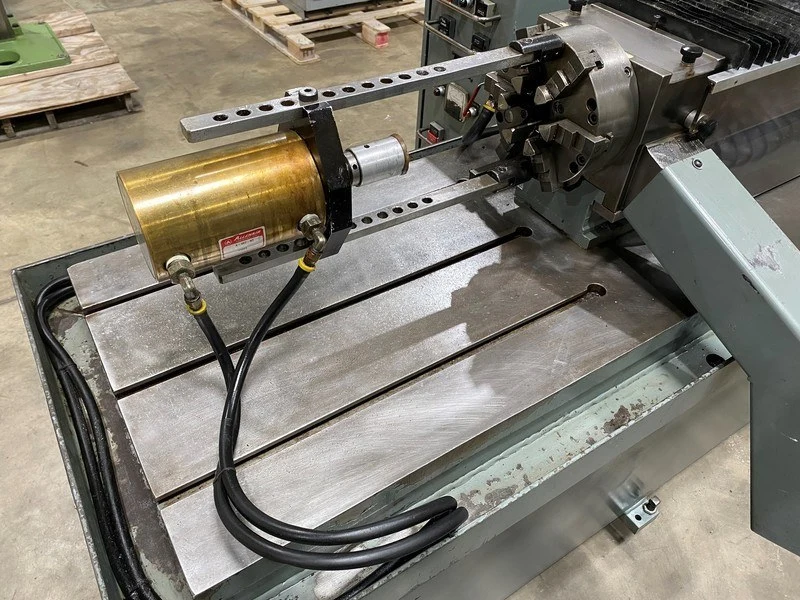

Mega-Quikloc key adjustable scroll type chuck, coupled with air-actuated, precision swing away end clamp
Chip Box
Spindle Mist Lube
Spindle Load Meter
Feed Thrust Meter
Hardened & Ground Ways
Machine Documentation

*Preliminary Specifications Subject to Verification.
