New – 2004
Serial No. 2004178
SPECIFICATIONS:
Dial Plate Diameter (Pneumatic Index)…………20″
Number of Index Stations…………10
Able to Process…………..1-2 Parts/Cycle

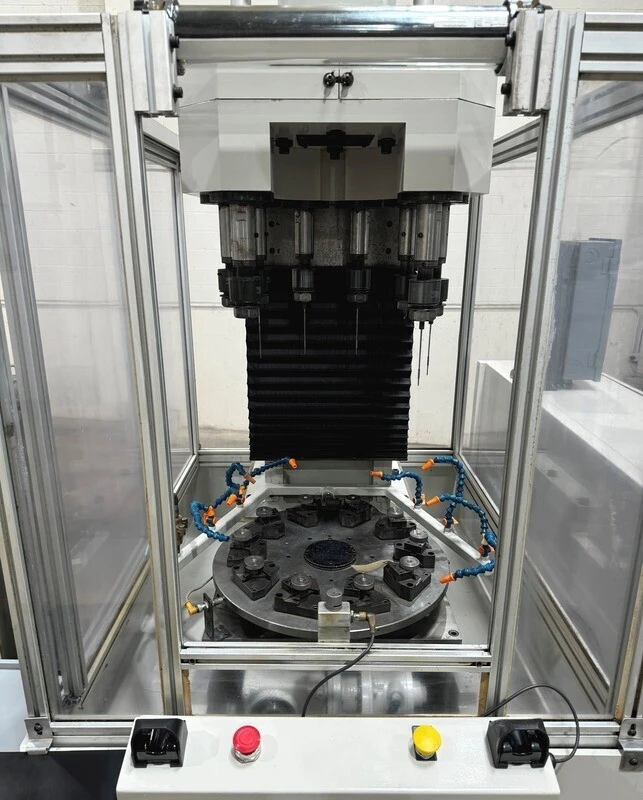

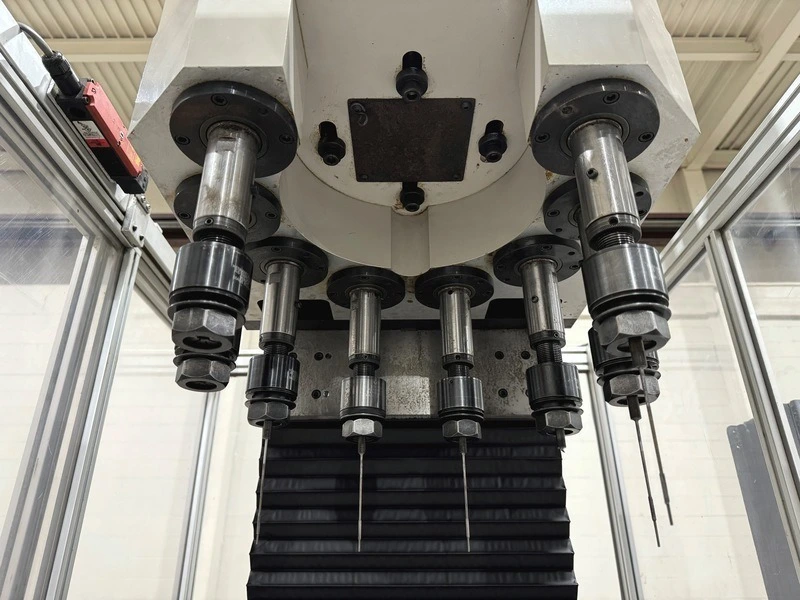

Single Column Design…………8-Spindle Multi-Head
Head Travel (Z-Axis) Servo Feed…………18″
Column to Center of Table…………13″
Base to Top of Index Table…………8″
Index Table Through Hole – Maximum…………1-1/2″
Spindle Motor…………5 HP
Spindle Speeds – Infinitely Variable…………100 – 2,000 RPM
Spindle Size………….1″ ASA
Diameter Range…………0.06 – 1-1/2″
Maximum Feed Rate…………450 in/min
Bore Geometrics to Within…………0.00005″
Current Electrical Configuration…………480V / 3 Phase / 60 Hz
Dimensions – Catalog…………60″L x 60″W x 94″H
Weight – Approximate…………3,750 Lbs.
EQUIPPED WITH:

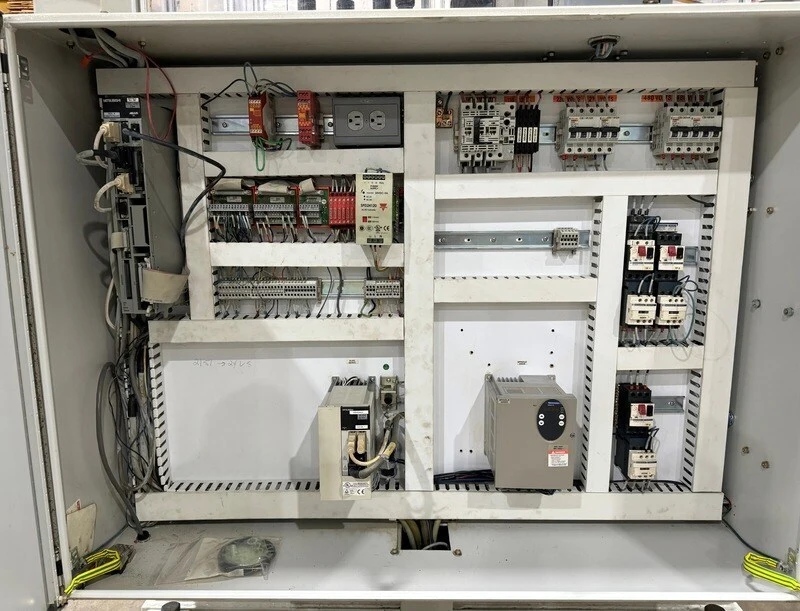

Mitsubishi Meldas Model C64 PLC
20″ Pneumatic Index Table
Manifold for Pneumatic Activated Clamping
Opto-Touch Dual Push Button Safety Interlock

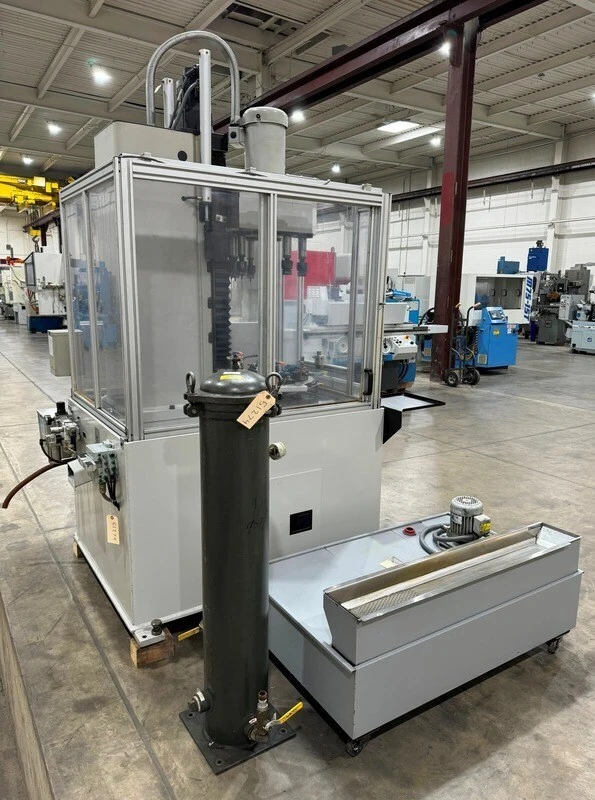

MSC Liquid Filtration Corp. Model 200-2VT Cartridge type 25 GPM Filtration System w/Coolant Tank
Trabon Lubrication System
Books, Manuals and Ladder Logic
*Preliminary specifications, pending confirmation.
