New – 2021
SPECIFICATIONS:
Machining Capacity:
– Bar Diameter – Maximum…………1.5″
– Machining Diameter – Maximum…………3.94″
– Swing Over Diameter – Maximum…………5.51″
Main Spindle:
– Speed – Maximum…………7,000 RPM
– Nose…………4.53″
– Bore…………1.81″
– Chuck Diameter…………4.33″
– Motor Power…………15 HP
– C-Axis Minimum Programmable Value…………0.001°
Sub-Spindle:
– Speed – Maximum…………7,000 RPM
– Nose…………4.53″
– Bore…………1.81″
– Chuck Diameter…………4.33″
– Motor Power…………15 HP
– C-Axis Minimum Programmable Value…………0.001°
– X3-Axis (sub-spindle offset stroke)- Nose…………4.53″
– Z3-Axis (sub-spindle stroke – rapid traverse)…………13.4 – 1,181 in/ipm

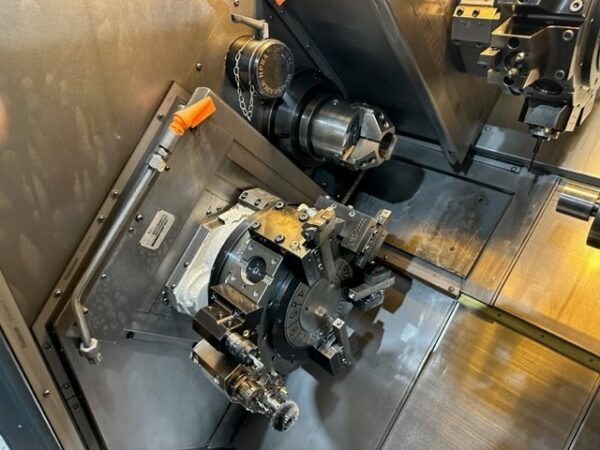

Upper Turret 1 – Lower Turret 2:
– No. of Stations…………12
– Turret Indexing Time…………0.15 sec
– No. of Live Tools – Maximum…………48
– Live Tools Speed – Maximum…………6,000/16,000 RPM
– Motor Power (continous/30 min.)…………3/5.9 HP
– Torque – Maximum…………16.23 lb/ft
– X1-X2 Axes (Stroke – Rapid Traverse)…………3.3″ – 590 IPM
– Z1-Z2 Axes (Stroke – Rapid Traverse)…………11.8″ – 1,181 IPM
– Y1-Y2 Axes (Stroke – Rapid Traverse)…………1.97″ (-0.98/+0.98″) – 1,181 IPM
High Pressure Coolant System:
– Tank Capacity…………52.7 gal
– Pressure Range…………700 – 1100 psi
Electrics…………
Machine Dimensions – Approximate…………145″L x 57″W x 74.8″H
Machine Weight – Approximate…………10,362 Lbs.
EQUIPPED WITH:

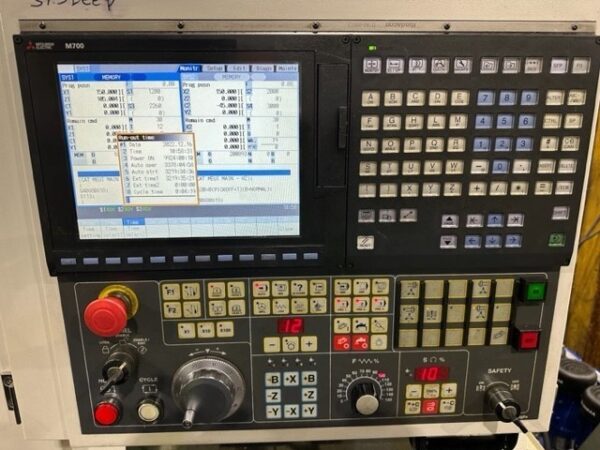

Mitsubishi 700 CNC Controller
High Pressure Coolant System
Live Tooling
*Preliminary specifications, subject to verification.
