New – 2008
Type – A04B-0099-B113#BBH
Serial No. P085WH663
SPECIFICATIONS:
Table Size…………33.5″ x 16.1″
Travels:
– X-Axis…………27.5″
– Y-Axis…………15.7″
– Z-Axis…………13″
Spinde to Table Distance…………5.9″ – 18.9″
Spindle Center to Column Distance…………15.748″
Table Capacity…………440 Lbs.
Spindle Taper…………BT-30 Big Plus Taper Spindle
Spindle Speeds…………100 – 10,000 RPM
Rapid Traverse Rates (X/Y/Z)…………2125 IPM
Cutting Feed Rate – Maximum…………0.039 – 1181 IPM

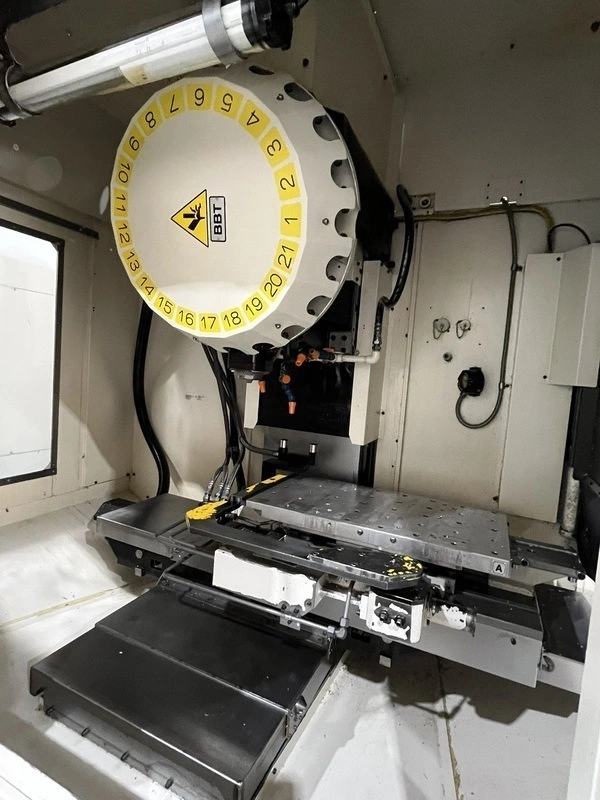

Tool Changer:
– Style…………Bi-Directional High-Speed Tool Turret
– Capacity…………21 Stations
– Change Time…………0.9/1.1 Seconds Tool to Tool
– Tool Length – Maximum…………9.8″
– Tool Weight – Maximum…………6.6 Lbs.
Spindle Drive (10 Min Rating/Continuous)…………7.3 HP/5 HP
Electrics…………220V/3Ph/50/60Hz
Weight – Approximate…………5500 Lbs.
Machine Dimensions – Approximate…………110″L x 80″W x 96″H
EQUIPPED WITH:

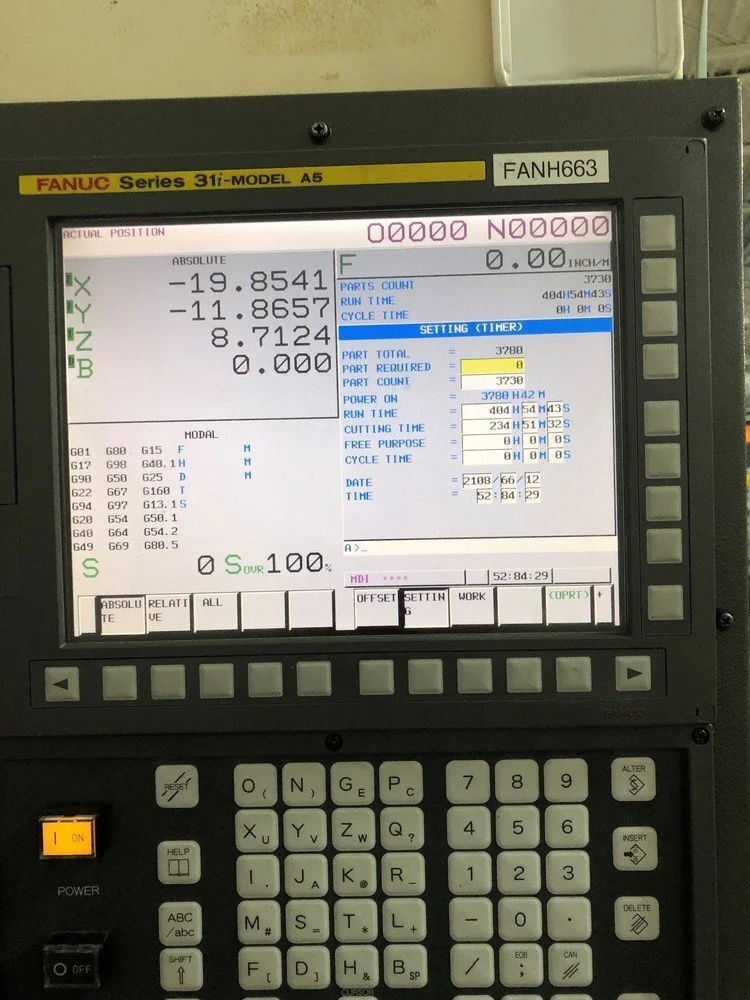

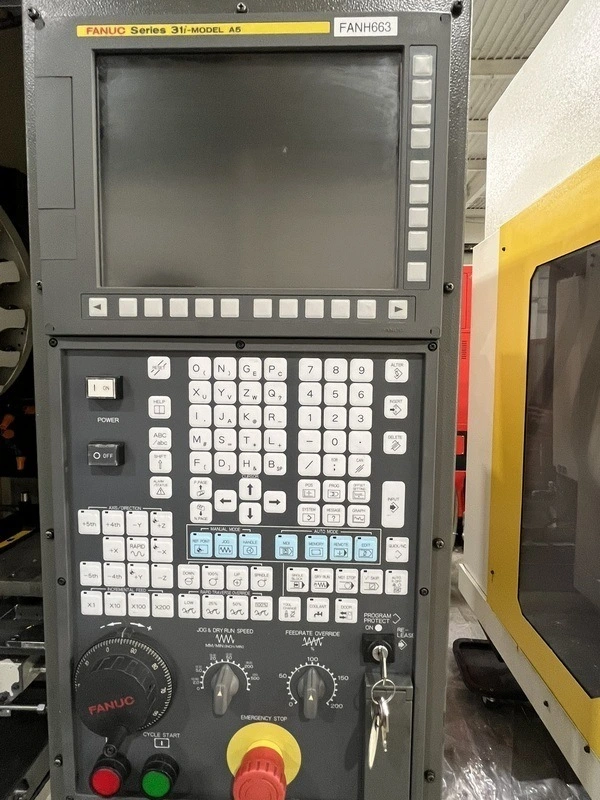

Fanuc Series 31i-A5 Controller

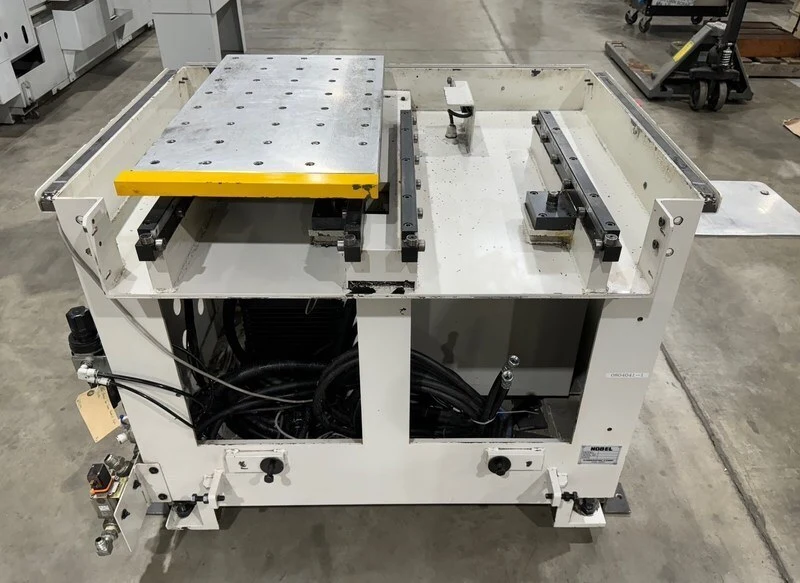

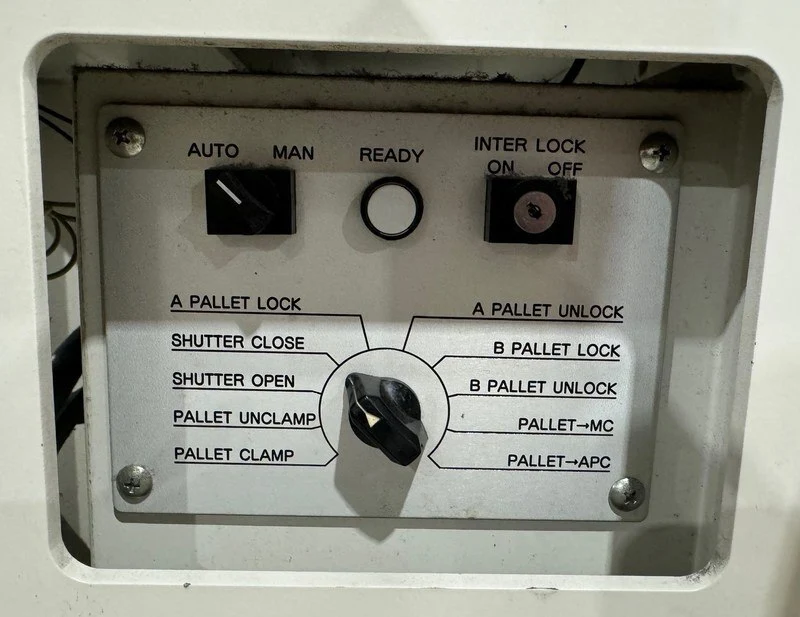

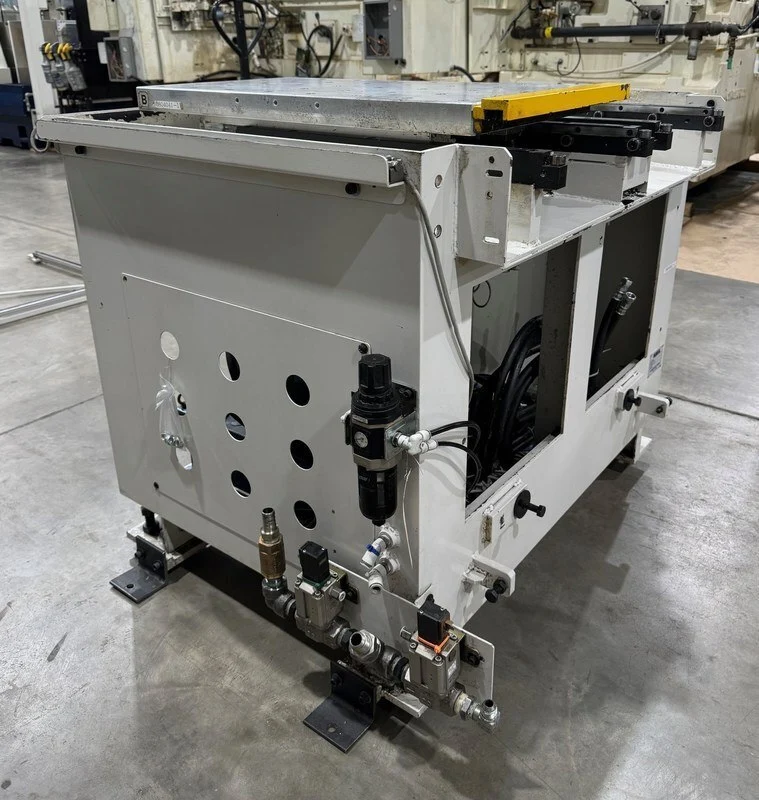

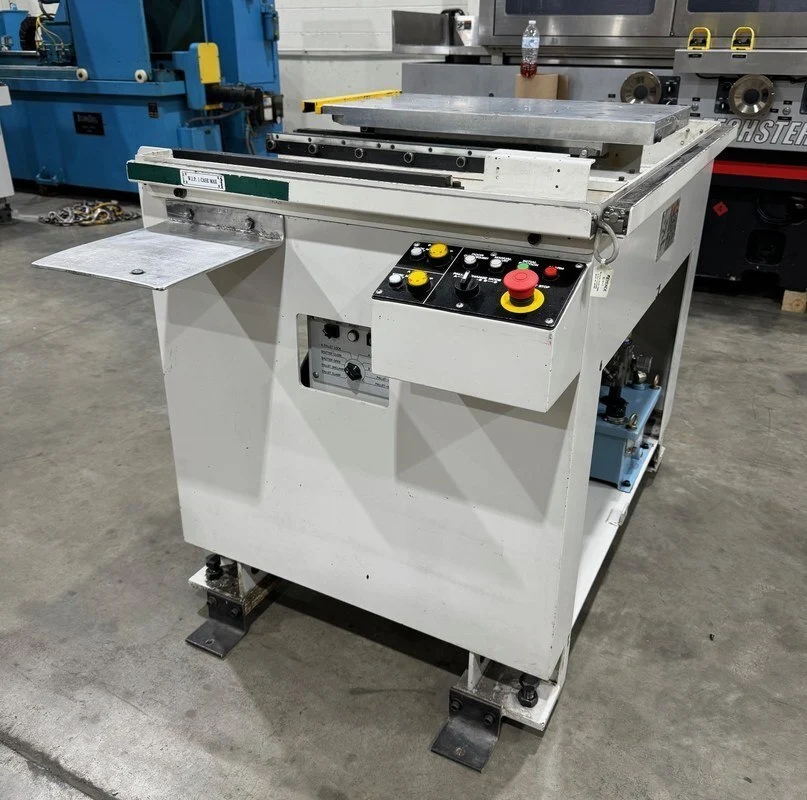

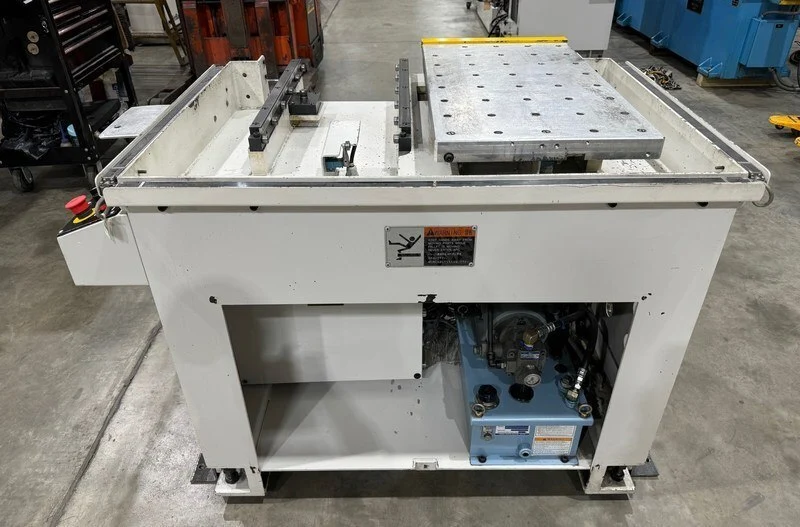

Nobel Model SP3970E Two- Pallet Changer (Push/Pull)

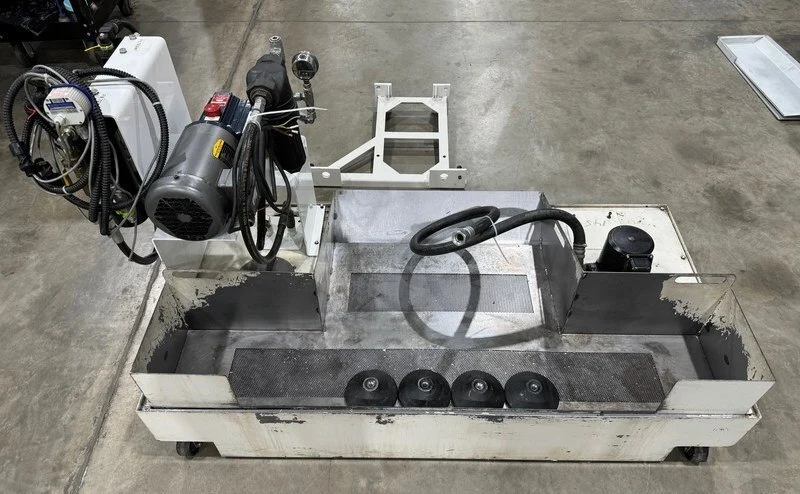

Fuchs Coolant Filtration System
Machine Documentation
*Preliminary specifications, pending confirmation.
