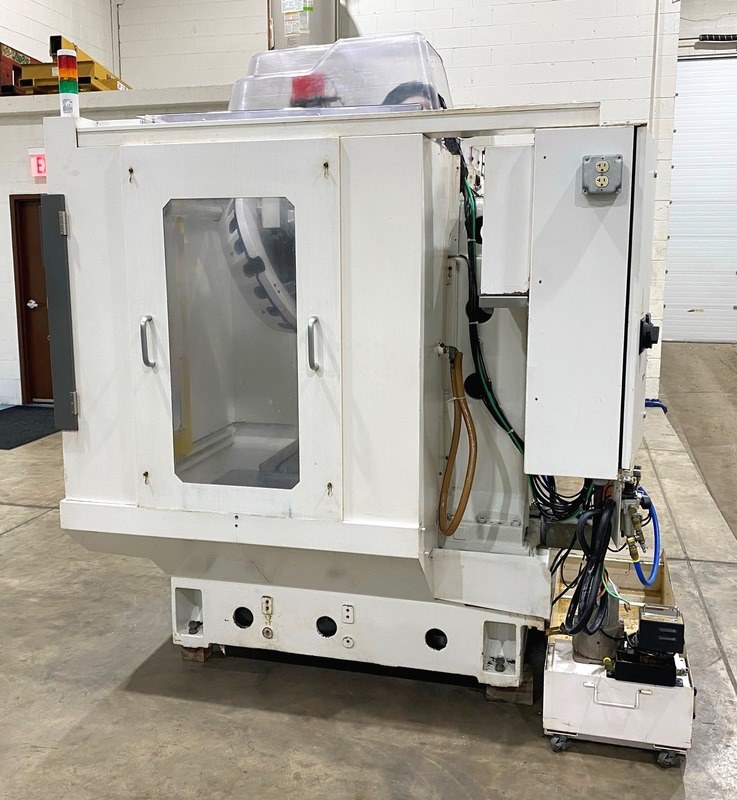

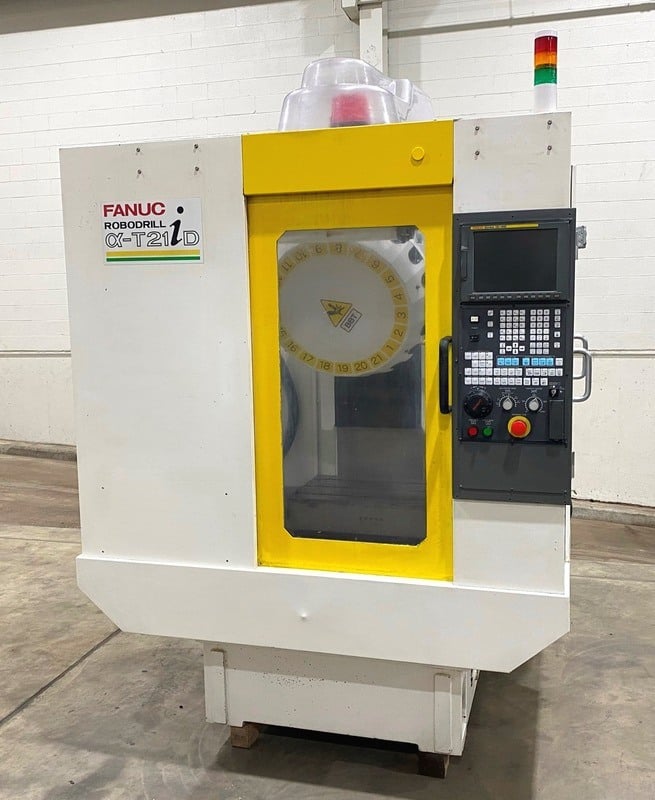

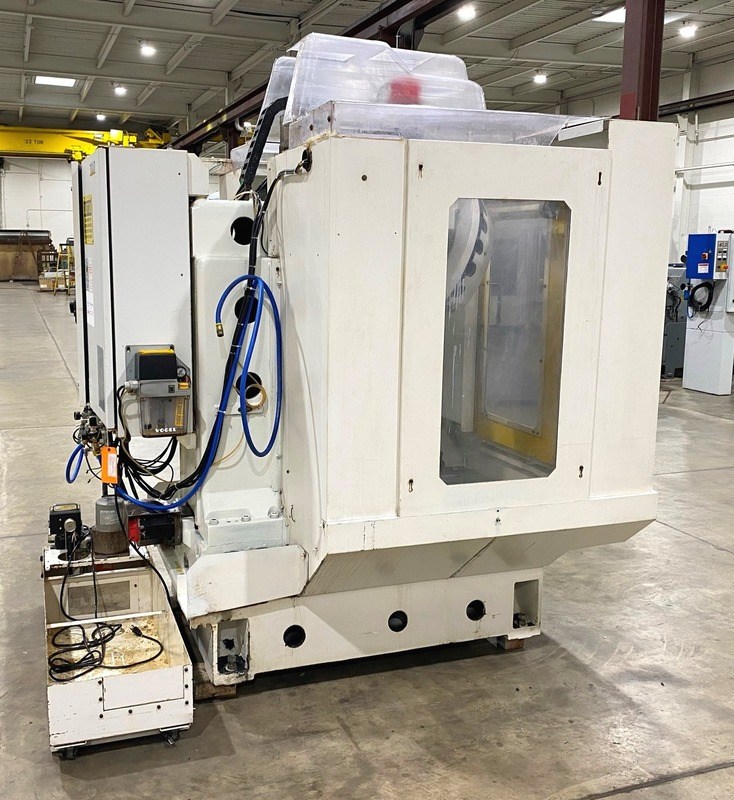

Fanuc Robodrill Alpha T21ID
New – 2003
Serial No. P038UN217
Fanuc Robodrill Alpha T21ID SPECIFICATIONS:
Travels:
– X-axis (Longitudinal movement of table)…………19.7″
– Y-axis (Cross movement of saddle)…………15.8″
– Z-Axis (Vertical movement of spindle head)…………13″
– Distance from table surface to spindle edge surface…………5.91″ – 18.9″
– Distance from front surface of the column to center line of the spindle…………15.75″

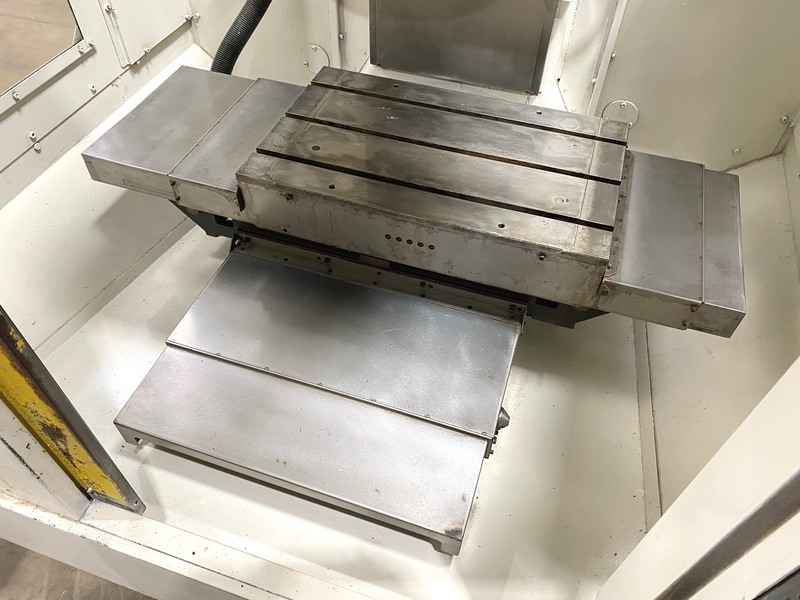

Table:
– Area…………25.6″ x 15.75″
– Load Capacity (uniform load)…………440 Lbs.
Spindle:
– Speed – Maximum…………20,000 RPM
– Taper Hole Type…………7/24 taper No. 30
Feedrates:
– Rapid Traverse (X, Y, Z)………… 2126 IPM
– Cutting…………0.04 – 1181 IPM
Positioning Accuracy…………0.00024″/11.81″
Repeatability…………+/-0.000079″
Tooling:

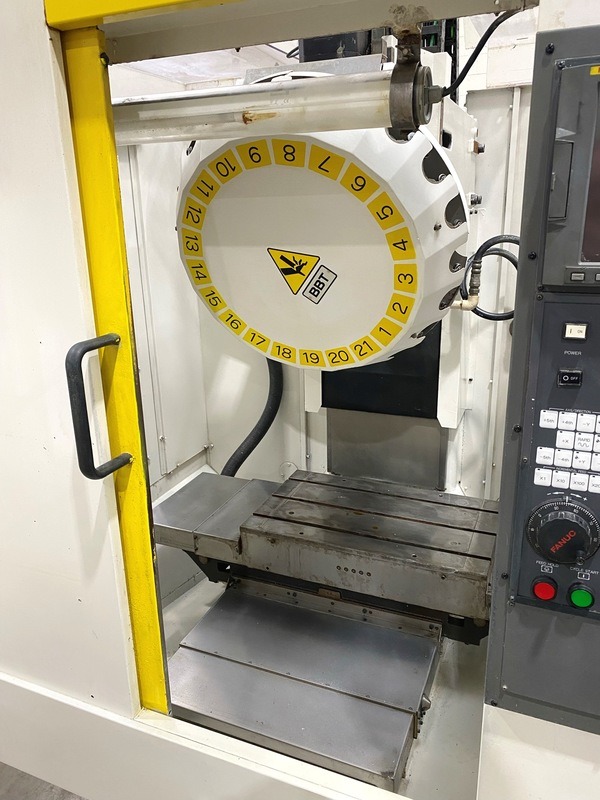

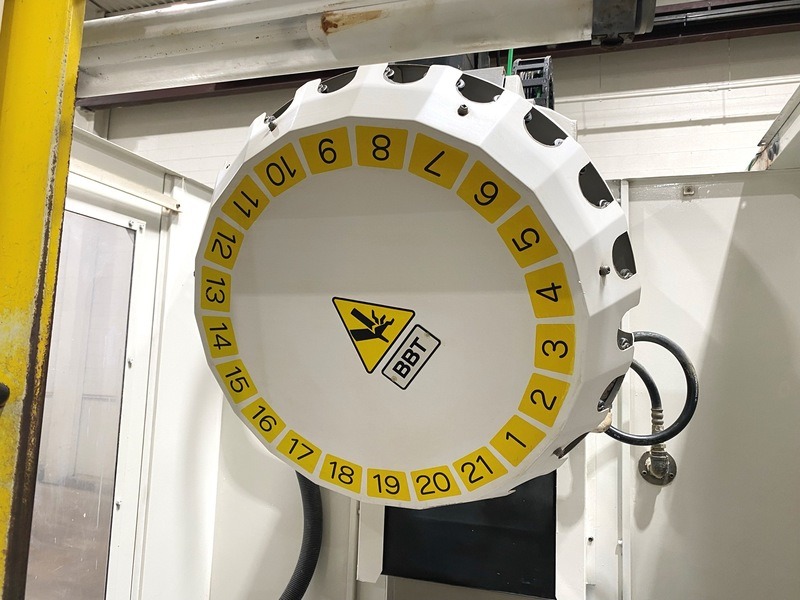

– Changer…………Turret Type
– Shank…………MAS BT30
– Storage Capacity…………21
– Changing Time – Approximate………..1.8 seconds or 2.4 seconds
– Length – Maximum…………9.84″
– Mass – Maximum…………4.4lb/tool, 6.6lb/tool (total mass: 50.7lb)
Tooling Diameters:
– 0 to 1.1″ distance from taper gage line…………1.97″
– 1.33″ to 4.72″ distance from taper gage line…………3.15″
– 4.72″ to 9.84″ distance from taper gage line…………1.57″
Spindle Drive Motor:
– 10 Minute Rating…………7.38 hp
– Continuous Rating………… 4.96 hp
Machine Size – Catalog:
– Height…………88″ +/- 0.4″
– Floor Space…………61.6″ x 79.3″
– Mass with the control section – Approximate…………4409lbs
EQUIPPED WITH:

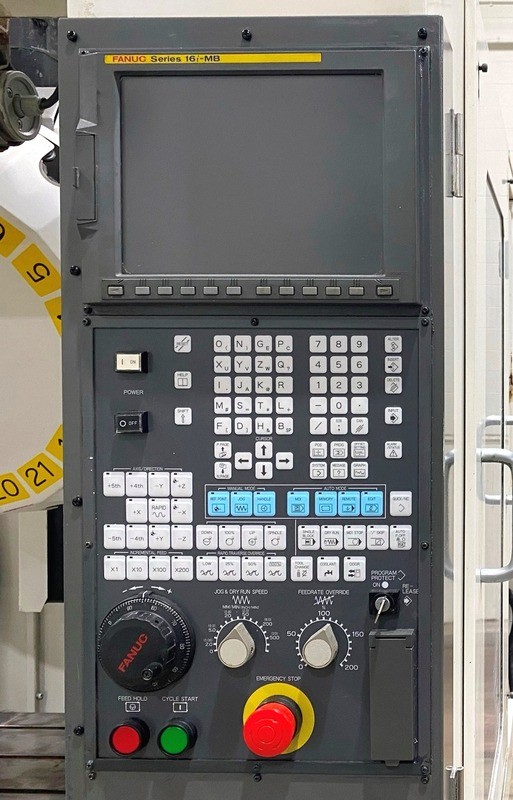

Fanuc 16i-MB (LCD Mounted CNC Control)
BIG-PLUS Tooling
Through Spindle Coolant
Full Enclosure

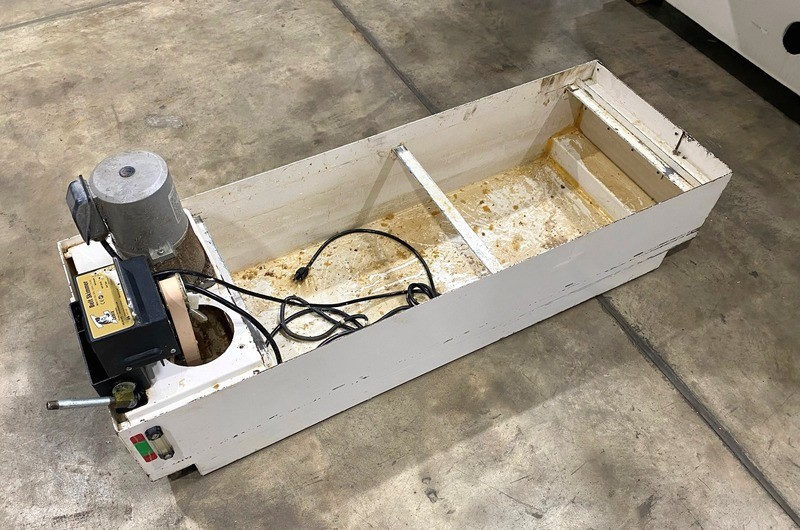

Coolant System
*Preliminary specification, subject to verification.
The Fanuc Robodrill T21 is a drill tap machine renowned for its speed, precision, and versatility. Manufactured by Fanuc, a leading industrial automation company, the Robodrill T21 offers high-performance machining capabilities in a compact footprint. It combines a rigid structure with advanced CNC technology to deliver efficient drilling and tapping operations. The machine’s fast spindle acceleration and rapid tool change contribute to its high productivity. Equipped with a user-friendly interface and intelligent software, the Fanuc Robodrill T21 ensures ease of operation and programming. It is a popular choice in industries such as automotive, aerospace, and electronics, where speed, accuracy, and flexibility are paramount.
