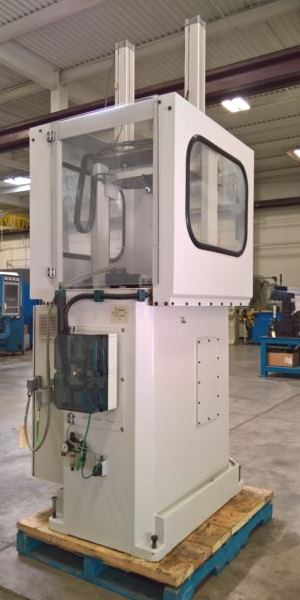

Fromag CNCE50-2-425-APC CNC Keyseater - #46966

Liberty Machine # 46966 Category Make

New - 2009
Serial No. 126810

* Featuring Uniquely designed with "State of the Art" Electro-Mechanical
Drives and an infinitely variable programmable rotary table designed for
cutting multiple keyways and internal helical gears and spines, multiple
profiles.

SPECIFICATIONS:
Keyway Width - Maximum....................................................2"
Keyway Length - Maximum...............................................16.75"
Bore Size.........................................................0.39" - 9"
Maximum Stroke Length....................................................17"
Table Size.........................................................27" x 18"
Cutting Speed - Steplessly Variable................................0-157 FPM
Return Speed - Steplessly Variable.................................0-164 FPM
Infeed Rate (Infinitely Variable)......................0.00039 - 0.07874 IPM
Floor Space......................................................46"L x 51"W
Pit Depth...............................................................None

EQUIPPED WITH:
Fromag Commander TF-15 CNC Controller
Fromag TA 180 Automatic Fully Automatic Servo Driven Programmable Index Table

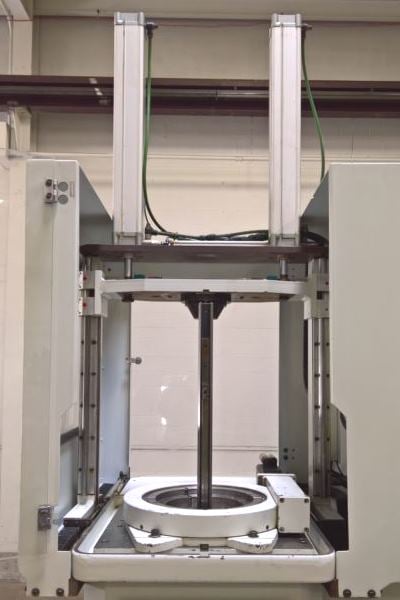

Fromag VM-065 Pneumatic Centering and Clamping System. Cross-Beam has
Vertical and Horizontal Stroke

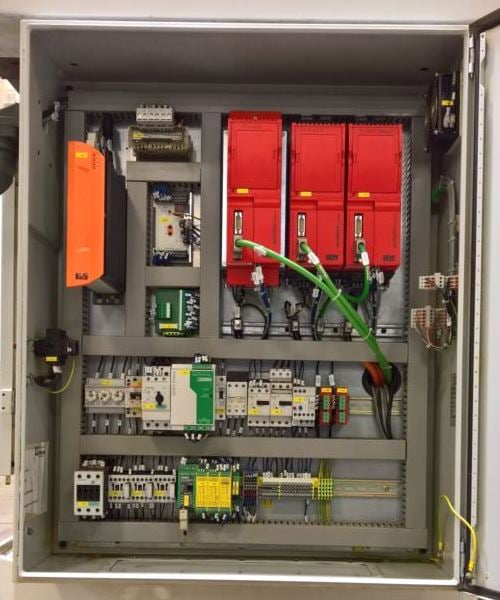

Servo Drives with Integrated, Absolute Position Measuring Systems
Upcutting (Special Tooling Required)
Work Piece Recognition
Automatic Stop & Cutter Relief
One-Shot Lubrication System

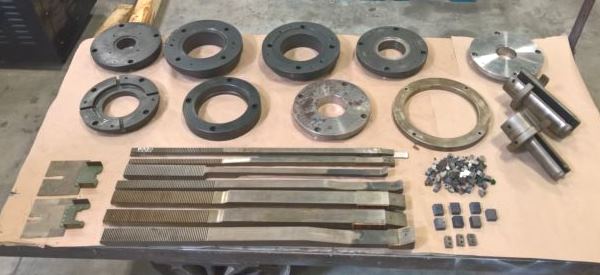

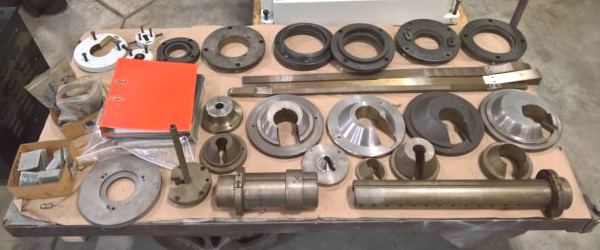

TOOLING:
Centering Devices:
- 2-3/4" ID (10-1/4" OD)
- 2-3/4" ID (10-1/2" OD)
- 4" ID (10-1/4" OD)
- 5" ID
- 5-1/4" ID
- 6" ID (11-1/8" OD)
- 6" ID (11-3/8" OD)
- 7" ID
Clamps:
- 3/4"
- 1-1/2"
- 3-1/4"
Cutter Bars (Fromag):
- 3/8" x 32-11/16" WSTH07-425-1
- 3/4" x 32-11/16" WSTNPO#7-425-1
- 7/8" x 31-1/2" WST7-300-S-371
- 1-1/4" x 33-5/8" WST 08-425-S-188
- 2" x 33-1/2"
- 2" x 33-1/2" WST09-425-1
- 2" x 33-3/4" WST09-425-S-199
- 4" ID (10-3/16" OD) WZB 8-S-363
Feed Bars (Fromag):
- 13/16" x 40-1/4" WV7-300-S-104D
- 7/8" x 34-5/8" WV6-1D
- 1" x 45-1/4" WV8-425-S-68D
- 1-1/2" x 45-3/4" WV9-425-1D
- 1-1/2" x 45-3/4" WV9-425-S-90D
Flanges:
- 4-3/4" ID (10-1/4" OD) (6-7/8)
- 6-3/4" ID (10-1/4" OD) Ring
Posts / Cutter Guide Bars (Fromag):
- WFG-1C
- WF-9-S-110C
- WF-9-425-1-C
- WF8-S-138C
- WF 7-300-S-352C
Tapered Centering Bushes (Fromag):
- 3/4" ID WZK6-10B
- (3) 1-1/2" ID
- 3-1/4" ID WZK8-9-10B
- 3-3/8" ID WZK9-20B
- (2) 3-3/8" ID
- 3-3/8" ID WZK9-10B
9-1/2" ID (12-1/2" OD) Ring
Various Cutter Inserts

*Specifications Subject to Verification.
