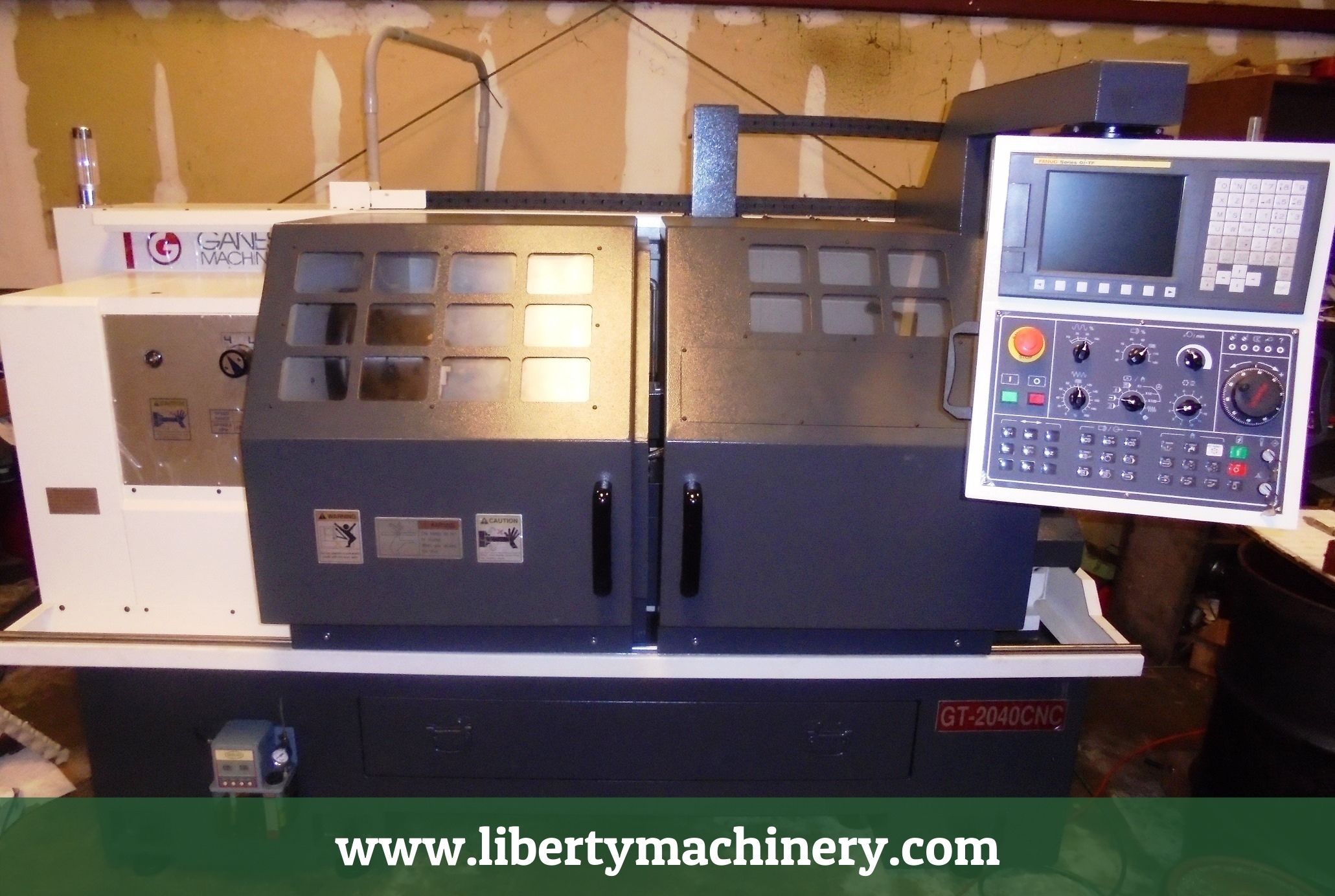

Ganesh GT-2040CNC CNC Lathe W/ Fanuc Control | 8" Chuck - #49734

Liberty Machine # 49734 Category Make

New - 2019
Power On: 284 Hours
Cut Time: 44 Hours

SPECIFICATIONS:
Capacities:
Swing Over Bed.........................................................20.78"
Swing Over Cross Slide.................................................11.02"
Center Height..........................................................10.04"
Center Distance........................................................39.37"
Bed Length..............................................................82.5"
Bed Way Width.........................................................14-1/2"

Spindle:
Motor Horsepower - Inverter Type...........................10 HP (15 HP Peak)
Speeds - in 2-Gear Ranges (Infinitely Variable)................40 - 2,000 RPM
Speed Gear Ranges.......................1 = (40 - 800), 2 = (100 - 2,000) RPM
Bore...................................................................3-3/8"
Nose - Camlock...................................................D1-8 Camlock

Cross Slide - X-Axis:
Rapid Tranerse Feedrate...............................................393 IPM
Travel.................................................................10.63"
Dimensions................................................8.26"(W) x 27.5"(L)

Carriage - Z-Axis:
Rapid Traverse Feedrate...............................................472 IPM
Z-Axis Travel..................................................38.58" (980mm)
Cutting Tool Height - Maximum............................................1.5"

Tailstock:
Quill Diameter.......................................................2-15/16"
Quill Stroke with 2-Speed Quill Advance...............................6-5/16"
Quill Taper...............................................MT-5 Morse Taper #5
Tailstock Body Set-Over Adjustment...................................+/- 3/8"

Coolant Tank Capacity..............................................30 Gallons+
Electrical Requirements.........................................220VAC +/- 5%+
Dimensions - Approximate..................................120" x 55" x 73"(H)+
Weight - Appoximate................................................6,172 Lbs.+

EQUIPPED WITH:
Fanuc oi-TF Control
8" Bison Adjust Tru-Chuck
16C Pratt-Burned Air Chuck
4-Position Auto Turret
Tailstock with Quill Tang Drive and Drift-Slot

*Preliminary Specifications Subject to Verification
