Click HERE if you have a Diamond Wheel Dressing Machine like the GIDCo 252P to sell.

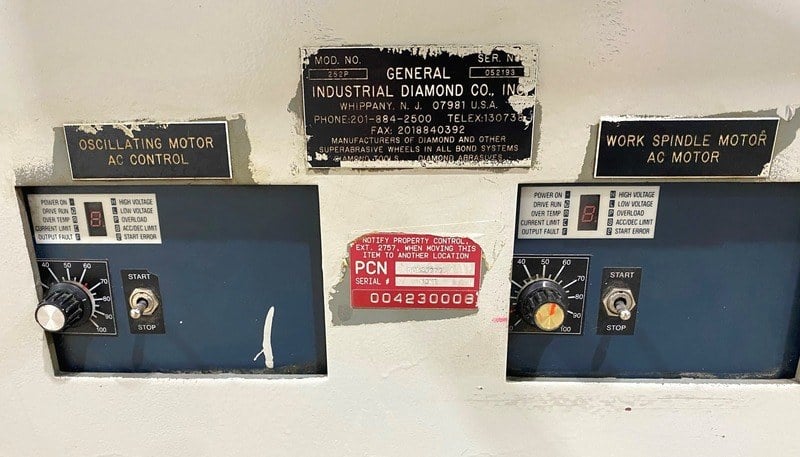

Serial No. 052193
SPECIFICATIONS:
Work Wheel:
– Diameter…………10″ – 16″
– Width – Maximum…………2″
– Infeed Slide Travel…………3-3/4″
– Reproaching Slide Travel…………3-3/4″
– Spindle Speed…………Up To 3,600 RPM
– Motor…………3/4 HP
Truing Wheel:
– Diameter – Maximum…………8″
– Width – Maximum…………3/4″
– Infeed…………3/8″
– Radial Rotation…………L-90 Deg./R-70 Deg.
– Motor…………3/4 HP
Comparator Magnification…………10x, 25x, 50x
Weight – Approximate…………2,000 Lbs.
Dimensions – Actual…………51″ x 48″ x 72″(H)
EQUIPPED WITH:

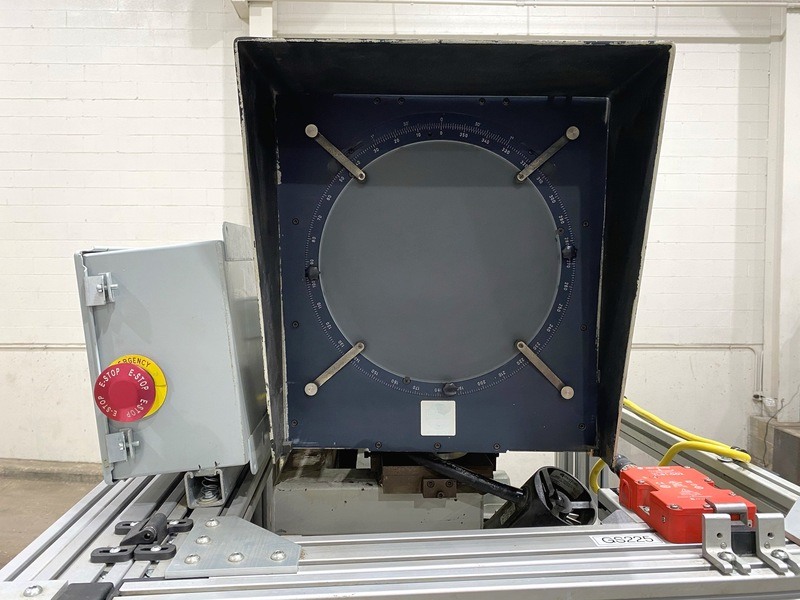

12″ Comparator

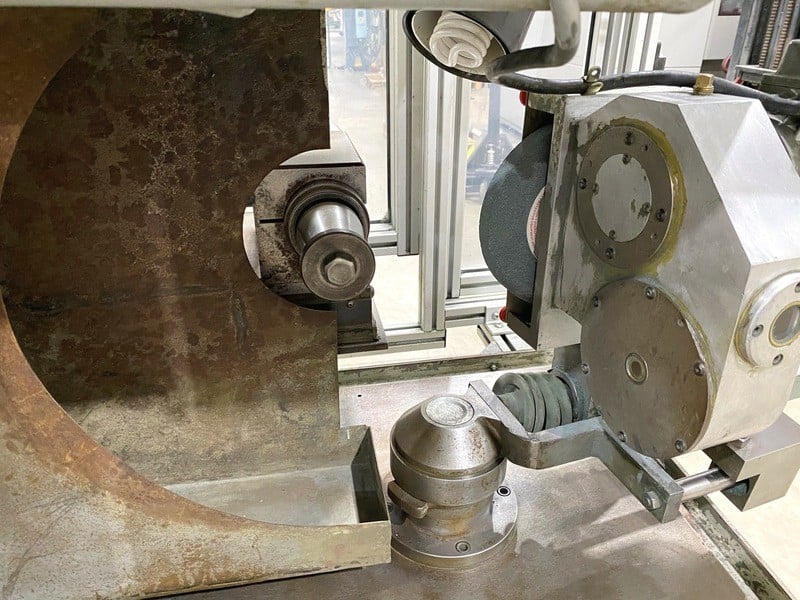

Oscillating truing wheel
Work light
E-stop
*Preliminary specifications, subject to verification
A diamond wheel dressing machine is a specialized tool used to reshape and clean diamond grinding wheels. Diamond wheels are commonly used in various industries, including metalworking, woodworking, and glass fabrication, due to their exceptional hardness and abrasive properties.
It’s primary function is to restore the cutting surface of a diamond grinding wheel to its optimal shape and condition. Over time, diamond wheels can become worn or clogged with debris, reducing their effectiveness and cutting performance. The dressing machine helps in maintaining the wheel’s profile and sharpness, ensuring consistent and precise results.
The dressing machine employs a diamond dressing tool that is capable of cutting into the diamond wheel. By moving the dressing tool across the surface of the rotating wheel, the machine removes dull or clogged abrasive particles, exposing fresh diamond crystals. This process not only rejuvenates the cutting surface but also helps to maintain the wheel’s concentricity and balance.
They are available in various designs and configurations, from manual handheld devices to fully automated CNC-controlled systems. The choice depends on the specific application and level of precision required. Advanced machines may incorporate features like adjustable dressing speeds, precise dressing depth control, and automatic dressing cycles.
By using a diamond wheel dressing machine, operators can extend the life of their diamond grinding wheels, reduce downtime for wheel changes, and improve the quality of their workpieces. It is an essential tool for maintaining the performance and efficiency of diamond abrasive tools in industrial settings.
Click HERE to find out more about wheel dressing.
