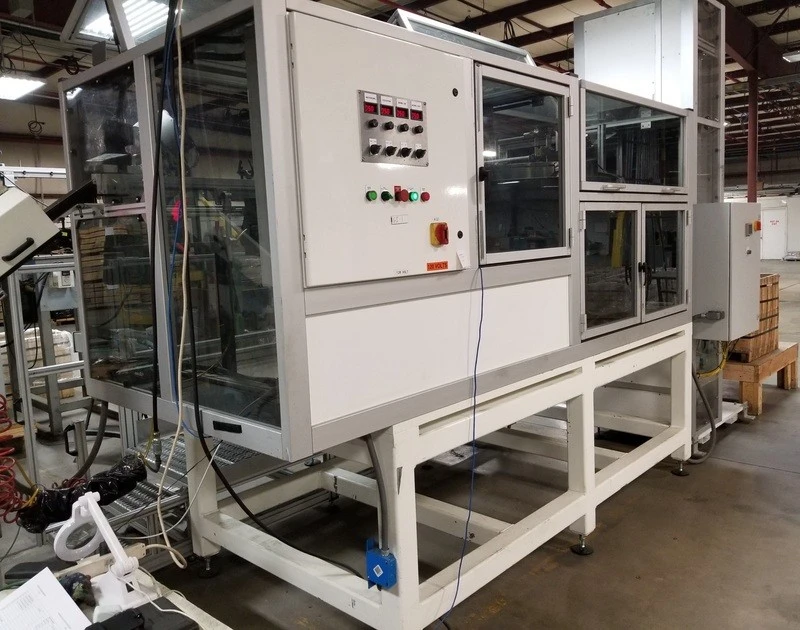

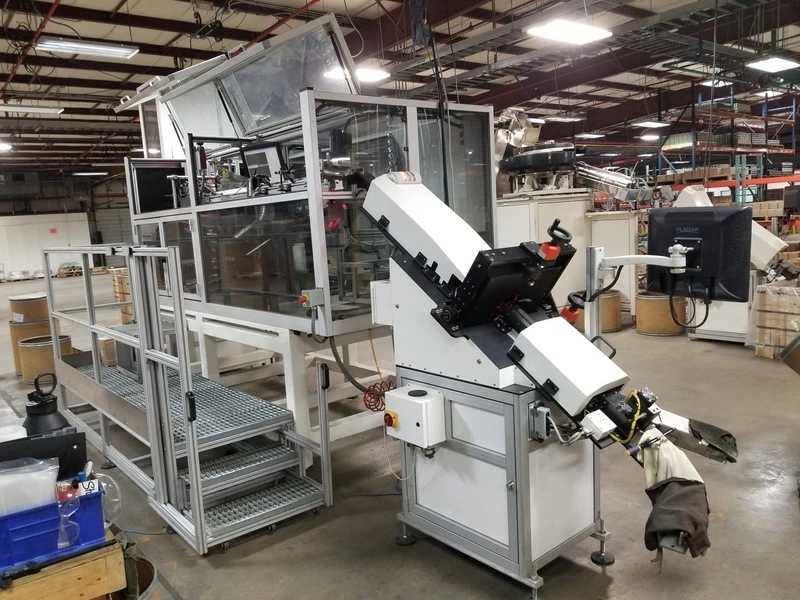

General Inspection Gi-360T Laser Ammunition Inspection Machine – #50680

Liberty Machine # 50680 Category Make

“The General Inspection Gi-360T is a 3-Dimensional, 100% ammunition inspection system. Precision split/narrow laser beams and multi-laser velocity gauge are used to accurately measure cases, cartridges, bullets, or projectiles to print specifications and tolerances at rates up to 300/minute. The 360T uses 3-D information from multiple laser beams to detect defects that may occur only on one side.” ~ General Inspection literature

Under power in facility and ready for inspection
New – 2014

Calibers Currently set up for…………9mm, 40, 45, 223, 300 BO, 357 Sig, 556
Parts per Minute Scanned…………250 – 300
Part Diameter Range…………4mm – 35mm
Part Length Range…………10mm – 150mm
Hopper Capacity…………5 Cu. Ft.
Electrical Requirements…………110v – 240VAC/50 – 60Hz/1Ph

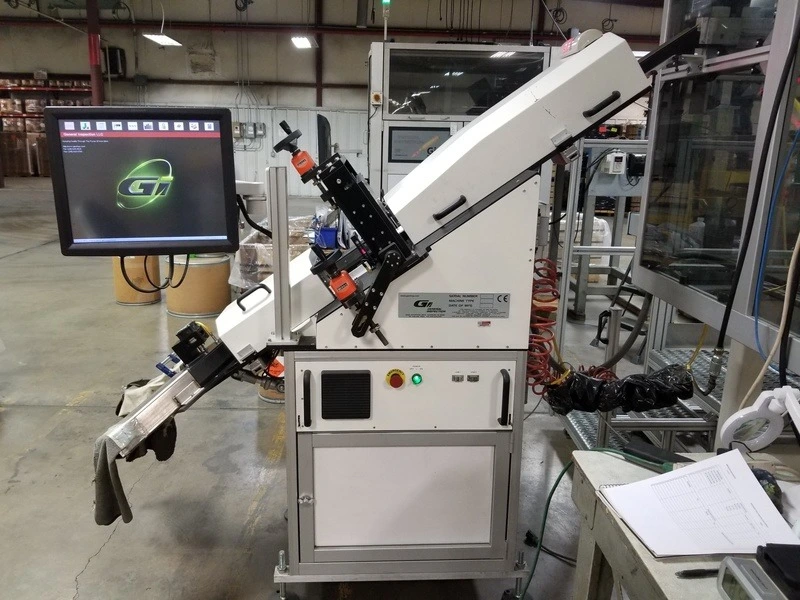

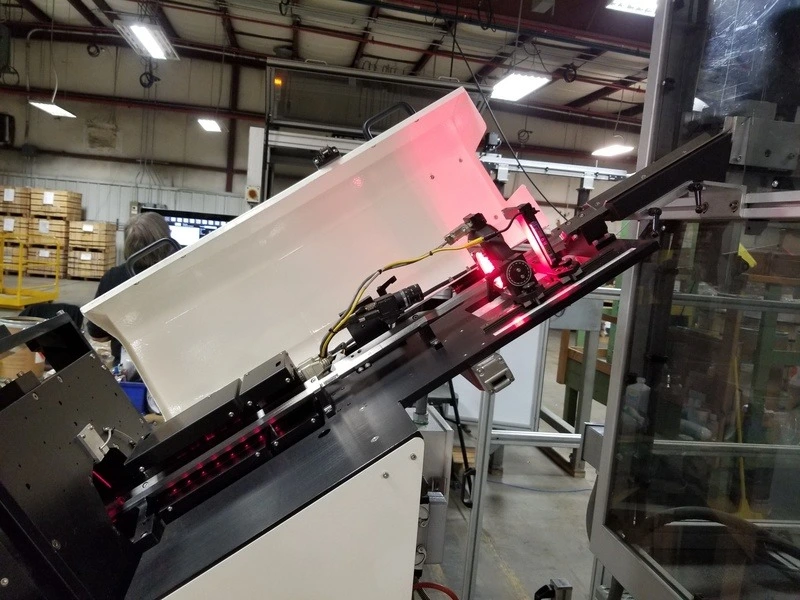

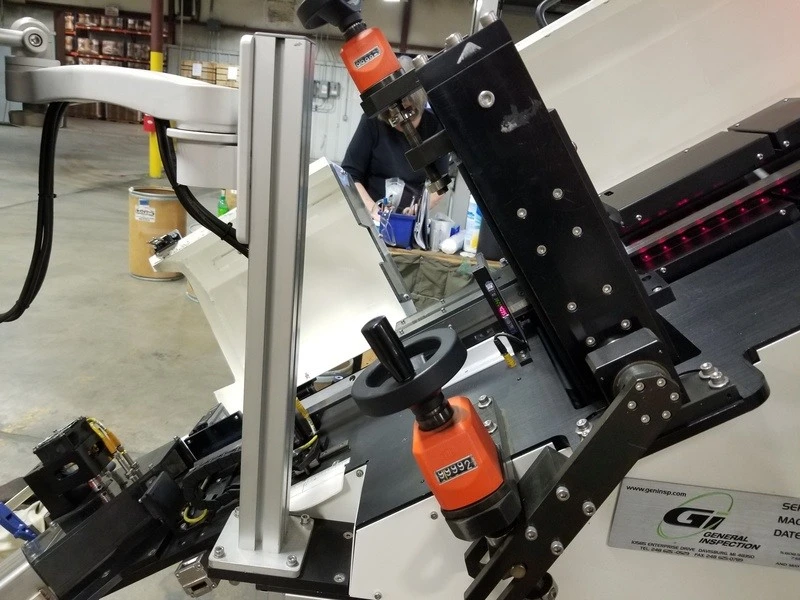

Laser Gauging for all O/D Dimensions w/4 Lasers 360 Degrees around part
Measures Total Length, Head Space, Tapers, Concentricity, All Diameters,
Groove Width, Radii, Lenght to Shoulder, Straightness
Primer Vision System:
– Features: Camera, Computer, Custom Software
– Detects: Missing, Cocked, Inverted, Dented Primers, Head Stamp Presence

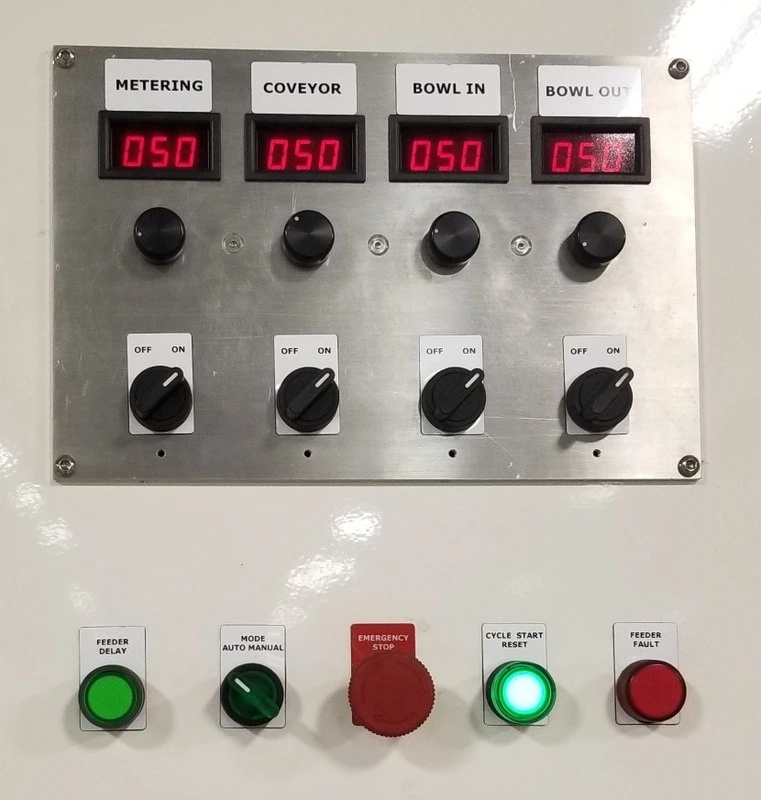

Feed System:

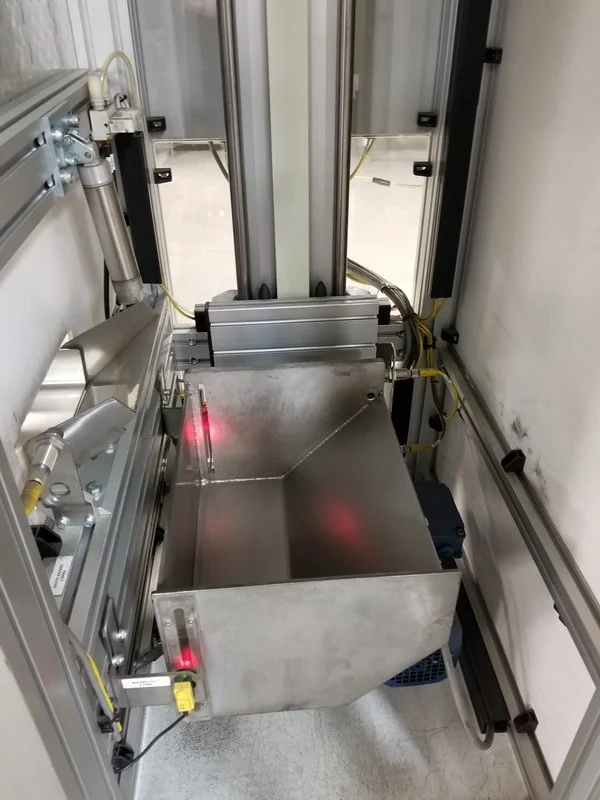

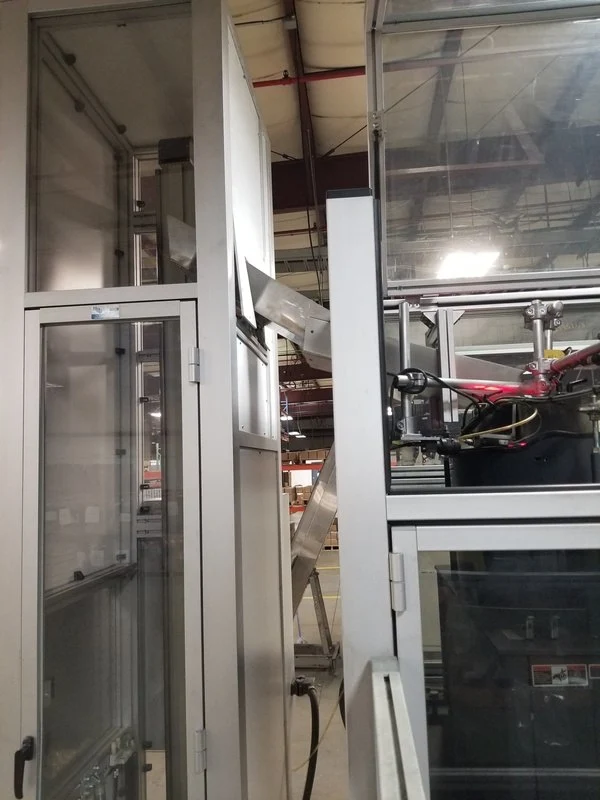

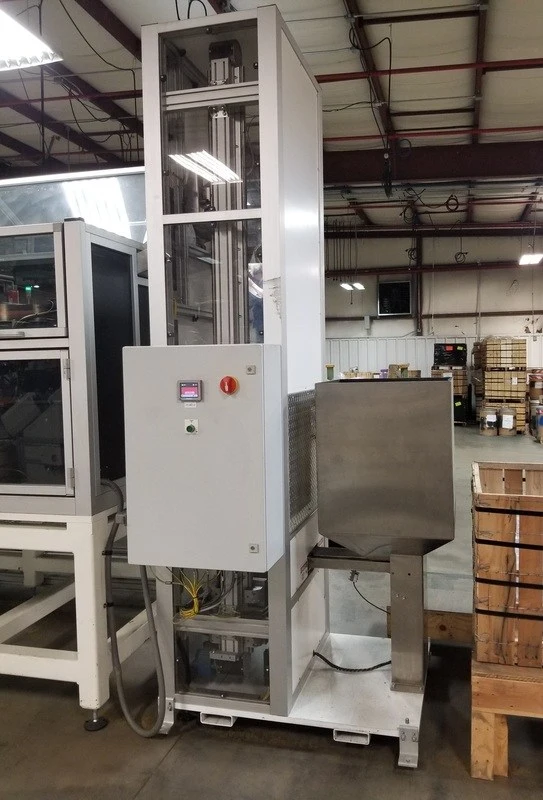

– Stand, Cat-Walk, Sound Enclosure, Elevator
– Part Metering, Conveyor

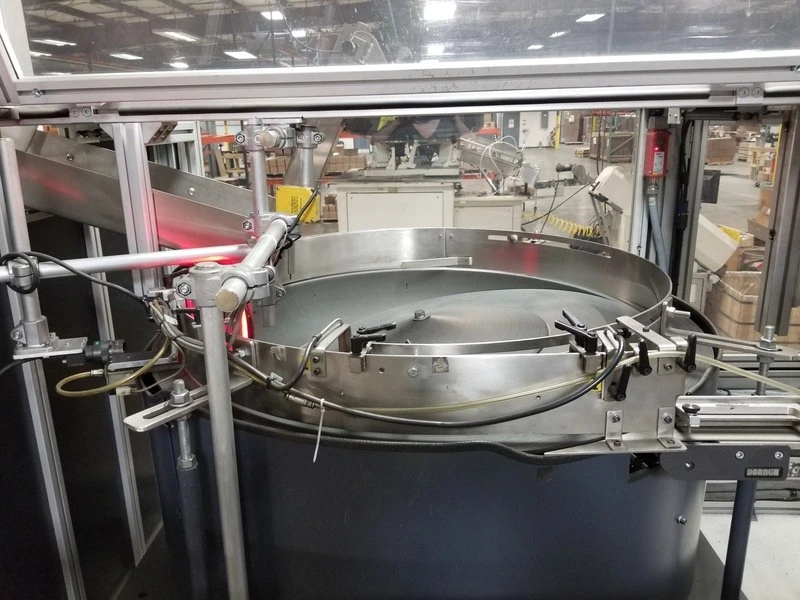

– Rotary Collator with Tooling

*Catalog specifications, pending confirmation
