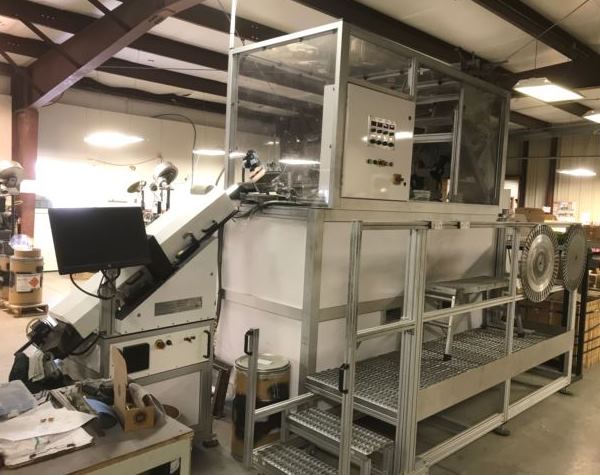

General Inspection Gi-360T Laser Ammunition Inspection Machine - #46955

Liberty Machine # 46955 Category Make

"The Gi-360T is a 3-Dimensional, 100% ammunition inspection system. Precision
split/narrow laser beams and multi-laser velocity gauge are used to accurately
measure cases, cartridges, bullets, or projectiles to print specifications and
tolerances at rates up to 300/minute. The 360T used 3-D information from

multiple laser beams to detect defects that may occur only on one side."
~ General Inspection literature

New - 2013

SPECIFICATIONS:
Calibers Currently set up for...................................45, 9mm, 223
Parts per Minute Scanned...........................................250 - 300
Lasers.....................................................................4
Part Diameter Range...............................................4mm - 35mm
Part Length Range...............................................10mm - 150mm
Hopper Capacity....................................................5 Cu. Ft.
Electrical Requirements..........................110v - 240VAC/50 - 60Hz/1Ph

EQUIPPED WITH:
Laser Gauging for all O/D Dimensions w/4 Lasers 360 Degrees around part
Measures Total Length, Head Space, Tapers, Concentricity, All Diameters,
Groove Width, Radii, Lenght to Shoulder, Straightness

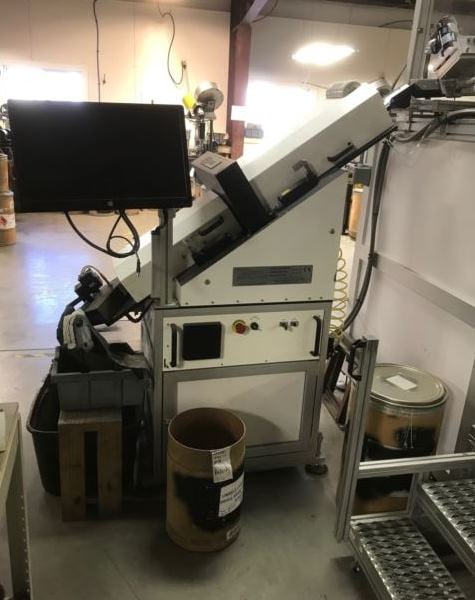

Primer Vision System:
- Features: Camera, Computer, Custom Software
- Detects: Missing, Cocked, Inverted, Dented Primers, Head Stamp Presence

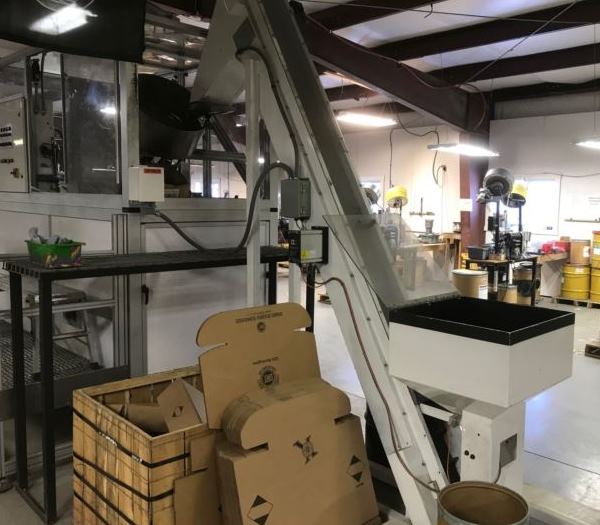

Feed System:
- Stand, Cat-Walk, Sound Enclosure
- Part Metering, Conveyor

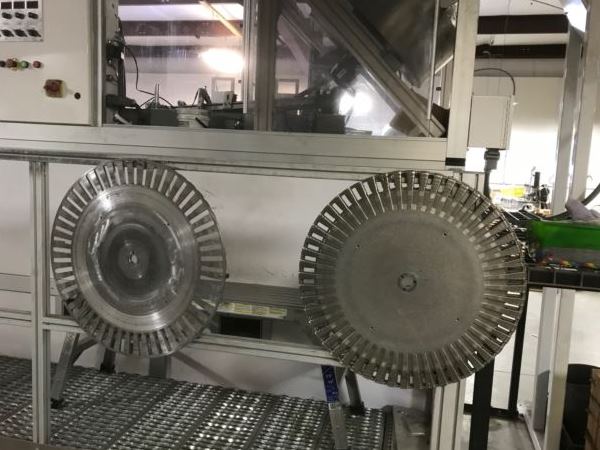

- Rotary Collator with Tooling

Catalog Specifications Subject to Verification
