From Glebar Grinding Machines literature ~ “The Glebar TF-9D Infeed/Throughfeed Centerless Grinder uses computer controls to grind both hard and soft materials including catheters, medical guidewires, and spinal cord stimulators. Inside the compact footprint is a 15HP main spindle motor powering an 8.625″ wide work wheel combining to remove more material faster, and with better surface finishes, than smaller machines with narrower grinding wheels. The TF-9D is designed to enhance productivity through a simple control interface and automation integration. Common applications include guidewires, catheter bodies, spinal cord stimulators, pins, and other engineered materials.”
New – 2017
Serial No. 16-1712
SPECIFICATIONS:
Grinding Capacities:
– Diameter…………0.002″ – 2.500″
– Infeed length…………8″
– Thrufeed length…………No Limit
Accuracy:
– Diameter…………0.00005″
– Roundness…………0.00005″

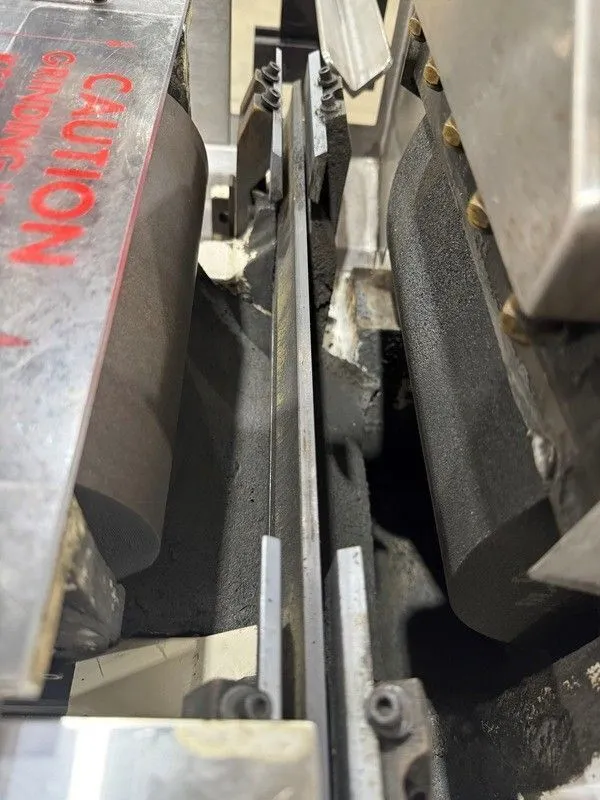

Grinding Wheel:
– Diameter…………9″
– Width…………8.625″
– Motor…………15 HP
– Speed…………2,400 RPM
Regulating Wheel:
– Diameter…………4″
– Speeds…………10-400 RPM
– Resolution…………0.000004″ (0.1µm)
Air Requirements…………4CFM @ 80psi
Machine Bed…………6″ Thick Granite
Electrical Requirements…………460V/3Ph/60Hz
Machine Dimensions – Catalog…………58″L x 50″W x 71″H
Machine Weight – Approximate…………2,100 Lbs.
Glebar Grinding Machines EQUIPPED WITH:

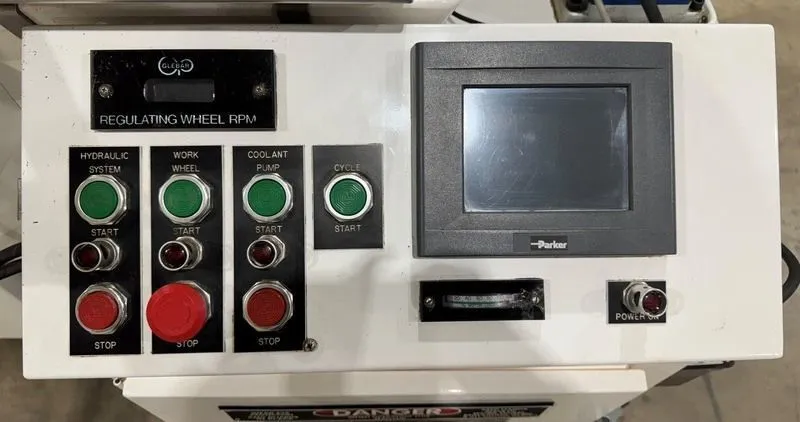

Intuitive Touchscreen HMI
Pre-programmed Infeed and Thrufeed Cycles w/programmable inputs and positioning
Closed Loop Control via linear scale on the movable slide
Interface to Measurment Instruments allows for automatic size compensation
Indpenedent upper and lower slide positioning
Hydraulic dressers

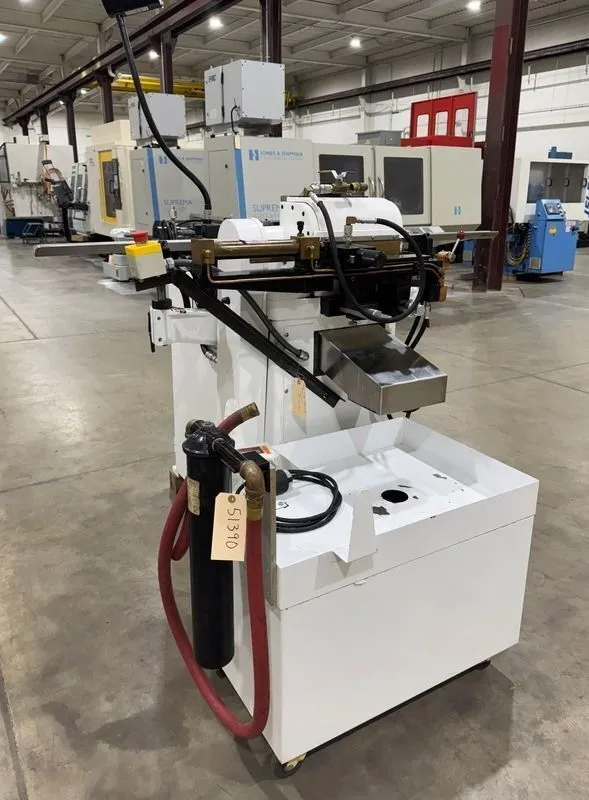

Coolant filtration system
*Preliminary specifications, pending confirmation.
