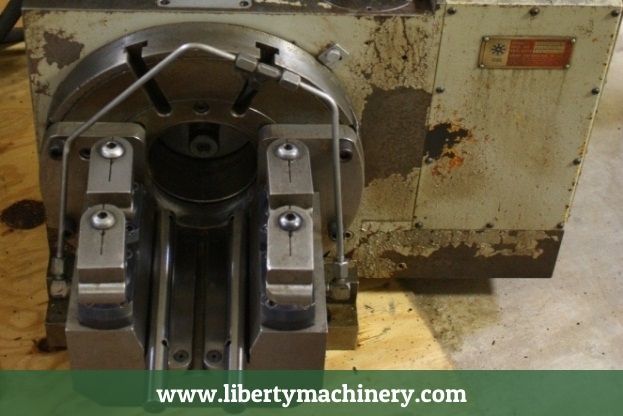

Serial No. 963250 New – 1996
SPECIFICATIONS:
Diameter of Table…………12.50″ / 320 mm
Diameter of Spindle Hole…………80O MT4
Table Position…………Vertical / Horizontal
Load Capacity Horizontal – Maximum…………771 Lbs. / 350 Kg
Load Capacity Vertical – Maximum…………330 Lbs. / 150 Kg
Center Height…………8.26″ / 210 mm
Pneumatic Clamp Torque…………71 (Kg/m)
Clamp Method…………Hydraulic
Width of Guide Block…………0.70″ / 18 mm
Motor Type…………Mitsubishi HA80NT-E30
Increment – Minimum…………0.001 Degree
Gear Ratio…………1 : 180
Repeatability…………+/- 2 Sec.
Machine Force – Maximum…………78 Kg.m
Rotation Speed…………11.1 RPM
Center Height in Vertical Position…………8.26″ / 210 mm
Table Height in Horizontal Position…………9.44″ / 240 mm
Over all Height in vertical Position…………15.55″ / 395 mm
Approximate Weight…………500 Lbs. / 228 Kg
EQUIPPED WITH:
Mitsubishi Model MDS-A-SVJ-10 Servo Drive Unit (Compatible with Mitsubishi
M50/500 & M60/600 Series Control Unit)
OTC Hytec Air/Hydraulic PUMP for Clamping System
*Preliminary Specifications Subject to Verifications.
