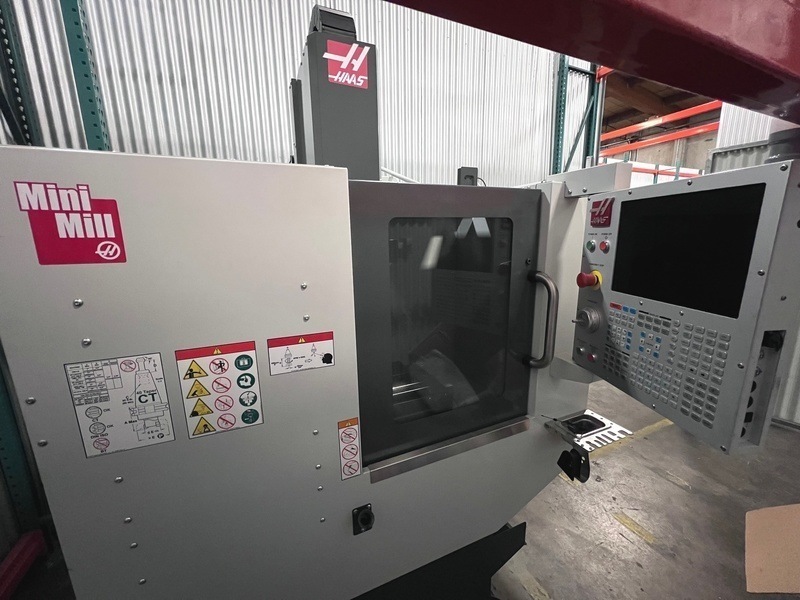

Haas Mini Mill
NEW – 2022
This machine was hooked to power and tested for full functionality by a Haas installer in 2022, but it was never used/put into production.
SPECIFICATIONS:

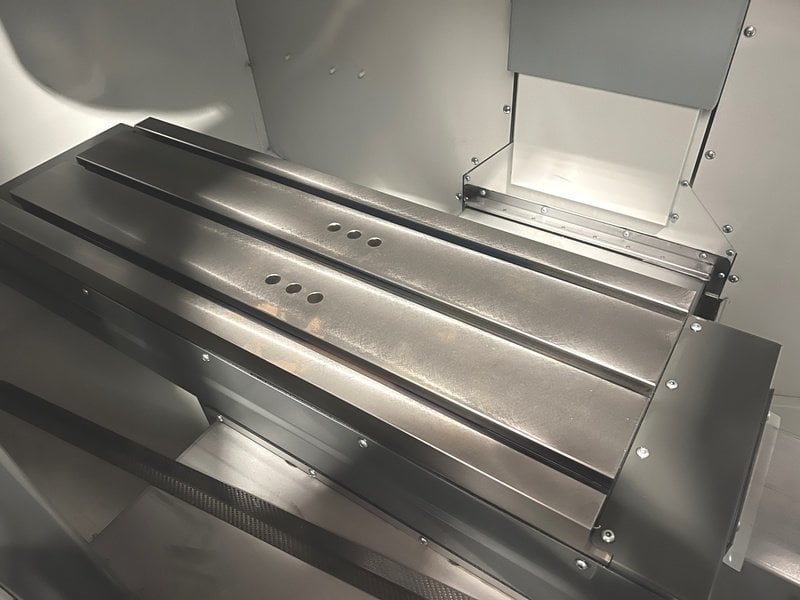

Table:
– Size…………36″ x 12″
– Load Capacity………..500 Lbs
– T-Slot Width…………0.626″ – 0.630″
– T-Slot Center Distance…………4.33″
– Number of T-Slots…………3
Travel:
– X-Axis…………16″
– Y-Axis…………12″
– Z-Axis…………10″

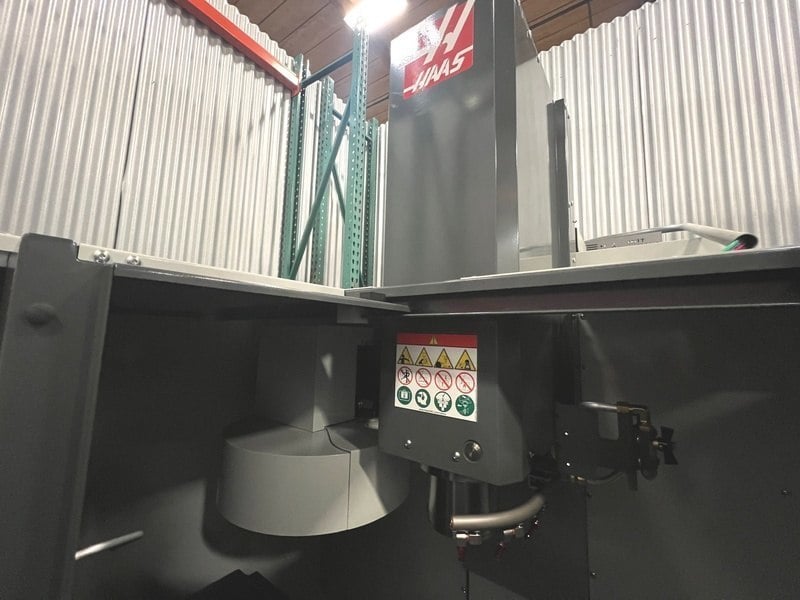

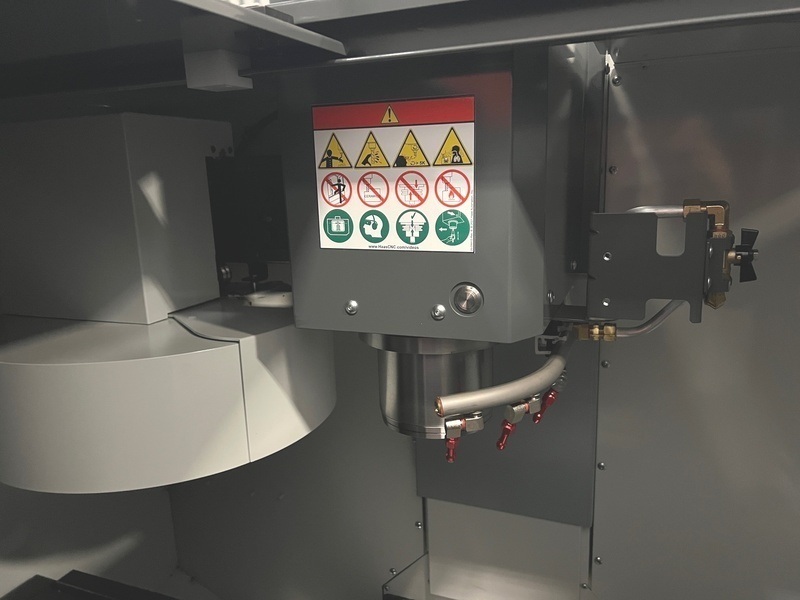

Spindle:
– Taper…………CT 40
– Speed…………6,000 RPM
– Motor…………7.5 HP
– Torque – Maximum…………33 ft/lbf @ 1200 rpm
– Nose to Table…………4 – 14″”
Cutting Feedrate – Maximum…………500 ipm
Rapid Traverse Rate – All Axis…………600 IPM
Tool Changer:
– Capacity…………10
– Tool Diameter – Maximum…………3.5″
– Tool Weight – Maximum…………12 Lbs.
– Tool to Tool…………4.2 s
Coolant Capacity…………40 gal

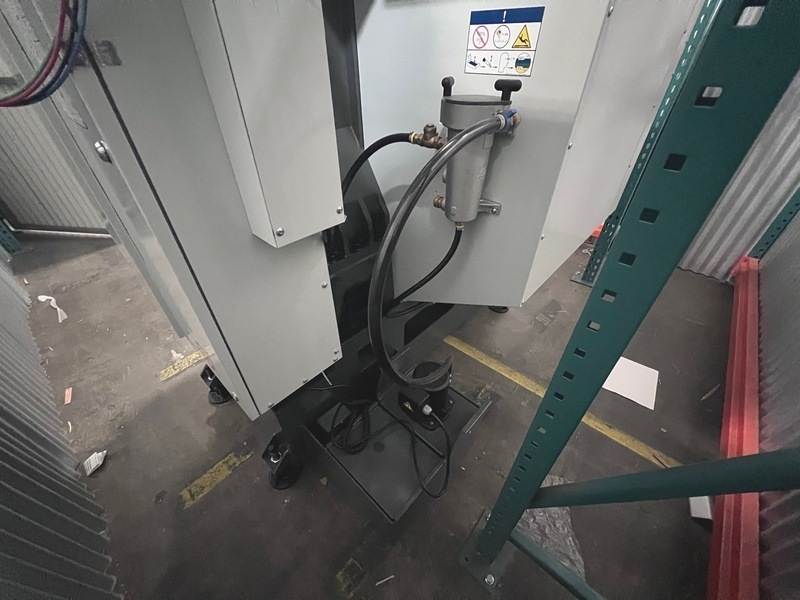

Air Requirements:
– Air Required…………4 scfm @ 100 psi
– Inline Air Hose…………3/8″
– Coupler………..3/8″
– Air Pressure – Minimum…………80 psi
Electrics…………220V/3Ph/60Hz
Full Load…………25 Amps
Weight – Catalog…………4,000 Lbs.
Haas Mini Mill EQUIPPED WITH:

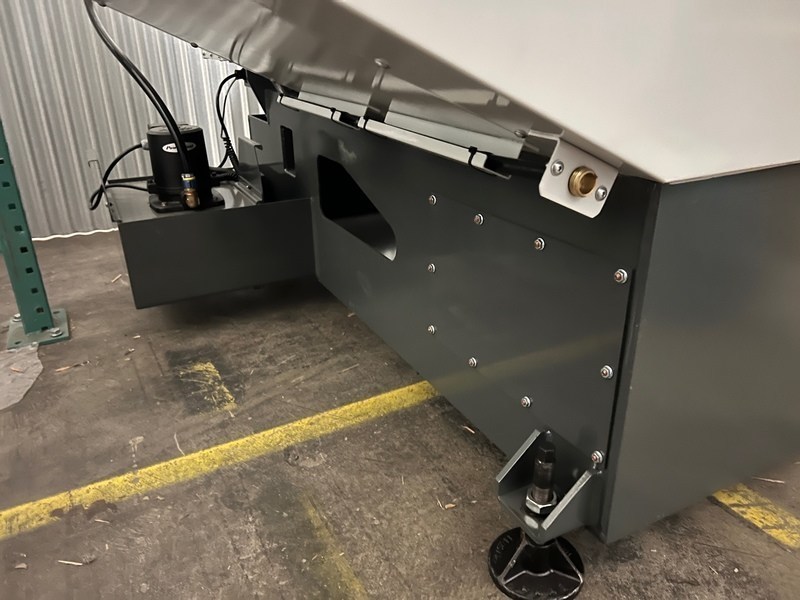

Coolant Pump Kit
Internal High-Voltage Isolated Transformer
Early Power-Failure Detection Module
Ethernet Interface
HaasConnect: Remote Monitoring
M130 Media Display

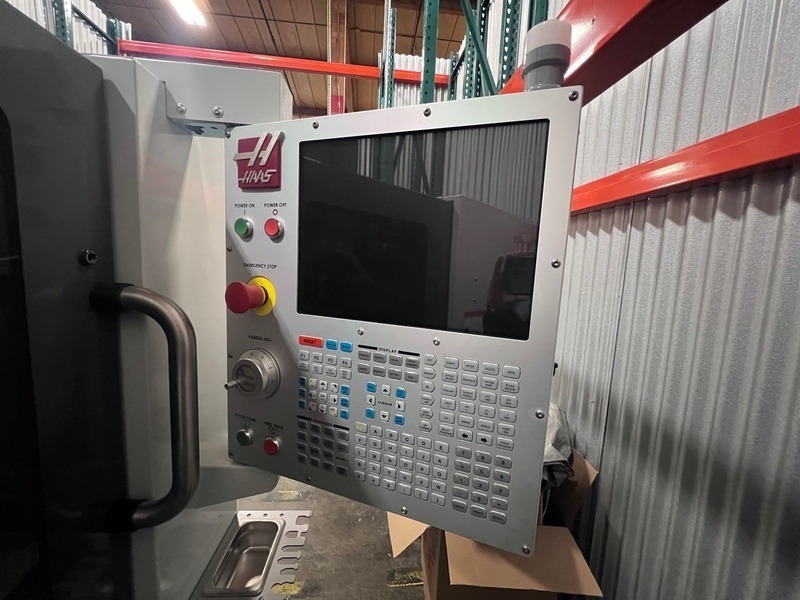

Control Touch Screen
Wifi Connection for Haas Control
Window Air Blast

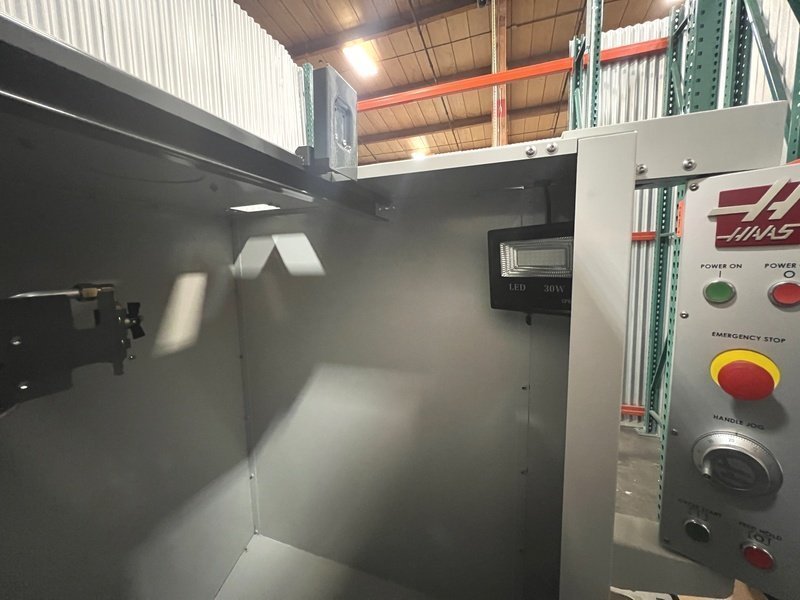

Worklight
CT Style Tool Change Grippers
*Haas Mini Mill Preliminary specifications, subject to verification.
