Year Built – 2008
Serial No. 1067386
SPECIFICATIONS:
Travels:
– X-Axis…………40″
– Y-Axis…………26″
– Z-Axis…………25″
– Spindle Nose to Table Range…………4.2″ – 29.2″

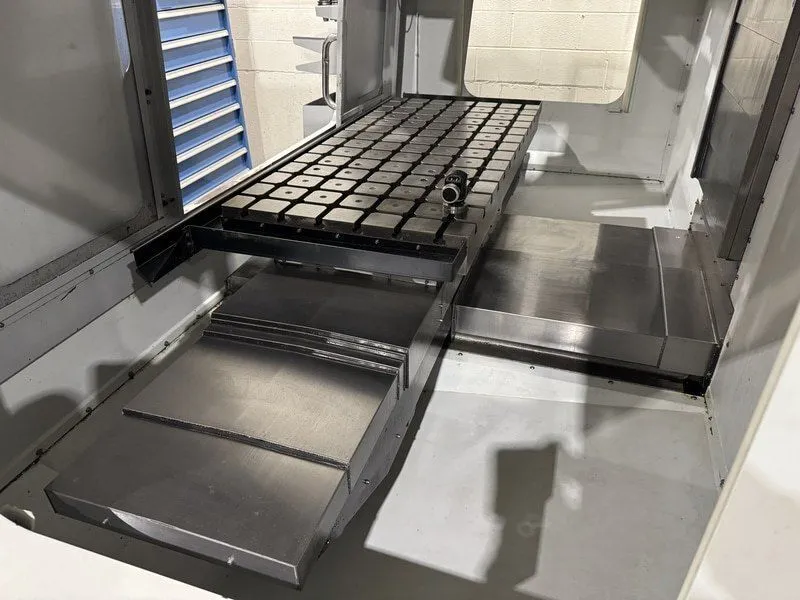

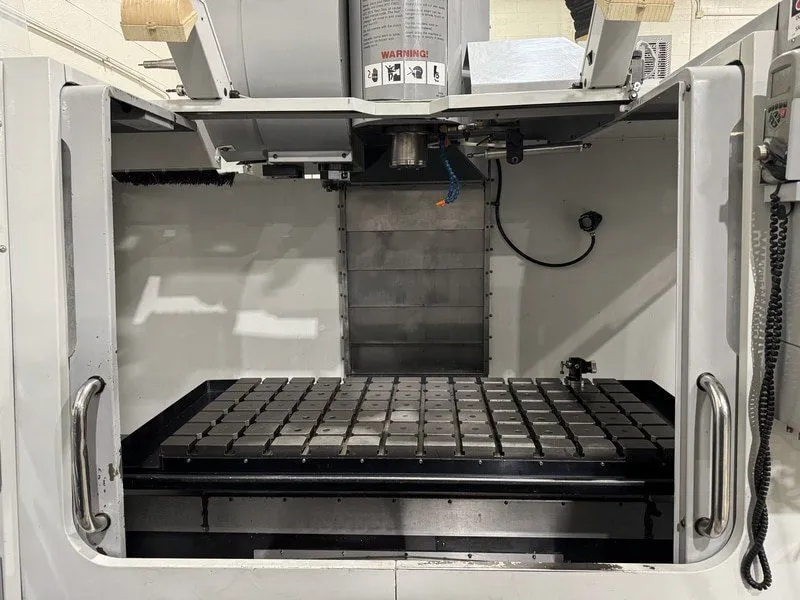

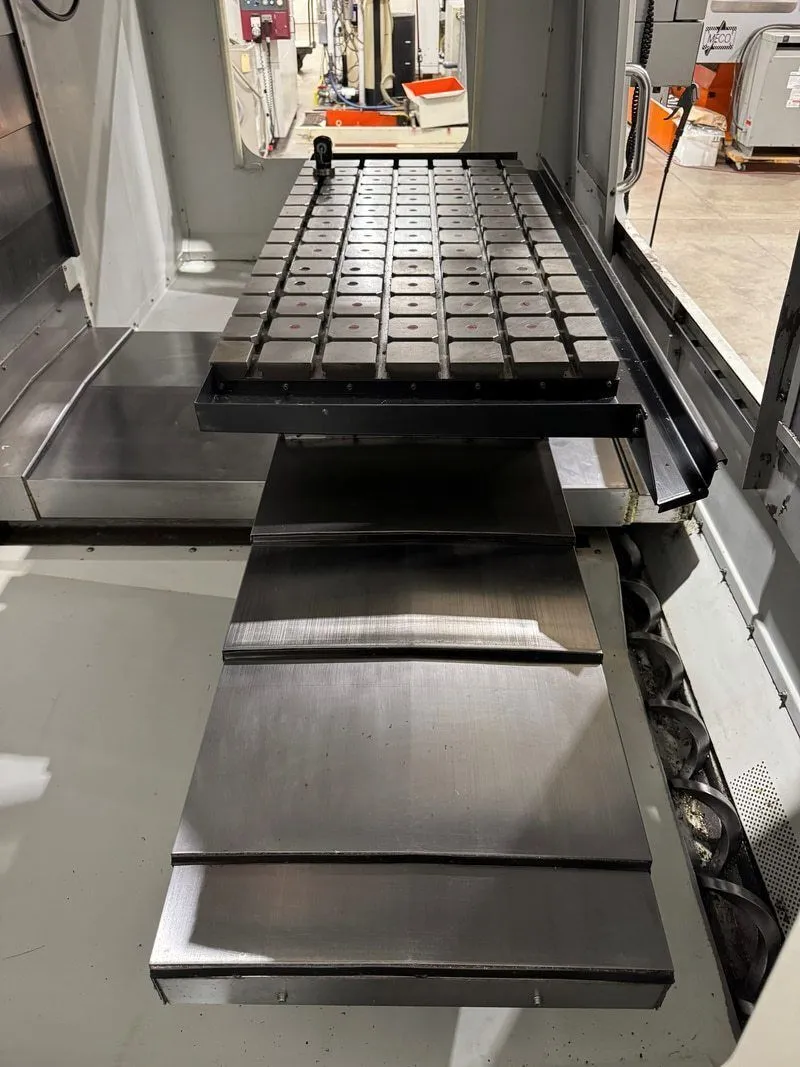

Table:
– Size…………54″L x 25″W
– Weight on Table – Maximum…………4000 Lbs
– T-Slot Width…………0.626″ – 0.630″
– T-Slot Quantity…………13 in Y and 6 in X

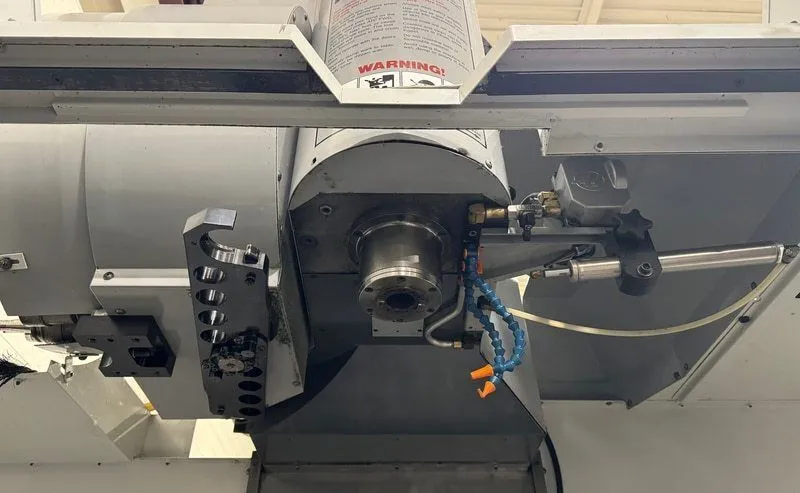

Spindle:
– Motor…………30 HP
– Speed – Maximum…………12,000 RPM
– Torque -Maximum…………90.0 ft-lbf @ 2000 RPM
– Drive System…………Inline Direct-Drive
– Taper…………CAT 40
Feedrates:
– Cutting – Maximum…………510 ipm
– Rapid Traverse (XYZ Axes)…………710 ipm
Thrust on Axis Motors (XYZ Axes)…………4100 lbf

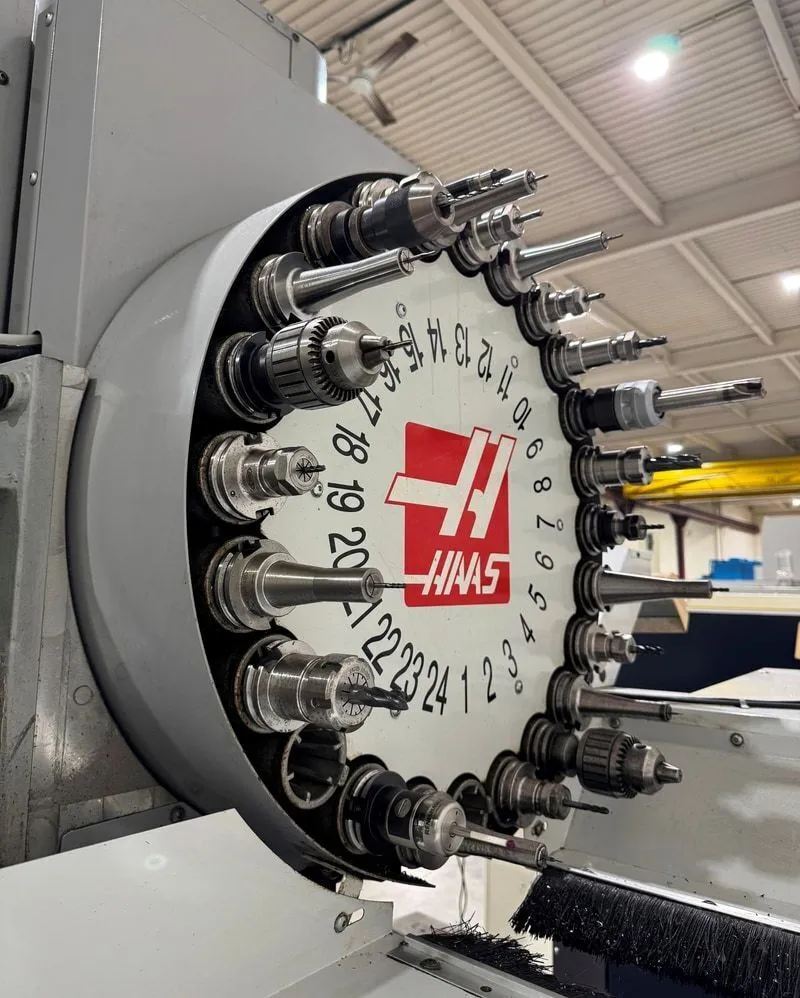

Tool Changer:
– Type…………Side Mount Twin Arm
– Capacity…………24+1
– Tool Diameter – Maximum…………2.5″ (full)
– Tool Diameter – Maximum…………5.0″ (adjacent empty)
– Tool Length – Maximum…………13″ (from gage line)
– Tool Weight – Maximum…………12 Lbs
– Tool-to-Tool (avg)…………2.80 s
– Chip-to-Chip (avg)…………3.60 s
Coolant Capacity…………55 gal.
Air Requirements…………4 scfm @ 100 psi
Inline Air Hose Diameter…………3/8″
Coupler (Air)…………3/8″
Air Pressure – Minimum…………80 psi

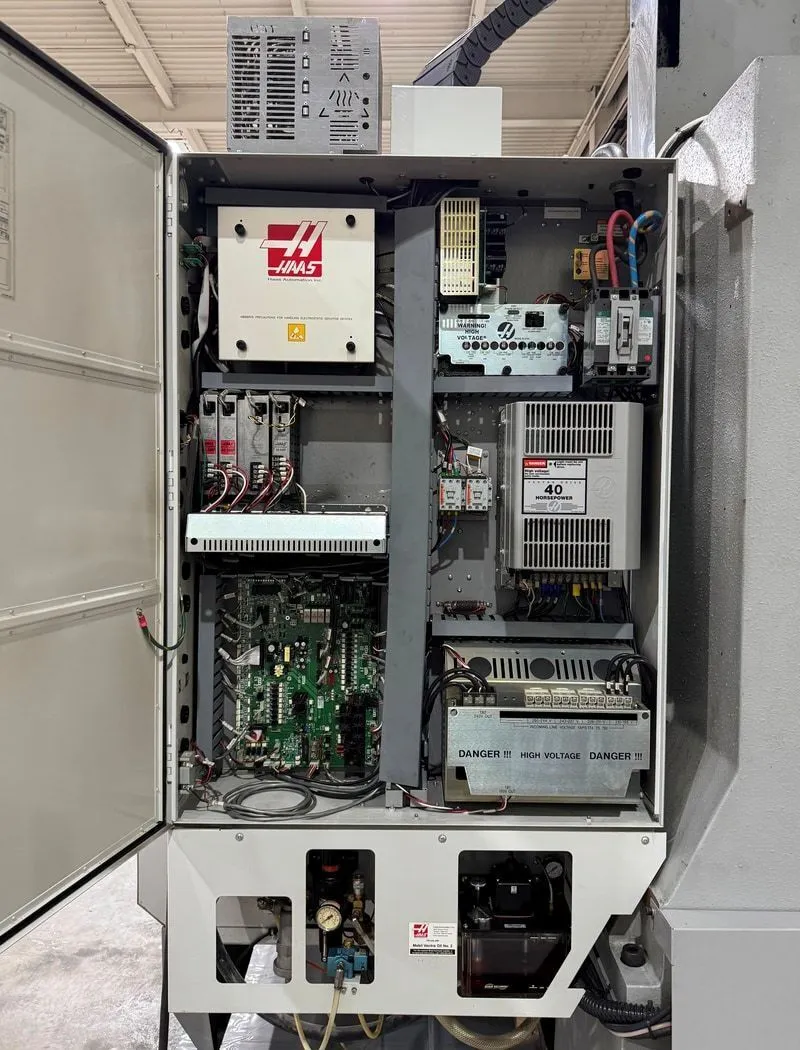

Electrics…………208/230V/3Ph/50/60Hz
Dimensions – Approximate…………150″L x 102″W x 105″H
Weight – Catalog…………12,720 Lbs
EQUIPPED WITH:

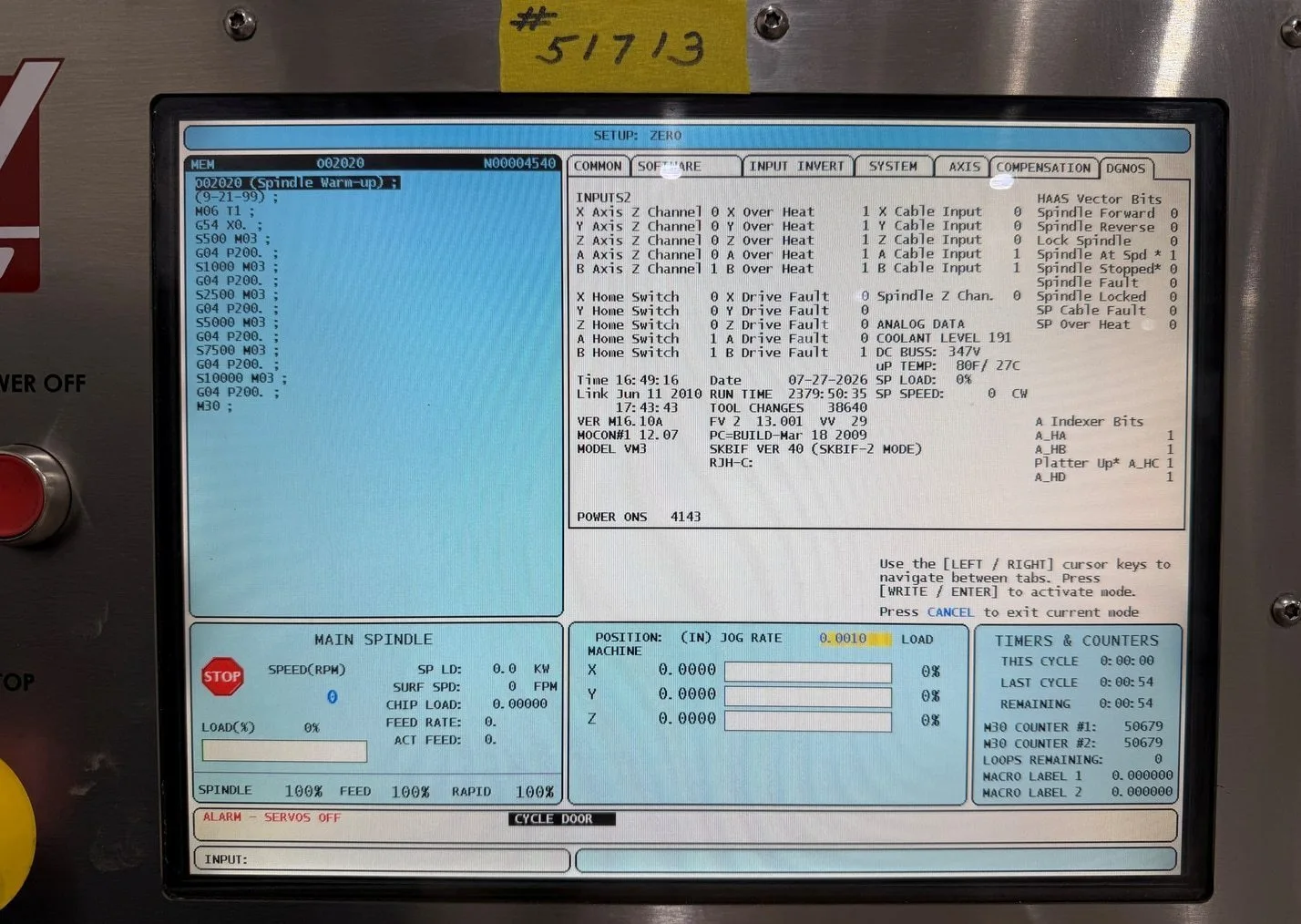

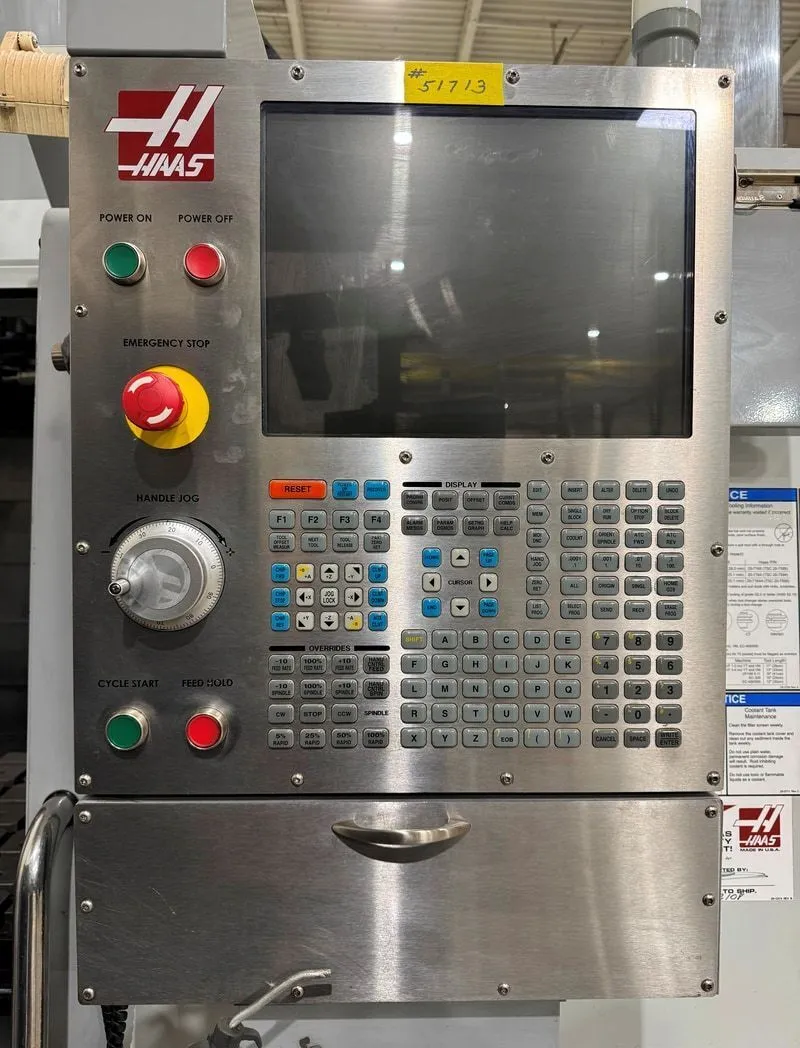

Haas CNC Control
WIPS Options (Wireless Intuitive Probing System by Renishaw)
Prewired for 4th Axis (Brushless or Brushed) Option
High Speed Machining
Rigid Tapping
Retractable Programmable Air Nozzle
Spindle Orientation Option
Coordinate Rotation & Scaling
Remote Jog Handle
Ethernet Interface
User-Definable Macros
Visual Quick Code
Power Fault Detection Module
Power Surge Protection
Coolant System

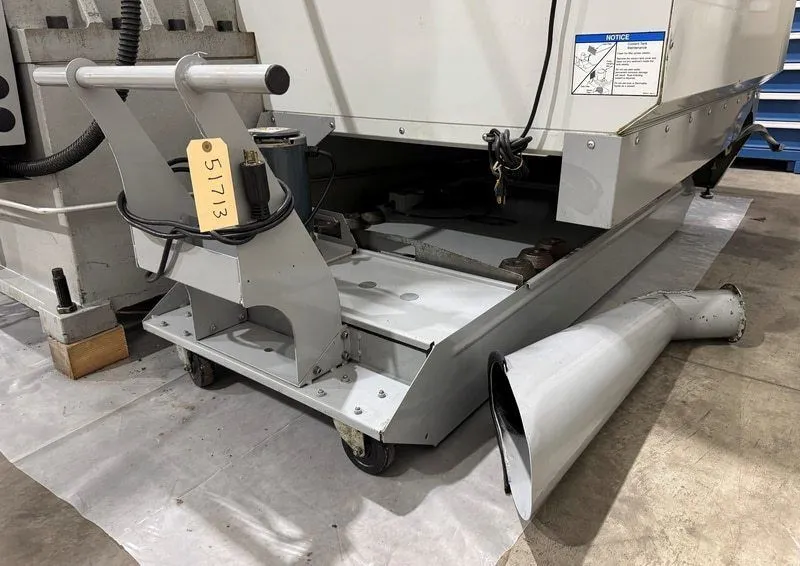

Chip Auger
6″ Kurt Vise
High Intensity Lighting
*Preliminary Specifications, Pending Confirmation

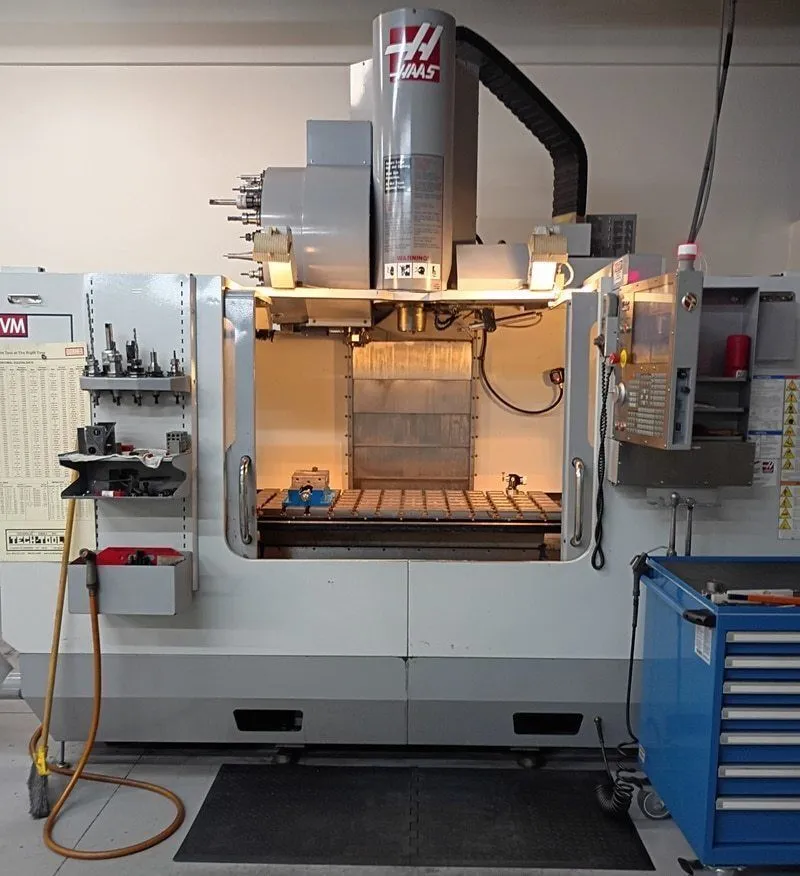

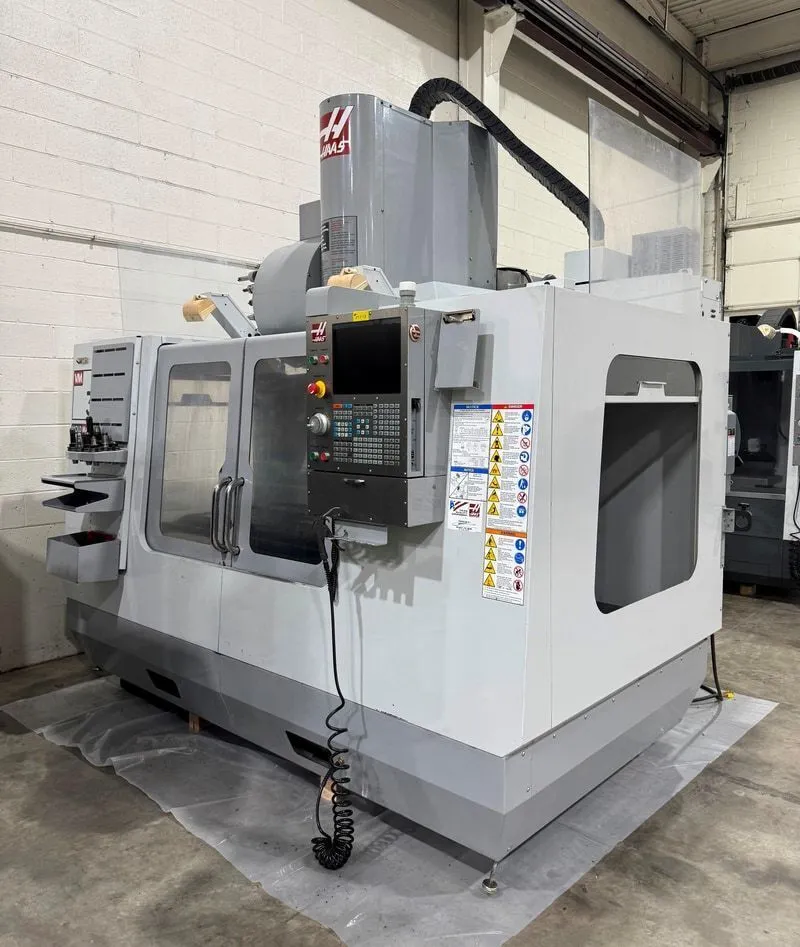

Haas, VM-3, 54″x24″ Tbl, 40″X, 26″Y, 25″Z, 30 HP, 12,000 RPM, 510 ipm, 2008
