Die Tryout Press Hansford 1021 | 3000 Lb. Cap. – #47810

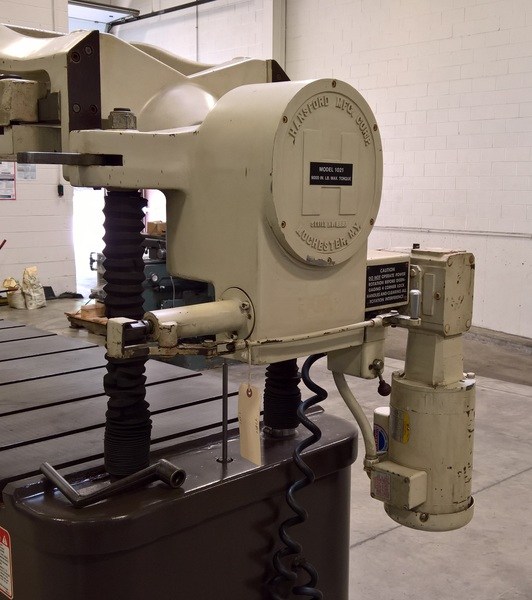

Die Tryout Press Hansford 1021

Serial No. 683
New – 1996

SPECIFICATIONS:
Weight of Die Accommodated – Maximum…………………………..3,000 Lbs.
Die Try-Out Force by Handcrank Only – Maximum………………….40,000 Lbs.
Shut Height – Minimum Distance Between Platens…………………………8″
Open Height – Maximum Distance Between Platens………………………..28″
Lower Platen Area………………………………………..30″ x 64″ Long
Upper Platen Area………………………………………..30″ x 62″ Long
Lower Die Mounting Table………………..(8) T-Slots 30″ Long per 3/4″ Bolt
Upper Die Mounting Table……………….(6) T-Slots 8.5″ Long per 3/4″ Bolt
Movement of Upper Platen Die Tryout Press Hansford 1021:
Vertical Travel……………………………………………………20″

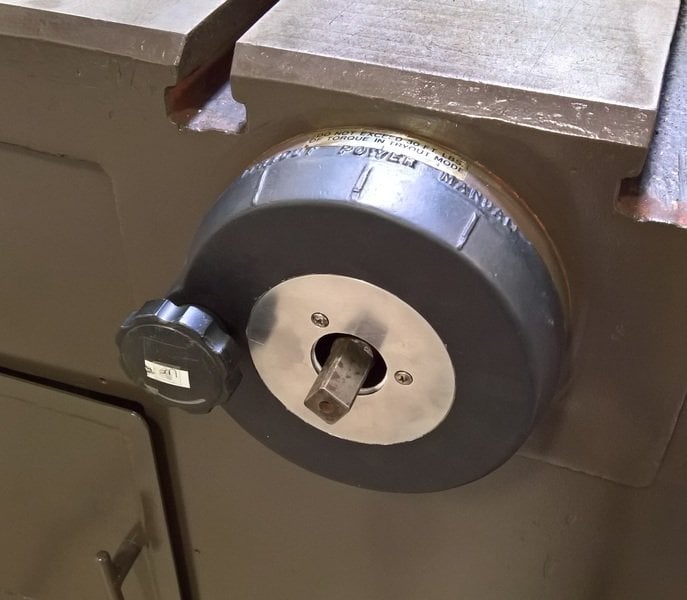

Vertical Movement By Hand Crank – Manual Position…………….48 Turns/inch
Vertical Movement By Hand Crank – Try-out Position…………..384 Turns/inch
Power for Raising Up to……………………………….3,000 Lb. @ 13 IPM
Vertical Movement (Power)………………………………………13″/Min.
Rotation of Top Platen……………………………..240 Turns/360 Degrees
Motorized Lift……………………………………………………2 HP
Electrical (J.I.C. Standards)…………………………..220-440V/3Ph/60Hz
Motor Speed………………………………………………….1,750 RPM
Locking Position of Upper Platen…………………0 Degrees and 180 Degrees
Net Weight of Upper Platen w/Motor…………………………….1,200 Lbs.
Die Try-out Force – Maximum……………………………………..20 Tons
Dimensions – Actual………………………….86″(L-R) x 42″(F-B) x 74″(H)
Approximate Weight…………………………………………..5,200 Lbs.

EQUIPPED WITH:
Motorized Turn Over Mechanism with Pendant
Extra Strength Right Hand Trunnion increases Turnover Torque to 9,000 In. Lbs.
Control with Magnetic Reversing Starter

*Catalog Specifications of the Die Tryout Press Hansford 1021 Subject to Verification.

Tryout presses, also known as tryout machines or tryout presses, are specialized machines used in the automotive and manufacturing industries for testing and validating the performance of stamping dies and molds. These presses are designed to simulate the conditions of production environments, allowing manufacturers to assess the functionality and quality of their tooling before actual production runs.

The die tryout press is typically hydraulic or mechanical machines that apply controlled force and motion to the die or mold. They enable manufacturers to test factors such as formability, material flow, dimensional accuracy, and die/mold performance. The press stroke, speed, and force can be adjusted to simulate different production scenarios and evaluate the tooling’s response.

The primary purpose of the die tryout press is to identify and rectify any issues or deficiencies in the tooling design or production process. By conducting extensive testing and analysis on tryout presses, manufacturers can optimize the tooling and make necessary modifications to ensure that it meets the required specifications and quality standards.
