Click HERE if you have a Hardinge HLV H to sell.

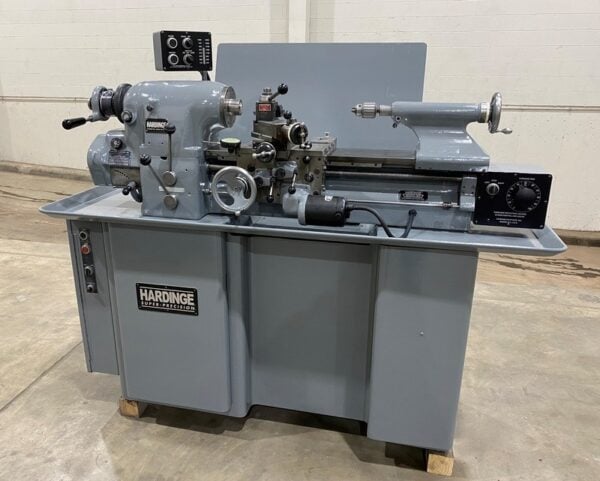

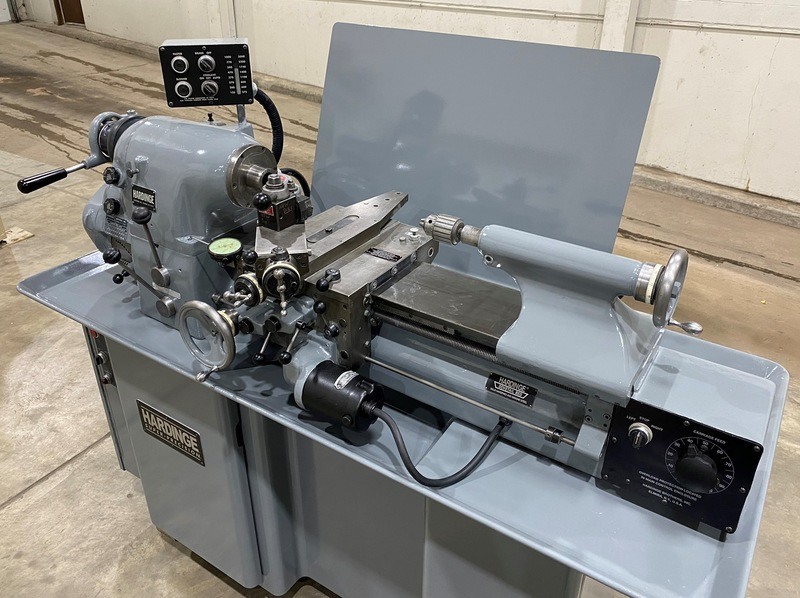

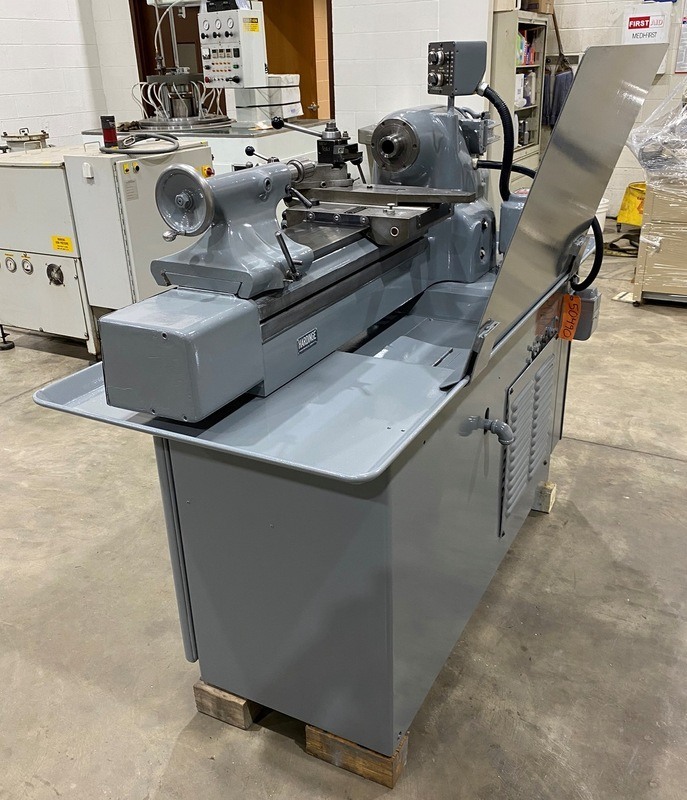

Serial No. HLV-H-2598
Hardinge HLV H SPECIFICATIONS:
Spindle Capacity 5C Collets – Round…………1-1/16″
Spindle Capacity 5C Collets – Hex…………7/8″
Step Chucks…………1-1/16″ – 6″

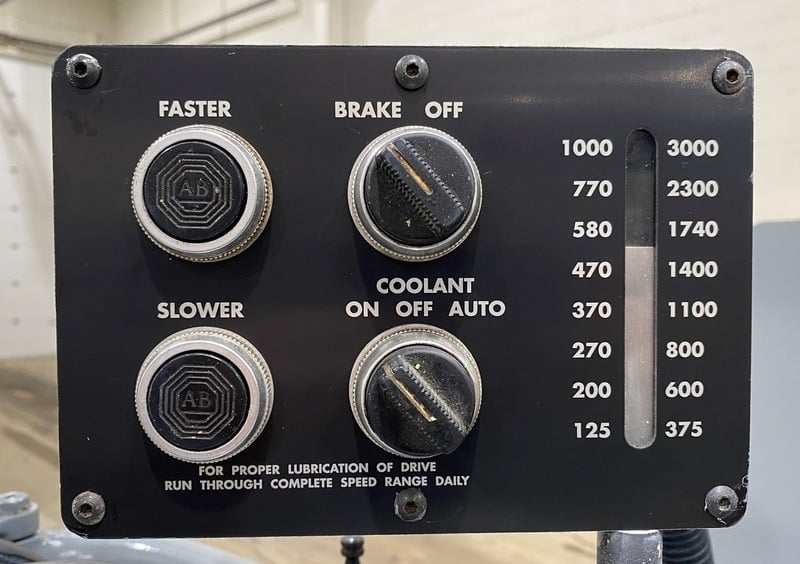

Variable Spindle Speeds…………125 – 3000 RPM
Swing Over Bed…………11″
Swing Over Cross Slide…………6″
Swing Over Carriage…………9″
Distance Between Centers…………18″
Hole thru Spindle…………1-1/4″
Compound Slide Travel…………3″

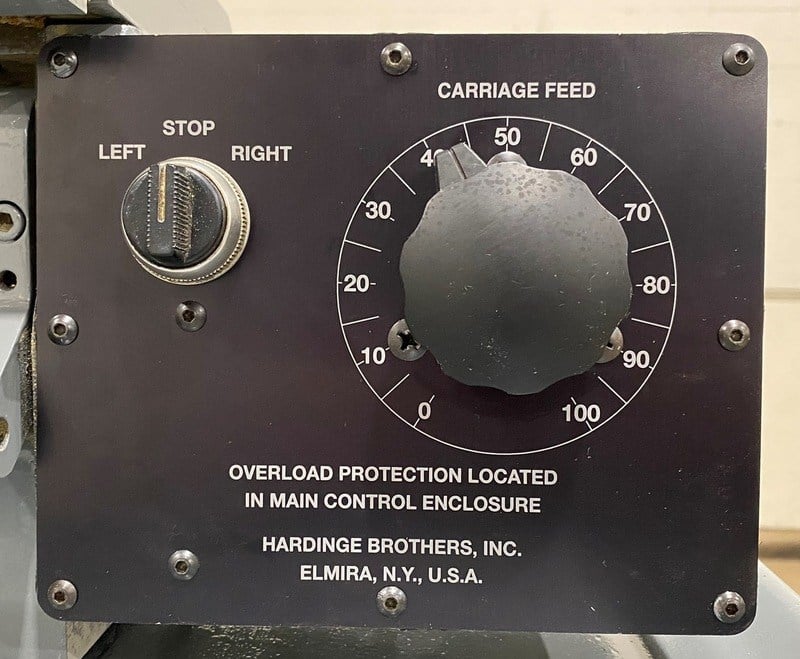

Carriage Power Feed Range…………5/16″ – 7 IPM
Cross Slide Power Feed Range…………3/16″ – 4 IPM
Tailstock Spindle Travel…………3-3/4″
Tailstock Spindle Taper…………No. 2 MT
Lead Screw Diameter…………1″ – 8″ Thread
Range of Threads (27) – Inch…………11″ – 108″ TPI
Electrics…………220V/3Ph/60Hz
Actual Dimensions…………72″L x 32″W x 64″H
Actual Dimensions (Skidded)…………48″L x 48″W x 24″H
Actual Weight (Skidded)…………2,000 Lbs.

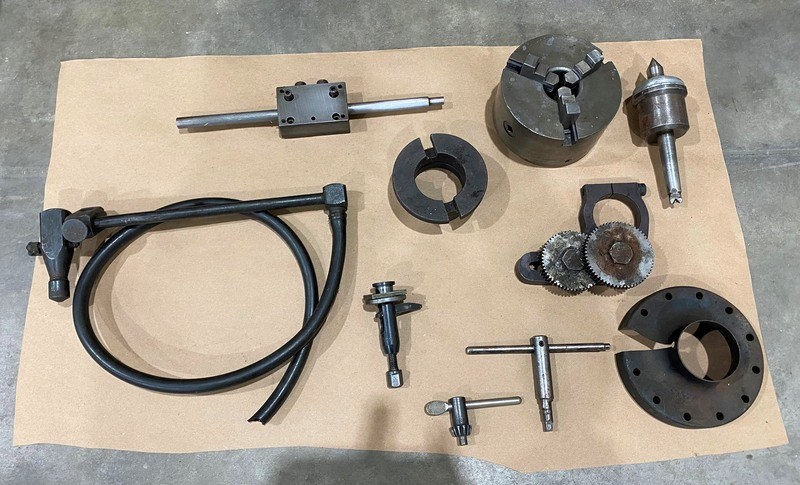

EQUIPPED WITH:

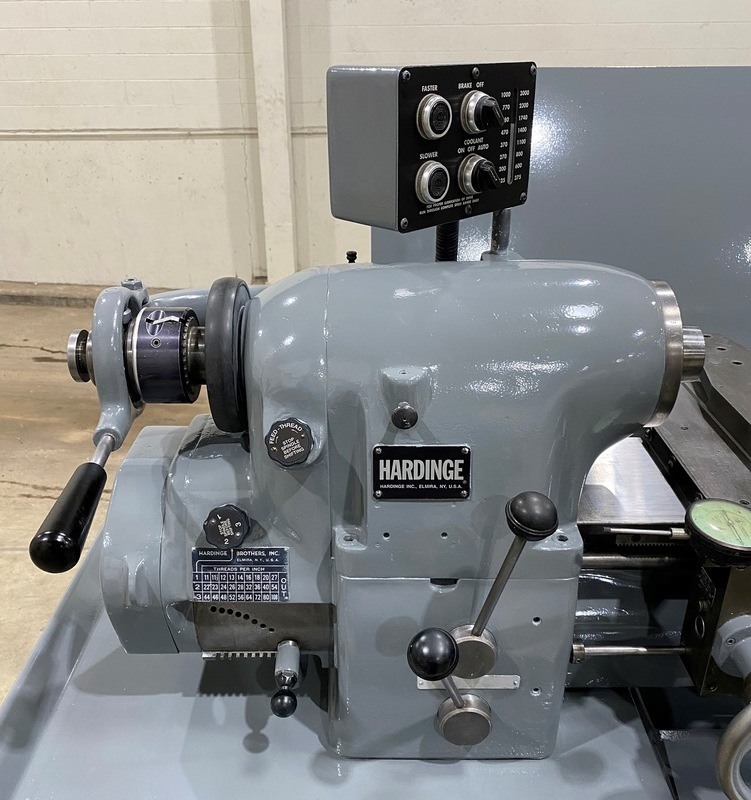

– Threading Attachment w/Threading Cluster
– Hardinge 5″ 3 Jaw Chuck

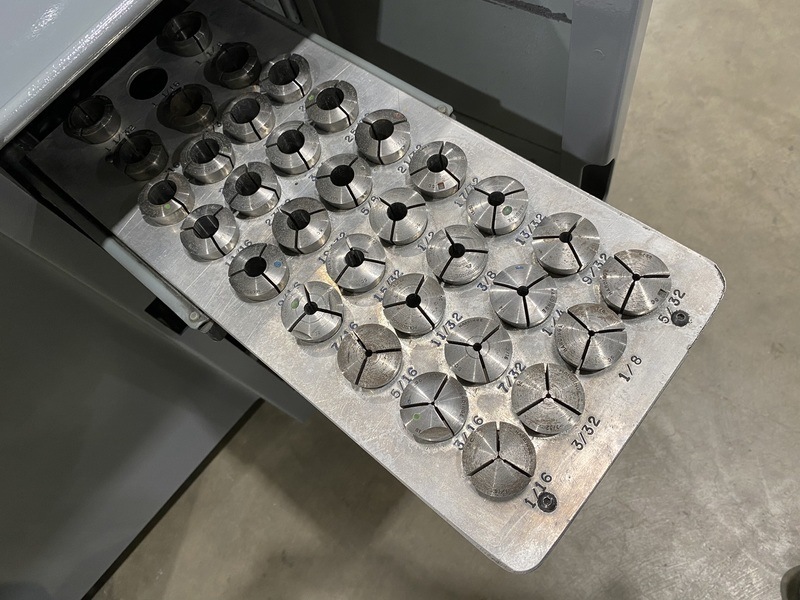

– 5C Collet Chuck w/Miscellaneous Collets

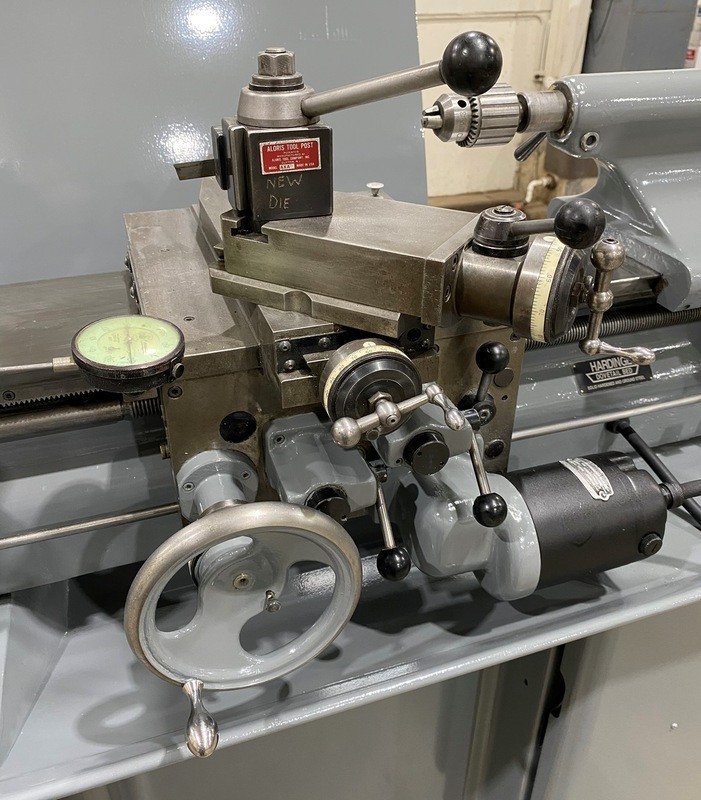

– Aloris Tool Post

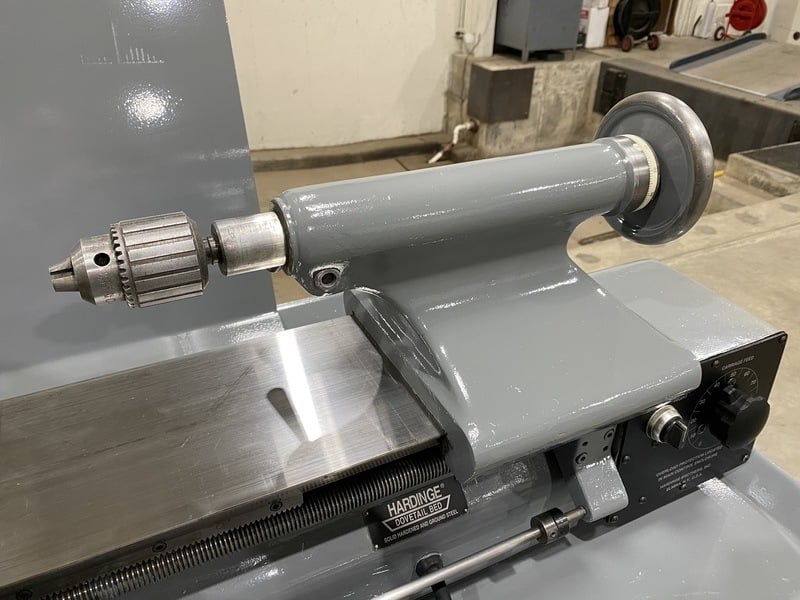

– Jacobs Chuck
– Coolant Distributor
– Work Light
*Preliminary Specifications Subject to Verification
Tool room lathes are precision machines widely used in tool rooms, workshops, and manufacturing facilities. They are specifically designed for producing small batches of high-precision components with tight tolerances.
Tool room lathes like this Hardinge HLV H are known for their versatility and capability to perform various machining operations such as turning, facing, threading, and drilling. They are equipped with a wide range of tooling options, allowing for the creation of complex geometries and intricate details.
These lathes are constructed with high-quality materials and engineered to deliver exceptional accuracy and stability. They often feature rigid bed constructions, precise spindle systems, and advanced control mechanisms, ensuring smooth operation and consistent machining results.
Tool room lathes like this Hardinge HLV H are favored for applications such as prototyping, tool and die making, repair and maintenance, and small-scale production. They are ideal for working with materials like steel, aluminum, and plastics, enabling machinists to produce custom parts, molds, and precision components with utmost precision.
The most popular tool room lathe is this like this Hardinge HLV H. These brands offer a range of models with different capacities, features, and cutting-edge technologies to meet the specific requirements of tool room environments and deliver high-quality machining performance.
