Serial No. HLVH-8676T
New – 1990

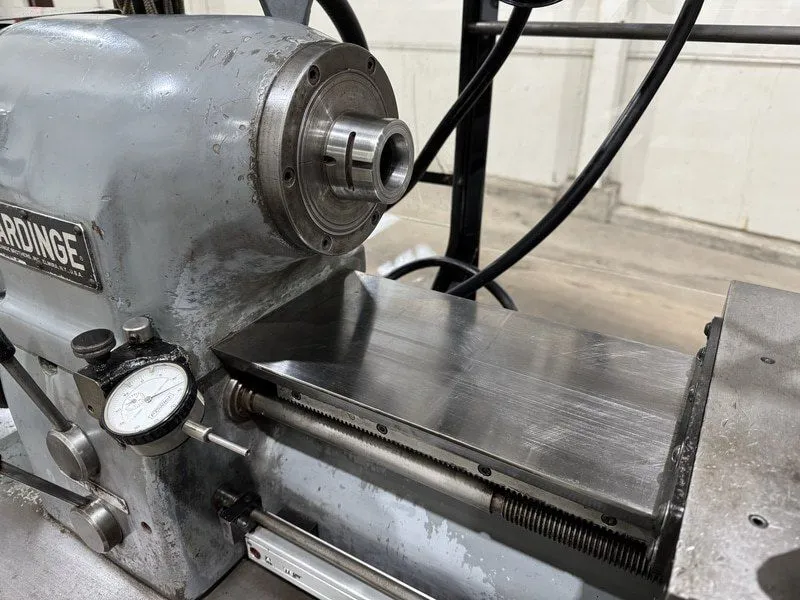

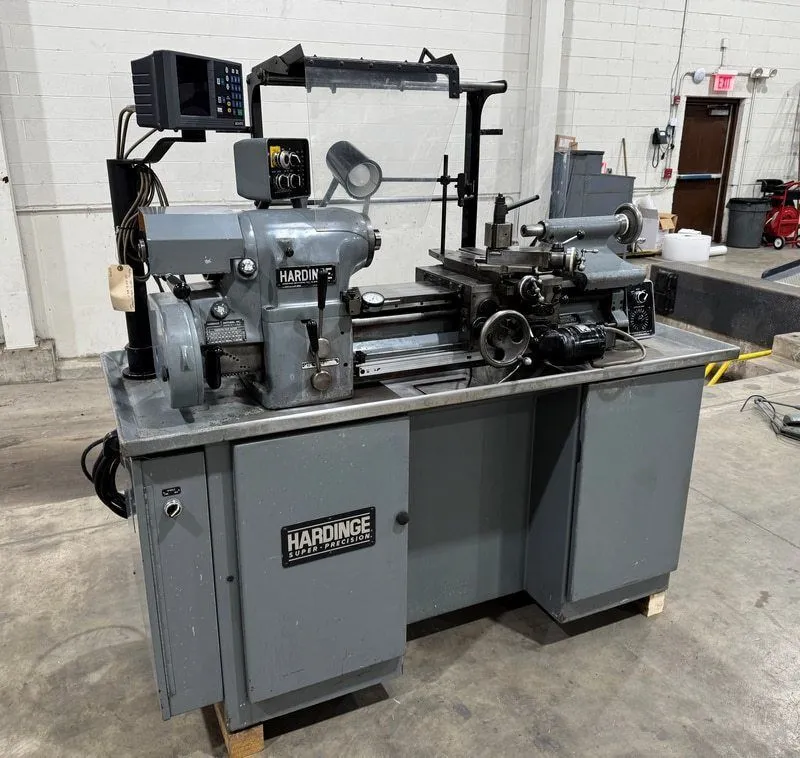

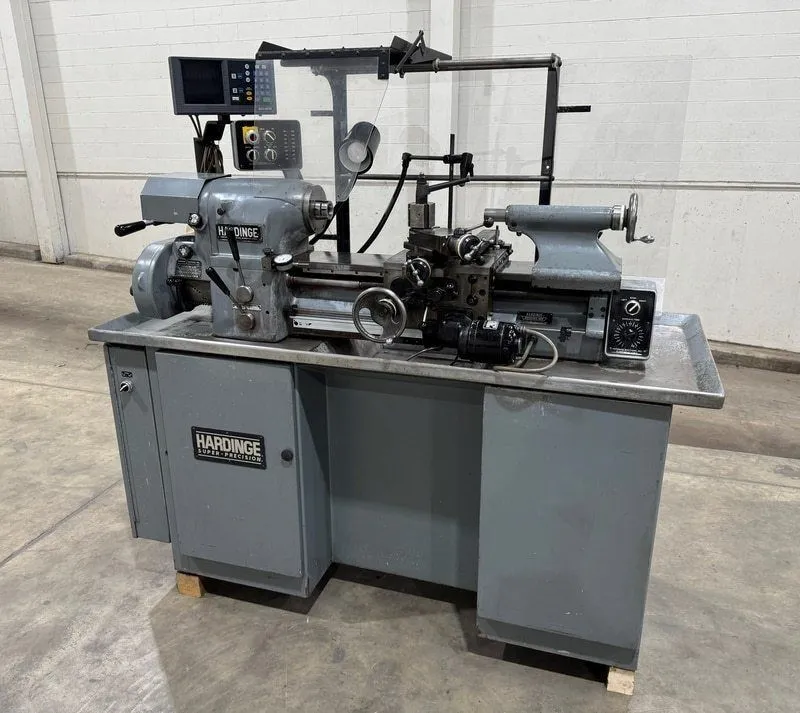

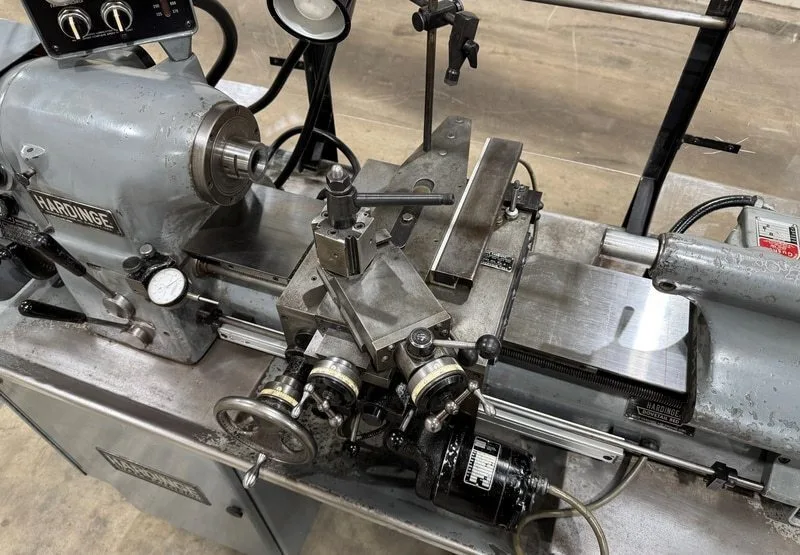

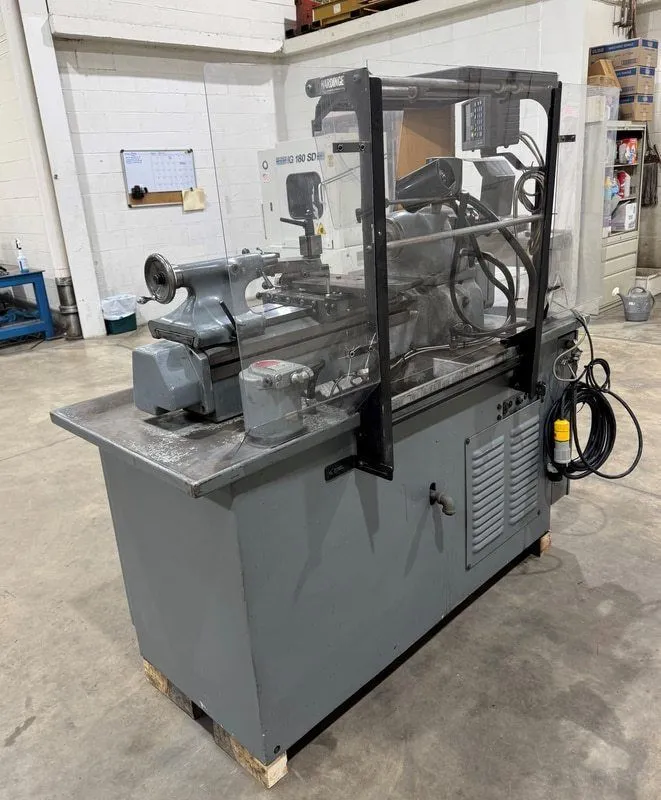

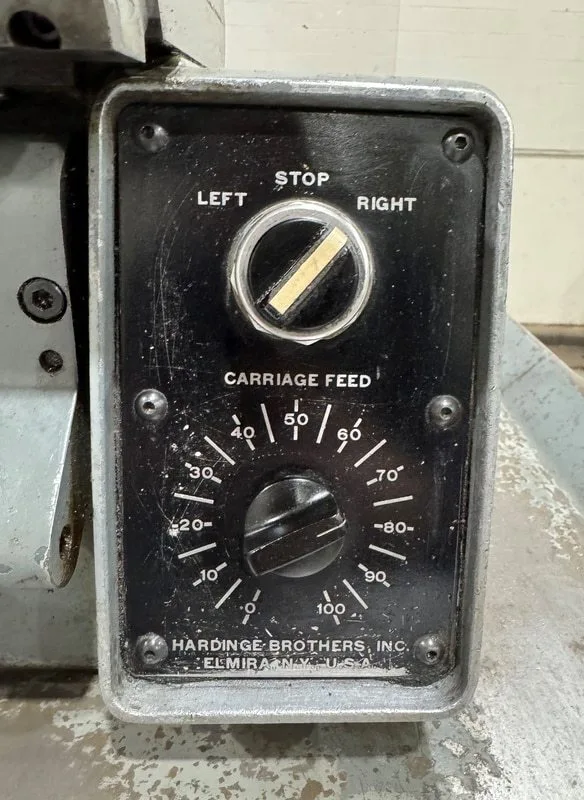

Motor driven with 2-Speed, 3/60/230 volt variable speed drive unit with direct reading spindle speed indicator and controls. Hardinge Super-Precision ball bearing spindle. Hardinge tapered spindle nose. Tool storage compartment. Built-in coolant system. Hardened and ground dovetail bed. Leadscrew threading with automatic stop. Independent electric variable power feed drive for carriage and cross slide. Quick change gear box.
SPECIFICATIONS:
Spindle Capacity 5C Collets – Round…………1-1/16″
Spindle Capacity 5C Collets – Hex…………7/8″
Step Chucks…………1-1/16″ – 6″
Variable Spindle Speeds…………125 – 3000 RPM
Swing Over Bed…………11″
Swing Over Cross Slide…………6″
Swing Over Carriage…………9″
Distance Between Centers…………18″
Hole thru Spindle…………1-1/4″
Compound Slide Travel…………3″
Carriage Power Feed Range…………5/16″ – 7 IPM
Cross Slide Power Feed Range…………3/16″ – 4 IPM

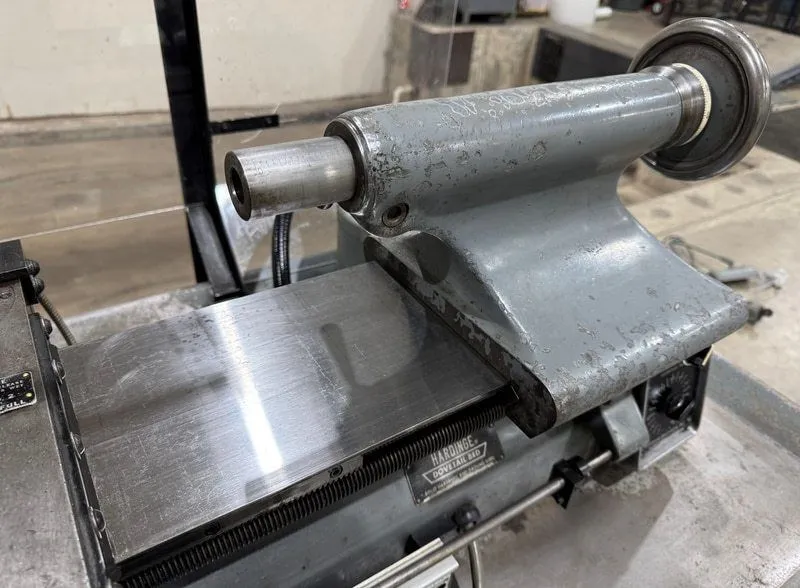

Tailstock Spindle Travel…………3-3/4″
Tailstock Spindle Taper…………No. 2 MT
Lead Screw Diameter…………1″ – 8″ Thread
Range of Threads (27) – Inch…………11″ – 108″ TPI
Electrics…………460V/3Ph/60Hz
Actual Dimensions…………72″L x 32″W x 64″H
Actual Dimensions (Skidded)…………48″L x 48″W x 24″H
Actual Weight (Skidded)…………2,000 Lbs.
EQUIPPED WITH:

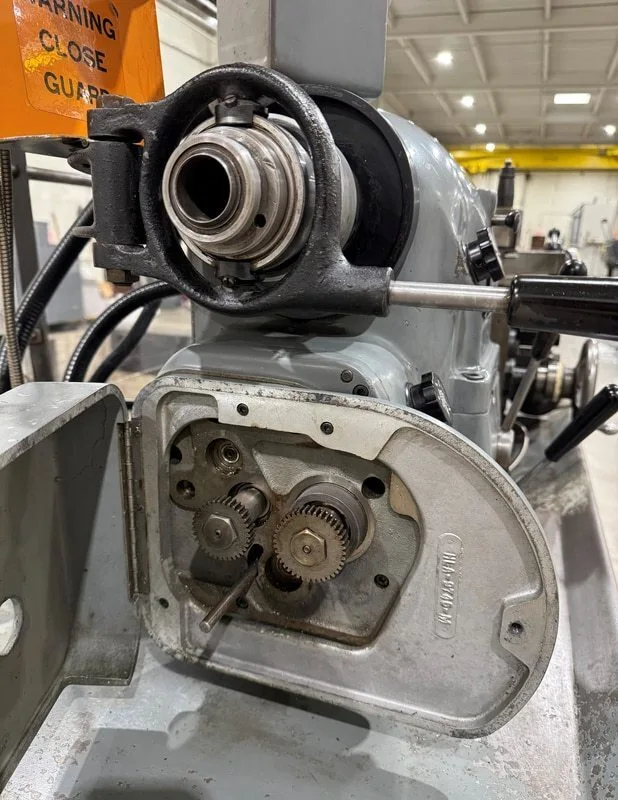

Auxiliary Inch Threading Box

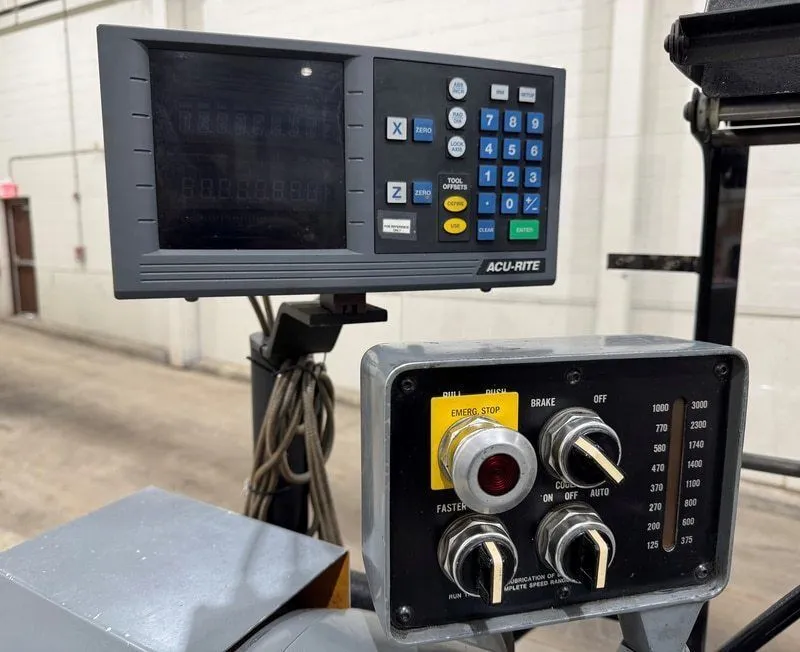

Acu-Rite Digital Read-Out System

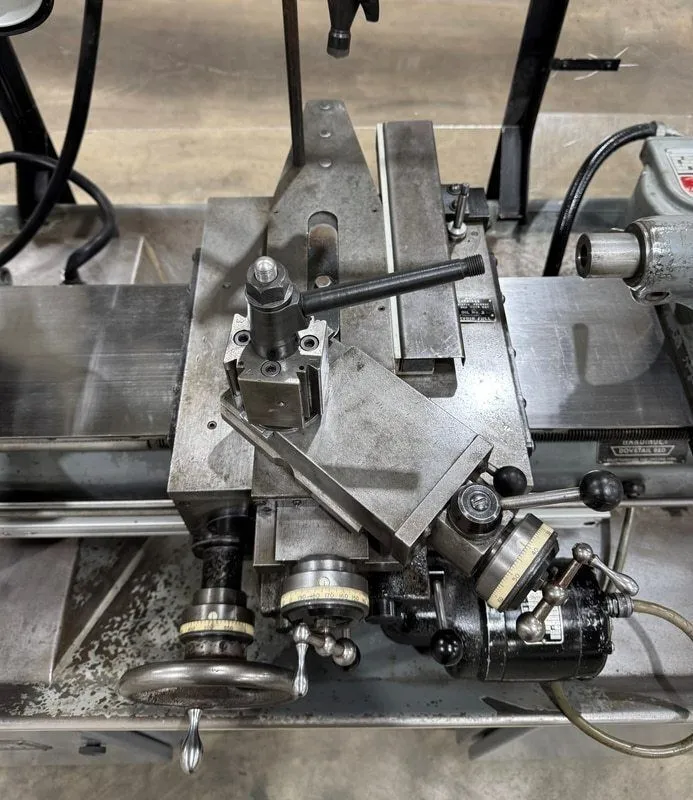

Miscellaneous Tool Holders & Tool Post

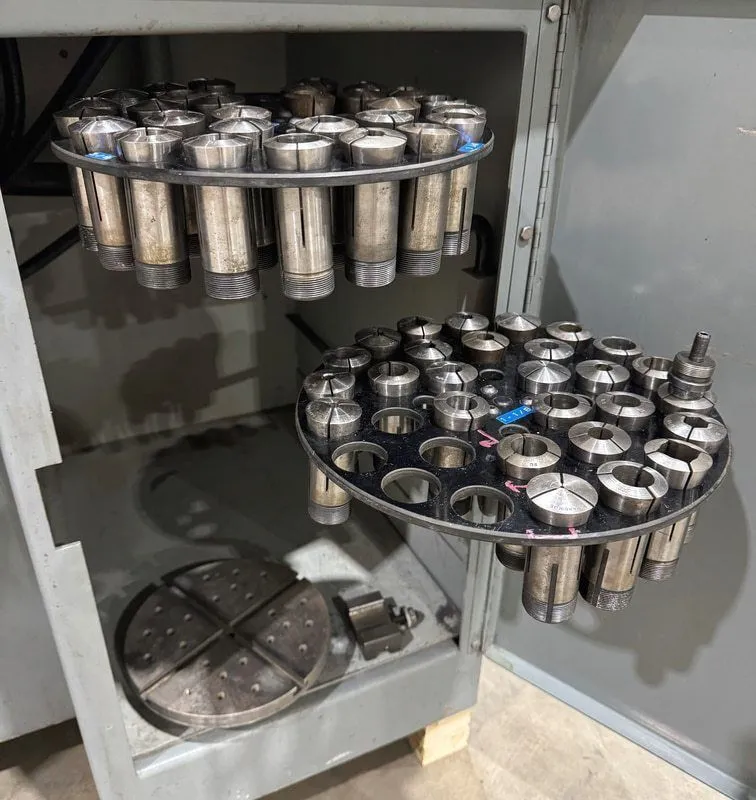

Assorted Collets
Micrometer Inch Dials
Hardinge H-HD1 Carriage Length Indicator
M.D. Coolant
Chip Guards
Work Light
*Preliminary Specifications, Pending Confirmation.
