Serial No. HLV-H-9747-1
New – 1982
SPECIFICATIONS:
Spindle Capacity 5C Collets – Round…………1-1/16″
Spindle Capacity 5C Collets – Hex…………7/8″
Step Chucks…………1-1/16″ – 6″
Variable Spindle Speeds…………125 – 3000 RPM
Swing Over Bed…………11″
Swing Over Cross Slide…………6″
Swing Over Carriage…………9″
Distance Between Centers…………18″
Hole thru Spindle…………1-1/4″
Compound Slide Travel…………3″
Carriage Power Feed Range…………5/16″ – 7 IPM
Cross Slide Power Feed Range…………3/16″ – 4 IPM
Tailstock Spindle Travel…………3-3/4″
Tailstock Spindle Taper…………No. 2 MT
Lead Screw Diameter…………1″ – 8″ Thread
Range of Threads (27) – Inch…………11″ – 108″ TPI
Range of Threads (27) – Metric…………0.275 – 2.7 mm

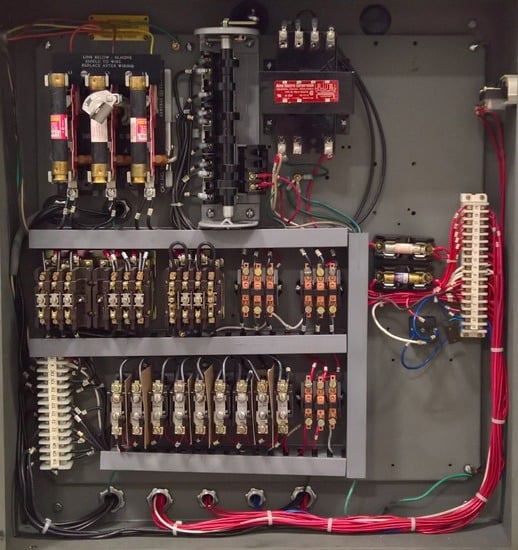

Electrics…………230V/3Ph/60Hz
Actual Machine Dimensions…………69″L x 32″W x 80″H
Actual Skid w/Guard Dimensions…………48″L x 48″W x 61″H
Weight – Approximate…………2,200 Lbs.
Hardinge Lathe HLV-H-EM EQUIPPED WITH:

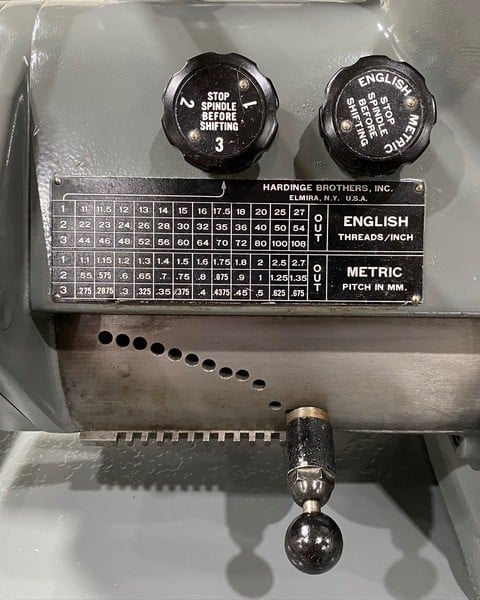

Auxiliary Inch and Metric Threading Box
Dual Dials for Reading in Inch or Millimeter

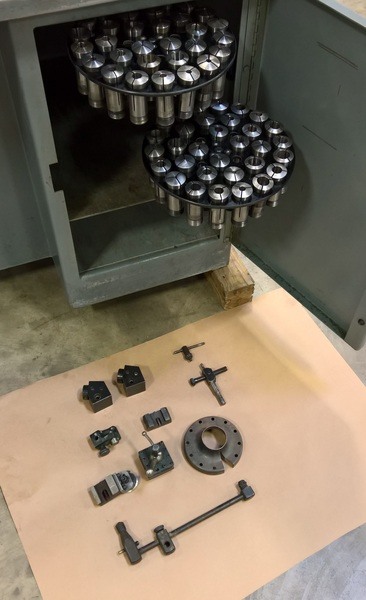

Assorted Collets, 6″ 3-Jaw Chuck, Cut-Off Slide, Tool Posts
M.D. Coolant
Chip Guards
*Preliminary Specifications Subject to Verification.

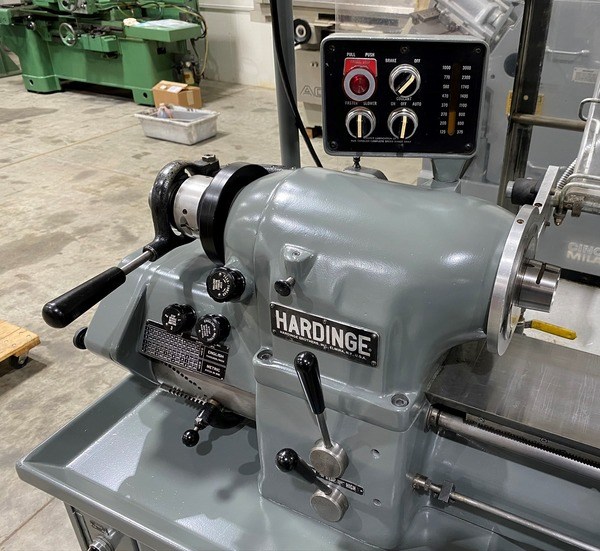

The Hardinge Lathe HLV-H-EM is a highly regarded toolroom lathe renowned for its precision and versatility. Manufactured by Hardinge Inc., it embodies the company’s commitment to quality and craftsmanship. The HLV-H-EM is designed to deliver exceptional accuracy, making it a preferred choice for toolmakers, prototype manufacturers, and high-precision machining operations.
Featuring a solid construction and meticulous engineering, the Hardinge Lathe HLV-H-EM offers a range of advanced features. It boasts a variable speed control system, allowing for precise adjustments to match the requirements of different materials and cutting operations. The lathe’s precision-ground bed, cross slide, and carriage assembly ensure stability and accuracy during machining processes.
The Hardinge Lathe HLV-H-EM incorporates a quick-change tooling system, facilitating efficient tool changes and minimizing downtime. Its spindle design enables rapid collet changes, contributing to enhanced productivity. The lathe’s versatility extends to its ability to perform threading, turning, facing, drilling, and tapering operations.
With its reputation for reliability, precision, and versatility, the Hardinge Lathe HLV-H-EM continues to be a trusted tool in industries that demand high levels of accuracy and performance.
