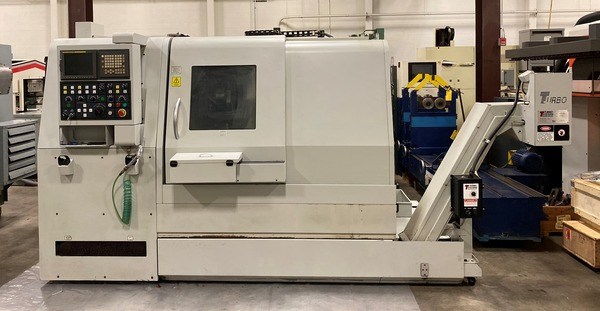

Hardinge Quest 8/51 CNC Lathe | Live Tooling - #48169

Liberty Machine # 48169 Category Make

Serial No. QC-948
New - 2008

SPECIFICATIONS:
Swing Over the Way Covers..............................................20.44"
Turning Diameter - Maximum............................................12.151"
Z-Axis Travel with Collet - Maximum.......................................24"
X-Axis Travel - Maximum.................................................7.45"
Y-Axis Travel (Option)........................................+2.00" - 1.377"
Spindle Configuration................................................A2-6 20C
Thru-Hole Bar Capacity.................................................2.378"
Round Collet (Through Capacity)............................................2"
Main Spindle Drive Motor................................................20 HP
Spindle Speed Range...........................................80 to 8,000 RPM

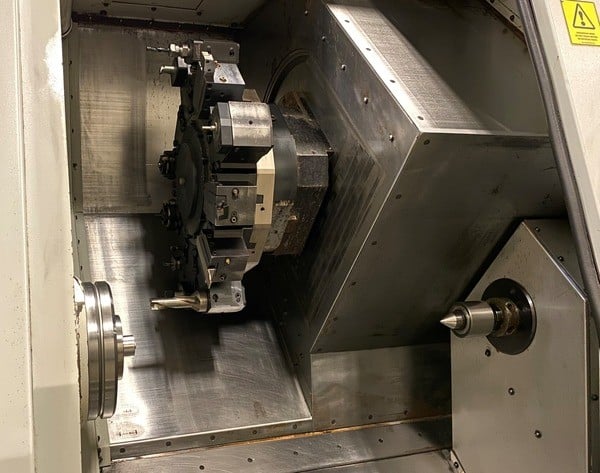

Number of Stations on Turret (Live)........................................12
Turret ESA Top Plate..............................Adjustable VDI Live Tooling
X-Axis Traverse Rates - Maximum.....................................1,100 IPM
Z-Axis Traverse Rates - Maximum.....................................2,300 IPM
Approximate Dimensions..................................108"L x 76.5"W x 75"H
Approximate Weight................................................12,500 Lbs.

EQUIPPED WITH:

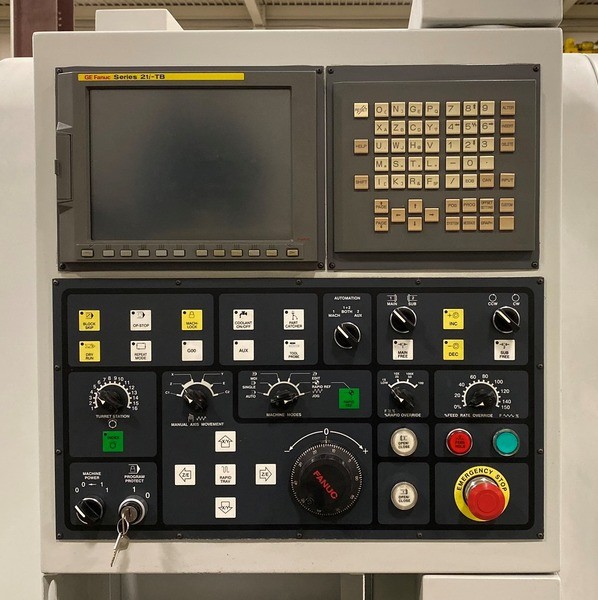

GE Fanuc 21i-TB CNC Controller

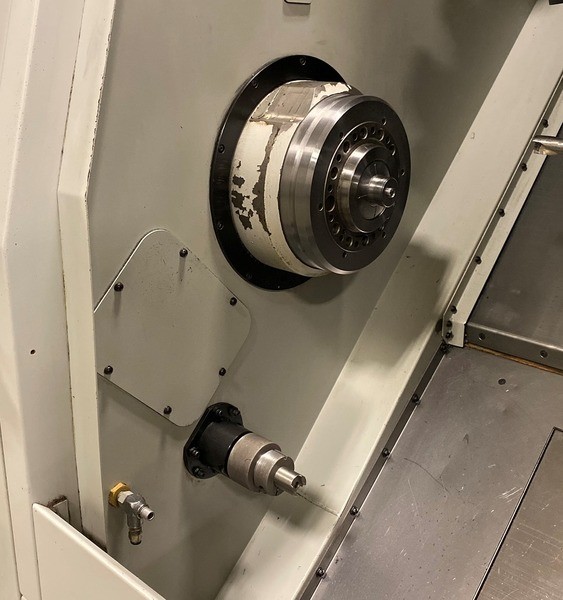

High-Speed Wraparound Main Spindle
Turmoil Model OCO-75 RO-ATC Spindle Chiller Unit
Jaw Chuck/Collet-Ready Spindle (Large Qty. Collets)

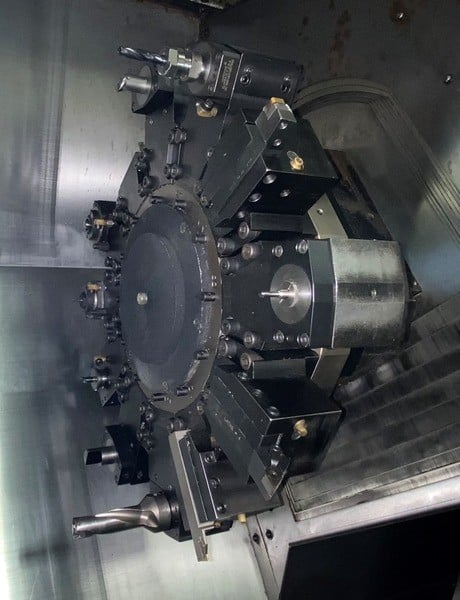

ESA Top Plate with VDI Live Tooling for Cross or End-Milling/Drilling
Y-Axis
C-Axis (Main Spindle) Contouring in Increments of .001 Degree
Large quantity of Live and Static Tools
Polygon Turning Capabilities
Hydrostatic Linear Guideways System Designed for Hard Turning
Thru-Door Parts Cathcer, Basket Type
High Pressure Coolant (Interface)

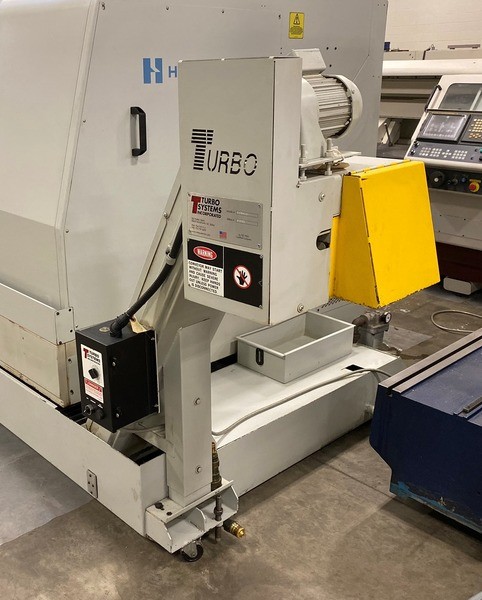

Coolant Tank, Chip Conveyor, Auto Door Light Touch

*Preliminary Specifications Subject to Verification
