Cincinnati Milacron Heald 261 | 17"Ck, 1"x14"Whl, Wet Base, 10HP - #50703

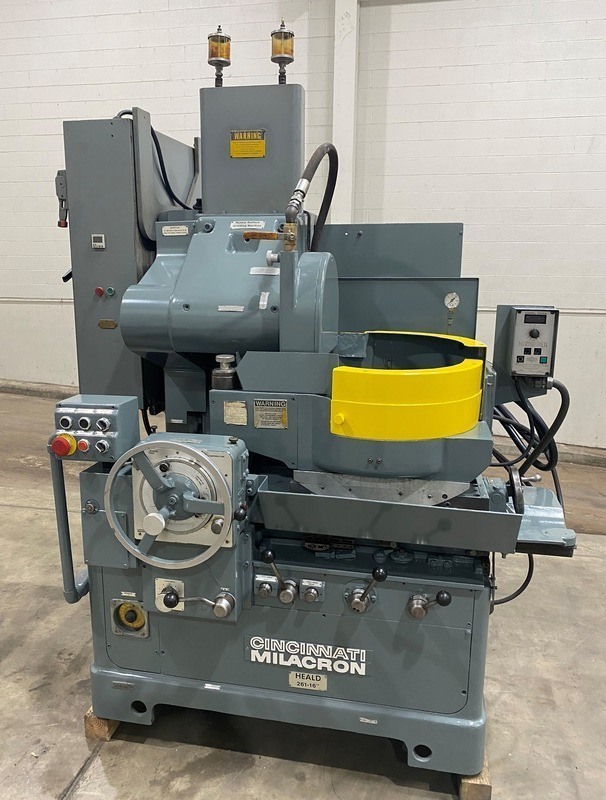

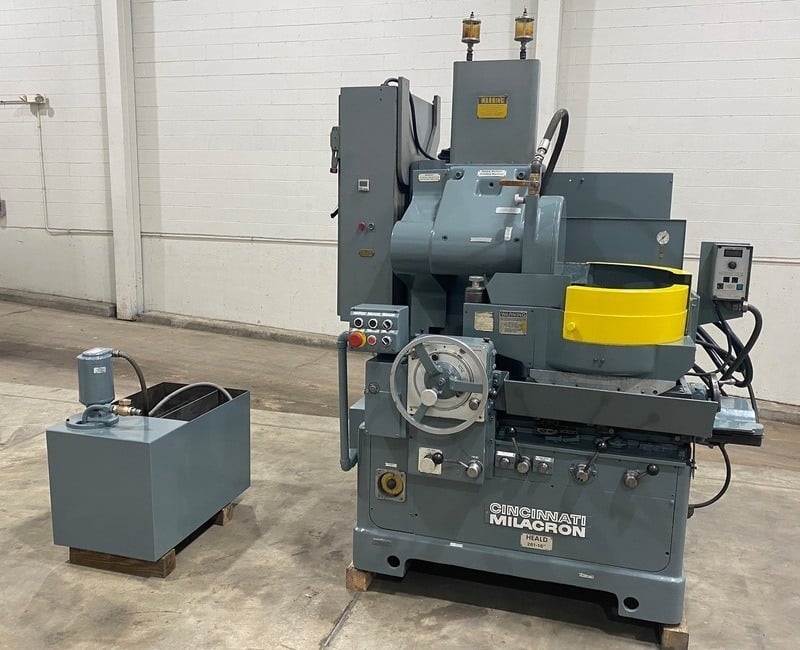

Heald Rotary Surface Grinder 261 for precision grinding of flat, concave, and convex surfaces. 10 HP main drive spindle motor and controls.

New - 1983
Serial No. - 49585

SPECIFICATIONS:
Chuck Face Diameter............17"
Chuck Life Remaining............9/16"
Swing Inside Guard............21"
Standard Wheel Size............14" x 1" x 5"
Distance Top of Chuck to Centerline Wheel - Maximum............17-1/2"
Distance Top of Chuck to Centerline Wheel - Minimum............4-1/2"
Height Under New Wheel............10-1/2"
Table:
- Slide Travel............12"
- Grinding Stroke of Table............8"
- Speeds - Grinding............0 - 12 FPM
- Speed - Runout............35 FPM
Table Tilt Adjustment:
- Convex - Maximum............17 Degrees
- Concave - Maximum............10 Degrees
Chuck Speeds - Variable............50 - 225 RPM
Chuck Feed Rates............0 - 20 FPM
Wheel Speed............1640 RPM
Power Feed of Spindle(0.0001" increments)............0.0001" - 0.0005"
Electrics............460V/3Ph/60 Cycle
Dimensions - Approximate............78" x 60" x 80" H
Weight - Approximate............8,350 Lbs.

EQUIPPED WITH:

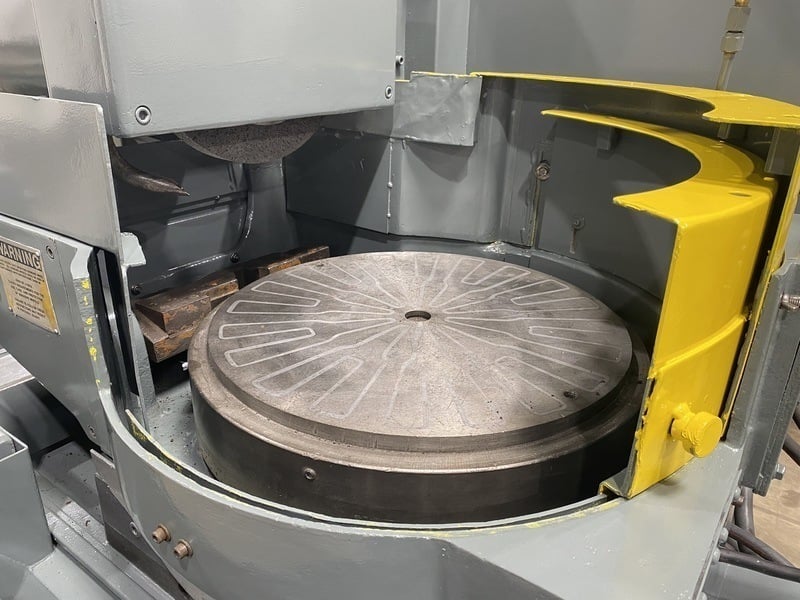

17" Electro Magnetic Concentric Gap Chuck
Electromatic Neutrifier II and Chuck Control
Angular Setting Scale

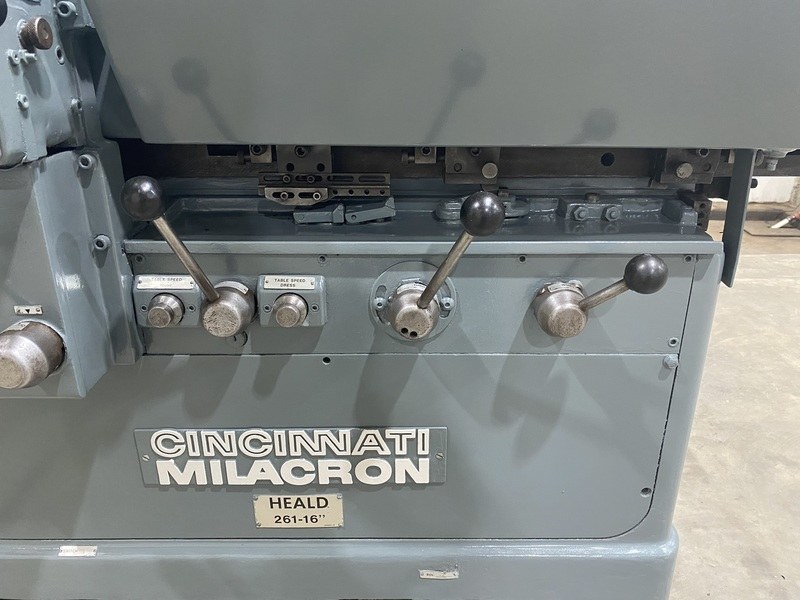

Fine Coarse Feed Controls
Compensation Knob and Dial
Hand Picker Feed Lever
Spark Out Timer
Size-Matic Selector
Table Speed Controls

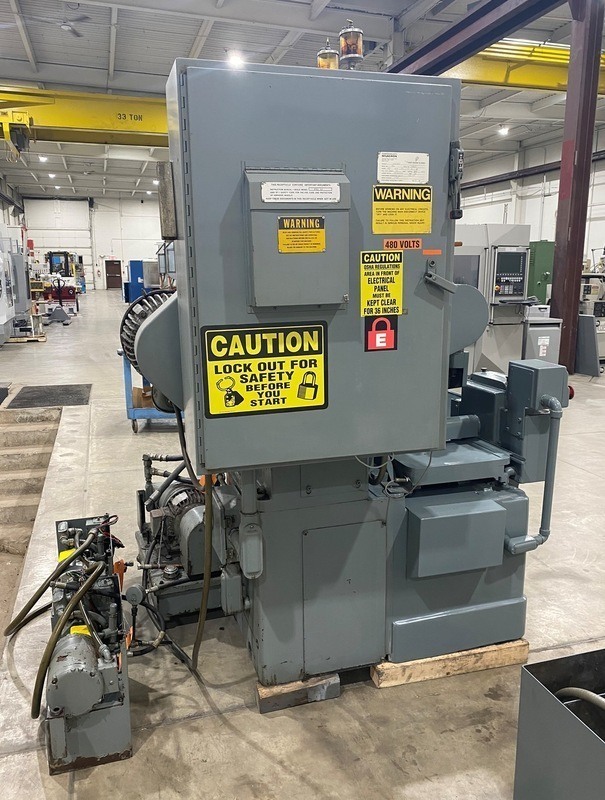

Hydraulic Pump & Tank for Automatic Lubrication of Table & Vertical Ways
Independent Lubrication System for Chuck

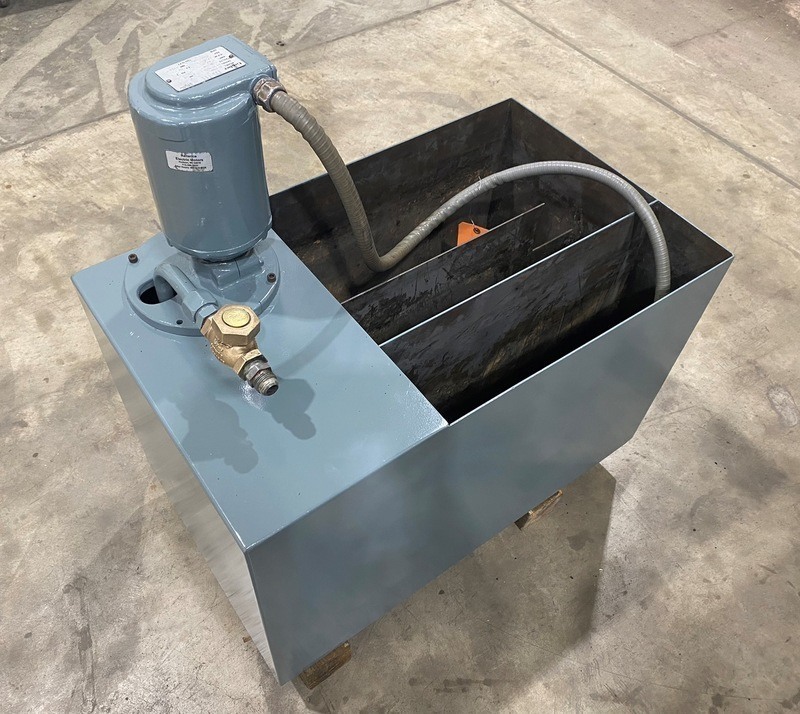

Coolant Pump & Tank
Wheel Retraction Knob
Wheel Dresser

*Preliminary Specifications Subject to Verification.
