Hexagon 7.10 7 SF | 28″X x 39.8″Y x 26.8″Z, 1,499 Lb. Part Cap, ’20 – #50669

Liberty Machine # 50669 Category Make

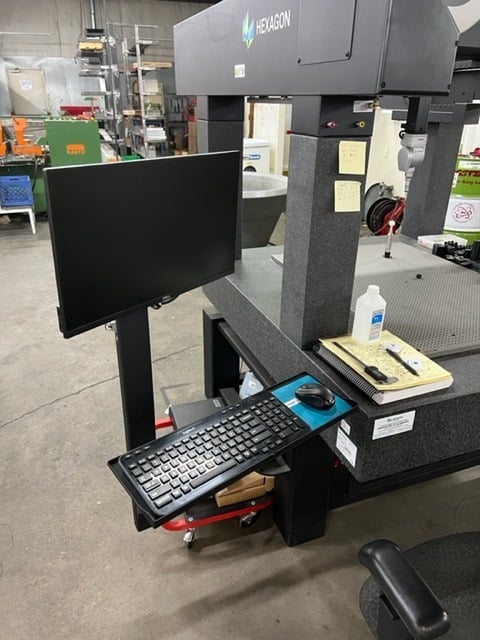

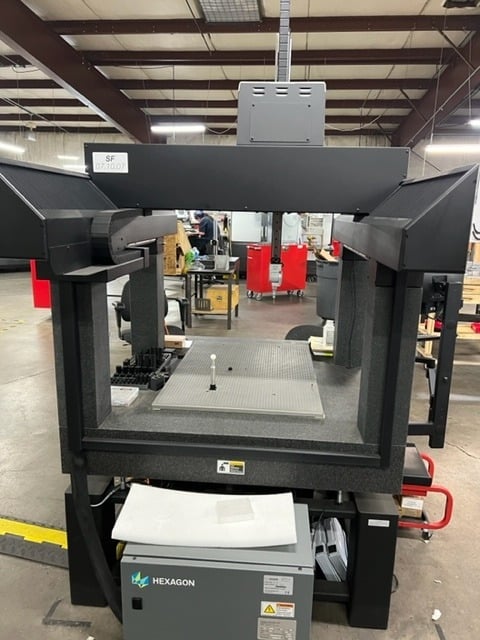

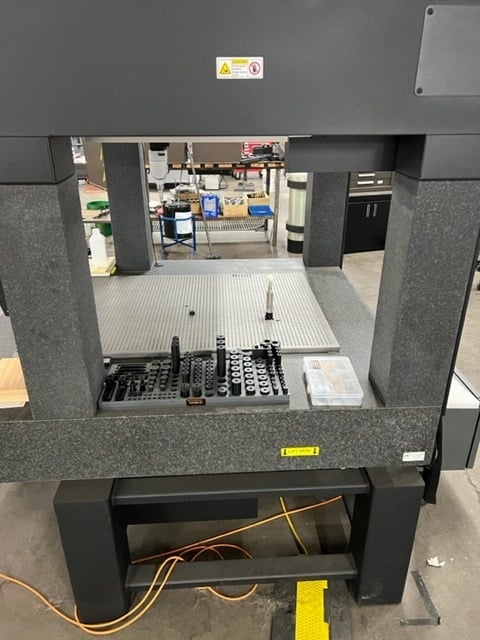

Hexagon 7.10 7 SF Coordinate Measuring Machine

New – 2020
SPECIFICATIONS:
Measuring envelope…………28″X x 39.8″Y x 26.8″Z
Work Capacity:
– Dimensions…………34.5″X x 54.7″Y x 31.2″Z
– Weight…………1,499 Lbs.
Dimensions – catalog………..87″(L-R) x 69″(F-B) x 109″(H)
Weight – catalog…………3,711 Lbs.

EQUIPPED WITH:
DC241 Controller
Next Jogbox control interface
Lenovo P520 ThinkStation w/Windows 10
PC-DMIS CAD, Sheet metal, & Tip changer software
Workpiece standard thermal sensor
Cast aluminum fixture grid plate
Motorized probe head
Touch Trigger Probe Modules:
– (2) HP-TM US SF
– (2) HP-TM US MF
– 6-Port changer rack

*Preliminary specifications, subject to verification.

Coordinate measuring machines (CMMs) like the Hexagon 7.10 7 SF are advanced metrology tools used to accurately measure the dimensions and geometric features of three-dimensional objects. These machines play a crucial role in quality control and inspection processes across various industries, including aerospace, automotive, manufacturing, and engineering.

CMMs like the Hexagon 7.10 7 SF utilize a combination of sensors, computer software, and precision mechanical systems to measure the coordinates of multiple points on an object’s surface. This data is then analyzed to determine dimensional accuracy, deviations from design specifications, and overall part quality.

CMMs like the Hexagon 7.10 7 SF offer high accuracy and repeatability, making them suitable for precise and detailed measurements. They can measure complex geometries, including curves, angles, and freeform surfaces. Some CMMs are equipped with touch probes that physically contact the object’s surface, while others use non-contact measurement methods such as laser scanners or vision systems.

These machines provide efficient and automated measurement processes, reducing inspection time and human error. CMMs like the Hexagon 7.10 7 SF can be programmed to perform measurement routines on multiple parts, allowing for high-volume inspections. The collected data can be analyzed and compared to design specifications, providing valuable insights into manufacturing processes and aiding in process optimization.
