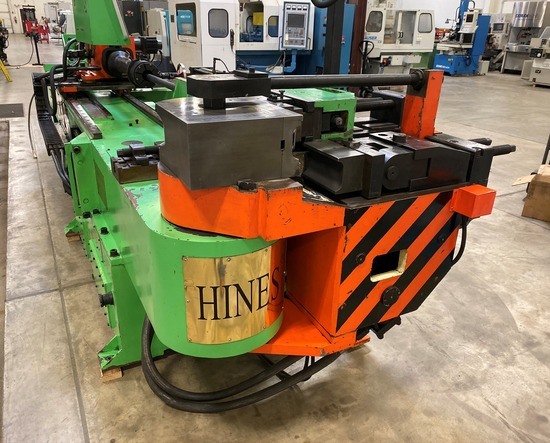

Hines 300NC-E Series 3-Axis NC Hydraulic Tube & Pipe Bender | 3 1/2" Cap. - #48603

Liberty Machine # 48603 Category Make

New - 2005
Serial No. 122004-27

SPECIFICATIONS:
Round Tube & Pipe Capacity - Maximum (2D Bend)........3-1/2"OD x 0.220 Wall
Bend Angle
- Maximum.........................................................185 Degs.
- Accuracy.....................................................+/-0.01 Deg.
Radius - Maximum........................................................12"
Tube Length over Mandrel - Maximum.......................................8'
Forward Collet Travel - Maximum......................9.8" Back from Tangent
Bending Arm Speed - Variable..................................Up To 3.5 RPM
Orientation......................................................Horizontal
Power.............................................................Hydraulic
Motor.................................................................20 HP
Operating Pressure................................................2,000 PSI
Reservoir Capacity................................................150 Gals.
Electrics.................................................220-440V/3Ph/60Hz
Dimensions - Actual.....................................231" x 64" x 77"(H)
Weight - Catalog................................................13,800 Lbs.

EQUIPPED WITH:
Mitsubishi FX2N PLC Control (200 Jobs w/Up to 6 Bends/Job Part)

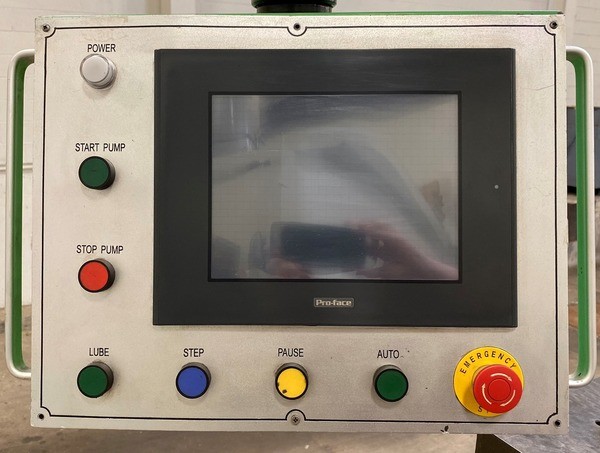

Proface America Touch Screen Interface
Mandrel Early Out Programmable

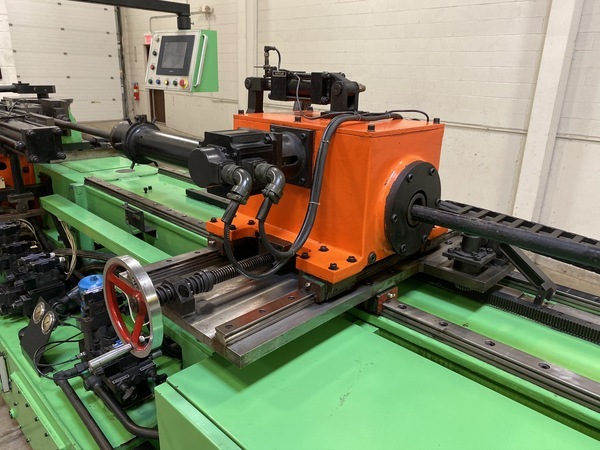

Servo Driven Plane of Bend
Hydraulic Collet Clamping
Drop away Die Clamp Holder
Pressure & Wiper Die Holders
Foot Pedal Operation
Overhead Tie Bar
Roller Carriage Assembly
Pressure Die Assist w/Rear Support Roller

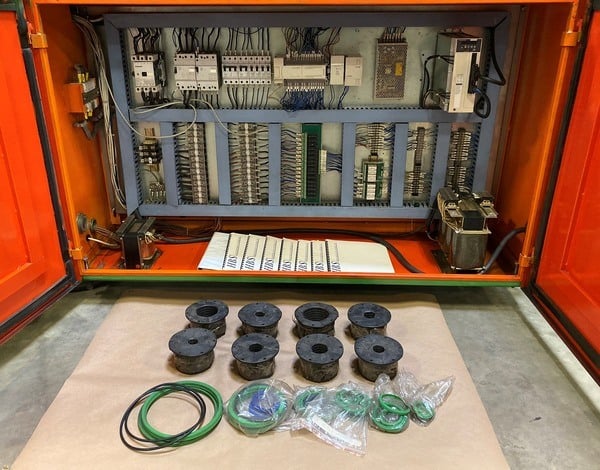

Collets: 1.5", 1.625", 1.75", 1.875", 2", 2.25", 2.5", 3", 3.5"
Documentation: Electrical, Hydraulic, Mechanical, Operators Manual

*Catalog Specifications Subject to Verification
