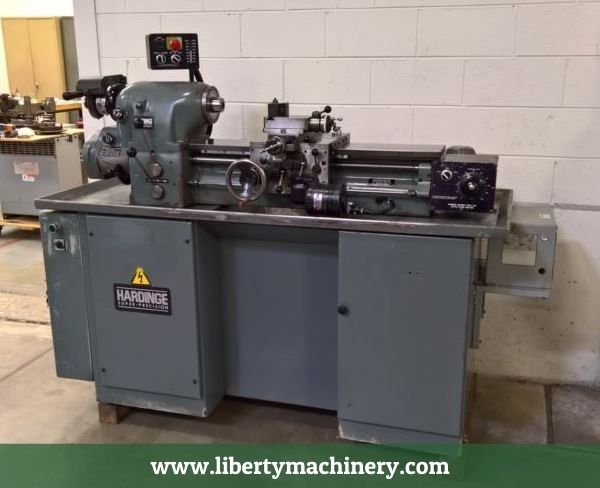

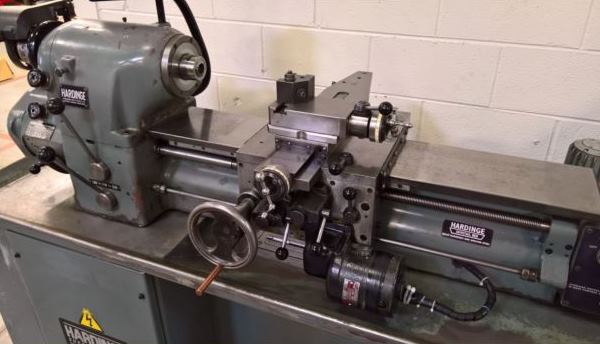

Hardinge HLV-H Precision Toolmakers Lathe | 11" x 18" Cap. - #47962

Liberty Machine # 47962 Category Make

Serial No. HLV-H-1238-A

Motor driven with 2-Speed variable speed drive unit with direct reading
spindle speed indicator and controls. Hardinge Super-Precision ball bearing
spindle. Hardinge tapered spindle nose. Tool storage compartment. Built-in
coolant system. Hardened and ground dovetail bed. Leadscrew threading with

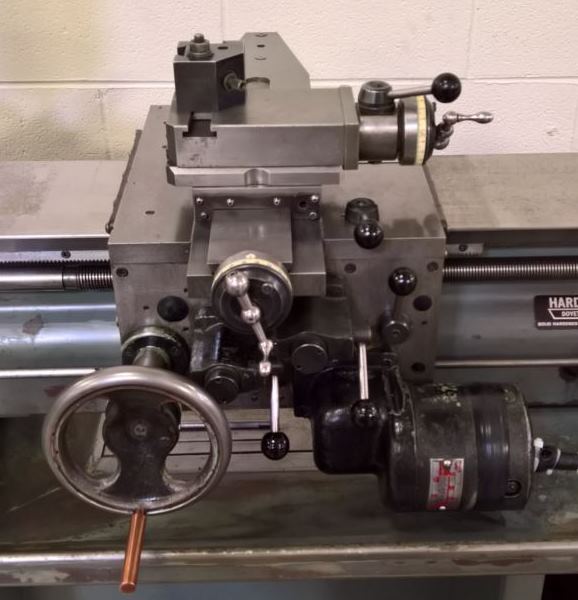

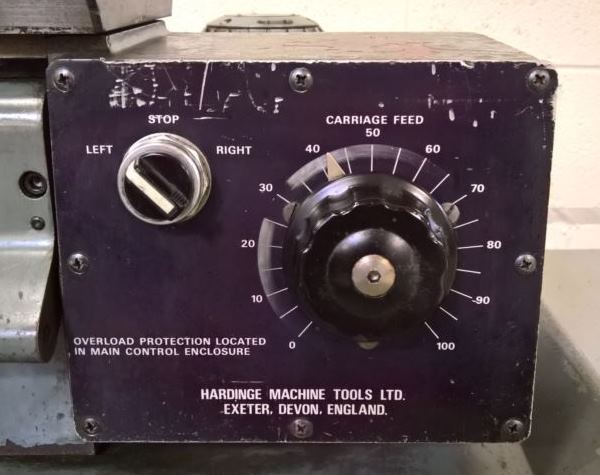

automatic stop. Independent electric variable power feed drive for carriage

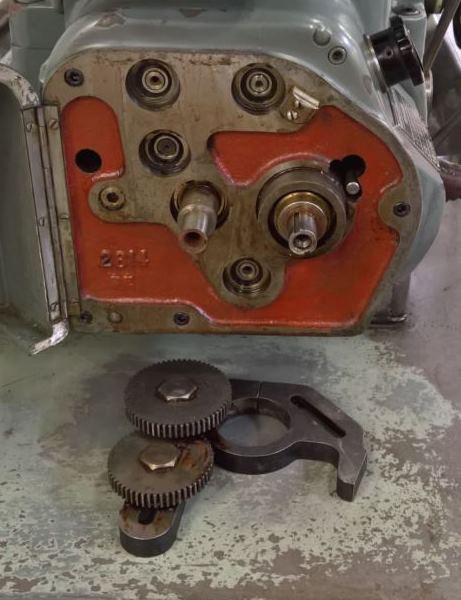

and cross slide. Quick change gear box.

SPECIFICATIONS:
Spindle Capacity 5C Collets - Round...................................1-1/16"
Spindle Capacity 5C Collets - Hex........................................7/8"
Step Chucks......................................................1-1/16" - 6"
Variable Spindle Speeds........................................125 - 3000 RPM
Swing Over Bed............................................................11"
Swing Over Cross Slide.....................................................6"
Swing Over Carriage........................................................9"
Distance Between Centers..................................................18"
Hole thru Spindle......................................................1-1/4"
Compound Slide Travel......................................................3"
Carriage Power Feed Range.......................................5/16" - 7 IPM
Cross Slide Power Feed Range....................................3/16" - 4 IPM
Lead Screw Diameter............................................1" - 8" Thread
Range of Threads (27) - Metric...................................0.3 - 2.5 mm
Machine Dimensions - Approximate...........................69"L x 32"W x 80"H
Weight - Approximate...............................................1,700 Lbs.

EQUIPPED WITH:

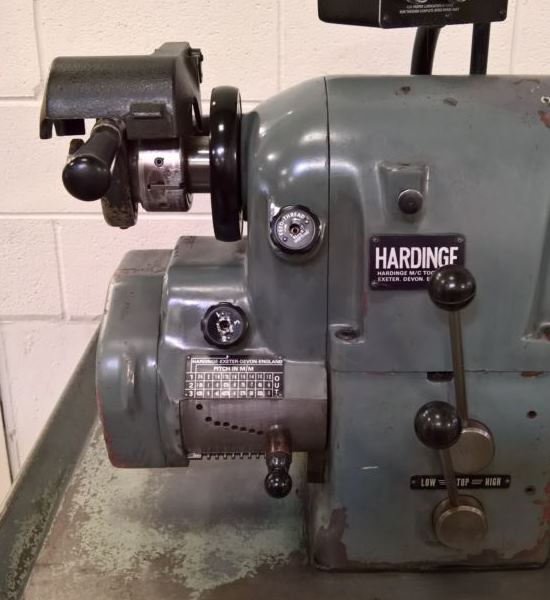

Auxiliary Metric Threading Box
Dial for Reading Millimeters

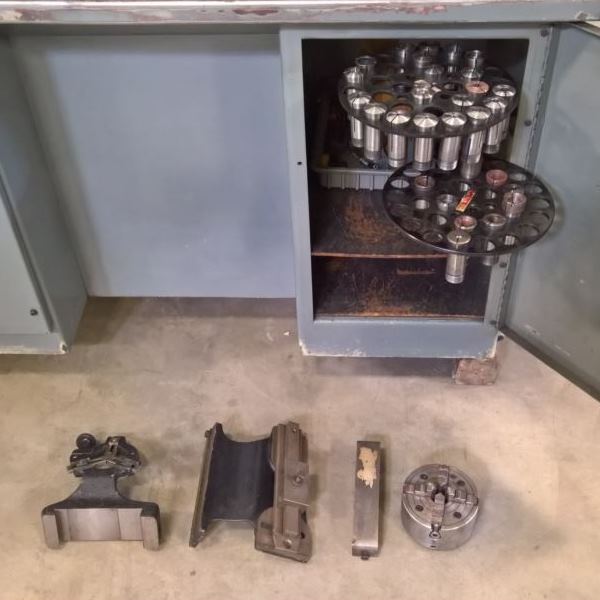

Assorted Collets, 6" 4-Jaw Chuck, Cut-Off Slide, Tool Posts
Coolant

*Preliminary Specifications Subject to Verification.
