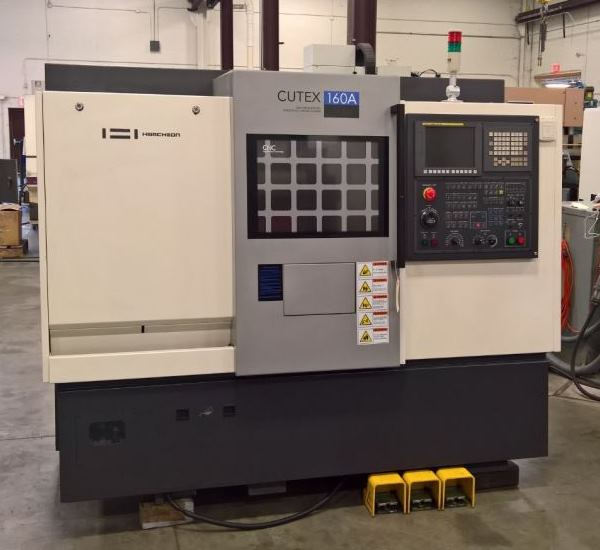

Hwacheon Cutex 160A CNC Lathe - #47679

Liberty Machine # 47679 Category Make

New - 2011
Serial No. M024359ITF-H
Run Time - 1,866 Hours

SPECIFICATIONS:
Swing over Bed.......................................................21.65"
Cutting Capacity:
- Diameter - Maximum.................................................11.81"
- Diameter - Standard.................................................7.32"
- Length - Maximum...................................................11.81"

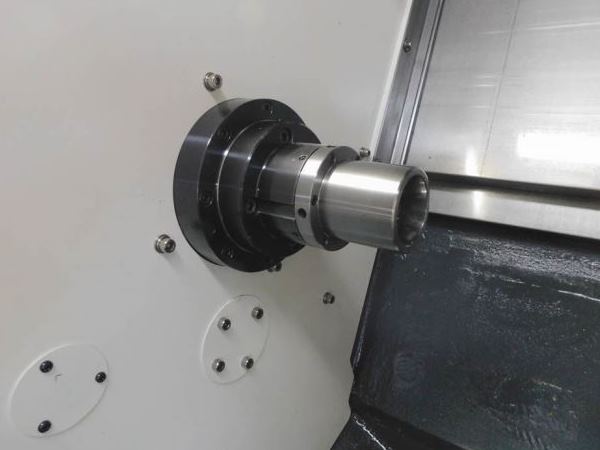

Spindle:
- Nose.................................................................A2-5
- Speed - Maximum.................................................6,000 RPM
- Hole.................................................................2.2"
- Bar Size - Maximum..................................................1.77"

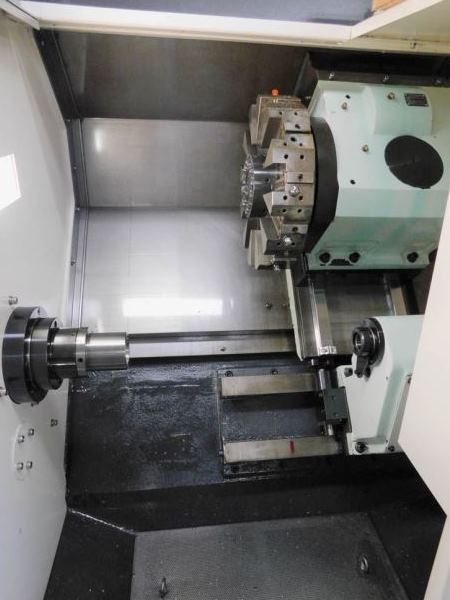

Turret:
- Tool Stations..........................................................12
- Square Tool Size.......................................................1"
- Round Tool Size......................................................1.5"
- Indexing Time...................................................0.15 Sec.
Axes (XZ):
- Rapids..........................................................1,417 IPM
- Stroke - Maximum...................................................13.19"
- Feed Motors........................................................2.4 HP
Programmable Tailstock:
- Quill Diameter......................................................2.36"
- Quill Stroke........................................................3.15"
- Taper...............................................................#4 MT
Dimensions - Catalog...........................94"(L-R) x 60"(F-B) x 68"(H)
Weight - Catalog.................................................7,055 Lbs.

EQUIPPED WITH:

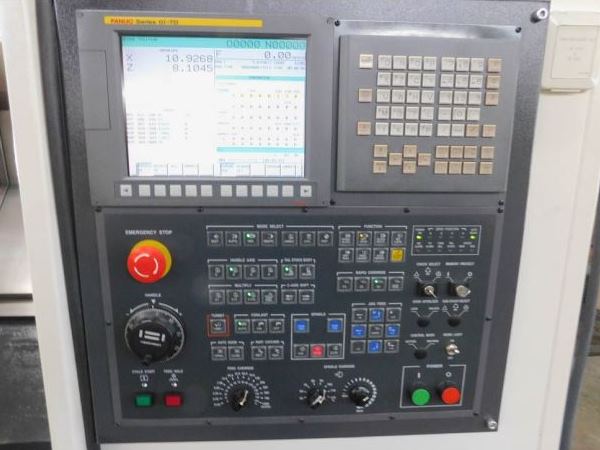

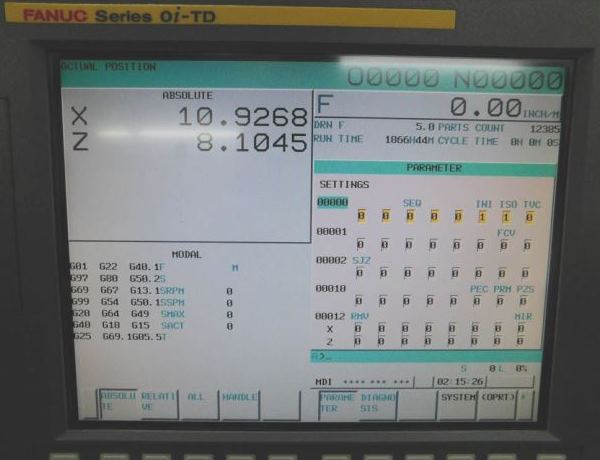

Fanuc Oi-TD Control

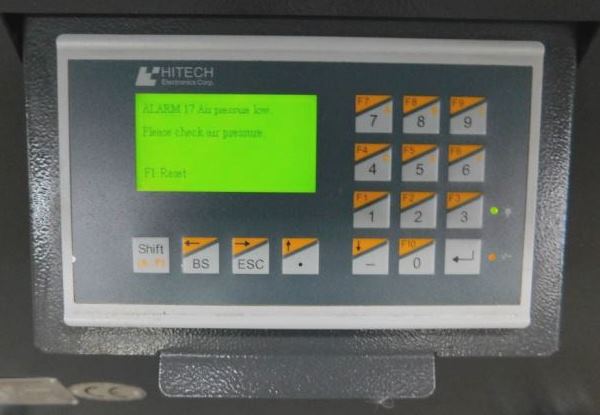

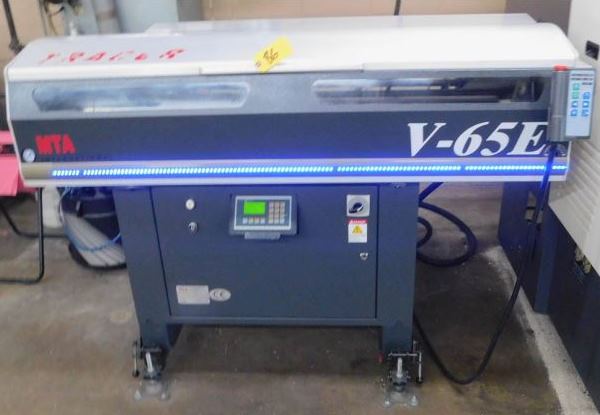

MTA V-65E Servo Driven Short Bar Feeder
Programmable Tailstock

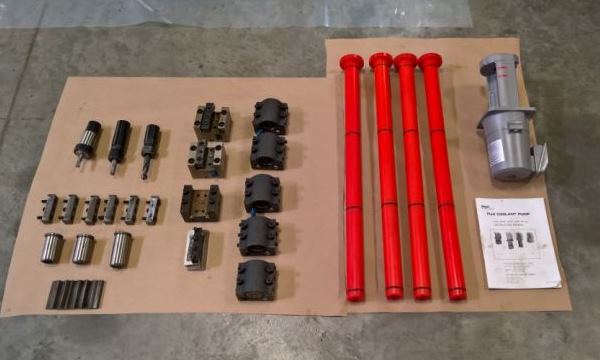

Coolant System
(3) Foot Switches
Work Light

*Preliminary Specifications Subject to Verification
