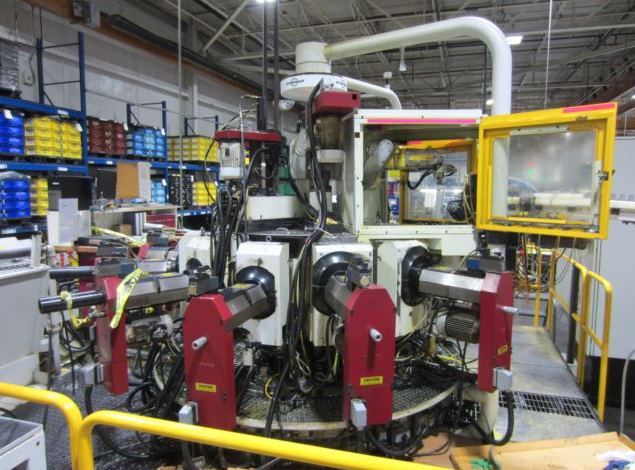

Hydromat HS12 CNC Rotary Transfer Machine | 4" Cube or 1-3/4" x 8" Round - #46100

Liberty Machine # 46100 Category Make

Serial No. HS12-34
New - 2003
Cycles - 5.2 Million

BASIC CATALOG SPECIFICATIONS:
Number of Stations - Horizontal...........................................12
Number of Stations - Vertical..............................................6
Total Amount of Toolspindles with 6 Horizontal/Vertical Supports..........18
Diameter of Cast Iron Spindle Mounting Ring...........................48.42"
Chucking Capacity - Blank............................................4" Cube
Chucking Capacity - Round.............................................1-3/4"
Workpiece Length - Maximum................................................8"
Hydraulic Tank Capacity...........................................50 Gallons
Hydraulic Pump Capacity................................................9 GPM
Electric Motor Input at 1,800 RPM.....................................6.4 HP
Hydraulic Operating Pressure Range...............................780-880 PSI
Hydraulic Operating Pressure (Clamp Pressure)......................1,450 PSI
Hydraulic Oil Operating Temperature in degrees Fahrenheit............100-150
Table Indexing Time..............................................1.2 Seconds
Cycle Time with 12 Operating Toolspindles - Minimum..............6.0 Seconds
Cycle Time - Maximum................................................Infinite
Electrical Power Requirements.............................3 Phase 460V, 60Hz
Total Machine Power (Varies with Amount of Toolspindles)..............126 HP
Total Weight of Basic Machine with 18 Toolspindles...............16,000 Lbs.

EQUIPPED WITH:

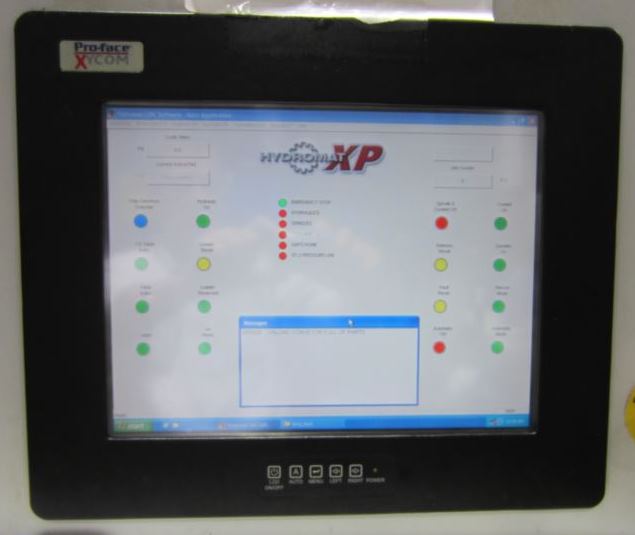

Hydromat Windows XP CNC Control
Hydromat Quick Panel Operator Pendant
GE Fanuc Series 90-70 PLC Motion Control
Fanuc LR Mate 200iB Load Blank/Unload Part Robot w/R-J3 Controller
Load Pusher & Gripper Assemblies for Fanuc Robot

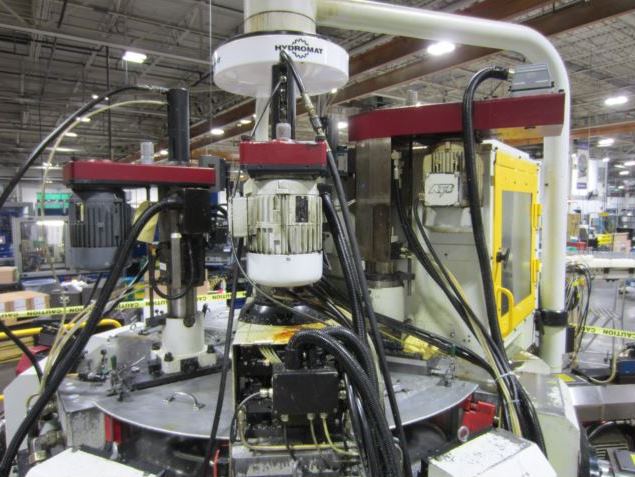

Tool Spindles - 2-Axis w/Powerflex Programmable Spindle Drives:
- (3) NC-36/100 HSK, HEI, VBX
- (4) NC-36/100 HSK, FP, HEI, VBX
- (4) NC-36/100 HSK, CF, HEI, VBX
- (2) NC-26/80 HSK, CF, HS, HEI, VBX
- (1) NC-26/80 HSK, HS, HEI, VBX
Modified Base for 2-Axis NC Slides
2-Axis NC Slides:
- (8) 36/100
- (2) 26/80
(4) Drill Detectors
(4) Stations w/180 Degree Chuck Index
Knoll 450K-1/2200 VRF 500 HP Coolant Filtration System
- Scraper Conveyor
- Magnetic Bag & Filter
- 500 Gallon Capacity

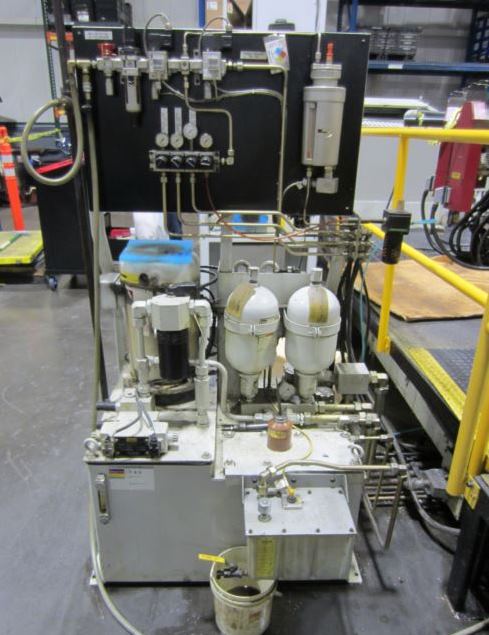

Hydraulic Power Pack
Platform Assembly
Books, Manuals, Drawings, & Discs

*Preliminary Specifications Subject to Verification.
