New – 2016
SPECIFICATIONS:
Capacities:
– Grinding length…………25.6″
– Swing…………11.8″
– Weight between centers – maximum…………220 Lbs.
Table:
– Traverse distance…………29.5″
– Traverse speed – stepless…………0.000004 – 472 IPM
– Swivel…………+9°/-9°
– Electronic handwheel increment…………0.00004″/0.0004″/0.004″
Traverse Control & Feedback – Fanuc digital AC Servo Motor
Wheelslide:
– Total infeed…………10.2″
– Infeed rate…………0.000004 – 0.24 IPM
– Electronic handwheel increment…………0.00004″/0.0004″/0.004″
Infeed Control & Feedback – Fanuc Digital AC Servo Motor

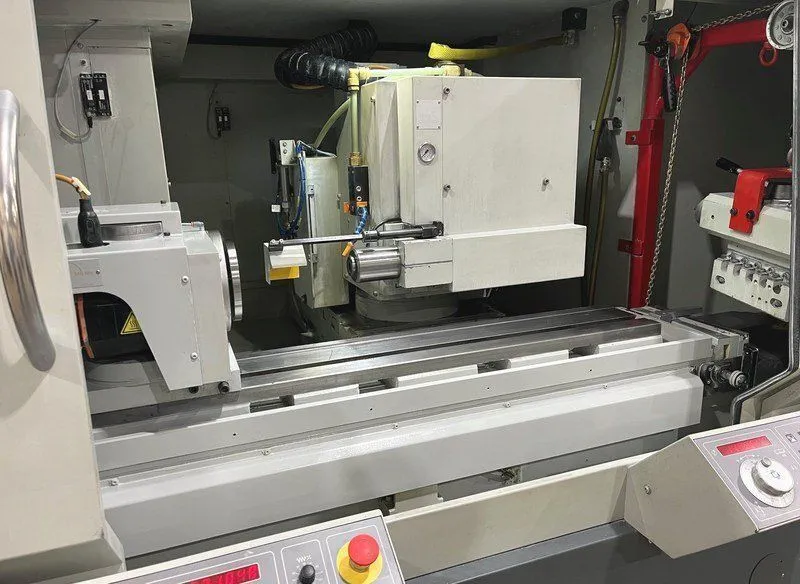

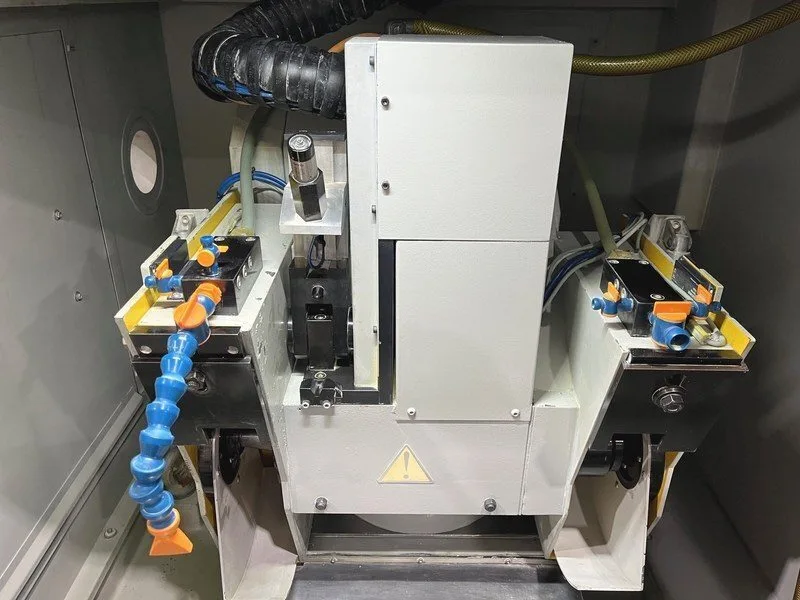

Wheelhead (Universal):
– Type…………Swiveling
– Main motor…………5.6 HP
– Wheel speed…………108 FPS
– L-Hand wheel…………15.7″Ø x 2″W x 5″Bore
– R-Hand wheel…………13.7″Ø x 1″W x 5″Bore
– ID Grinding System Motor power…………3 HP

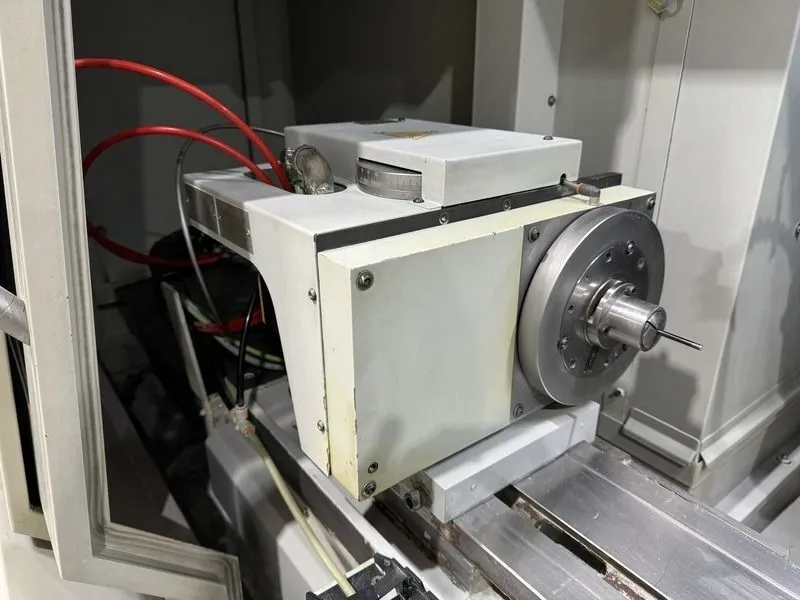

Workhead:
– Type………….Live & Dead Centre
– Swivel Range……….. -15 deg. / + 90 deg.
– Speed Range (infinitely variable)………….0 – 660 RPM
– Output Torque…………20 Lb.Ft.
– Spindle Taper (standard/reduced)……………#5MT / #3MT
Machine weight – catalog…………12,000 Lbs.
Machine dimensions – actual………… 134″(L-R) x 87″(F-B) x 100″(H)
Coolant System Dimensions – Actual…………57″L x 27″W x 28″H
EQUIPPED WITH:

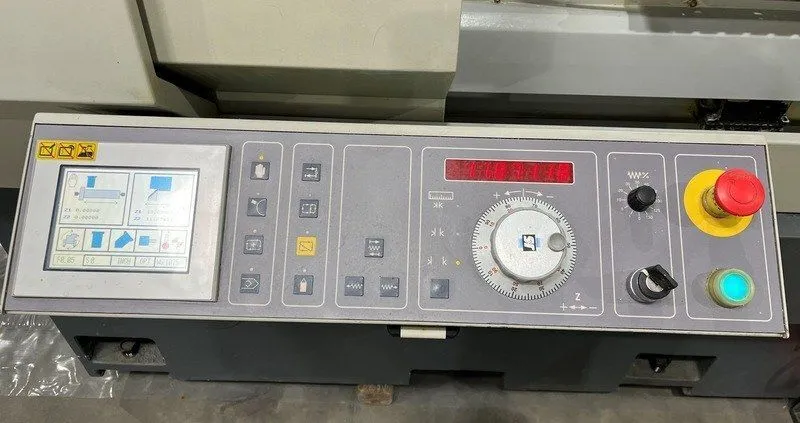

Fanuc color touchscreen control w/J&S icon based software

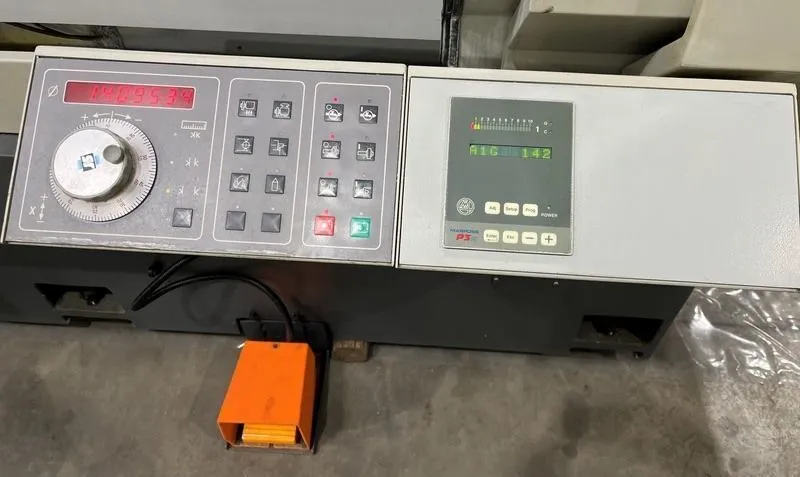

Marposs P3 SE gaging (acoustic gap and crash eliminator)

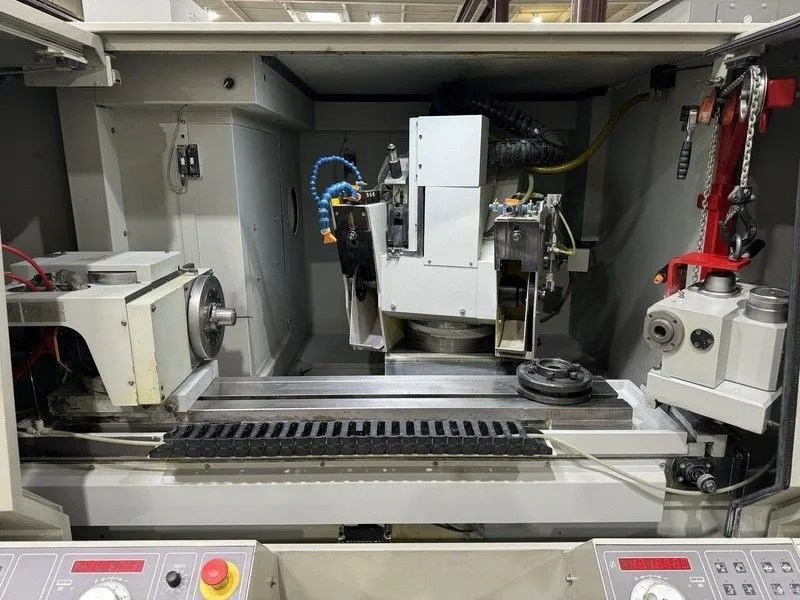

3-Wheel Design: Left-hand OD, Right-hand (face), & ID grind wheels

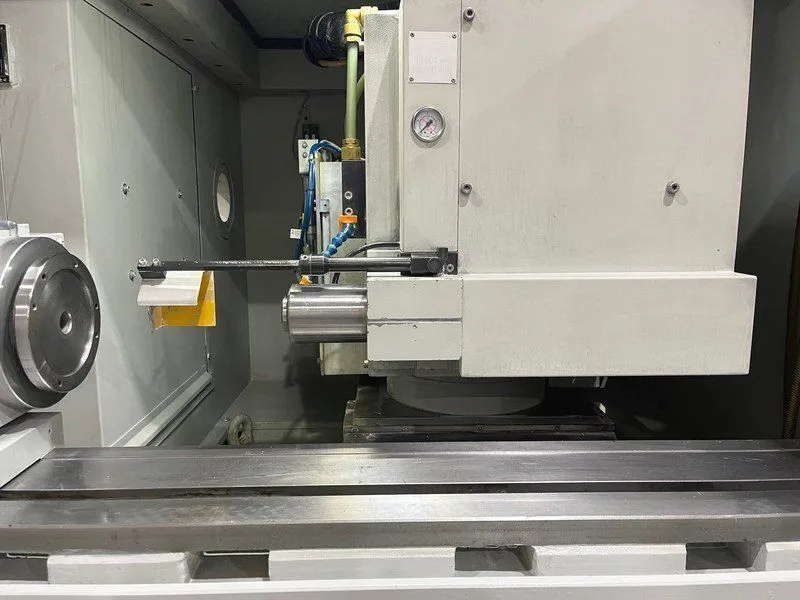

Fischer 28,000 RPM, ID spindle w/ retractable wheel guard
Manual B-Axis swivel w/encoder for accuracy

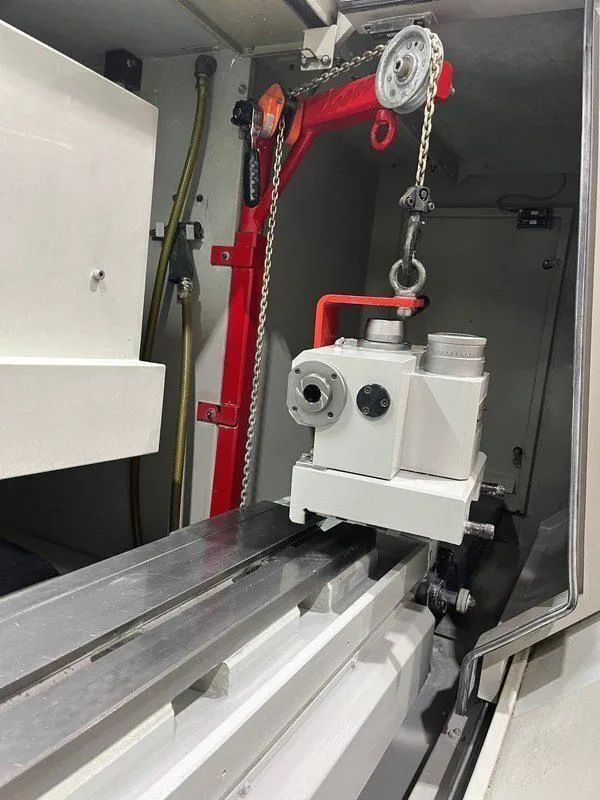

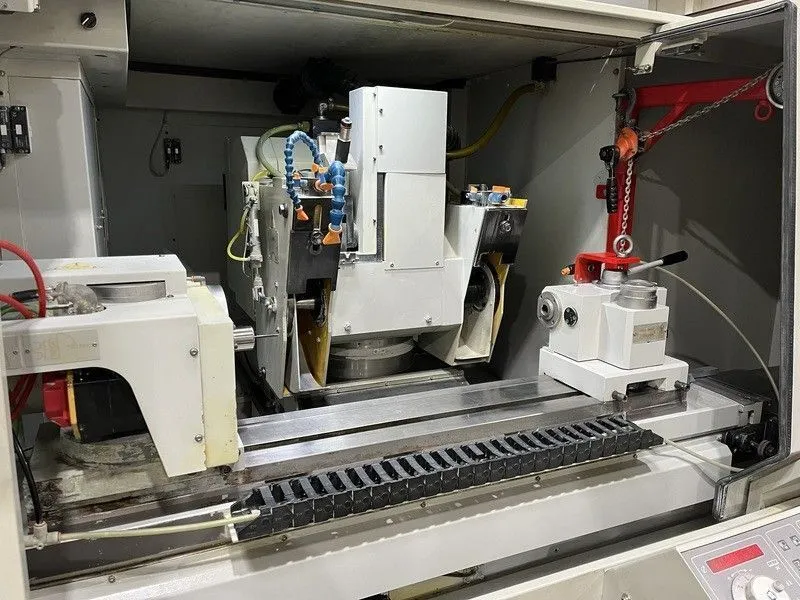

High Accuracy Taper Correction Tailstock
Fanuc digital AC servo driven table and wheel slide
2-Axis simultaneous movement
Optional Pneumatic Foot Operated 5C Collet Attachment
Lateral Locator – Shoulder gage swing up probe

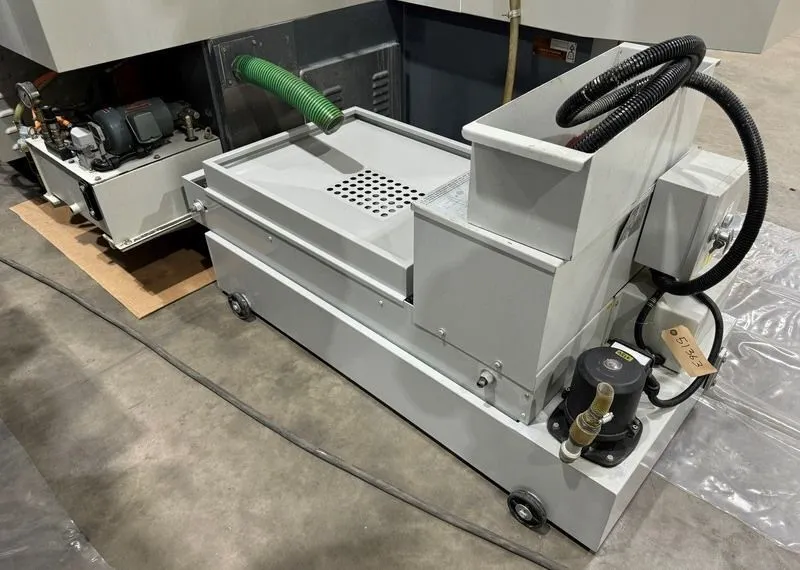

Uni Magnetic Industrial PFA-80A paper bed coolant filtration system
IFS Roof Mounted Mist Collector

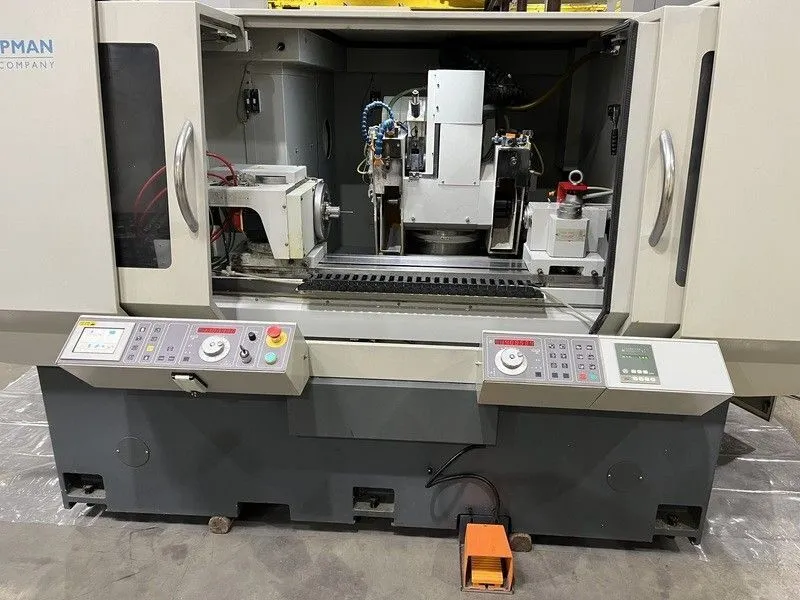

Full enclosure
*Preliminary specifications pending verification.
