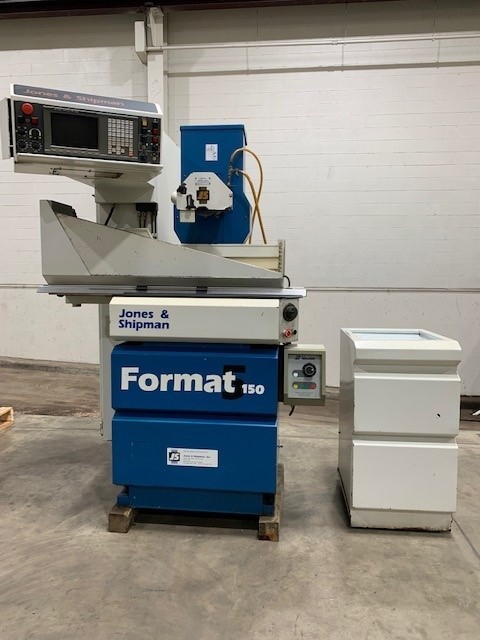

Jones Shipman Surface Grinder Format 5/150
New – 1999
Serial No. 18450
SPECIFICATIONS:
Chuck Size…………6″ x 18″
Periphery – Max. w/New Wheel…………15.7″
Grinding Wheel:
– Standard…………8″ x 3/4″ x 1.25″ Bore
– Maximum…………8″ x 1″ x 1.25″ Bore
Wheelspeed – Variable Speed Option…………1,000 – 4,000 RPM
Table Feed – X-Axis:
– Traverse Rate…………3 – 82 FPM
– Traverse Rate Override…………100 – 75%
– Table Jog Rate…………3 – 20 FPM
– Sparkout Passes – Maximum…………9999
Wheelfeed – Y-Axis, Crossfeed Z-Axis:
– Programmable Increment – Minimum…………0.0001″
– Feed Rate…………0.006″ – 120″ IPM
– Sparkout Passes, Saddle – Maximum…………9999
– Electronic Handwheel, Switchable…………0.001
– Wheelhead Motor…………2.9 HP
Electrics…………440V/60Hz/3Ph
Jones Shipman Surface Grinder Format 5/150 EQUIPPED WITH:

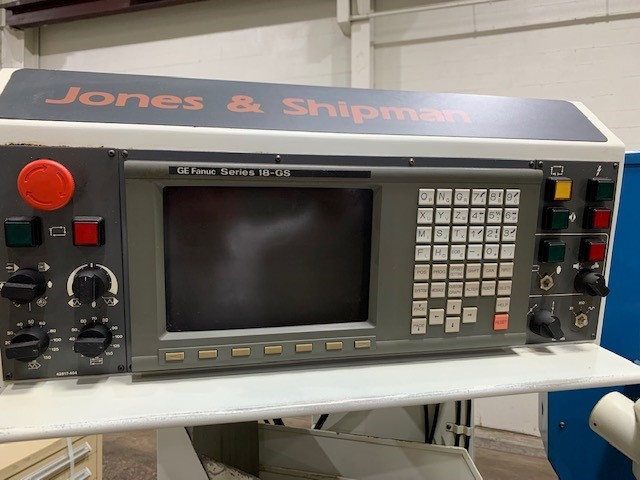

GE Fanuc Series 18-GS (2-Axis Control)
Standard Grinding Cycles:
– Slot Grind
– Area (Traverse) Grind
– Plunge Grind
– Face Grind
– Programmable Auto-Dressing w/Compensation
OS Walker Electromagnetic Chuck
Bedatec BTL 85/4 Coolant Filtration System
Diamond Block Dresser Fixture
*Catalog Specifications Subject to Verification
The Jones Shipman surface grinder, also known as horizontal spindle reciprocating table grinders, are versatile machines used for precision surface grinding. These grinders are commonly found in machining, manufacturing, and tooling industries, where precise flat surfaces and tight tolerances are required.
Reciprocating surface grinders consist of a horizontally oriented grinding wheel that moves back and forth in a reciprocating motion over a flat workpiece. The workpiece is mounted on a table that moves perpendicular to the grinding wheel. This reciprocating motion allows for precise and uniform grinding of the workpiece.
One of the key advantages of reciprocating surface grinders is their ability to grind large workpieces. They are capable of handling a wide range of part sizes and weights, making them suitable for various applications. These grinders can be used to flatten surfaces, remove material, or create precise finishes on components such as castings, plates, and molds.
The Jones Shipman surface grinder offers high accuracy and repeatability. They are equipped with precise controls that allow for fine adjustments in grinding parameters such as speed, feed rate, and depth of cut. This control ensures consistent and accurate results, meeting the required surface finish and dimensional specifications.
